KH300AG: Smart Current Voltage Data Recorder with 2/4/6/8/12/18 Channels Color Pressure Paperless Data Recorder Wth USB RS485
- Category: >>>
- Supplier: Xiamen Kehao Automation Co. Ltd.
Share on (60779946993):
Product Overview
Description
Products Description

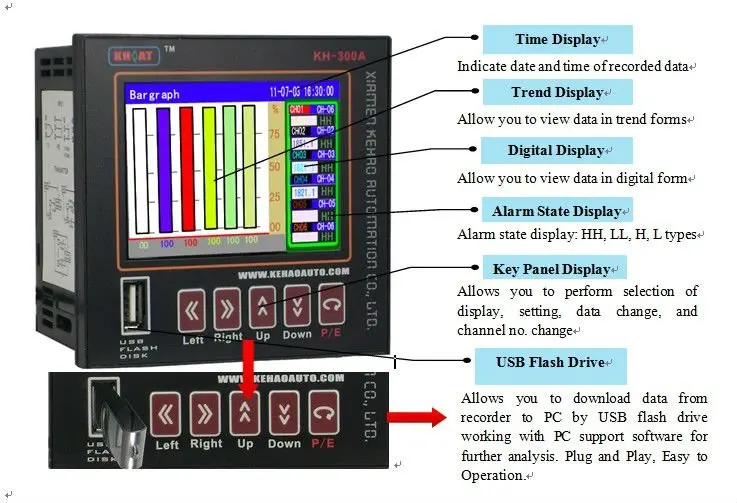

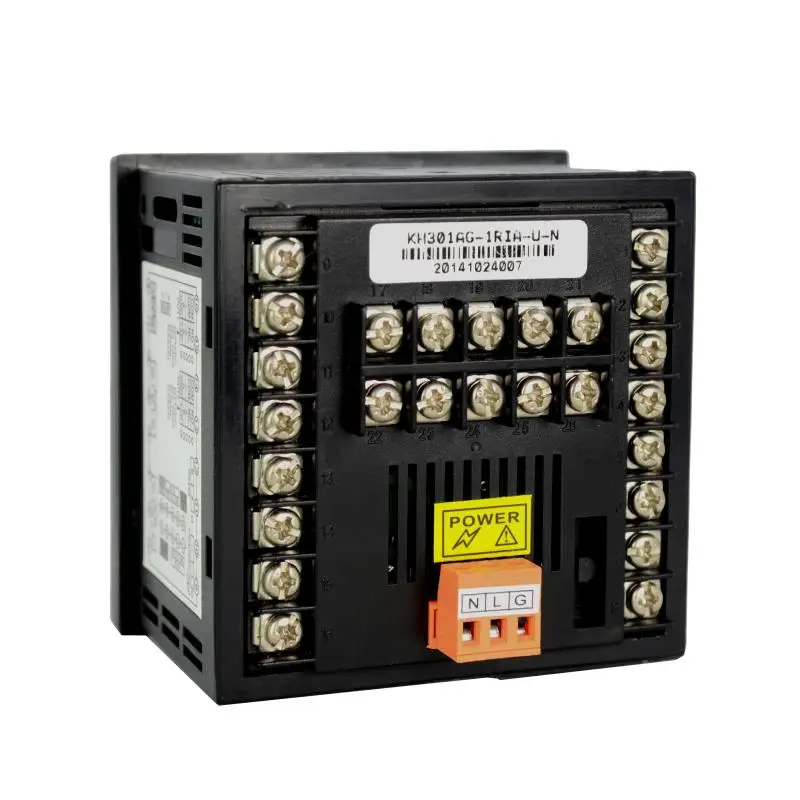

KH300AG color paperless recorder (96x96x85mm, up to 6 channels) for TFT true color LIQUID crystal display, completely isolated universal input, such as thermocouple, thermal resistance, current voltage, temperature,liquid level, pressure, voltage, current, flow, vibration frequency input; Adopt modularized structure to output alarm, sensorauxiliary power supply, forwarding, printing, communication and other functions. Measurement data can be displayed in a variety of
types, such as bar chart graphic display, real-time trend, historical trend memory, real-time circular chart, historical circular

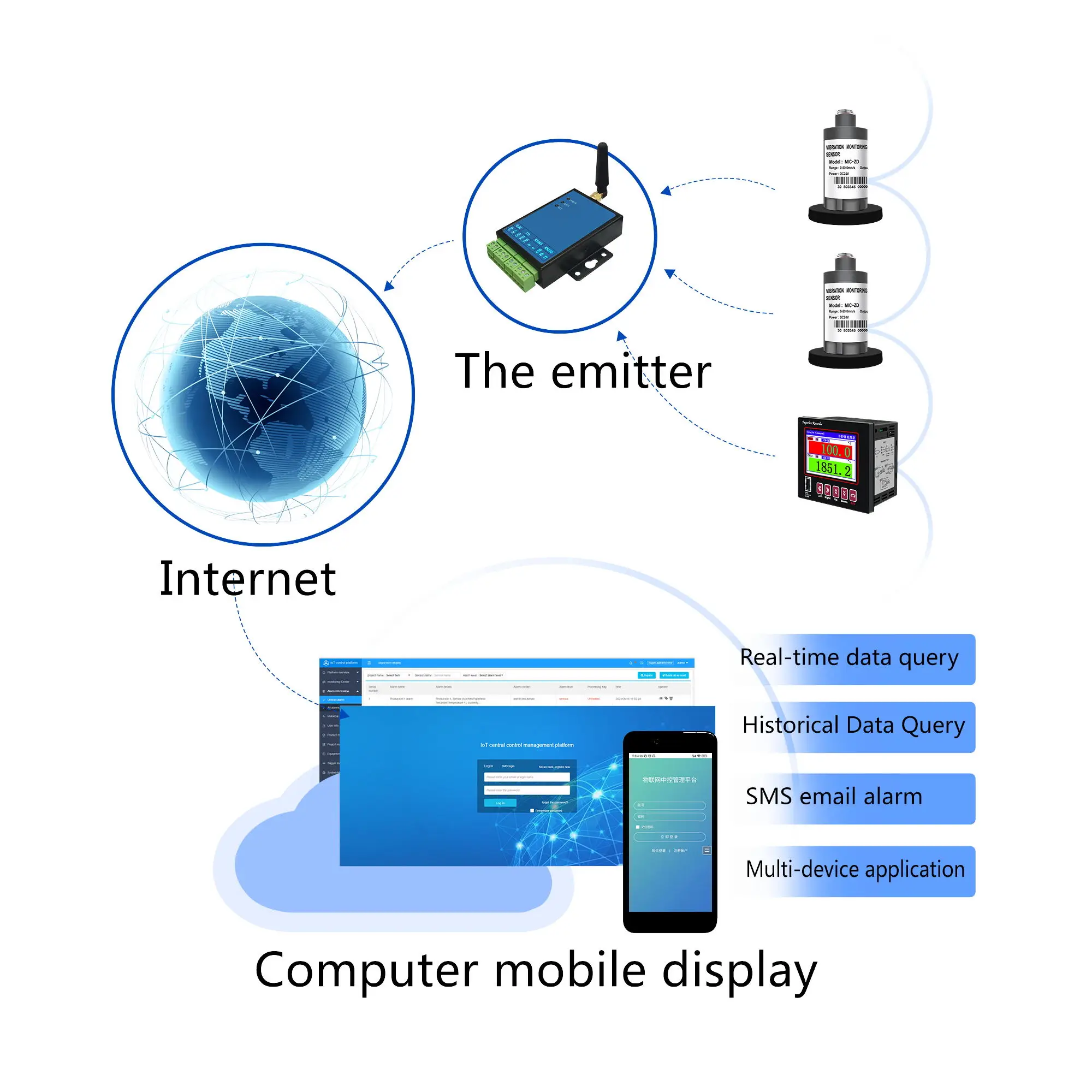

chart memory, alarm state display, etc. Curves and data can also be printed by small printer through RS232 port. It also provides the function of viewing data of year, month, day, hour, minute, and second. The recorder can be configured with OPC server, SCADA system and other professional software, using modbus-RTU communication protocol through RS485 port. Historical data can be directly downloaded through the U disk, plug and play, convenient and flexible. The data analysis software supported by PC can print the data into curves and output them in Excel format for further analysis.
types, such as bar chart graphic display, real-time trend, historical trend memory, real-time circular chart, historical circular
chart memory, alarm state display, etc. Curves and data can also be printed by small printer through RS232 port. It also provides the function of viewing data of year, month, day, hour, minute, and second. The recorder can be configured with OPC server, SCADA system and other professional software, using modbus-RTU communication protocol through RS485 port. Historical data can be directly downloaded through the U disk, plug and play, convenient and flexible. The data analysis software supported by PC can print the data into curves and output them in Excel format for further analysis.

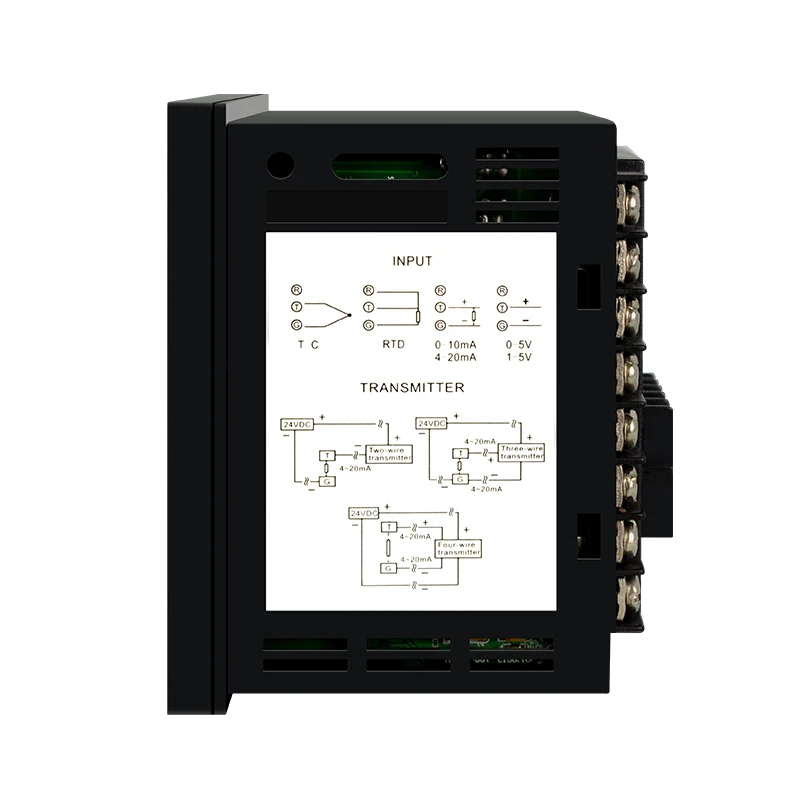

Sampling Rate | ≤1 s | |
Temperature Shift Coefficient | Standard value: 50PPM | |
CMR Ratio | 85-110dB | |
Input Independence | 500Kω when standard voltage input; 250Ω ( 4-20mA). Or 500Ω (0-10mA) when standard current input More than 20MΩ when other signal input | |
Isolation | Isolated voltage between channels and ground: 1000VAC.Isolated voltage between channels:400VAC | |
Thermocouple | Internal resistor: not more than 1000Ω. Cold junction compensation tolerance: maximum +-2℃ | |
RTD | Current 2.5mA, three wire, each wire with same resistance: max.10ohm per each wire. | |
Input Error Action | When T.C., RTD,1-5VDC, 4-20mA input and there is open or short circle, there are three ways available: measured value as maximum, minimum or hold | |
Power Supply Specification | ||
Power supply | VAC: 100-240VAC, frequency: 47-63 HZ, max. power consumption: 5VA VDC: 24VDC,max power consumption: 5VA (please advise when order) | |
Insulation | When power insulation to ground is higher than 1500VAC, leakage current: 10mA for one minute When power insulation to housing is higher than 1500VAC, leakage current: 10mA for one minute | |
Output Specification | ||
Aux. power supply | 24VDC, 50mA, auxiliary power supply | |
Alarm Output | Up to 2 alarm output, 250VAC, 3A relay contact output: NO or NC | |
Retransmission | Up to 2 channels, 4-20mA output, max. tolerance: +-0.2% | |
Others | ||
Processor | 32 bits, high performance, high integrated ARM CPU | |
Hardware guider | CPU inner integration for long time, stable and safe operation | |
Hardware Clock | Adopt hardware real clock with high stability. Clock accuracy: +-5ppm. After power off, Li battery for continual power supply. The validity of battery is 30days. | |
Data Memory | All data will be stored in FLASH memory, not need reserve battery in order to ensure that all the history data and configuration parameters will be not lost when power off. | |
Comm. Port | Photoelectrical isolated RS485 communication interface | |
Comm. Protocol | Standard MODBUS- RTU comm. protocol, can communicate with modern HMI and DCS directly. | |
Printing Port | Photoelectrical isolated RS232C print port, Baudrate: 9600bps. Maximum print resolution:240dot/line | |
Record Time | ≈46.9 days ÷channel no. x Record interval time | |
Display | 3.2inch TFT color LCD | |
Net Weight | Maximum 0.5kg | |

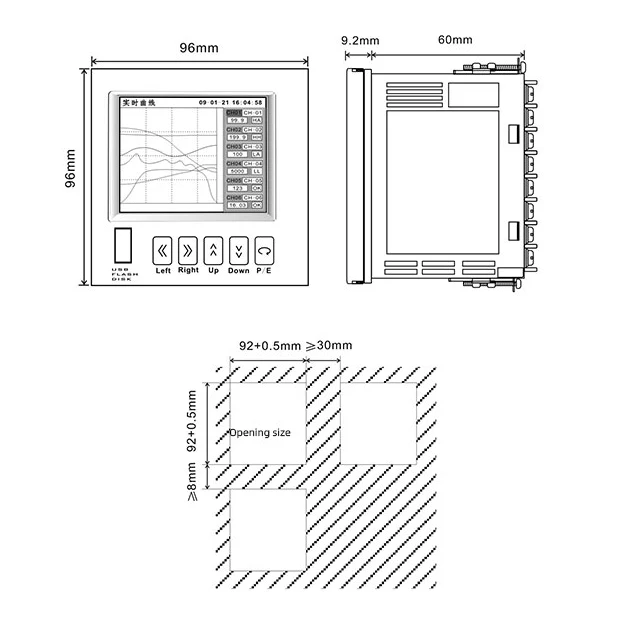

Size | Dimension: 96mm*96mm*70mm , Install Size: 92mm*92mm | |
Ambient | Working Temperature:0-50C, relative humidity; 10%-85%( now dew) Transport and storage: Temperature: -20-60℃, relative humidity : 5%-95%(no dew) Sea Height: 2000m | |
KH300AG Selection of Paperless Recorder

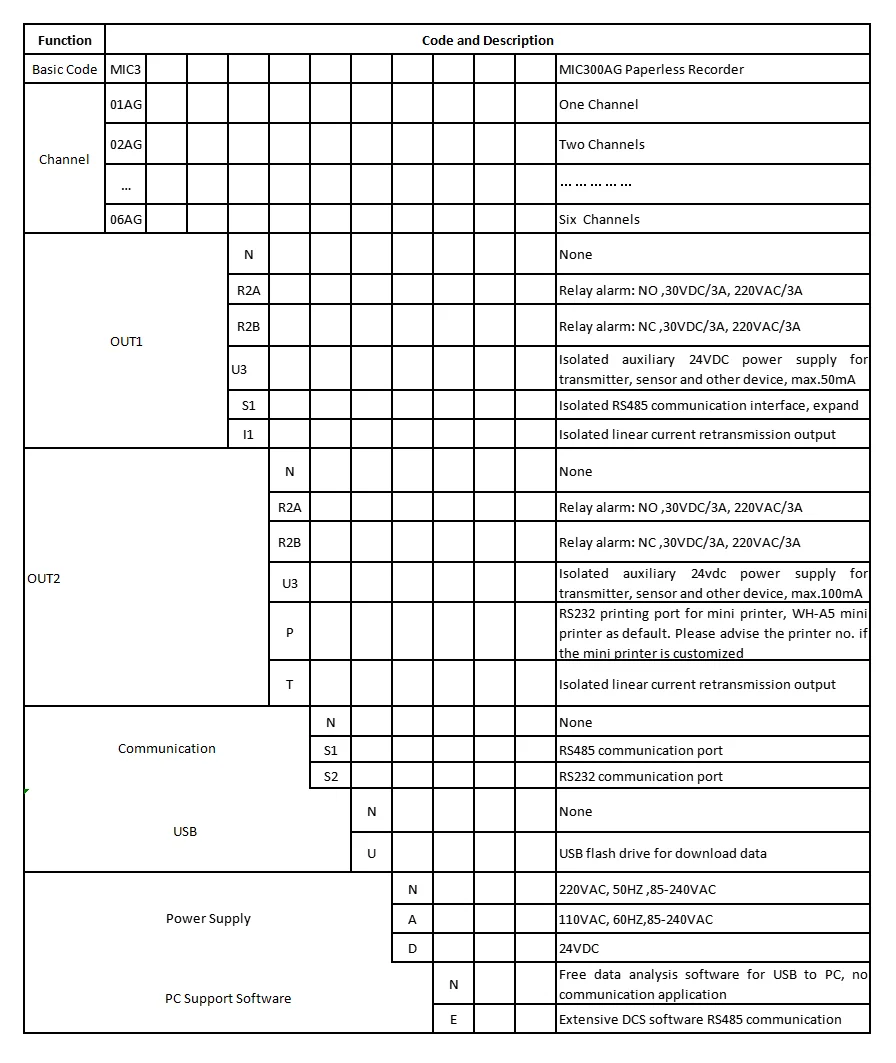

For example : MIC-306AG-R2A-R2A-S1-U-N-E
Meaning: Channel -------Six Channels
OUT1-------Relay alarm : NO , 30VDC/3A, 220VAC/3A
OUT2-------Relay alarm : NO , 30VDC/3A, 220VAC/3A
Communication--------RS485 communication port
USB--------USB flash drive for download data
Power Supply------220VAC, 50HZ ,85-240VAC
PC Support Software-------Extensive DCS software RS485
For example : MIC-306AG-R2A-R2A-S1-U-N-E
Meaning: Channel -------Six Channels
OUT1-------Relay alarm : NO , 30VDC/3A, 220VAC/3A
OUT2-------Relay alarm : NO , 30VDC/3A, 220VAC/3A
Communication--------RS485 communication port
USB--------USB flash drive for download data
Power Supply------220VAC, 50HZ ,85-240VAC
PC Support Software-------Extensive DCS software RS485
