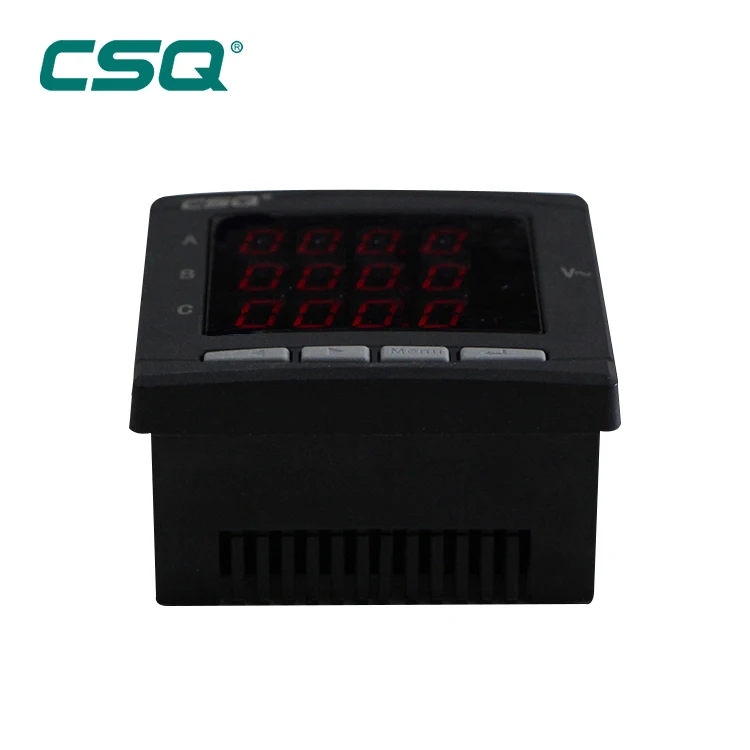

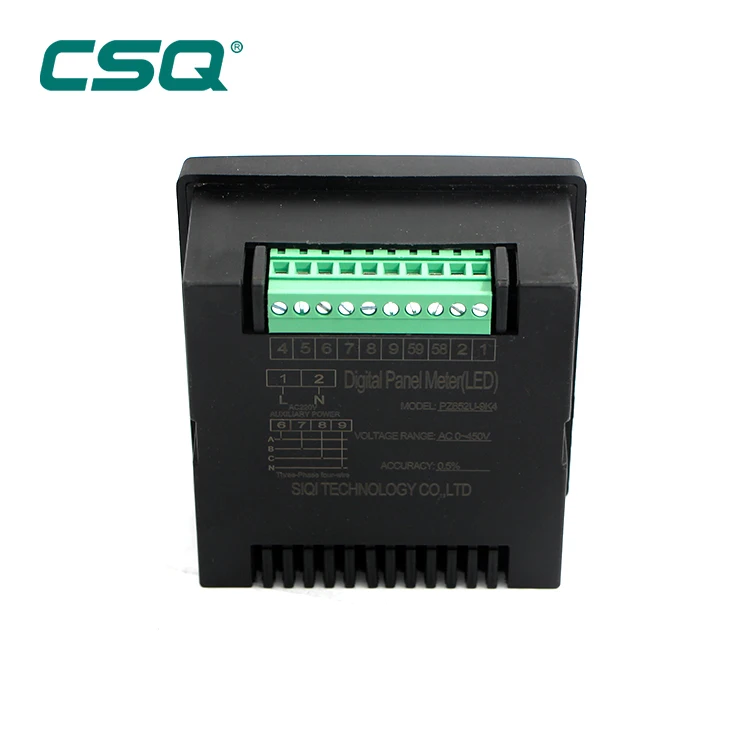

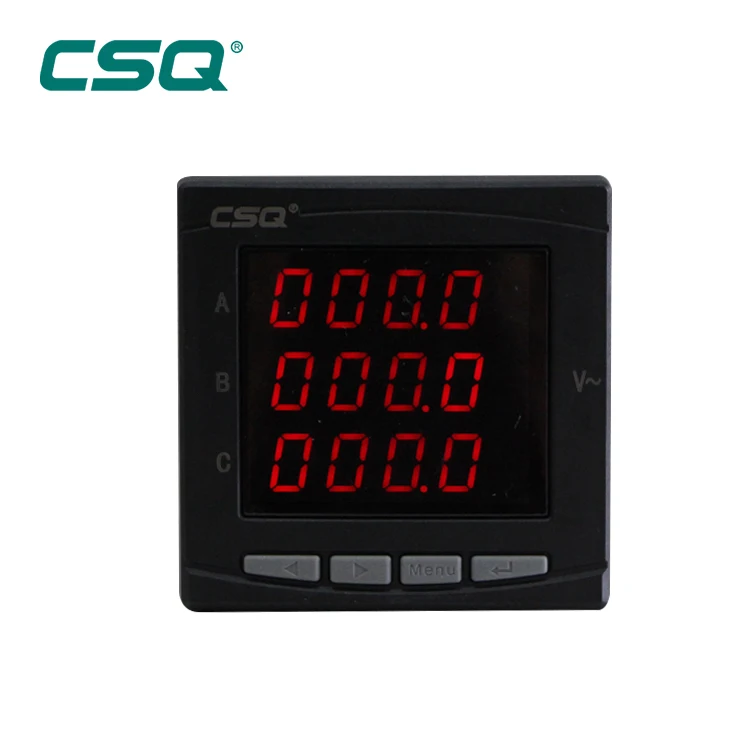

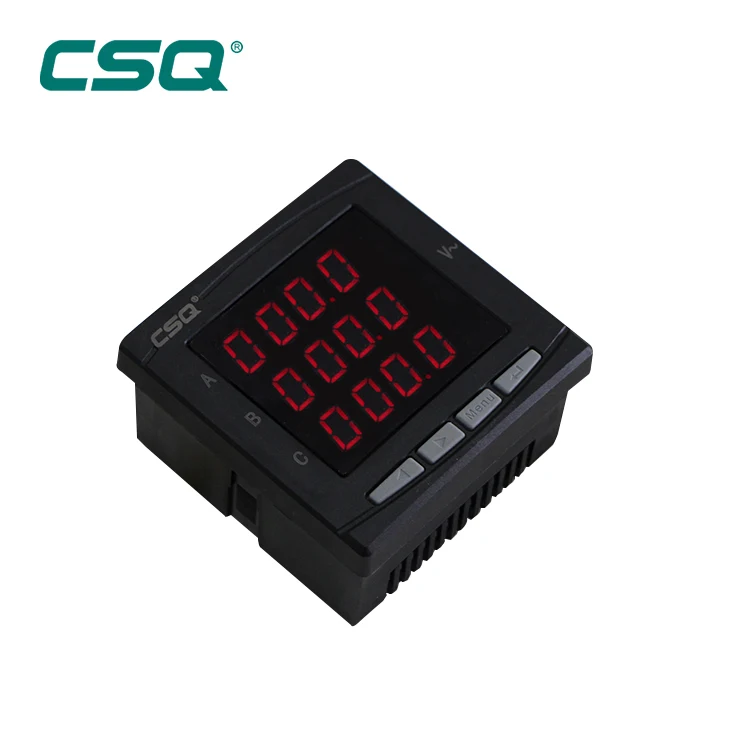

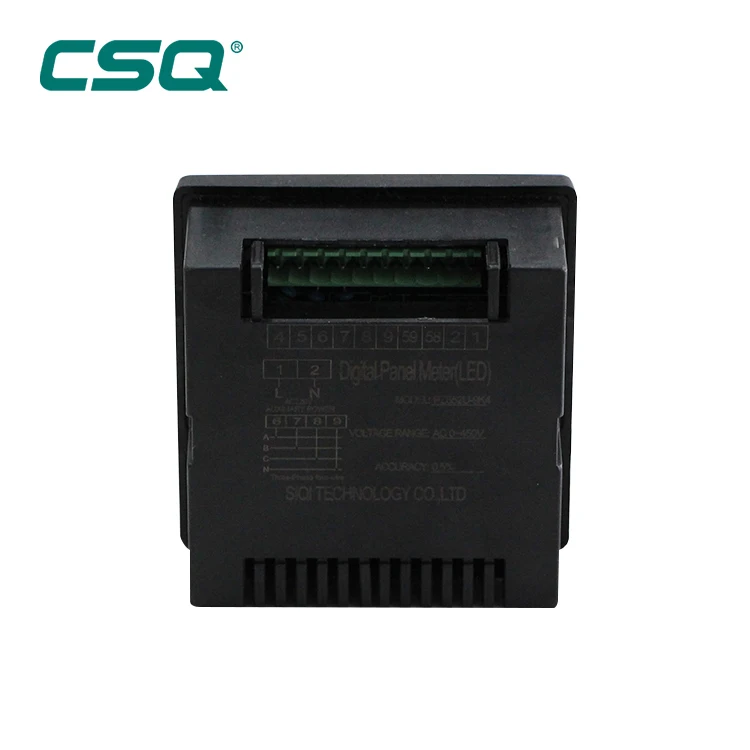

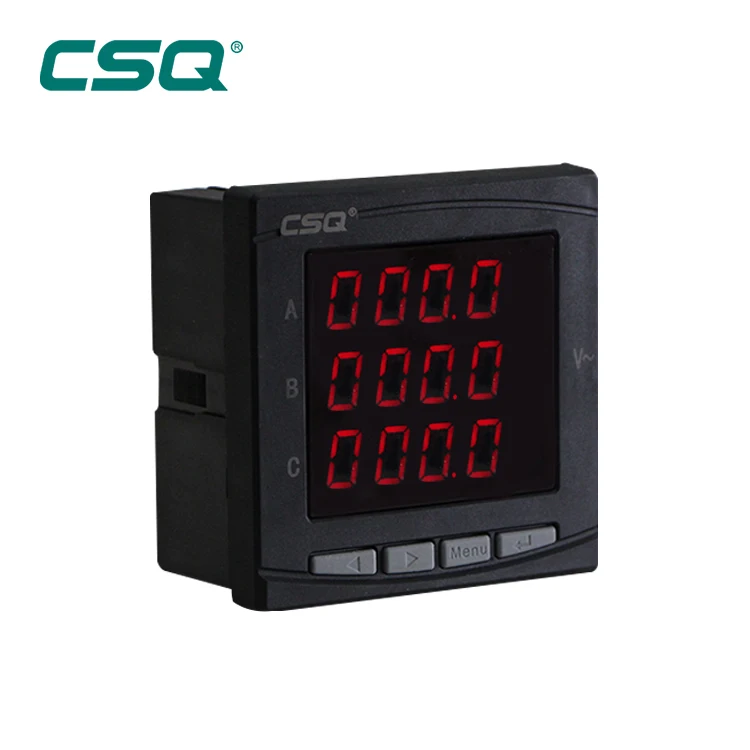

This digital panel voltmeter is applicable for electric power grid and automation control systems, mainly used to measure voltage in power grid. According to the additional functions, the meters can be divided into X, K series.
X series digital display intelligent voltmeters adopt direct AC sampling, use algorithm of True RMS to measure the voltage, and employ direct display of LED tube.
K series intelligent digital display meters are designed on the basis of X series, can be an optional of 1-3 channels of analog transmitting output (4-20mA,etc.) , 1-4 channels of digital input measuring function (realizing“remote signaling”) ,1-2 channels of relay output function (realizing “remote control”); and 1 channel of RS-485 digital interface, adopting Modbus-RTU protocol to realize “remote measurement” function, it is flexible and convenient to use and with three-row digital display or single-row digital display.
The meters also can be divided into single-phase voltage meter and three-phase voltage meter according to the measured power network,. Display mode of single-phase voltage meter is single-row digital display or liquid crystal display; Display mode of three-phase voltage meter are three-row digital display or liquid crystal display.

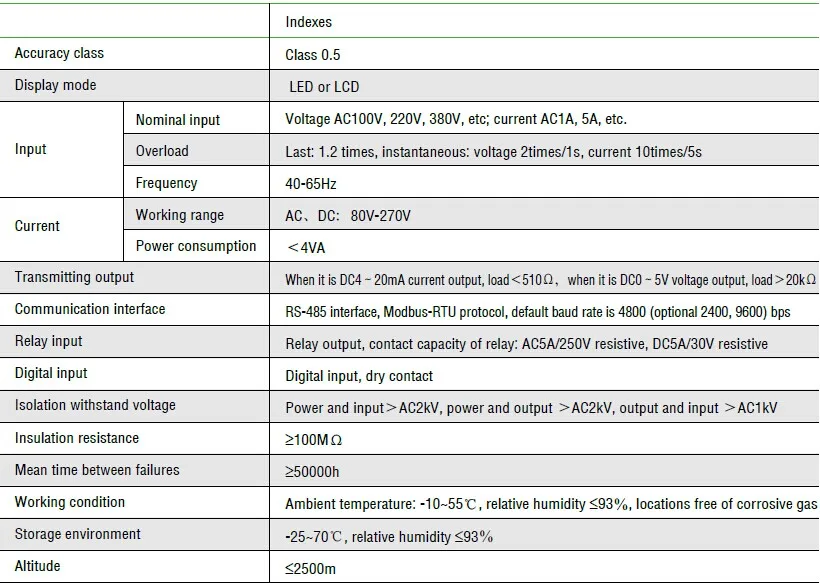

Detailed technical specifications refer to the technical indexes of digital display meter.
** Outline Dimension Table:
Outline code
Model of digital meter
Frame size
(mm2)
Panel mounte matching dim.(mm2)
Hole size
(mm2)
Installation depth(mm)
(excluding frame thickne
2
42 Square
120X120
110X110
111X111
55.5
3
6 Square
83X83
75X75
76X76
75
5
5 Groove
96X48
90X43
91X44
117
9
9 Square
96X96
90X90
91X91
75
A
61 Square
74X74
66X66
67X67
75
D
Micro Square
48X48
44.5X44.5
45X45
89

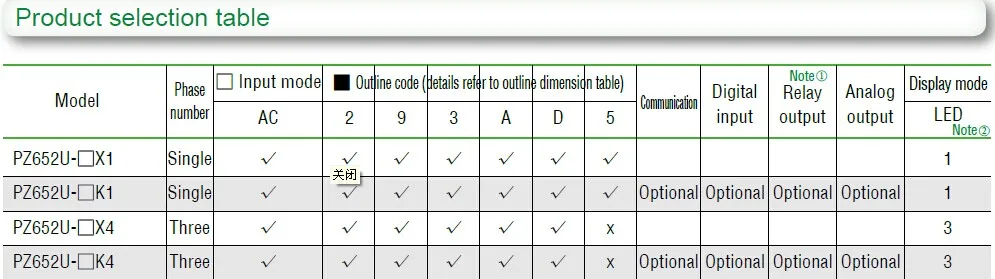

** Basic Specification and Main Parameters:
Note: 1) 2 and 9 outline can be optional communication, 4 channels of digital input, 2 channels of relay alarm output, 3 channels of analog output; A and 3 outline can be optional communication, 2channels of digital input, 1 channels of analog output; D and 5 outline can be only optional communication. 2) Number in table cell of LED column represents the row number of nixie tube, such as “1” means that the corresponding model of meter has 1-row digital display function, “3” means that the corresponding model of meter has 3-row digital display function. “√” means that the corresponding meter has this outline or function, on the contrary, the table cell will be marked with “x”
Typical Product Description:
** Order Guide:
When ordering, please specify the model, power supply, input signal, transformation ratio, display
requirement and other relevant information, default accuracy class will be class 0.5.
eg.: X series: Model: PZ652U-9X4 Power supply: AC220V Three phase four wires Input transformation ratio:10kV/100V Frequency: 50Hz
K series: Model: PZ652U-9K4 Power supply: AC220V Three phase four wires Input transformation ratio:10kV/100V Frequency: 50Hz One channel of Transmitting output:DC4~20mA 4 channels of digital input, 2 channels of relay output
Note: relay output can be used for two work modes: A. remote control mode, B. limit alarm mode; user shall clearly mark the alarm value for mode B.
