HC9032M Woodworking Double Side Planer Saw Machine
- Category: >>>
- Supplier: Qingdao High-Class Service Import & Export Co. Ltd.
Share on (60779978731):
Product Overview
Description
Product Description
This machine is mainly based on the needs of solid wood processing users for the smooth feeding of wide-sheet processing, its max.processing width 200mm, max. processing thickness 75mm.
We add bottom driven roller for working table, and variable frequency speed regulation, saw spindle cooling with air, electric lifting, with the advantages of smooth feeding, convenient and quick operation.
We add bottom driven roller for working table, and variable frequency speed regulation, saw spindle cooling with air, electric lifting, with the advantages of smooth feeding, convenient and quick operation.
Model | HC9032M | HC9032E |
Max. working width (Cutter outside diameter 125mm) | 200mm | 200mm |
Max. working thickness (Cutter outside diameter 125mm) | 10-75mm | 10-75mm |
Bottom cutter Max.planing off thickness | 5mm | 5mm |
Upper cutter Max.planing off thickness | 6mm | 6mm |
Active table max. lifting stroke | 5mm | 5mm |
Active guide rail max. stroke | 5mm | 5mm |
Planer cutter spindle speed | 6000r/min | 6000r/min |
Bottom saw spindle | 4500r/min | 4500r/min |
Feeding speed | 10-45m/min | 6-24m/min |
Main spindle diameter | 40mm | 40mm |
Bottom cutter diameter | 105-125mm | 105-125mm |
Upper cutter diameter | 105-150mm | 105-150mm |
Bottom saw blade dimater | 125-250mm | 125-250mm |
Total power | 32.05kw | 33.75kw |
Voltage | 380v 50hz 3phase | 380v 50hz 3phase |
Bottom cutter spindle | 4kw | 4kw |
Upper cutter spindle | 5.5kw | 5.5kw |
Bottom spindle | 18.5kw | 22kw |
Machine Feeding motor | 2.2kw | 1.5kw |
Lifting motor | 0.75kw | 0.75kw |
Feeder motor | 1.1kw | 1.1kw |
Feeding roller size | 140*35*50mm | 140*35*50mm |
Dust port | 3pc*120mm | 3pc*120mm |
Air pressure | 0.4-0.6mpa | 0.4-0.6mpa |
Machine size | 3900*1600*1550mm | 2950*1250*1550mm |
Machine weight | 2500kg | 2300kg |

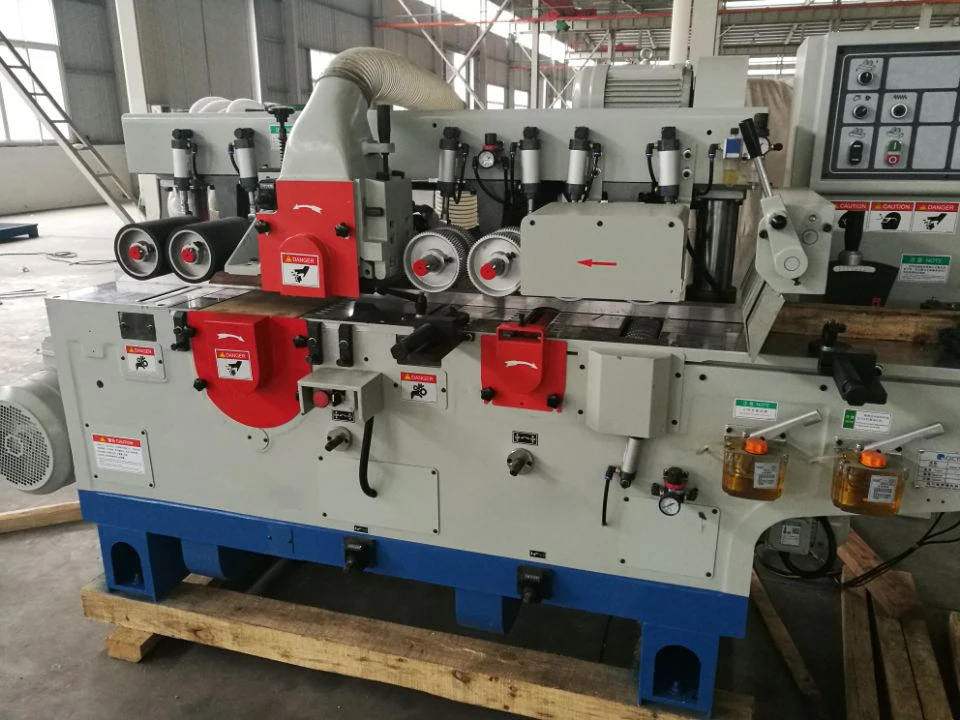

Detailed Images
Machine Specification:
1. The machine basement is made of high-quality castings. It is specially processed by the five-side gantry machining center,ensure it's stable performance, good rigidity and good precision.
2. Spindle adopts special materials, special processing, precision machining,dynamic balance processing, precision assembly and operation testing, work smooth and accurate.
3. The working table adopts special high-strength alloy steel materials, which are specially treated, precision machined and hard chrome plated. Good wear resistance and long service life.

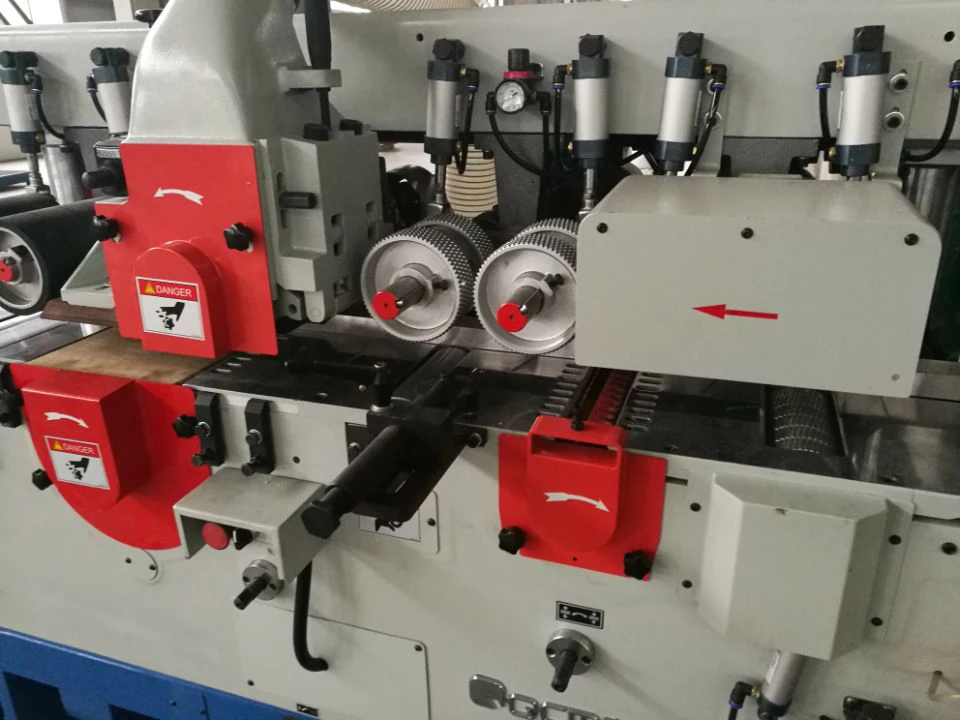

4. The feed system adds active rollers for the active working table, that is, the front three sets of lower active rollers and the six sets of upper feed rollers. Now it has strong feeding, it has the advantages of smooth feeding and good processing quality.
5. Double inversion and anti-rebound safety devices are installed at the inlet of the machine to ensure the safety of workers.
6. Feeding mechanism adopts universal coupling transmission and frequency converter matching to achieve variable frequency speed feeding, speed up to 6-36m/min, convenient and quick to operate.
7. Saw shaft adopts air cooling structure, which can cool the saw blade and cool it effectively. It can effectively improve the life of saw blade life, good quality of processing board.
8. Saw shaft adopt electric lifting structure, which is user-friendly and convenient.
9. The machine is equipped with a centralized lubrication system to provide centralized lubrication for all sliding and transmission components. Maintenance is quick and easy.
10. The main electrical components and transmission parts adopt international brands, imported components, stable performance and good reliability.
1. The machine basement is made of high-quality castings. It is specially processed by the five-side gantry machining center,ensure it's stable performance, good rigidity and good precision.
2. Spindle adopts special materials, special processing, precision machining,dynamic balance processing, precision assembly and operation testing, work smooth and accurate.
3. The working table adopts special high-strength alloy steel materials, which are specially treated, precision machined and hard chrome plated. Good wear resistance and long service life.
4. The feed system adds active rollers for the active working table, that is, the front three sets of lower active rollers and the six sets of upper feed rollers. Now it has strong feeding, it has the advantages of smooth feeding and good processing quality.
5. Double inversion and anti-rebound safety devices are installed at the inlet of the machine to ensure the safety of workers.
6. Feeding mechanism adopts universal coupling transmission and frequency converter matching to achieve variable frequency speed feeding, speed up to 6-36m/min, convenient and quick to operate.
7. Saw shaft adopts air cooling structure, which can cool the saw blade and cool it effectively. It can effectively improve the life of saw blade life, good quality of processing board.
8. Saw shaft adopt electric lifting structure, which is user-friendly and convenient.
9. The machine is equipped with a centralized lubrication system to provide centralized lubrication for all sliding and transmission components. Maintenance is quick and easy.
10. The main electrical components and transmission parts adopt international brands, imported components, stable performance and good reliability.
