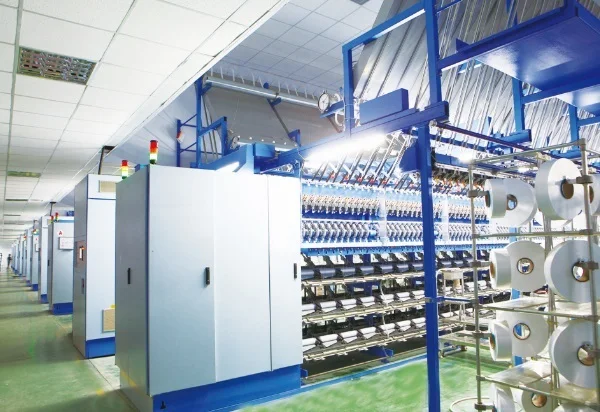

JW K3604C DTY draw texturing machines of POY polyamide fiaments.

Number of spindles: 240(or 264,288)
Spinning Filament: NYLON Polyamide POY
Spinning count: 33-232dtex
Max.speed: 1000m/min
Size of durm: φ75x289
Size of package: φ250x250
Overall size of raw material: φ430x250
Conical angle: 70°, 75°,80°,90°
Cross angle: 10°- 45°
Main transmission power: 71KW
Temperature of heating box: 160-250 ℃
Number of reeling passage: 12/24
Lenght of heating box: 2m
Lenght of self-cooling plate: 700mm
Lenght of forced cooling plate: 300mm

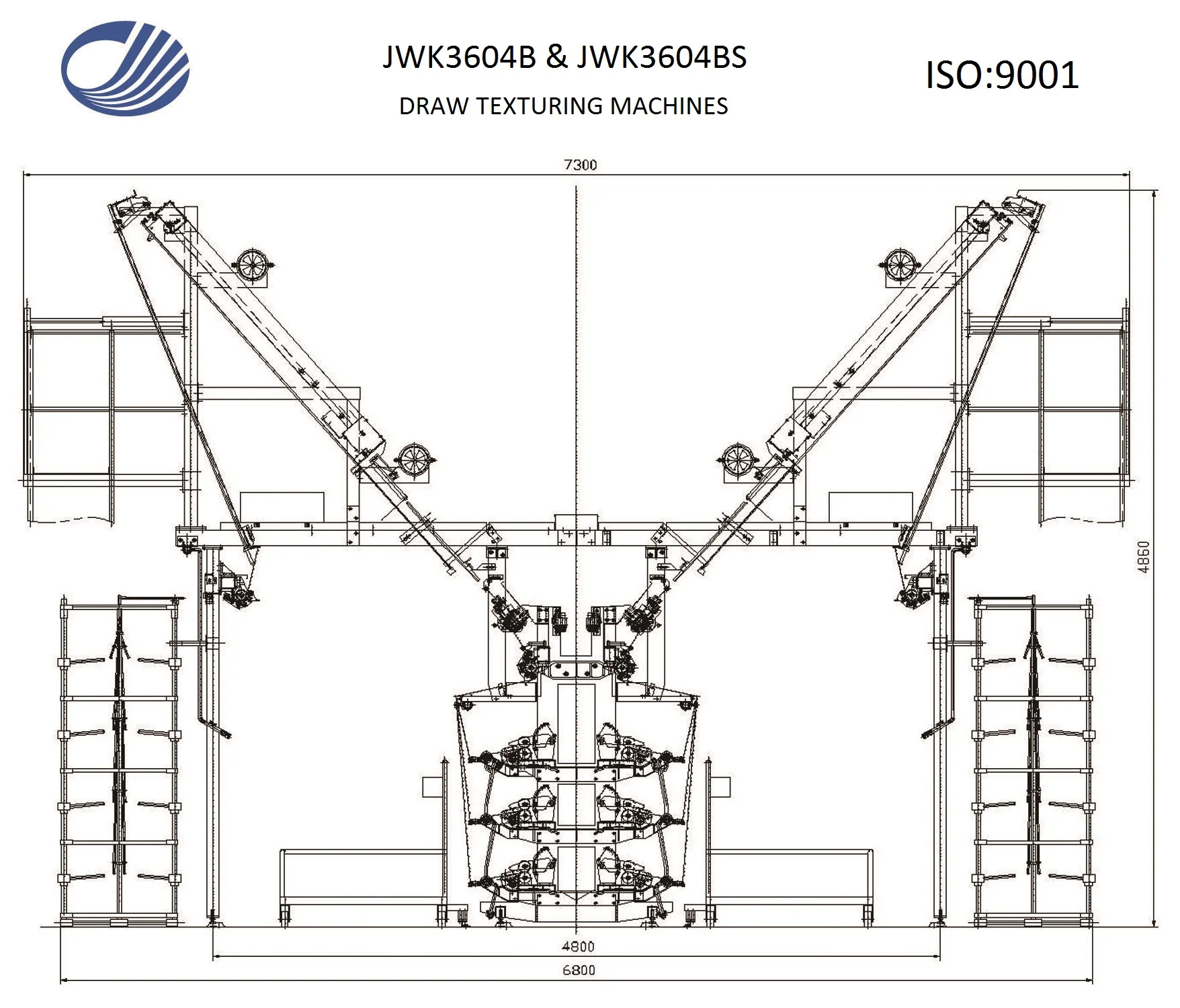

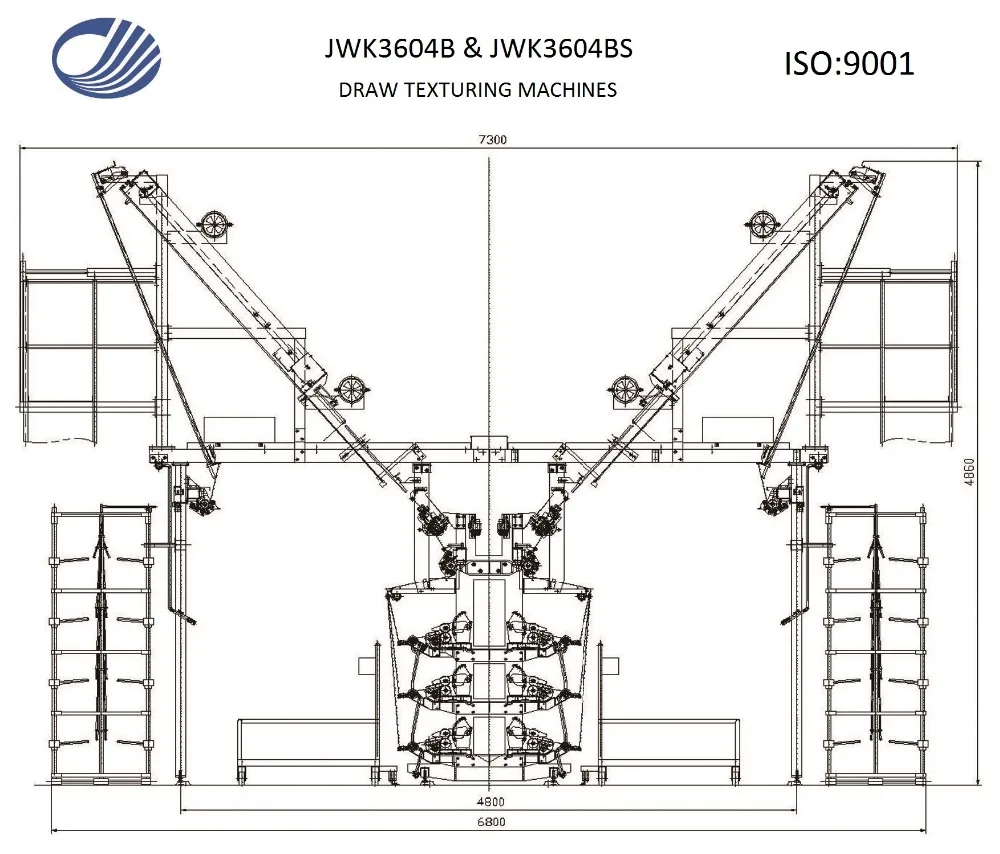

Overall dimension: 17320x7300x4860mm

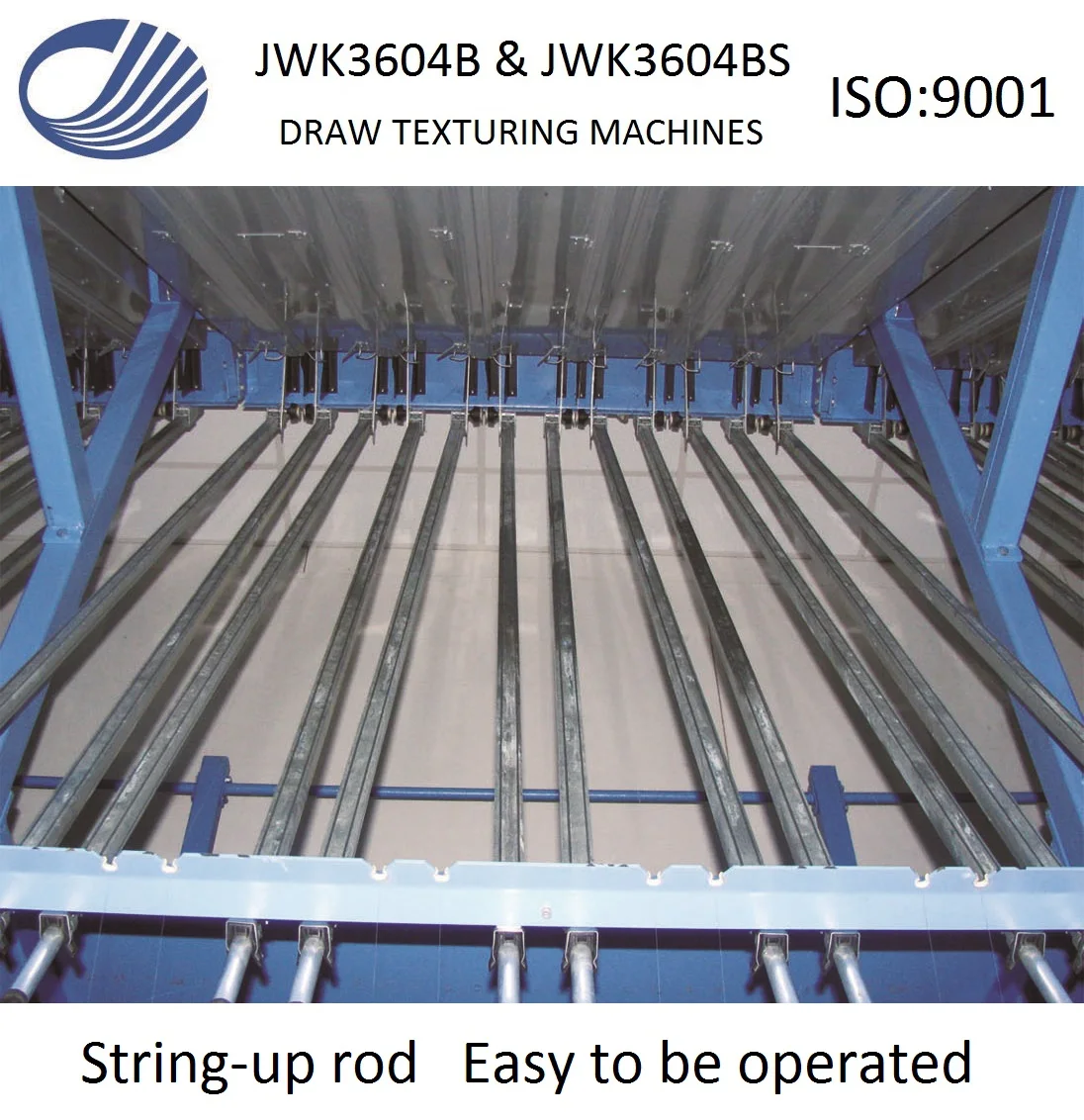

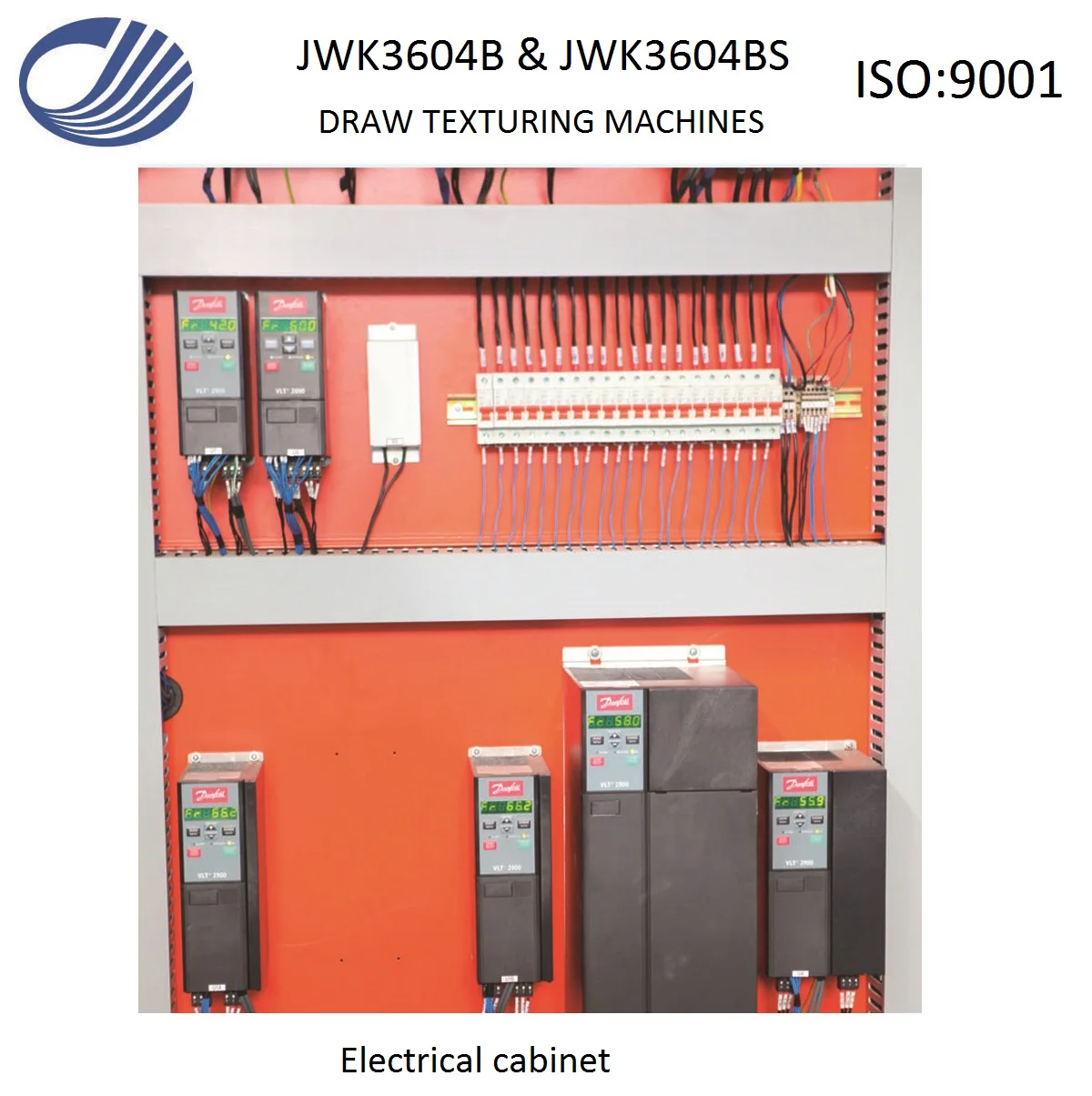

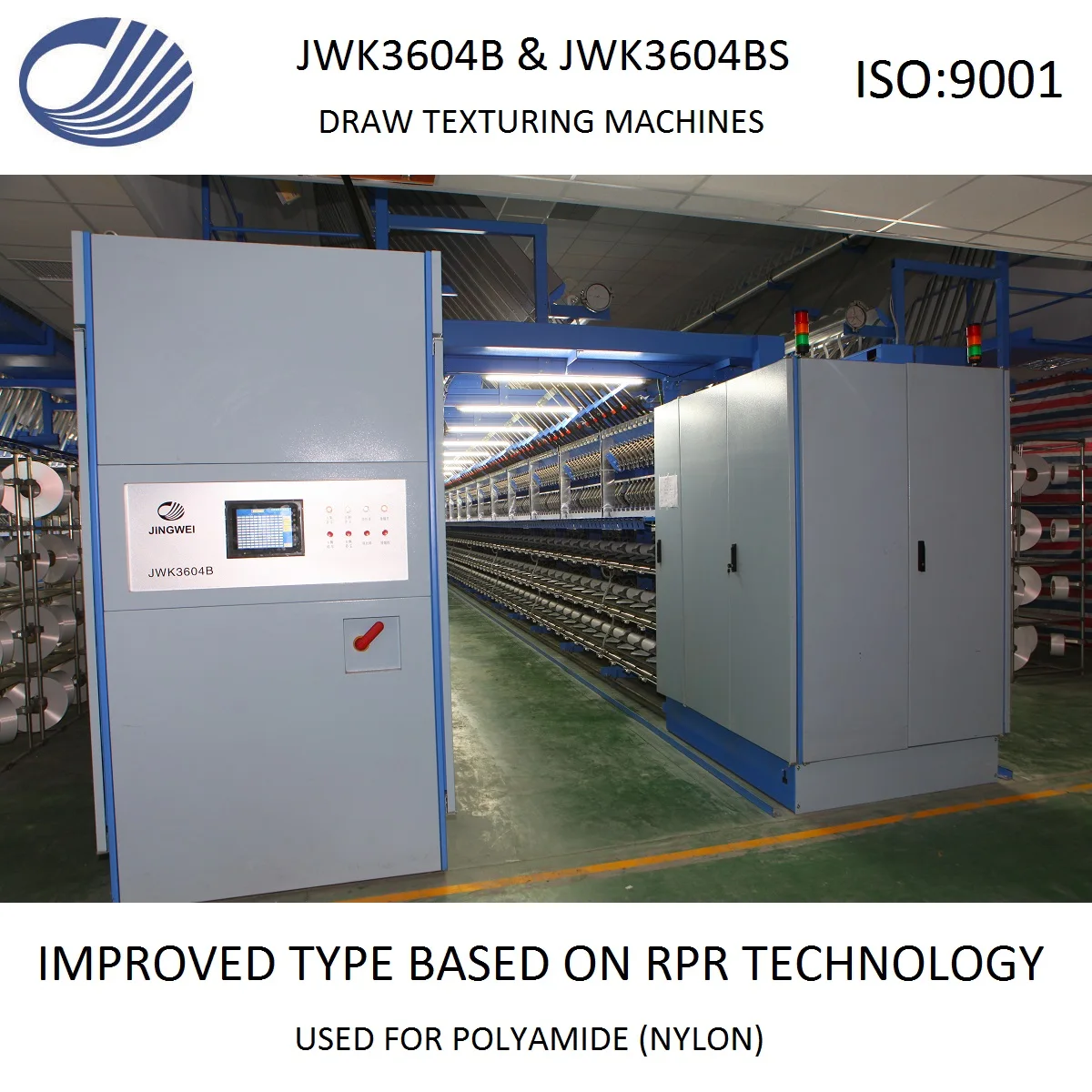

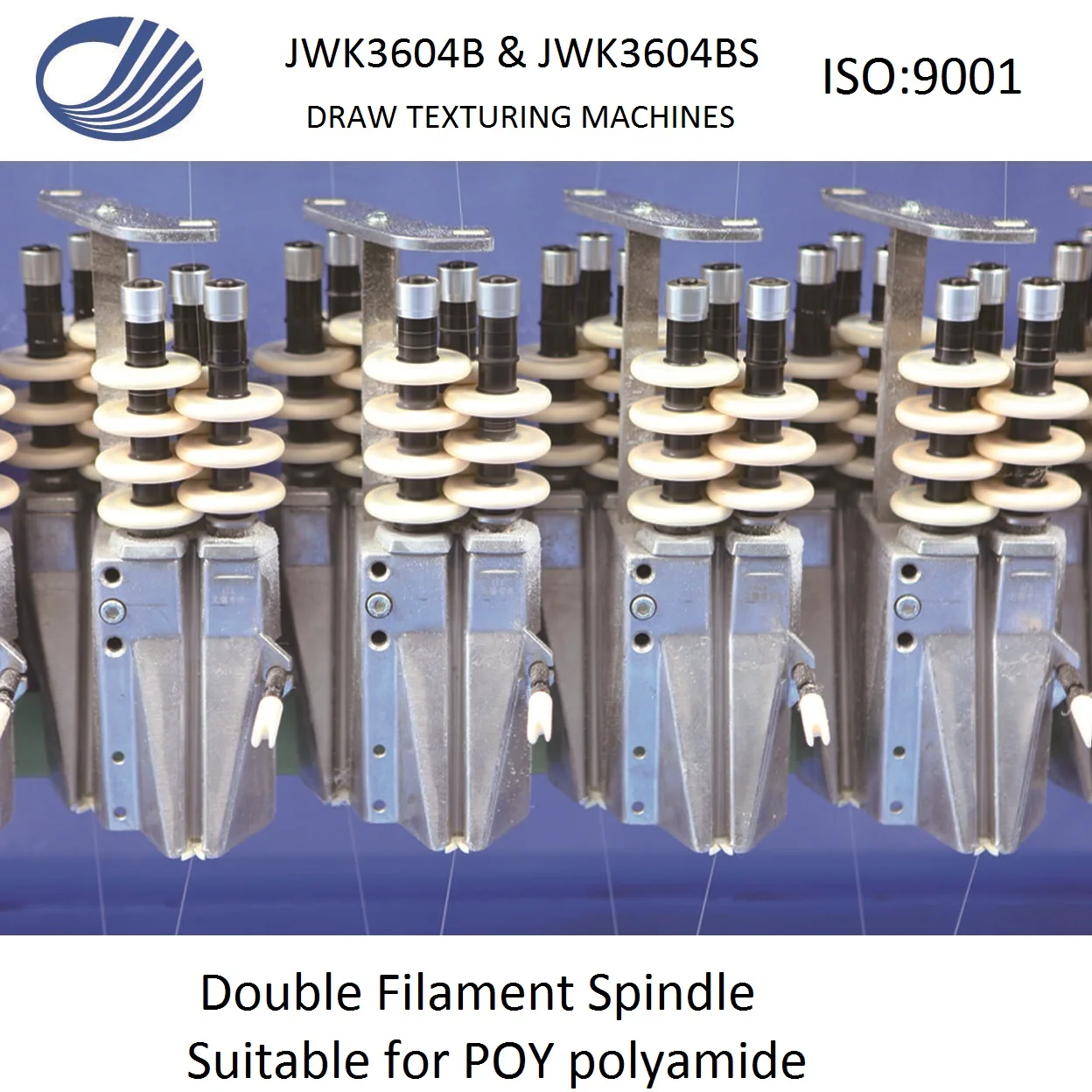

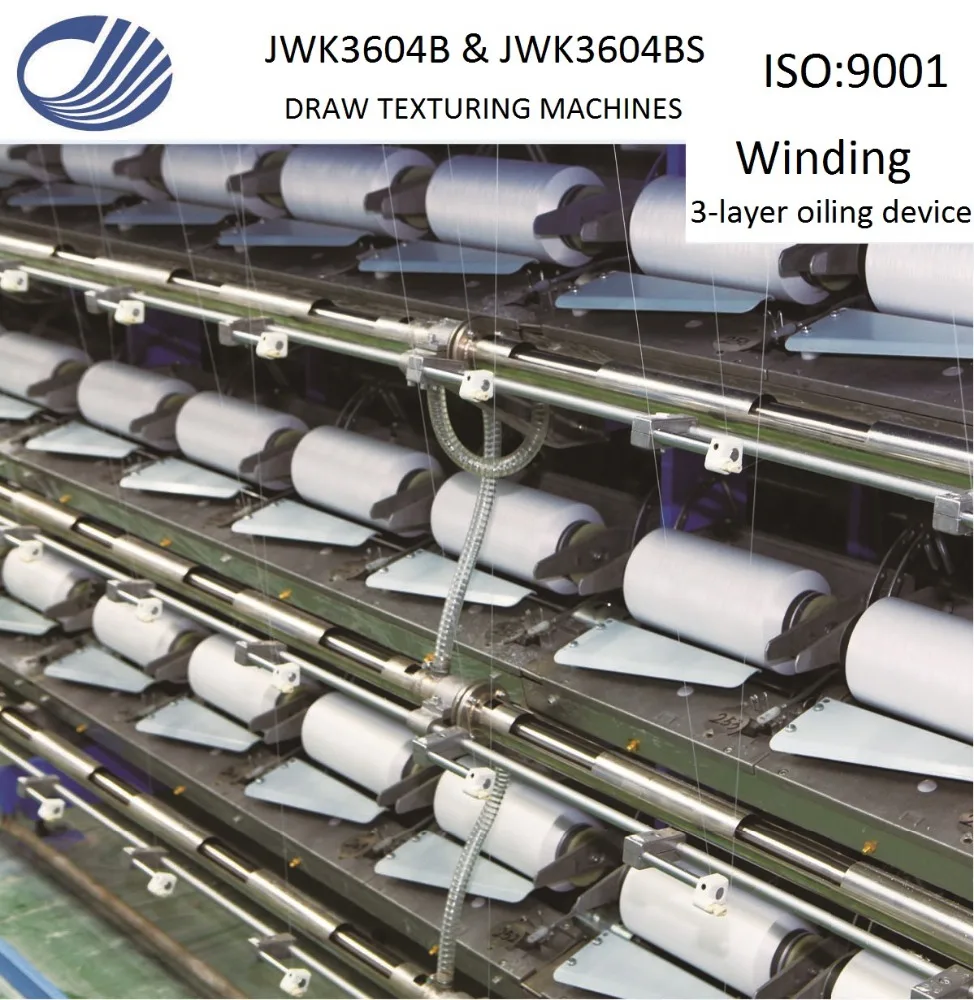

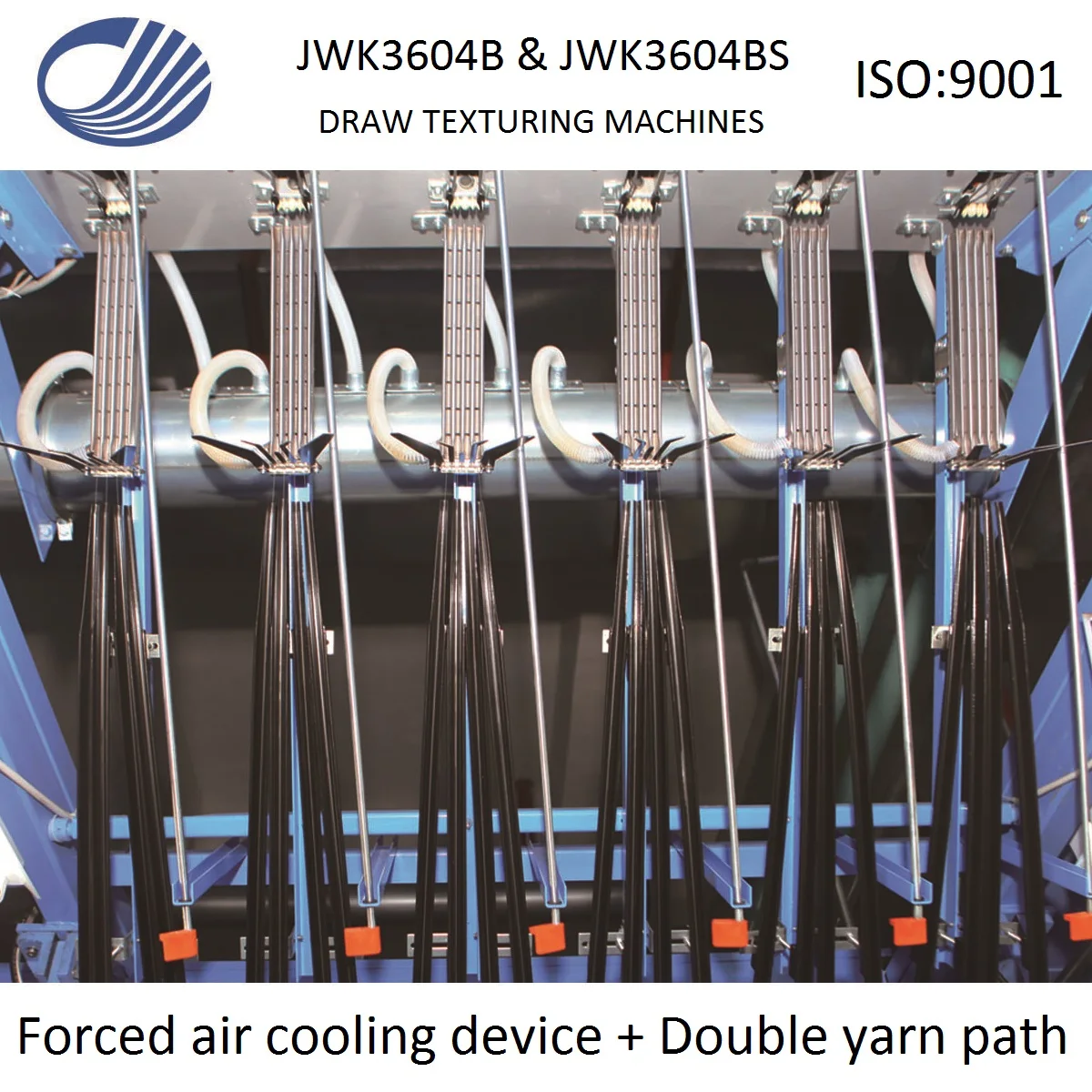

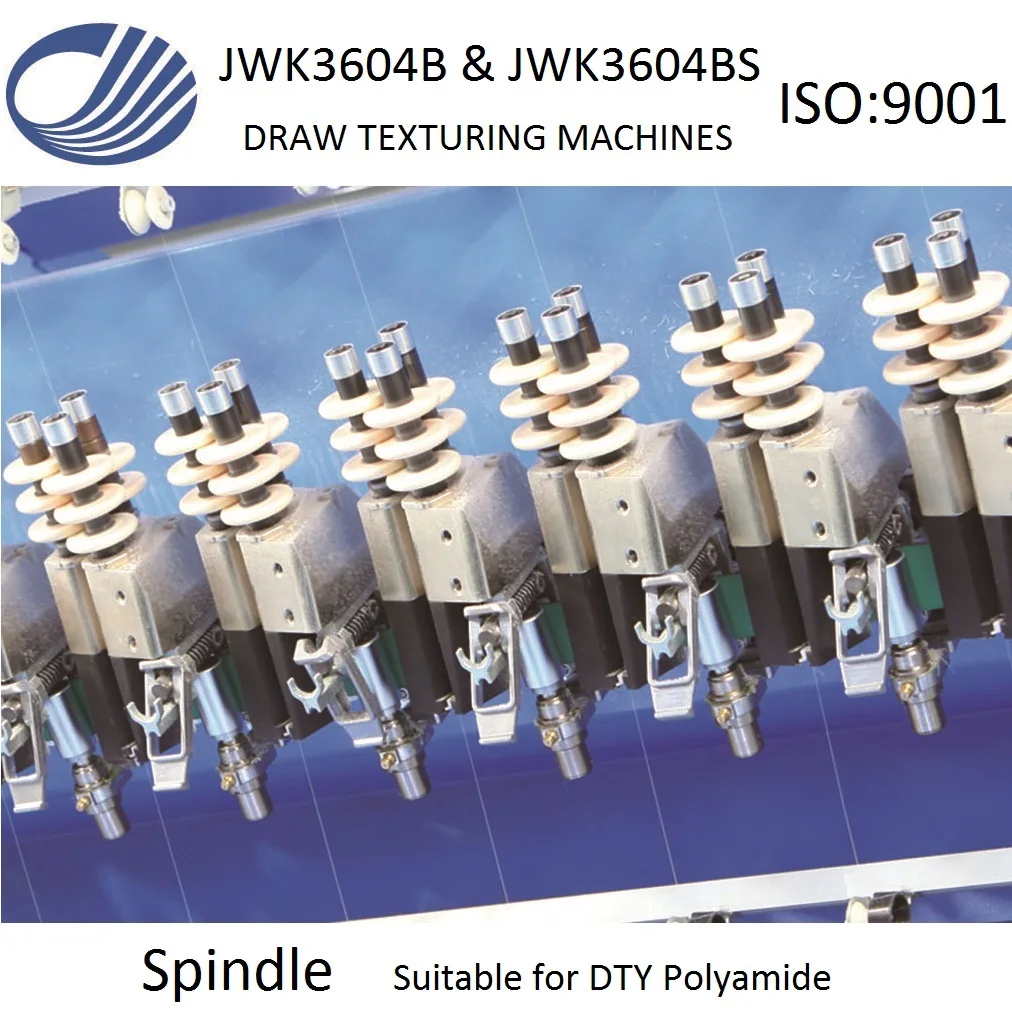

JWK3604B and JWK3604BS draw texturing machines are the modified type based on the model JWFK6-12, which are suitable for the draw texturing process of medium and fine denier of POY polyamide fiaments. With data input by touch panel and system control by inverters and PLC, the machine can adjust all parameters, such as the rollers'speed , D/Y ratio, heaters'temperature and winding parameter so as to spin the different DTY yarn with the spinning process for the different denier. The main characteristic of the machine: each side driven and controlled individually by computer; RPR winding package system; string-up with simple structure; three-layer oiling system; spindle with ceramic 045mm; forced-air cooling device
