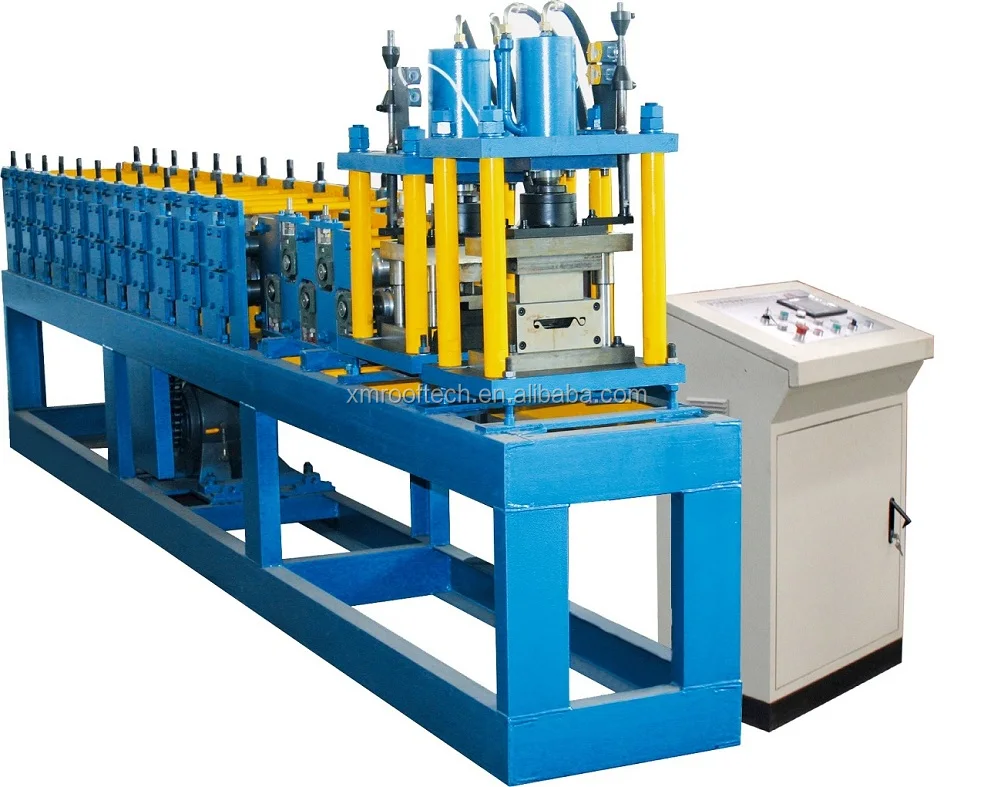

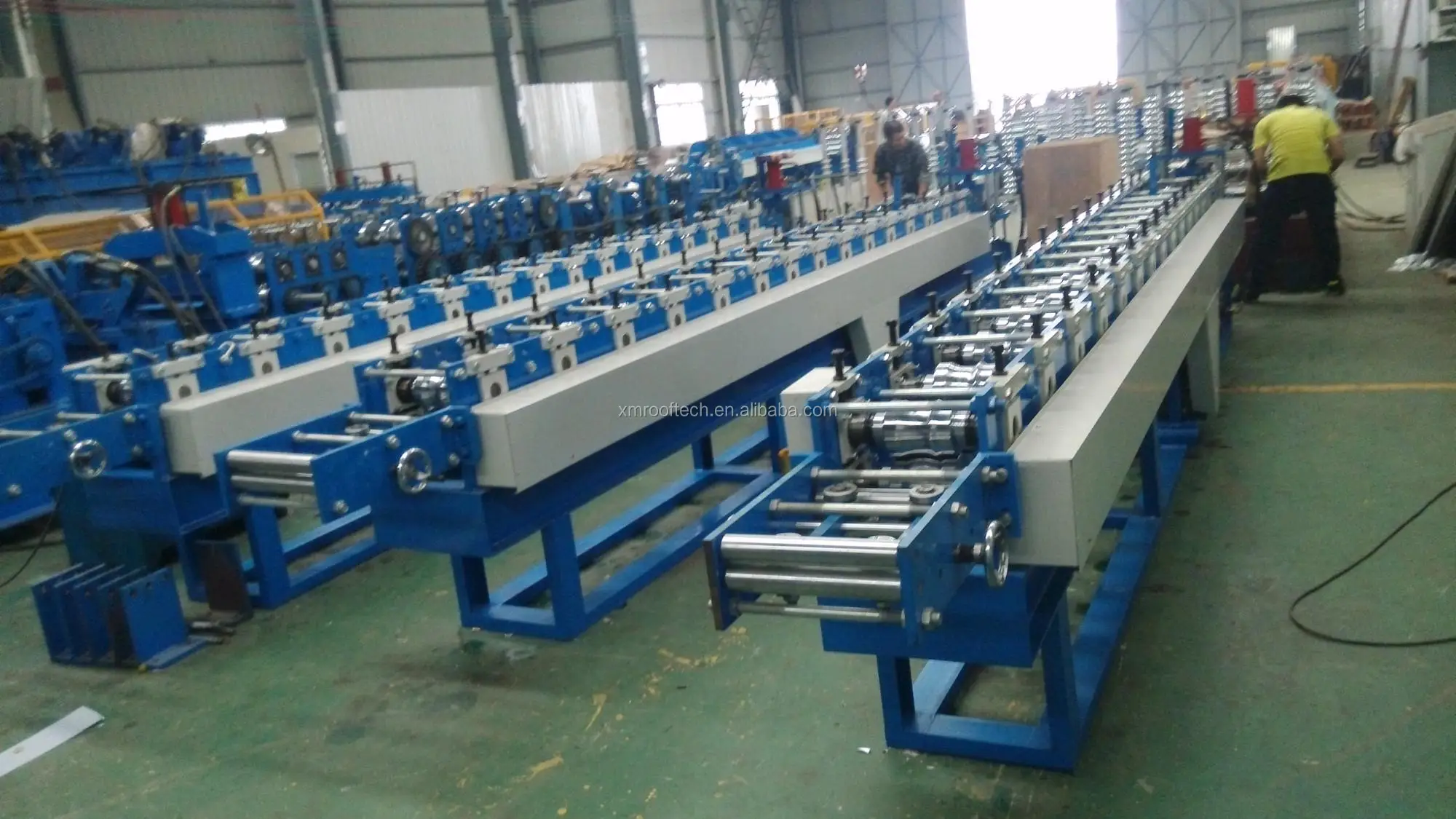

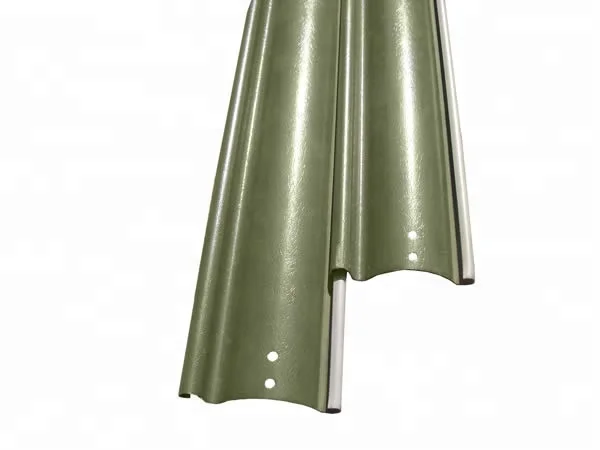

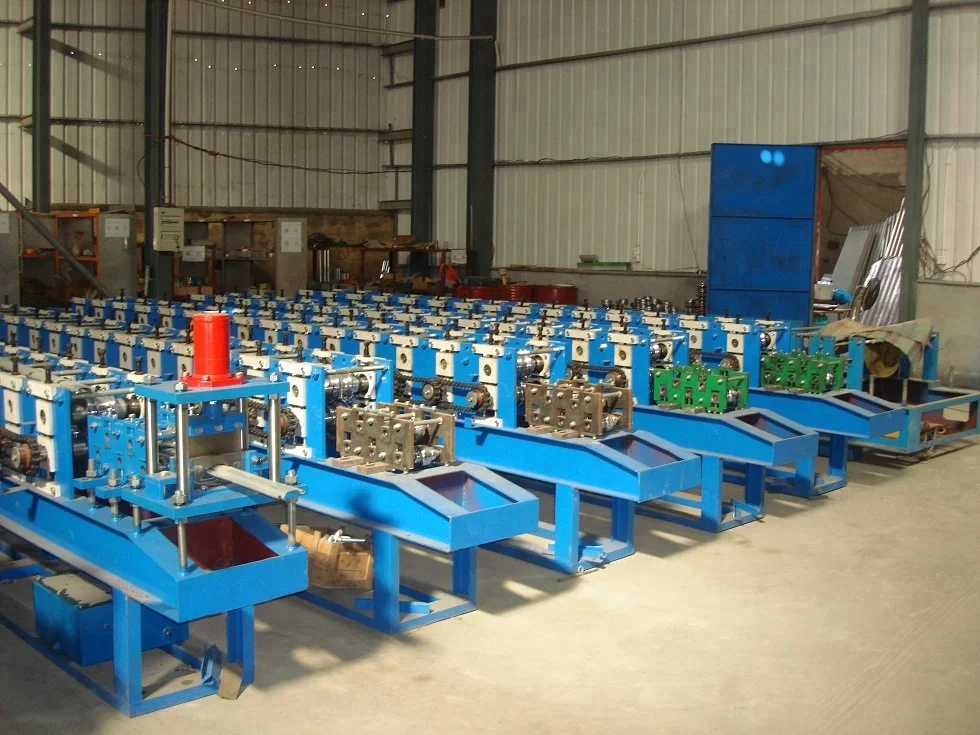

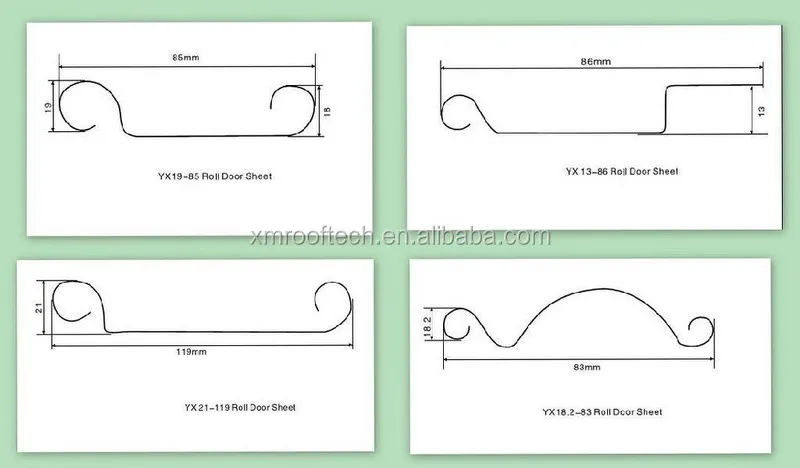

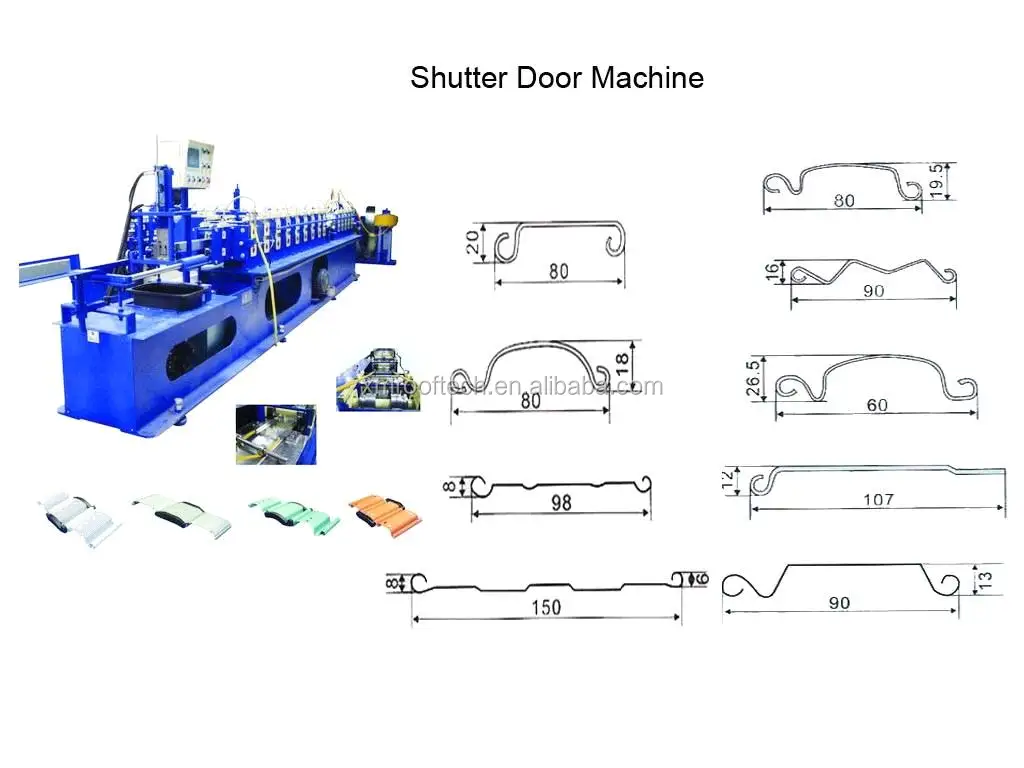

Metal Shutter Door Making Machine steel foor frame roll forming machine

Working flow

De-coiler—→level device—→main roll forming machine—→ hydraulic cutting—→ run out table

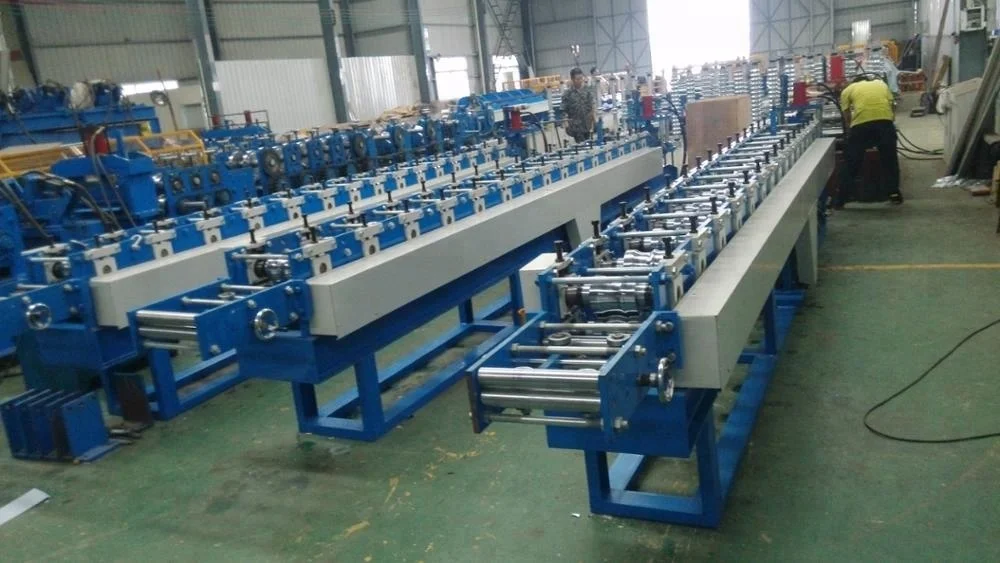

Machine component

3T Manual De-coiler

Diameter: 460-520mm expansion.
Expansion: Manually
Capacity: 3000kg

Leveling device

1.7 rolls leveling, 3 rolls up and 4 rolls down
2.Diameter is Ø 70mm, chrome and HRC60 heat treatment to secure the smooth surface
3.Max Leveling Raw Material width: 300mm

Hydraulic station

1. hydraulic station pressure: 12MP
2. power of hydraulic station: 4KW

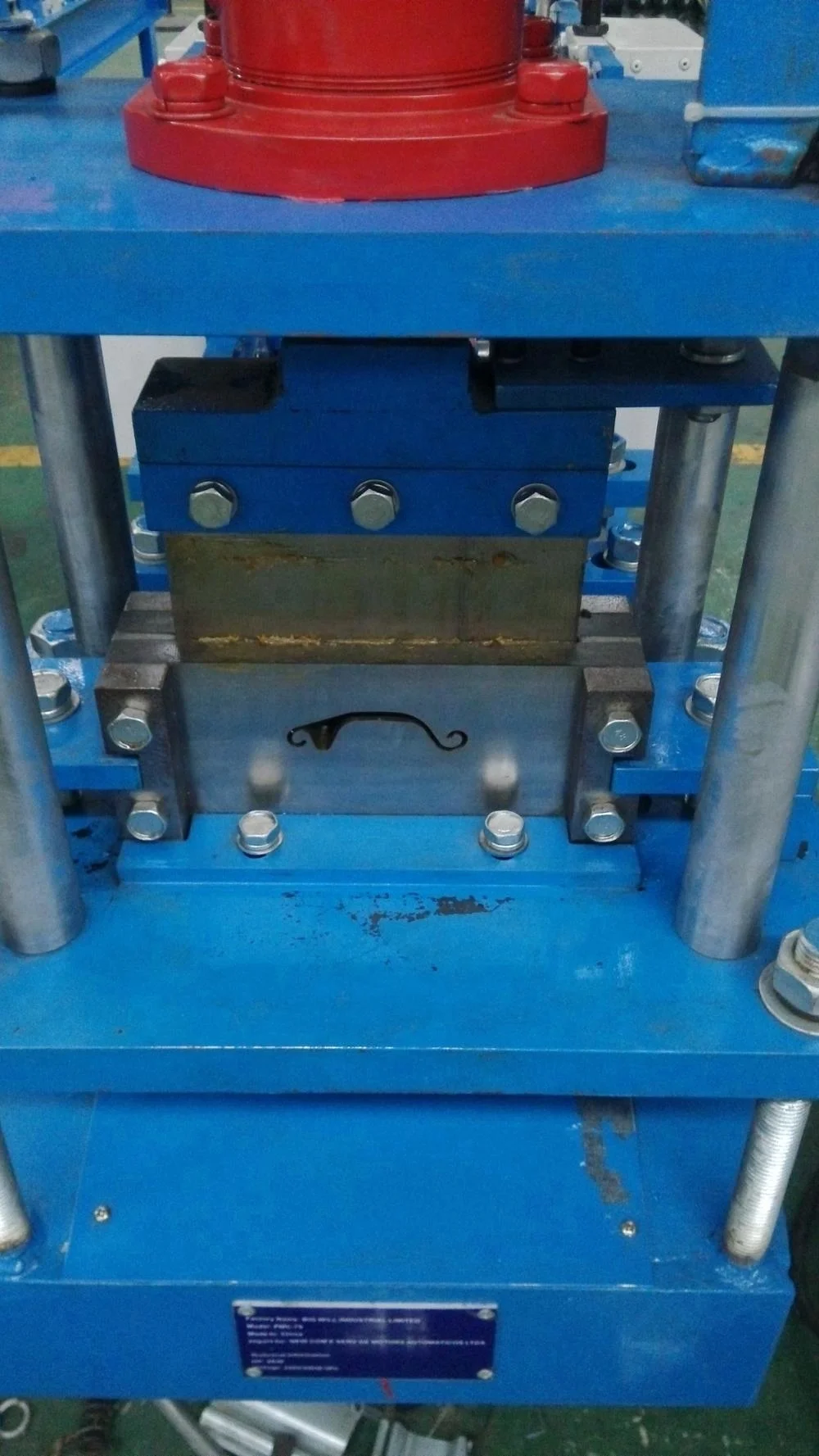

Hydraulic Cutting

1. The cutter blade material: Cr12mov HRC58-62 degree
2. Blades number: 2 sets
3. Cutting after forming: Cut the sheet after roll forming to required length
4. Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
5. Material of blade: CR12with heat treatment
6. Length measuring: Automatic length measuring
7. Tolerance of length: 6m+/- 0.5mm

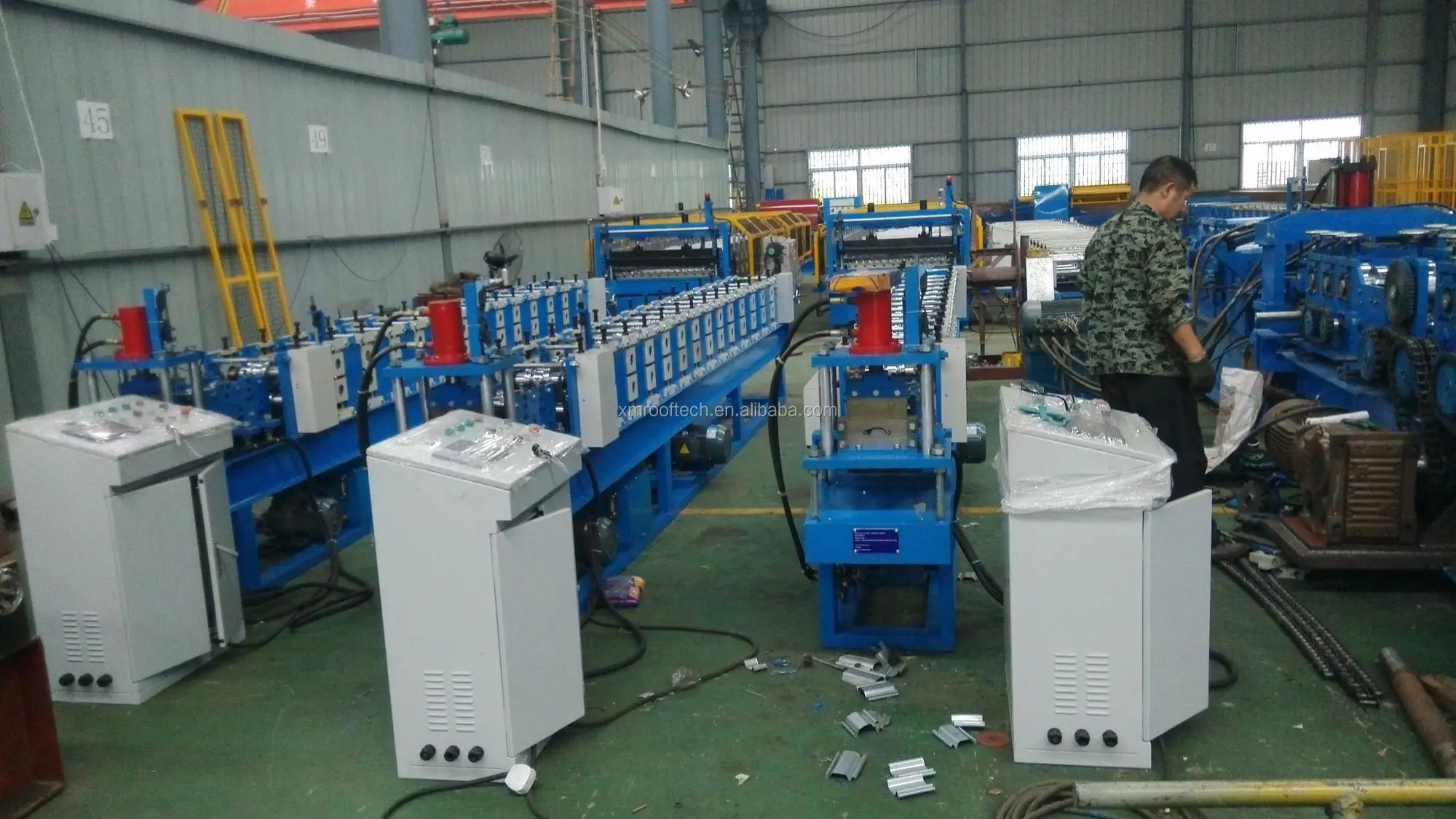

Control Box

(1)Power supply: 380 V, 50 Hz, 3Phase (adjusted with the requirement)

(2)Length & quantity measurement automatically;

(3)Length & quantity controlled by PLC,

(4)Length inaccuracy can be amended easily.

(6).Control panel: Button-type switch and touch screen

(7)Unit of length: millimeter (switched on the control panel)
