Rotary Sand Vibrating Screening Feeder Machine
Product Description

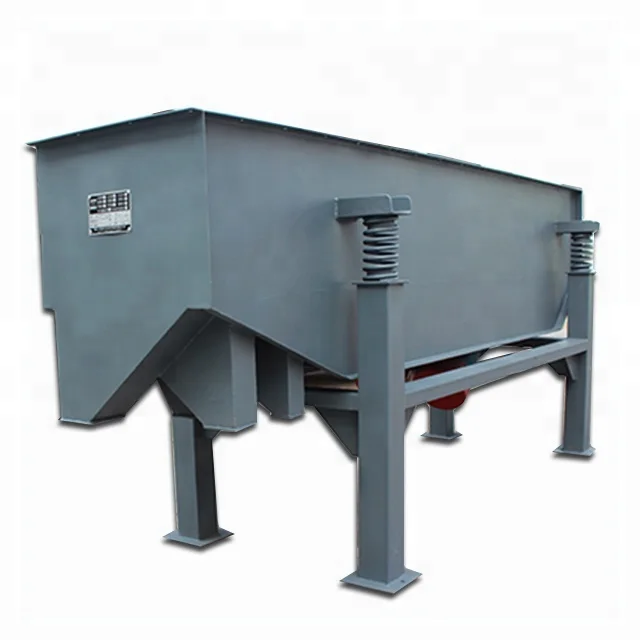

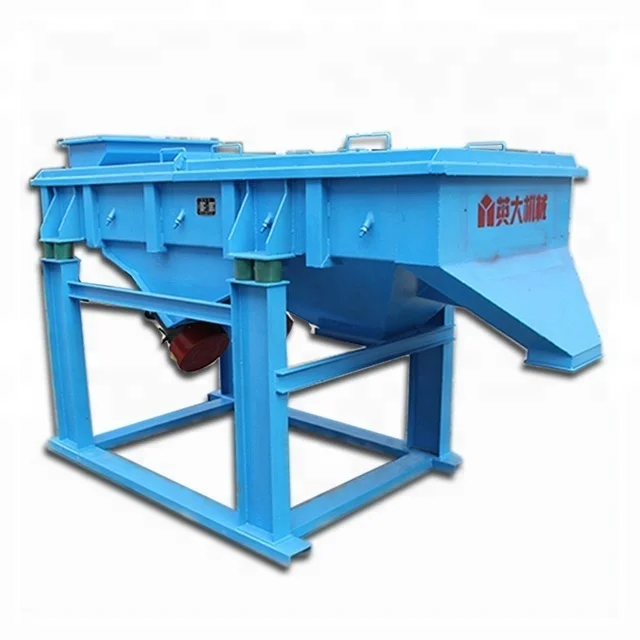

Linear Vibrating Screen is a kind of muti-layer sieving equipment, which can be matched corresponding material of mesh according to the customer's requirements to seiving variety of materiels at one time.
The operation is easy &convenient, replacement of screen process is simple.
Linear vibrating screen use excellent vibrant motor as power source, so that the materials can be thrown up on the sieve and forward to make a straight movement. It can be equipped with single or multi-screen to achieve the grading, removing impurity, removing dust, testing, washing selecting, dehydration etc.

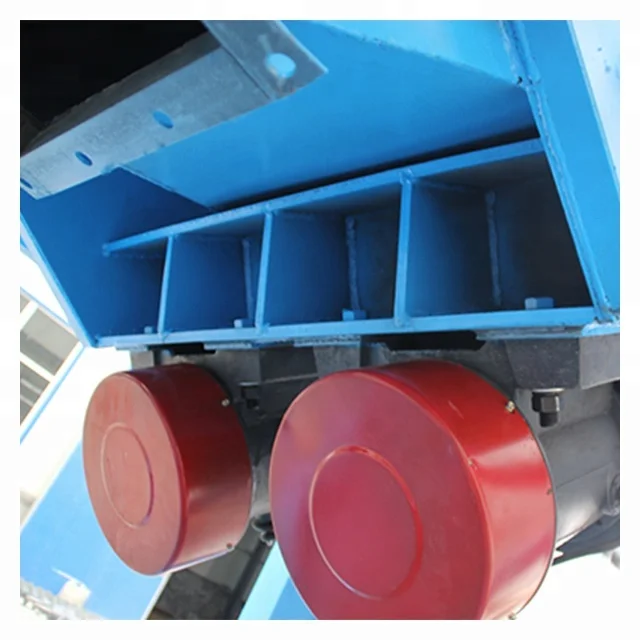

Two vibration motors installed on the equipment which working in simultaneously and reverse rotation. The screen box supported by four springs produce reciprocating linear motion under the vibration force generated by motors. When the vertical component of the vibration acceleration N is greater than acceleration due to gravity G, material in the tank was thrown up, press forward to jump along parabolic path. Each vibration of tank, the material would be thrown up once. In the process of encounter with the screen, the material which is smaller than screen mesh can go through, so as to achieve classification purpose.
Customer Case
Our Services
Company Information
About YingDa:
Henan YingDa Heavy Industry Co., Ltd is professional manufacturer for bucket elevator and conveyors in China. We have professional engineers and experienced workers in our factory, we ensure that we supply good quality and good price to our customers.
Our products as followings:
1. Bucket elevators: TD Belt type bucket elevator, TH round chain type bucket elevator, NE plate chain bucket elevator and Dehydrated bucket elevator.
2. Screw conveyors: Pipe type screw conveyor, U-shape screw conveyor, shaftless screw conveyor and screw feeder.
3. Belt conveyors: Fixed belt conveyor, mobile belt conveyor, sidewall belt conveyor and light type belt conveyor.
4. Chain conveyors: FU chain conveyor, drag conveyor, scraper chain conveyor and Cast stone scraper conveyor etc.
5. Apron feeders: Light duty apron feeder, middle duty apron feeder and heavy duty apron feeder.
6. Other products: Pan conveyor, Vibrating screen, Trommel screen air slide conveyor, vibrating feeder, rotary feeder and double shaft mixer etc.
7. Spare parts: Elevator bucket, conveyor chain, sprocket, conveyor belt, conveyor roller, feeder pan, motor, gearbox and bearing and etc.
Certificate
Customer Visit
1. Are you factory or trading company?
We are 30+ years manufacturing experience conveyor factory.
2. Do you provide design for us?
Yes, we will provide engineer design service before order.
3. What's the delivery time?
15-25 days.
4. Do you provide installation service?
Yes, we will send our engineer go to your working site to guide installation and commissioning.
5. Payment terms?
TT, LC.
