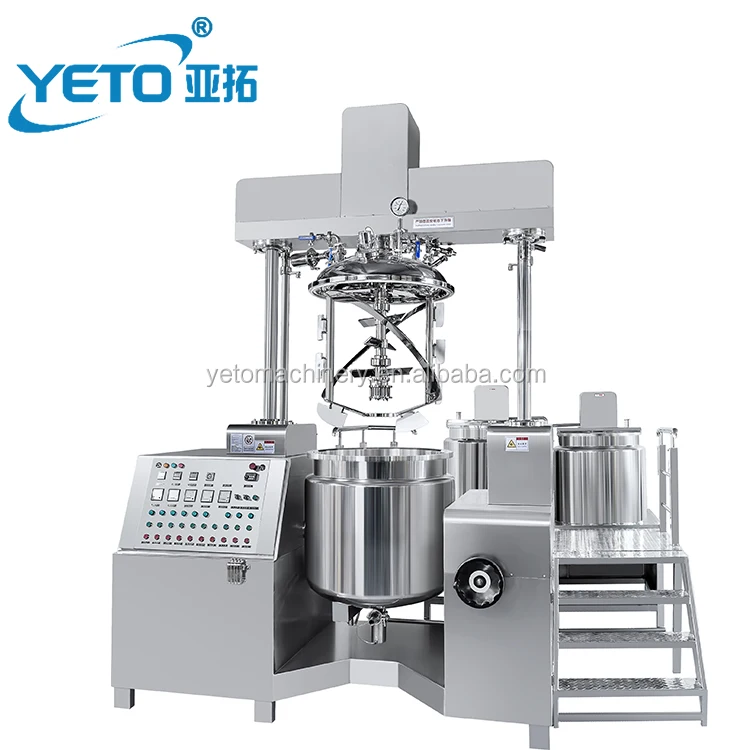

hot sale Cosmetic Cream Hand Hydraulic Lifting Type mayonnaise processing machine vacuum emulsifier mixer
- Category: >>>
- Supplier: Guangzhou Yeto Machinery Co. Ltd.
Share on (60780085496):
Product Overview
Description
Product Description
Stainless Steel Different Volume Cosmetic Cream Hand Hydraulic Lifting Type Vacuum Homogenizing Emulsifier
Specifications:
vacuum homogenizer emulsifying machine
1. Hydraulic lifting
2. capacity: 5-1000L
3. Material touch part is SS316
vacuum homogenizer emulsifying machine
1. Hydraulic lifting
2. capacity: 5-1000L
3. Material touch part is SS316
What is vacuum homogenizer emulsifying machine?
These machines are generally called mixer homogenizers or vacuum mixer emulsifiers. They are mostly used for batch production of ointments, creams, suspensions, gels, toothpaste and similar products, with operations that include ingredient loading, mixing and blending with heating and cooling steps, as well as any necessary deaeration of the mixer, according to pre-set operating standards.
What is vacuum homogenizer emulsifying machine plant made of?

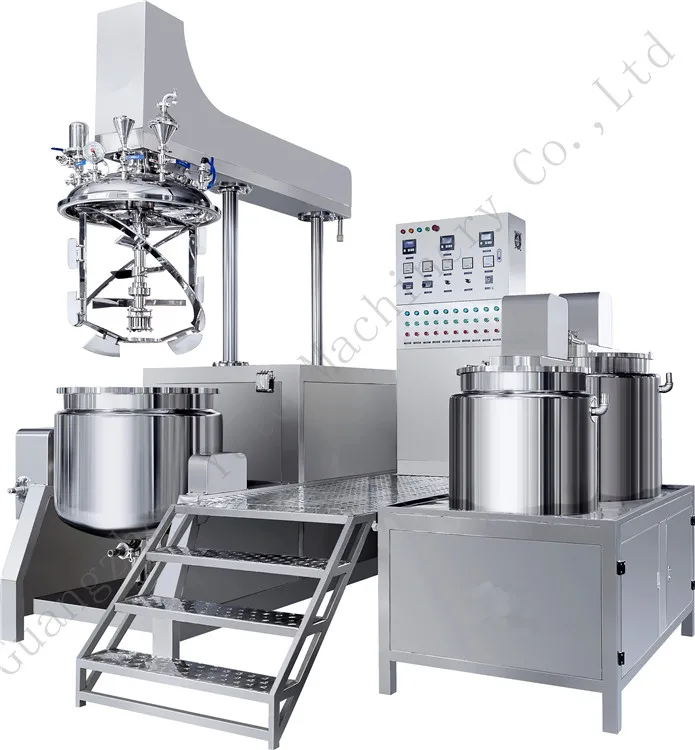

The vacuum emulsification equipment is generally made of main emulsification blender, oil phase mixer, water phase mixer, vacuum system, hydraulic lifting system, tilting system for the main emulsifying mixer, heating and cooling system, temperature control system, electrical control panel etc.
The main emulsification mixer consists of a high speed rotor stator homogenizer and counter-rotating centre agitator and wall scraper. The homogenizer, centre agitator and wall scraper are all mounted from the top of the cover.
The oil and water phase mixers have exactly the same construction. There’s a high speed disperser mounted from the top of the cover which helps dissolve the ingredients. Some customers will omit the oil and water phase mixers and keep the main emulsification machine only.
These machines are generally called mixer homogenizers or vacuum mixer emulsifiers. They are mostly used for batch production of ointments, creams, suspensions, gels, toothpaste and similar products, with operations that include ingredient loading, mixing and blending with heating and cooling steps, as well as any necessary deaeration of the mixer, according to pre-set operating standards.
What is vacuum homogenizer emulsifying machine plant made of?
The vacuum emulsification equipment is generally made of main emulsification blender, oil phase mixer, water phase mixer, vacuum system, hydraulic lifting system, tilting system for the main emulsifying mixer, heating and cooling system, temperature control system, electrical control panel etc.
The main emulsification mixer consists of a high speed rotor stator homogenizer and counter-rotating centre agitator and wall scraper. The homogenizer, centre agitator and wall scraper are all mounted from the top of the cover.
The oil and water phase mixers have exactly the same construction. There’s a high speed disperser mounted from the top of the cover which helps dissolve the ingredients. Some customers will omit the oil and water phase mixers and keep the main emulsification machine only.
Detailed Images

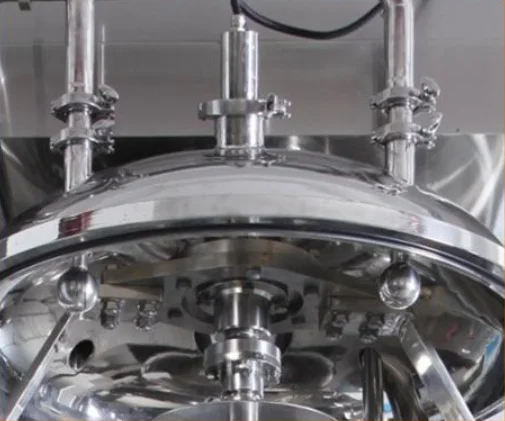

1.Material of Blender:SUS316L
2.Material of Scrapper:TeflonA
3.Sealing:mechanical:sealing

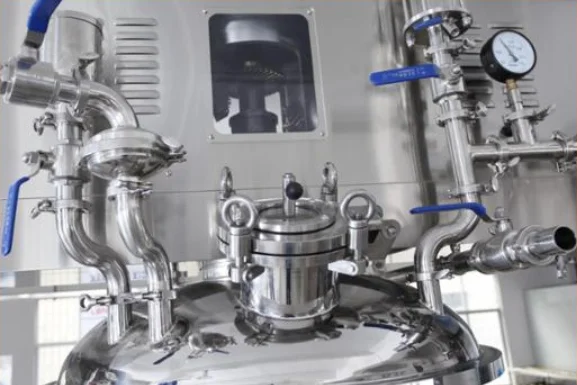

The name of part from left to right:
1.air filter
2.material inlet
3.view hole
4.vacuum system
CIP cleaning system
View light

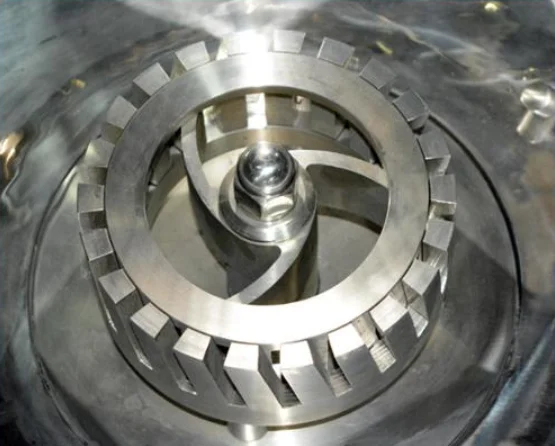

This kind of homogenizer is based on cutting techinque from German,high speed homogenizer make a good function of emulisifing
Key features of vacuum mixer homogenizer
* Complete process of mixing, dispersing, emulsifying, homogenizing, vacuum, heating
* Complete process of mixing, dispersing, emulsifying, homogenizing, vacuum, heating
and cooling in one unit
* Suitable for cream and emulsions of 10,000~50,000cps viscosity

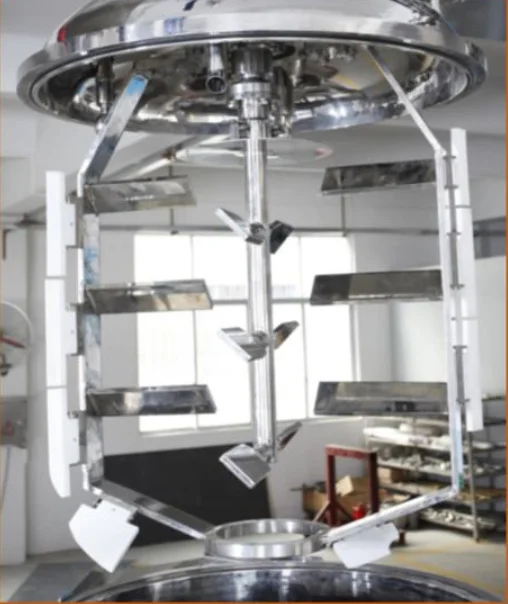

* Contra mixing system of center agitator and wall scraper
* Outer frame agitator has triangle design for enhanced mixing
* Variable speed for homogenizer and agitators
* Oil hydraulic lifting system for easy cleaning and maintenance
* Double jackets for heating and cooling
* Different jacket designs available for steam and electric heating
* Double temperature probes and controllers for electrical heating in main emulsification machine
* Vacuum system to take out the air bubbles during mixing and to transfer the ingredients
* Compressed air to discharge the finished cream
* Tilting system for discharging finished product and easy cleaning
* Multiple safety protection devices for vacuum, hydraulic pump and workers
* All contact parts are made of SS316L and mirror polished
* Spray ball is equipped to connect customer’s CIP
* The specifications of the vacuum emulsification equipment comply with GMP
* Suitable for cream and emulsions of 10,000~50,000cps viscosity
* Contra mixing system of center agitator and wall scraper
* Outer frame agitator has triangle design for enhanced mixing
* Variable speed for homogenizer and agitators
* Oil hydraulic lifting system for easy cleaning and maintenance
* Double jackets for heating and cooling
* Different jacket designs available for steam and electric heating
* Double temperature probes and controllers for electrical heating in main emulsification machine
* Vacuum system to take out the air bubbles during mixing and to transfer the ingredients
* Compressed air to discharge the finished cream
* Tilting system for discharging finished product and easy cleaning
* Multiple safety protection devices for vacuum, hydraulic pump and workers
* All contact parts are made of SS316L and mirror polished
* Spray ball is equipped to connect customer’s CIP
* The specifications of the vacuum emulsification equipment comply with GMP
regulations
All the specific parameter could be customized for homogenizer mixer machine
Working capacity (L) | Agitator power (kw) | Speed (rpm) | Homogenizer power (kw) | Speed (rpm) | Oil/Water tank (L) | Agitator power (kw) |
50 | 1.5 | 0~50 | 4 | 0~3000 | 30/30 | 0.37/0.37 |
100 | 1.5 | 0~50 | 4 | 0~3000 | 50/70 | 0.37/0.37 |
150 | 1.5 | 0~50 | 4 | 0~3000 | 80/100 | 0.55/0.55 |
200 | 1.5 | 0~50 | 4 | 0~3000 | 100/130 | 0.55/0.55 |
250 | 1.5 | 0~50 | 4 | 0~3000 | 120/160 | 0.55/0.55 |
300 | 2.2 | 0~50 | 5.5 | 0~3000 | 150/200 | 0.55/0.55 |
350 | 2.2 | 0~50 | 7.5 | 0~3000 | 170/220 | 0.55/0.55 |
400 | 3 | 0~50 | 7.5 | 0~3000 | 190/250 | 0.55/0.55 |
500 | 4 | 0~50 | 7.5 | 0~3000 | 250/300 | 0.75/0.75 |
600 | 4 | 0~50 | 7.5 | 0~3000 | 280/350 | 0.75/0.75 |
750 | 5.5 | 0~50 | 11 | 0~3000 | 350/450 | 0.75/0.75 |
1000 | 7.5 | 0~50 | 15 | 0~3000 | 450/650 | 1.1/1. |
Related products

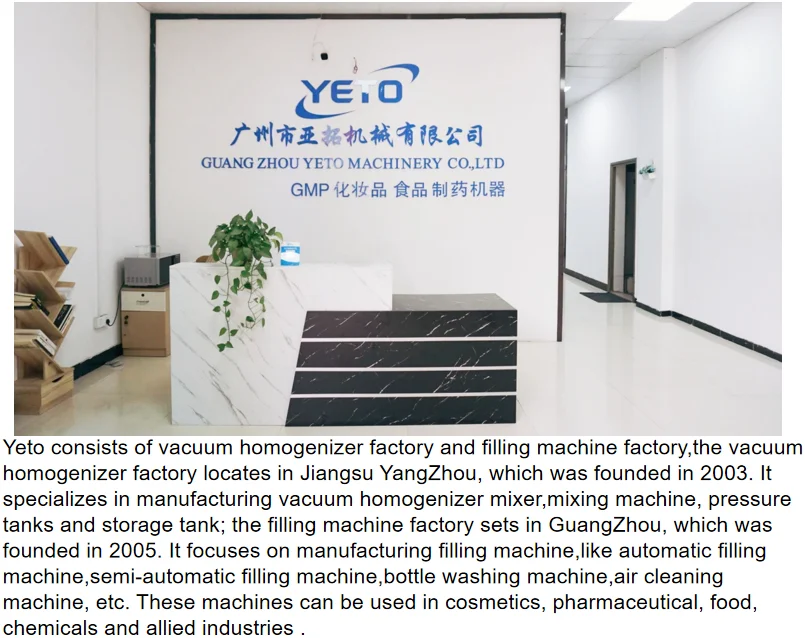

Company Introduction
Packing and shipping
FAQ
Q1:What about your factory?
A: Yeto is a factory which has filling machines, labeling machines, capping machines, emulsifiers, mixers and mixing tanks, etc.Our machinery and equipment involve many fields, such as medicine, food, cosmetics and so on. We have more than 100 workers in our factory and over 20 years experience on cosmetic machinery making and more 15 years
experience for installing overseas.
experience for installing overseas.
Q2: What you can do for us if the machine is out of your catalogue?
A:As a professional machinery manufacturer for more than 20 years,we have skilled OEM technique, so we can customize according to your needs until you are satisfied.
Q3: What do we do if we encounter problem about the machine ?
A:Showing us the picture or video of the problem. If the problem can be solved by your workers, we will send you solution by video or pictures. If the problem out of your control, our engineer will be sent to your factory (customer will pay the fee during the trip).
A:Showing us the picture or video of the problem. If the problem can be solved by your workers, we will send you solution by video or pictures. If the problem out of your control, our engineer will be sent to your factory (customer will pay the fee during the trip).
Q4: What about after sale service?
A:We provide two years warranty period for large equipment, such as hydraulic
homogenizer ,vacuum emulsifying mixer etc. One year for small filling machines, such as semi-automatic labeling machine series. We provide wearing parts(not caused by improper operating) for free within the warranty period(except delivery fee).
homogenizer ,vacuum emulsifying mixer etc. One year for small filling machines, such as semi-automatic labeling machine series. We provide wearing parts(not caused by improper operating) for free within the warranty period(except delivery fee).
Q5: How about warranty and spare parts?
A:We provide 1-3 years warranty and enough spare parts for the machine,and most of the parts can be found in local market too .What't more, you can buy from us if all the parts that we provided are finished.
Q6.:How to finish installing?
A:Our engineer can be sent to your country. but customer should pay the air tickets. besides, customer should arrange the accommodation for them during the trip.
Q7: How can you control the quality and delivery?
A:All our machines will be tested before packaging. Teaching video and packing pictures will be sent to you for checking,we promise that our wooden packaging is strong enough and safety for long delivery.
