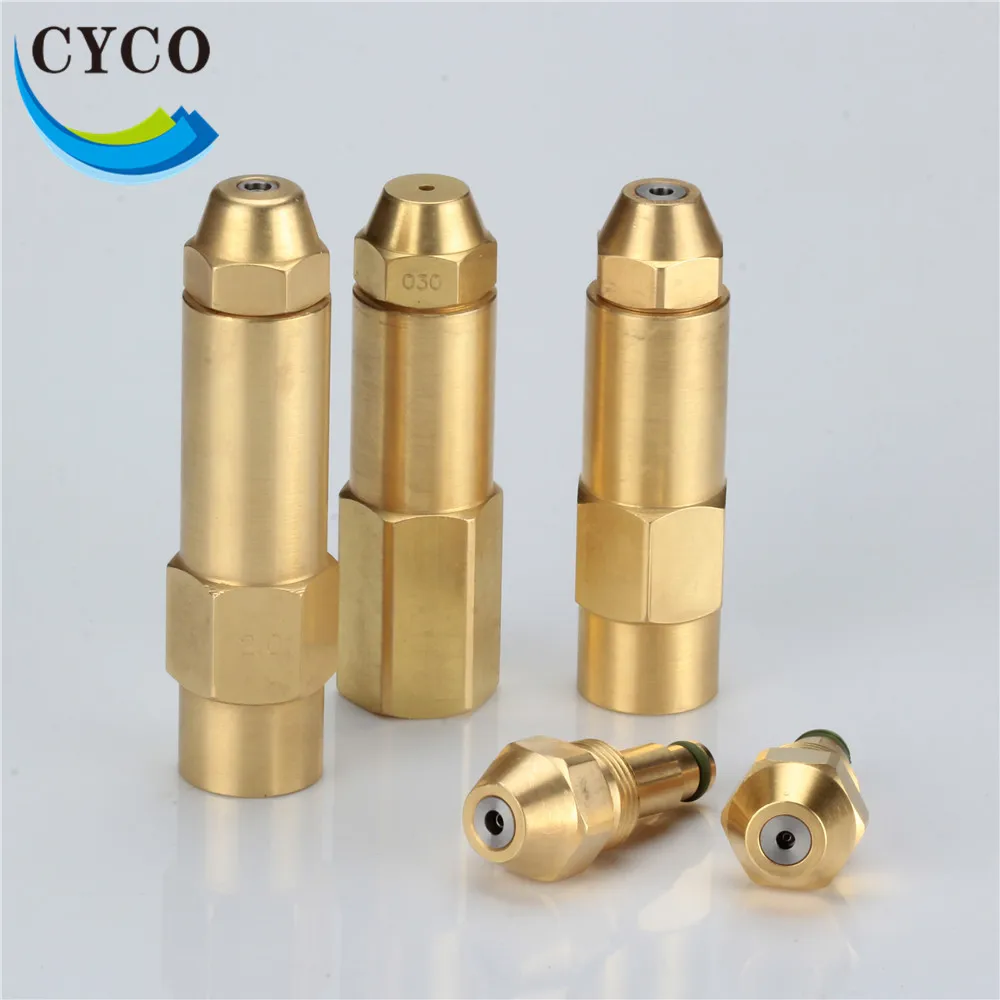

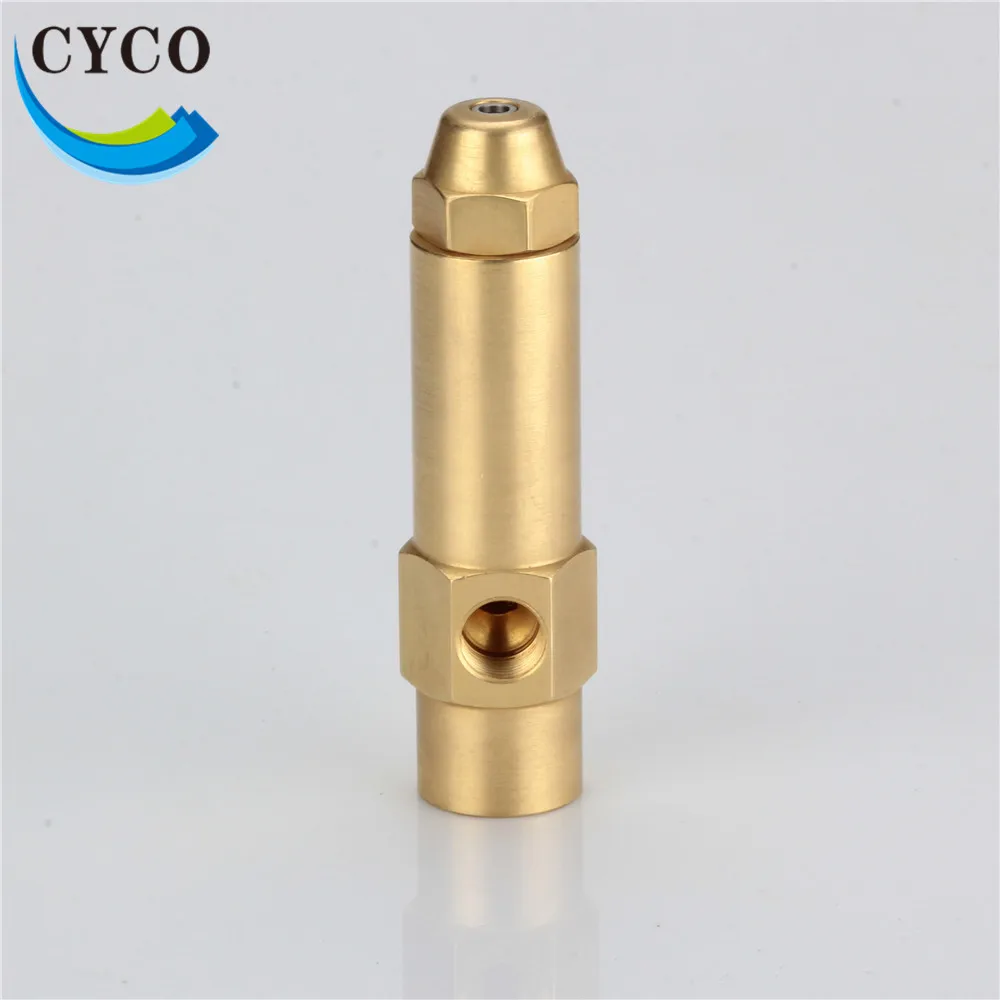

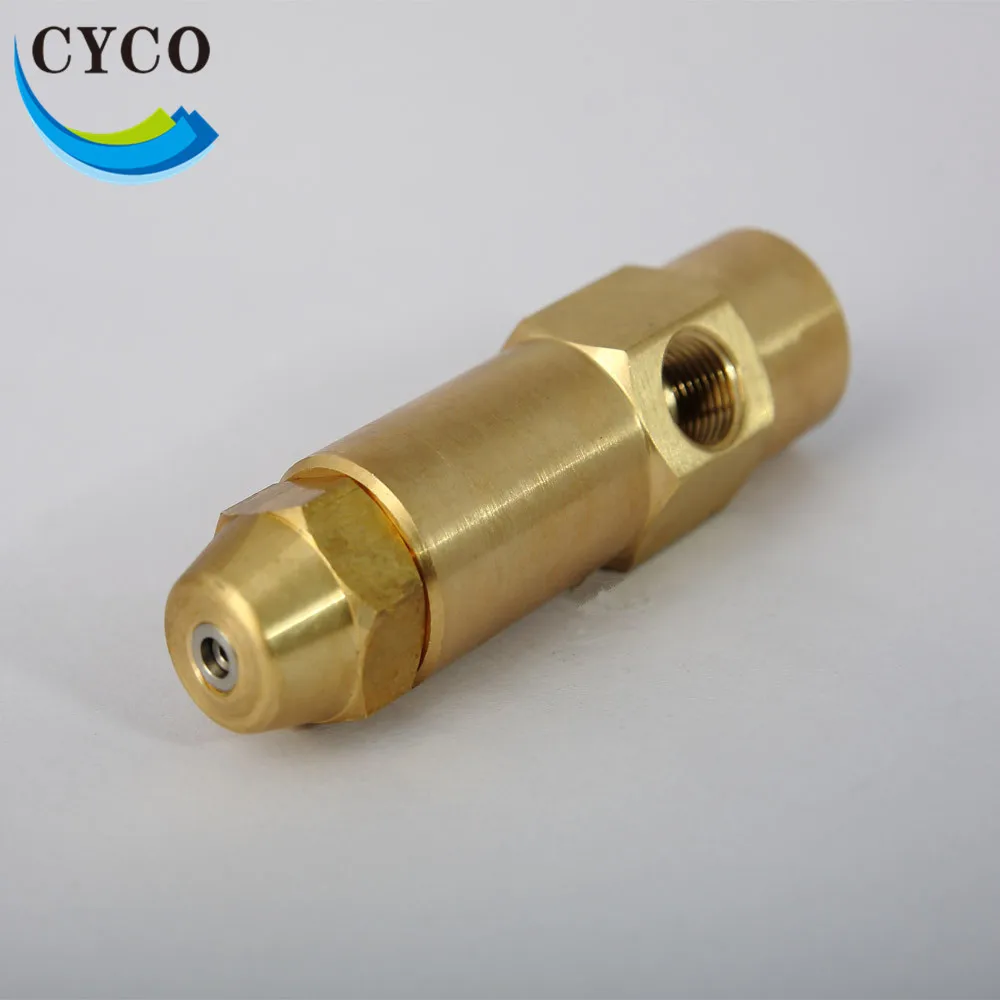

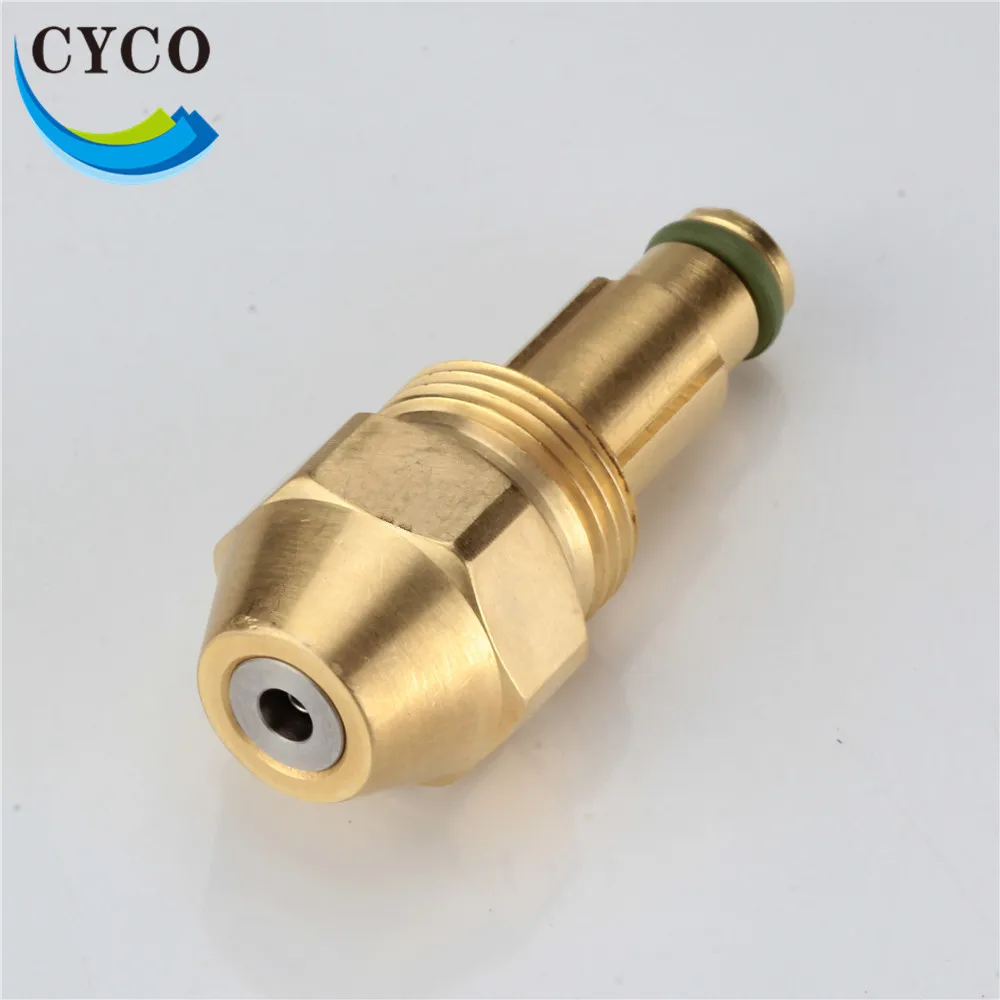

OD series oil burner nozzle is a kind of high-pressure atomizing oil burner nozzle that suitable for atomizing and burning for light oil, heavy oil.
There are 4 angles for the spraying - 30 degrees, 45 degrees, 60 degrees and 80 degrees
3 spraying models: full cone (S), semi full cone(B), hollow cone(H), the nozzle models are available from 0.5 usgal to 35 usgal.

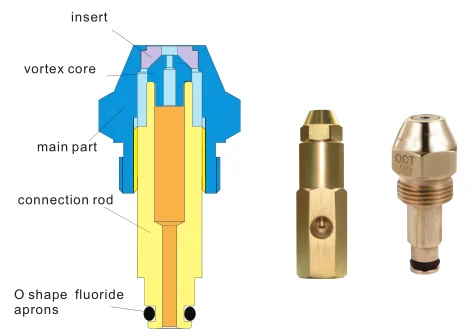

The Brass body and stainless steel metering parts permit machining to close tolerances for precision and consistently high performance. Brass transmits heat fast from the nozzle face to reduce the possibility of varnish and oil residue buildup. Stainless steel provides that extra durability for metering parts where wear is a factor.
Features:
1. Light oil, heavy oil atomizing
2. Flow range is from 0.5 usgal to 35 usgal.
3. 100% capacity test before packing
Oil Burner Fuel Spray Nozzle
Product Name
Oil burner fuel spray nozzle
Material
Brass
Thread Type
NPT, BSPT
Thread Size
1/4'', 1/8''
Flow Rate
0.5---35gal/h
Spray Angle
30°, 45°, 60°, 80°
Spray Pattern
Hollow Cone, Full Cone, Semi-solid Cone
Features
With Strainers, Clogging Resistance
High Precision
100% Full Test
Application
Oil Spraying
Packing
Plastic Bag+ Carton, Special requirements are available
Delivery
Normally Within 7-10 Working Days after receiving the payment
Custom Made
Available
Application:
OD series oil burner nozzle used for atomizing burning.The installation of its' ignition electrode become convenient after several times improvement of the outside size and oil filter.
According to the US standard, oil burner nozzle have 4 different degree: 30. 45. 60.80.
and the spray pattern can be divided in to S(solid cone), H(hollow cone),B(semi-solid cone)

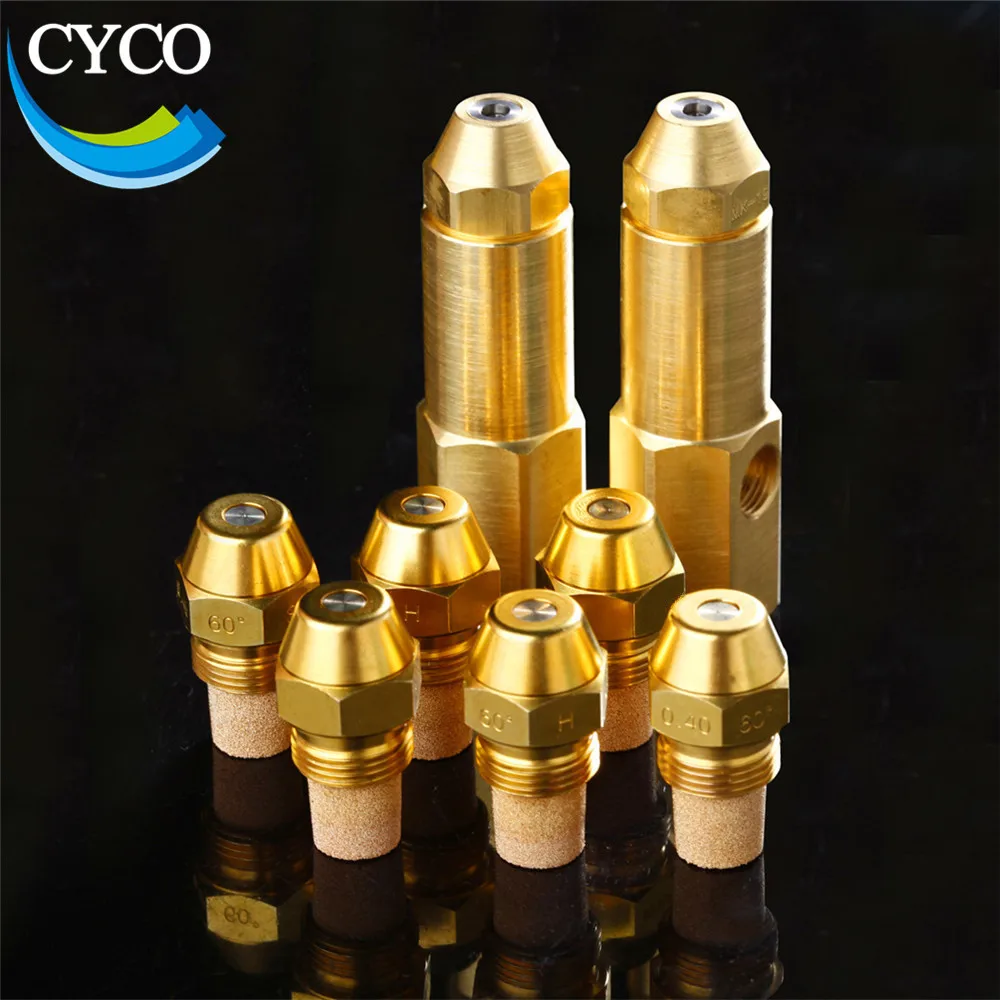

Mistking oil burner nozzle use the different oil filter according to the different capacity:
A: capacity from 0.30-0.35 usgal/h use 30micro melting cooper filter.
B: capacity from 0.40-0.85 usgal/h use 45micro melting cooper filter.
C: capacity from 1.00-1.75 usgal/h use 75micro melting cooper filter.
D: capacity from 2.00-11.00 usgal/h use 145micro melting cooper filter.
E: capacity above 12.00 usgal/h do not use filter.

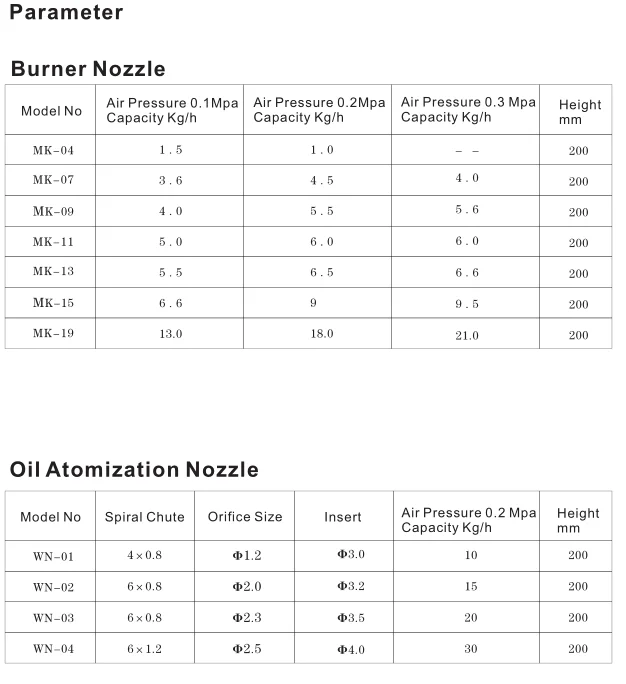

Technical data:
Related Products
Pls Click the different nozzle pictures as below,
then you will go to the related nozzle page for more information.
Tank Washing Nozzle Hollow Cone Nozzle FD Mist Nozzle
Dry Fog Humidifier Fire Fighting Nozzle Air Atomizing Nozzle
Packaging & Shipping
Production Steps
FAQ
Q1. Are you a trading company or a manufacturer? A: CYCO, founded in 1991, is one of the biggest spray nozzle manufacturer in China
Q2. What are your terms of payment? T/T, D/T, Western Union. We will arrange product after received payment. And we'll show you the photos of the products and packages before shipping.
Q3. How about your delivery time? Generally, it will take 7-10 days after receiving your payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples or can you provide the sample for the quality test? Yes, we provide OEM service and customized product. We can provide the sample for a quality test before order confirmation and will charge sample cost. But the cost can be refunded after order confirmed when your quantity is more than our MOQ.
Q5. Do you test all your goods before delivery? Yes, we have 100% test before delivery
