Product Overview

Description



Product Description

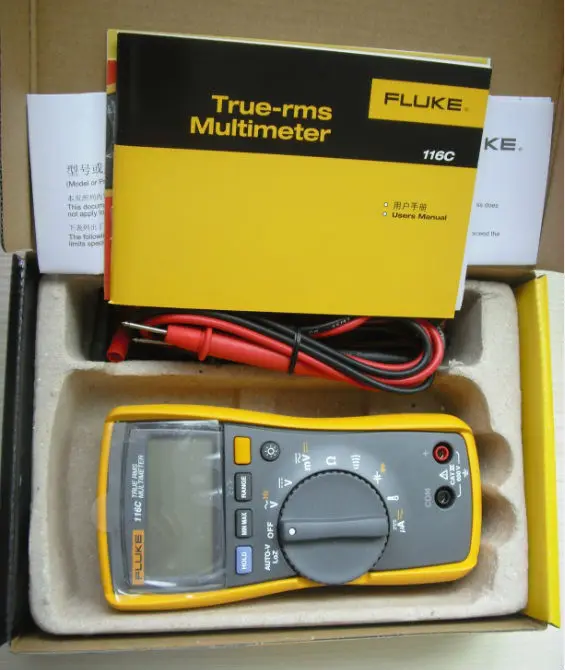

116C Electrical instrument Ture RMS Fluke multimeter





Model: Fluke 116C





Features:



  • Built-in thermometer for HVAC applications

  • Microamps to test flame sensors

  • Low input impedance: helps prevent false readings due to ghost voltage

  • Large white LED backlight to work in poorly lit areas

  • Resistance, continuity, frequency and capacitance

  • Min/Max/Average with elapsed time to record signal fluctuations

  • Compact ergonomic design for one-handed operation

  • Compatible with optional magnetic hanger (ToolPak)

  • CAT III 600 V safety rated









































Specifications



Maximum voltage between any terminal and earth ground



 600V



Surge protection















 6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2







Display











Digital:



 6,000 counts, updates 4 per second







Bar graph



  33 segments, updates 32 per second



Operating Temperature



  -10 °C to + 50 °C



Storage Temperature



  -40 °C to + 60 °C



Battery type















 9 volt Alkaline, NEDA 1604A/ IEC 6LR61







Battery Life















 400 hours typical, without backlight












































































Accuracy Specifications



DC millivolts












Range/Resolution:



 600.0 mV/0.1mV



Accuracy: ±(0.5% + 2)







DC volts


















Range/Resolution:



 6.000 V / 0.001 V



Accuracy: ±(0.5% + 2)



 60.00 V / 0.01 V



 600.00 V / 0.1 V







Auto volts















Range/Resolution:



 600.0 V/0.1 V



±(2.0 % + 3) (dc, 45 Hz to 500 Hz)



±(4.0 % + 3) (500 Hz to 1 kHz)







AC millivolts1 true-rms















Range/Resolution:



 600.0 mV/0.1 mV



±(1.0 % + 3) (dc, 45 Hz to 500 Hz)



±(2.0 % + 3) (500 Hz to 1 kHz)







AC volts1 true-rms



















Range/Resolution:



 6.000 V / 0.001 V



±(1.0 % + 3)(dc, 45 Hz to 500 Hz)



 60.00 V / 0.01 V



±(2.0 % + 3)(500 Hz to 1 kHz



 600.0 V / 0.1 V







Continuity












Range/Resolution:



600Ω/1Ω



 Beeper on < 20 Ω , off > 250 Ω ; detects opens or shorts of 500 μs or longer.







Ohms




























Range/Resolution:



 600.0  Ω / 0.1 Ω



Accuracy: ±(0.9% + 1)



 6.000 k Ω / 0.001 k Ω



 60.00 k Ω / 0.01 k Ω



 600.0 k Ω / 0.1 k Ω



 6.000 M Ω / 0.001 M Ω



 40.00 M Ω / 0.01 M Ω



Accuracy: ±(1.5% + 2)







Diode Test












Range/Resolution:



 2.000 V / 0.001V



Accuracy: ±(0.9% + 2)







Capacitance





























Range/Resolution:



 1000 nF / 1 nF



Accuracy: ±(1.9% + 2)



 10.00 μF / 0.01 μF



 100.0 μF / 0.1 μF



 9999 μF / 1 μF



 100 μF to 1000 μF



Accuracy: ±(1.9% + 2)



 > 1000 μF



Accuracy: ±(5% + 20)







LoZ capacitance












Range:



 1 nF to 500 μF



 Accuracy:±(10% + 2) typical







Temperature (Type-K thermocouple)
















Range/Resolution:



 -40 °C to 400 °C / 0.1 °C



 Accuracy:±(1% + 102)



 -40 °F to 752 °F / 0.2 °F



 Accuracy:±(1% + 182)







AC μamps true-rms (45 Hz to 1 kHz)















Range/Resolution:



 600.0 μA /0.1 μA



Accuracy:±(1.5%+3)



Accuracy:±(2.5%+3)>500Hz











DC μamps












Range/Resolution:



 600.0 μA / 0.1 μA



 Accuracy: ±(1.0% + 2)











Hz (V or A input)2





















Range/Resolution:



 99.99 Hz / 0.01 Hz



Accuracy: ±(0.1% + 2)



 999.99 Hz / 0.1 Hz



 9.999 kHz / 0.001 Hz



 50.00 kHz / 0.01 Hz




































Mechanical and General Specifications



Size



167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)



Weight



550 g



Warranty



3 years
