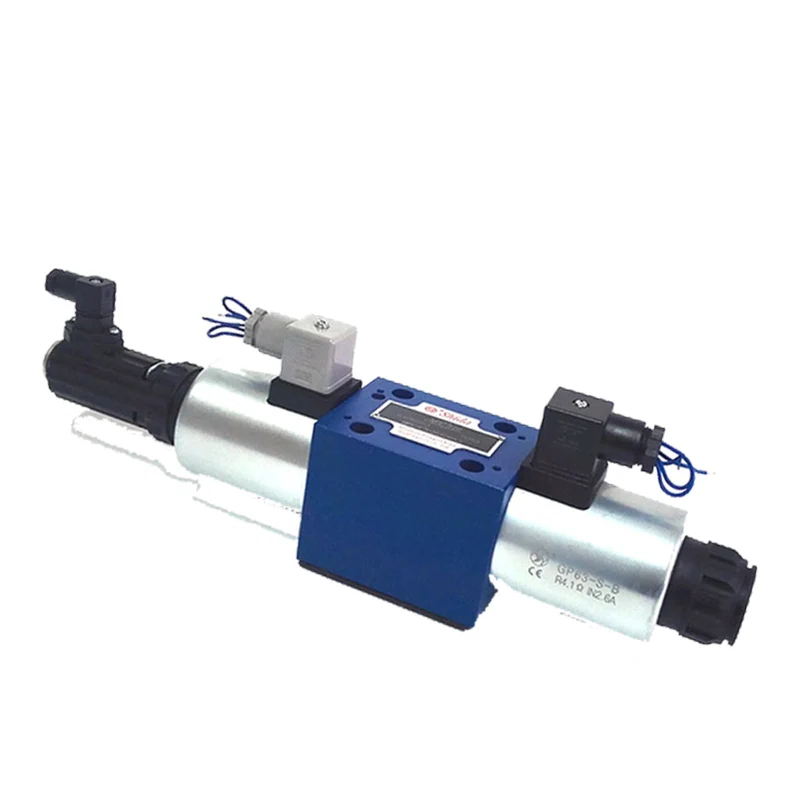

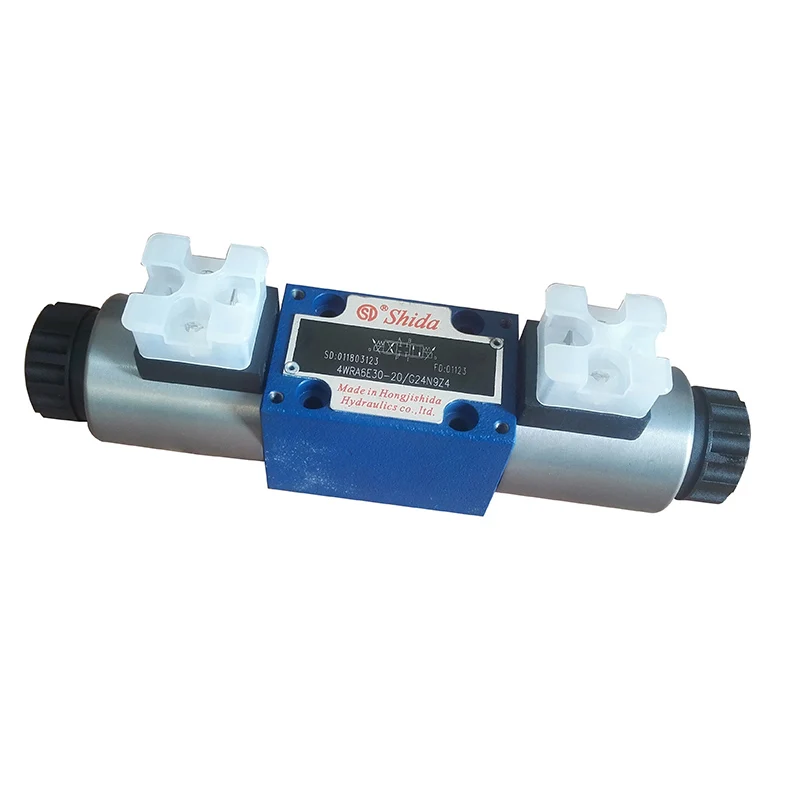

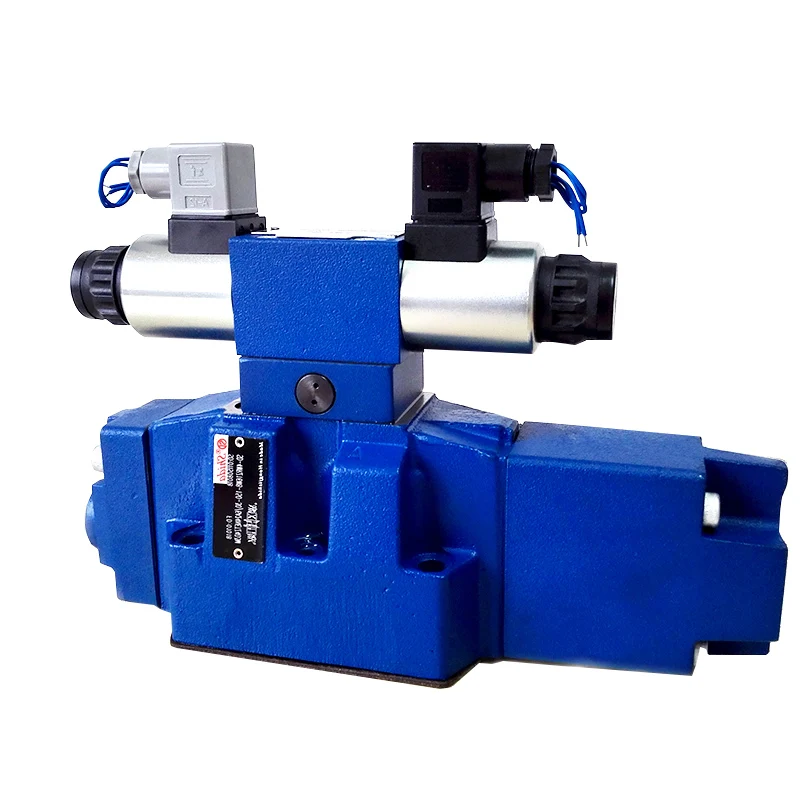

High Pressure Hydraulic 1600L /Min Maximum Flow Directional Valve

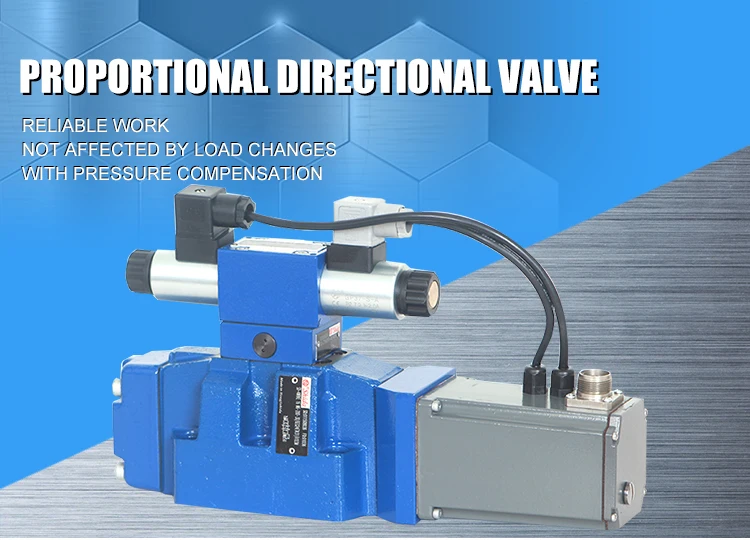

Proportional valve is a new type of hydraulic control device. In the ordinary pressure valve, flow valve and directional valve, the proportion of electromagnet instead of the original control part, according to the input electrical signal continuously, in proportion to the flow of oil pressure, flow or direction for long-distance control. Proportional valves are generally pressure compensated, and the output pressure and flow can be unaffected by load changes.

With the solenoids (4) de-energised, the control spool (2) is held in the central position by compression springs (3). Direct actuation  of the control spool (2) by energising a proportional solenoid.E.g. controlling of solenoid "b" (4).The control spool (2)  is moved to the left in proportion to the electrical input signal.Connection form P to A and B to T via orifice-like cross sections  with progressive flow characteristics. De-energisation of the solenoid (4).The control spool (2) is returned to the central position by compression spring (3).
