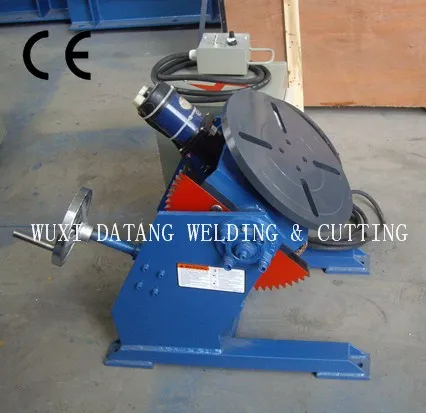

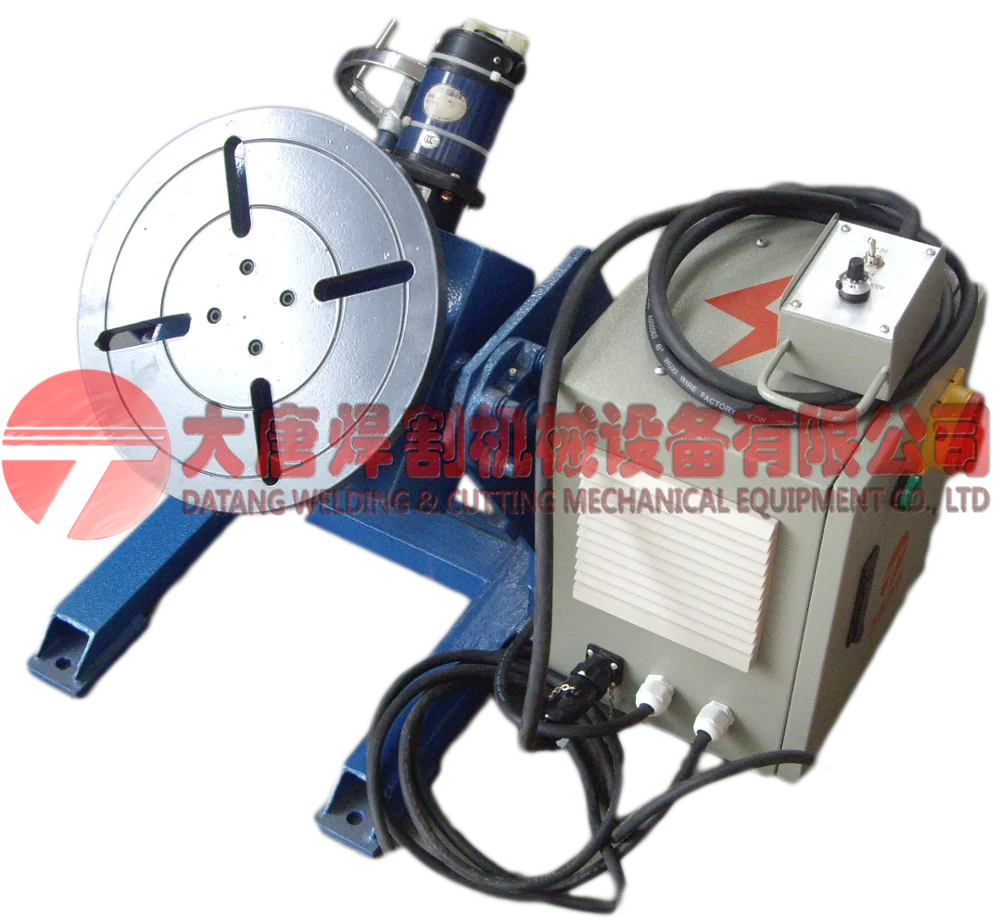

HB 1 AUTOMATIC WELDING POSITIONER/WELDING POSITIONER FOR ROBOT
- Category: >>>
- Supplier: Wuxi Datang Welding & Cutting Mechanical Equipment Co. Ltd.
Share on (60780183185):
Product Overview
Description
Product Description
WELDING POSITIONER WITH TILTING AND ROTATING FUNCTION,WHICH CAN MAKE WORKPIECE MOINTED ON THE WORKTABLE TO IDEAL POSITON FOR WELDING OR ASSEMBLING.WORKTABLE ROTATING SPEED BY VFD(INVERTER) TO ACHIEVE SATISFACTORY WELDING SPEED.
FOR THE REASON OF ECCENTRIC-DISTANCE AND GRAVITY-CENTER-DISTANCE,LONGER WORKPIECES AND BIGGER GRAVITY-CENTER WORKPIECES SHOULD CHOOSE LARGE MODELS.IF STANDARD WELDING POSITIONER CAN NOT MEET THE JOBS,PLEASE CONTACT US FOR SPECIAL DESIGN.
Machine parameters
| Type | HB-01 | HB-03 | HB-06 | HB-12 | HB-30 | HB-50 | HB-100 | HB-150 | HB-200 |
| Rated weight Bearing(Kg) | 100 | 300 | 600 | 1200 | 3000 | 50000 | 10000 | 15000 | 20000 |
| Overturning Veloctity(rpm) | Manual tilting | Manual tilting | 0.8 | 0.5 | 0.3 | 0.14 | |||
| Worktable size's Diameter | 400 | 600 | 1000 | 1200 | 1400 | 1500 | 1800 | 2000 | 2200 |
| Max eccentricity distance(MM) | 50 | 100 | 200 | ||||||
| Max gravity center distance(MM) | 150 | 200 | 300 | 400 | |||||
| Rotating speed(rpm) | 0.12~1.2 | 0.1~1 | 0.05~0.5 | 0.03~0.3 | |||||
| Rotating power(KW) | 0.09 | 0.75 | 1.5 | 2.2 | 3 | 4 | |||
| Tilting Power(kw) | / | 0.75 | 1.1 | 2.2 | 3 | 4 | 5.5 | 7.5 | |
| Speed adjusting way | DC speed control | Rotating speed by VFD(INVERTER) | |||||||
| Voltage | 220V-1PH-50HZ | 220V-3PH-50HZ(OTHER voltage can customized) | |||||||
| Options:FOOT SWITCH 2.CHUCK 3.WIRELESS CONTROLLER | |||||||||
Packaging & Shipping
welding positioner for sale
1.Outside package:standard export wooden cases
2.Inner package:Stretch film about 14 workdays payments.
Company Information
