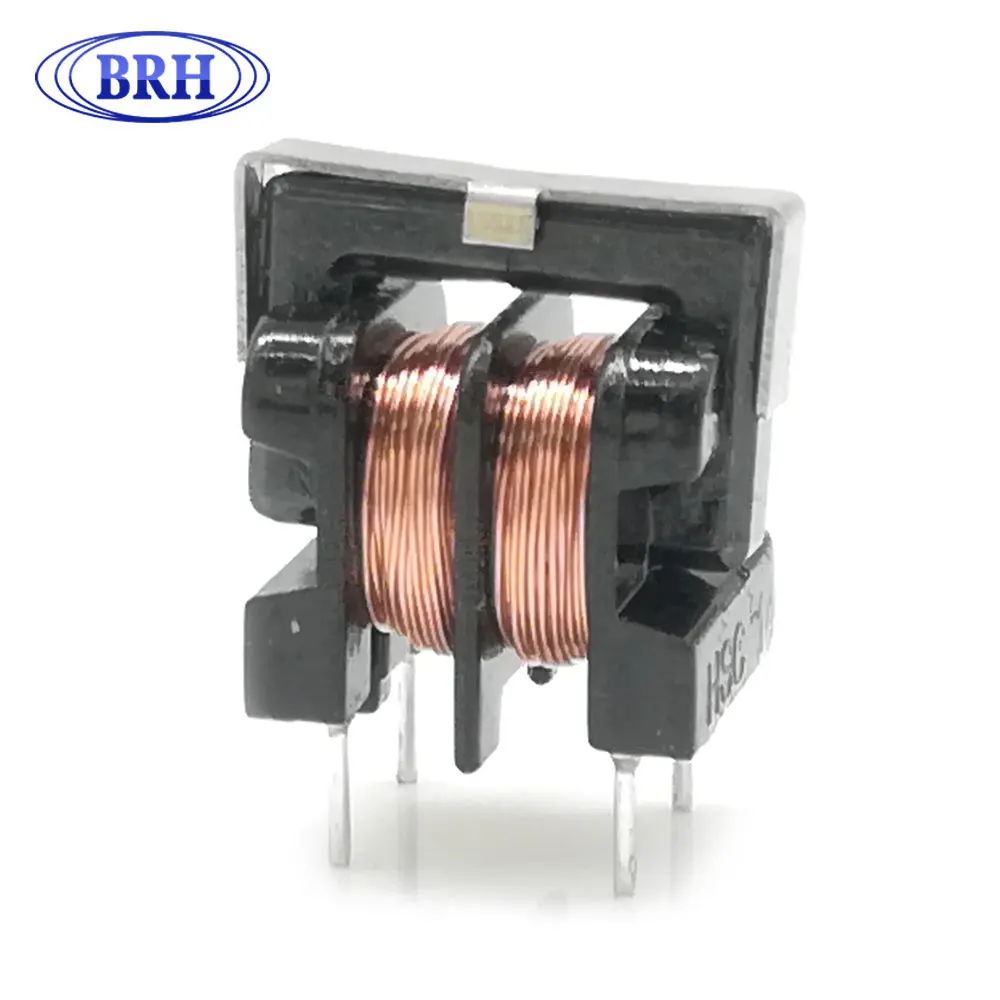

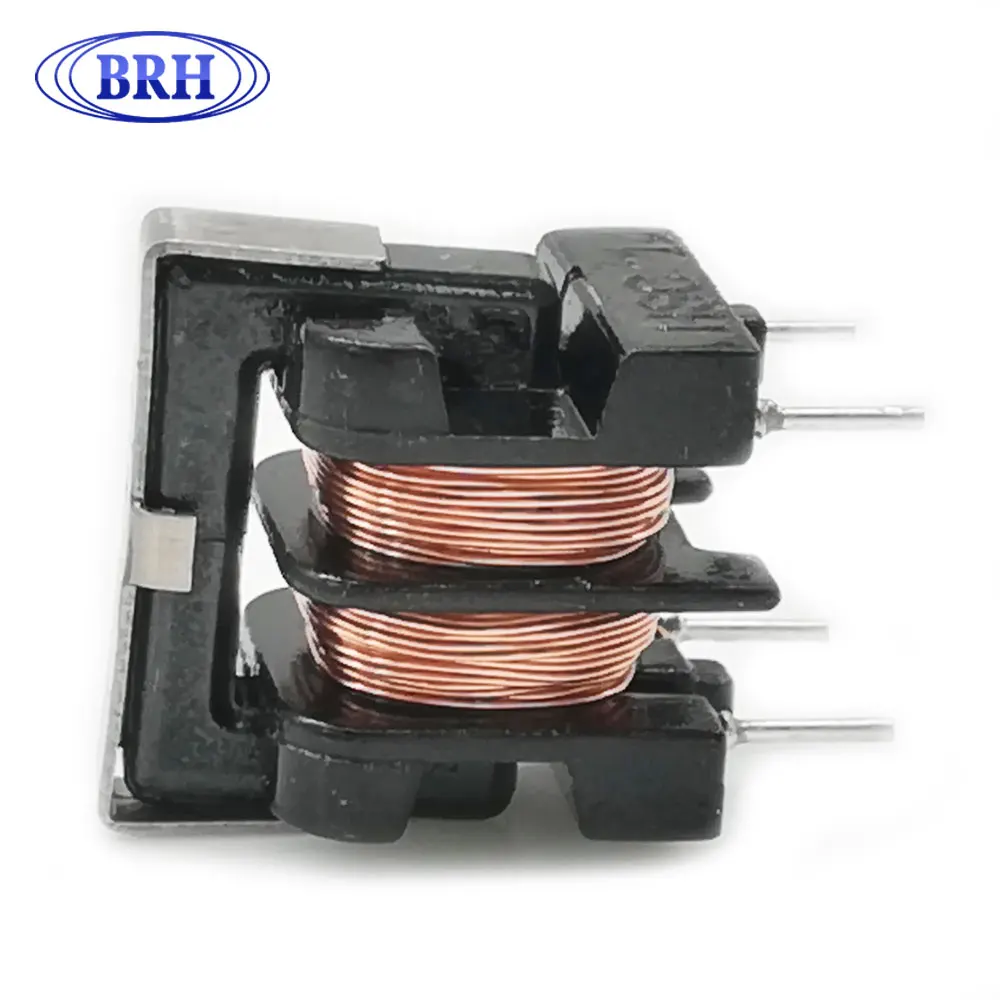

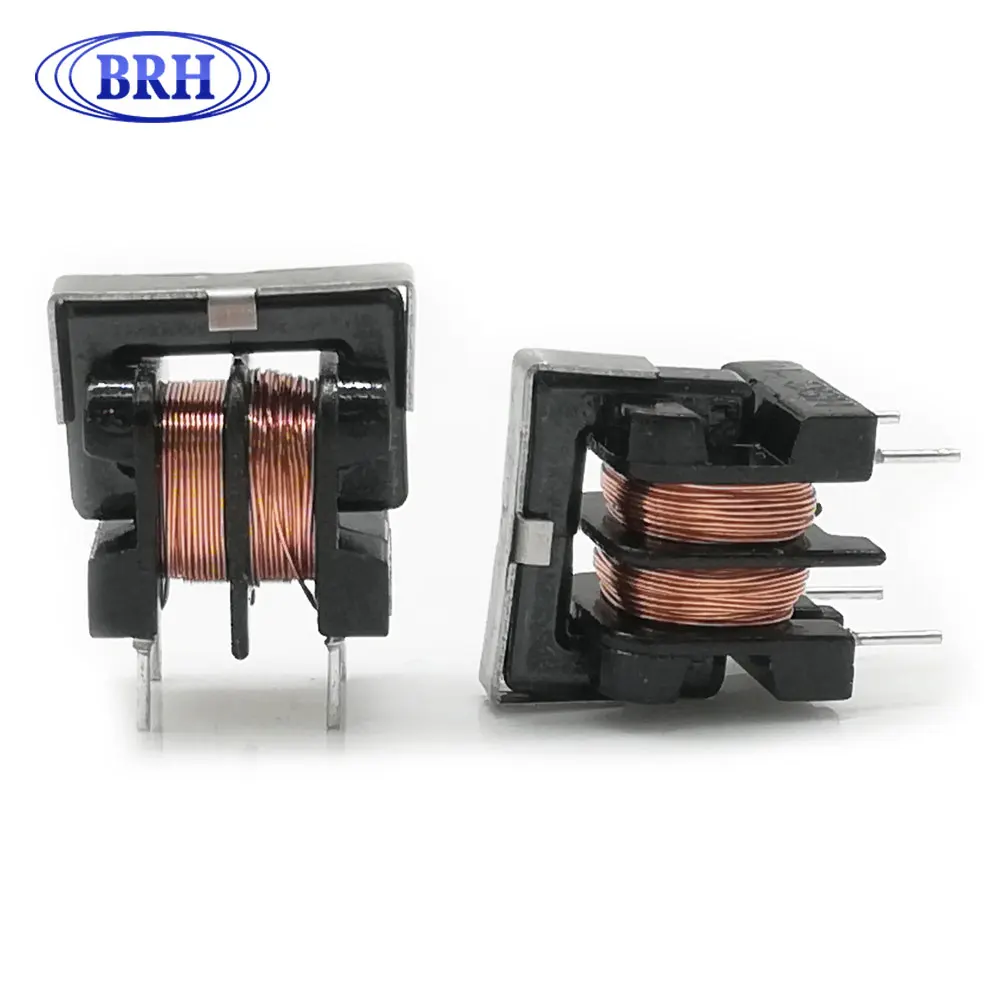

UU9.8 common mode choke filter 40mH inductor
UU9.8 common mode choke filter 40mH inductor
UU9.8 common mode choke filter 40mH inductor
UU9.8 common mode choke filter 40mH inductor
UU9.8 common mode choke filter 40mH inductor
UU9.8 common mode choke filter 40mH inductor

UU9.8 common mode choke filter 40mH inductor

Share on (60780193105):


Price:RUB 8.92 - RUB 20.37

Quantity:


Product Overview

Description

Description

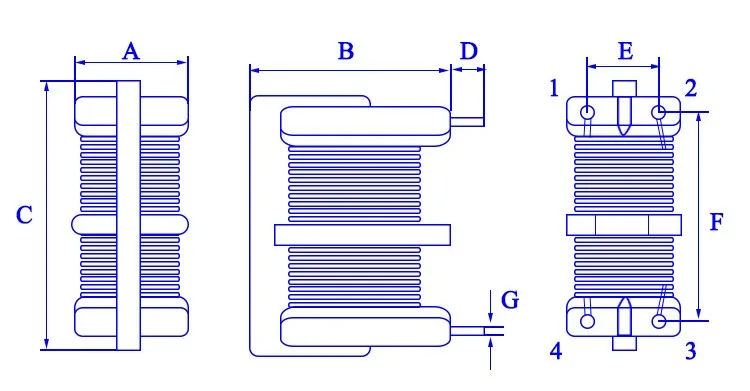

DIMENSIONS(mm)
A
B
C
D
E
F
G
UU9.8-40mH
10.5Max
15.9Max
15.6Max
4.0±1.0
6.5±0.5
7.5±0.5
Ф0.6±0.1
Parameter
ELECTRICAL REQUIREMENTS
ITEM
SPEC
TOLERANCE
TEST FREQUENCY
TEST EQUIPMENT
L1=L2
40mH
Min
1.0kHz /0.25V
1068
DCR1=DCR2
75Ω
Max
At 25℃
1068
|L1-L2|
0.3mH
Max
1.0kHz /0.25V
1068

HI-POT
PRI-SEC
AC1.0KV
5mA 3S 50HZ

GY2670A
PRI-CORE
AC1.0KV
5mA 3S 50HZ
SEC-CORE
AC1.0KV
5mA 3S 50HZ
MATERIAL LIST
NO.
Material
Specification
Supplier Code
1
BOBBIN
UU9.8-H or equivalent
DY
2
CORE
R15K UU9.8 or equivalent
HRCD
3
WIRE
2UEW-NФ0.2mm×2P×120Ts REF
SG
4
Varnish
F-363 T-716
DFL
Tape
CT280 5mm
YH
TEST DATAS FOR PRE PRODUCTION SAMPLES
SPEC
1
2
3
X-bar
R
L1 mH
40 Min
46.2
46.9
46.1
46.4
0.8
L2 mH
40 Min
46.7
46.2
46.3
46.4
0.5
DCR1 (Ω )
75 Max
67.4
67.8
67.3
67.5
0.5
DCR2 (Ω )
75 Max
65.7
65.4
66.3
36.7
0.9
A (mm)
10.5 Max
10.3
10.3
10.5
10.4
0.3
B (mm)
15.9 Max
15.6
15.6
15.7
15.6
0.1
C (mm)
15.6Max
15.8
15.9
15.7
15.8
0.2
D (mm)
4.0±1.0
3.9
3.9
4.0
3.9
0.1
E (mm)
6.5±0.5
6.38
6.35
6.37
6.37
0.03
F (mm)
7.5±0.5
7.55
7.54
7.55
7.55
0.01
G (mm)
Ф0.6±0.1
0.69
0.69
0.70
0.69
0.01
