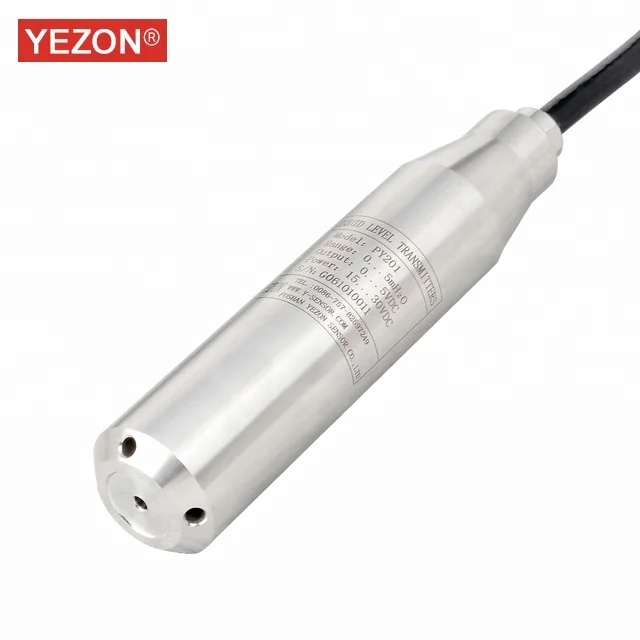

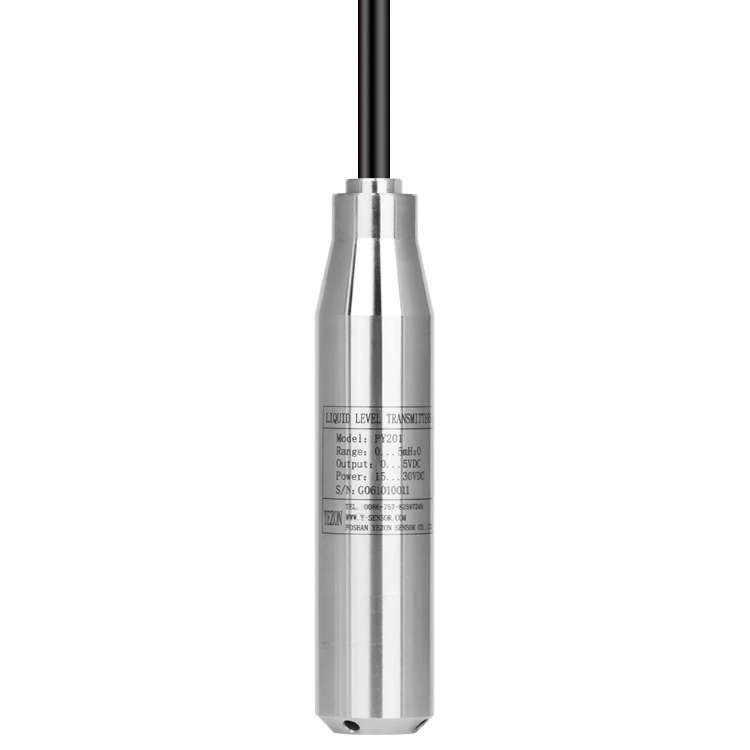

YEZON Input Liquid Level Transmitter for Reservoir Water Tower Water Level Sensor Industrial Water Level Meter
- Category: >>>
- Supplier: Foshan Yezon Sensor Instrument Co. Ltd.
Share on (60780211644):
Product Overview
Description

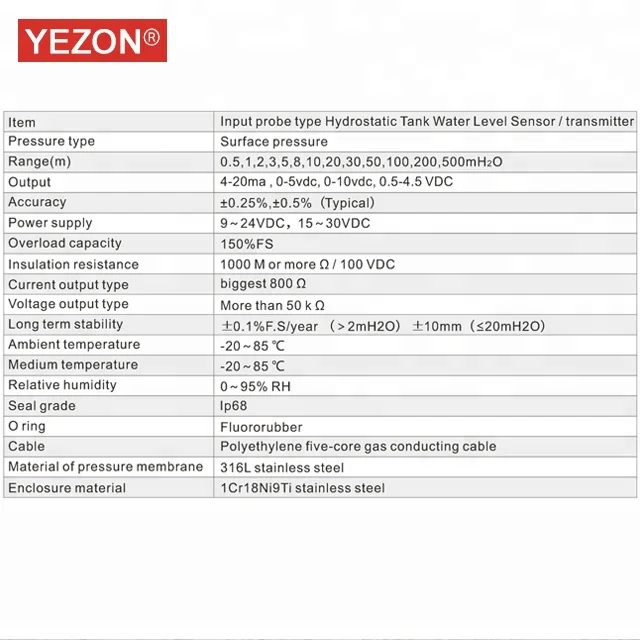

Products Description

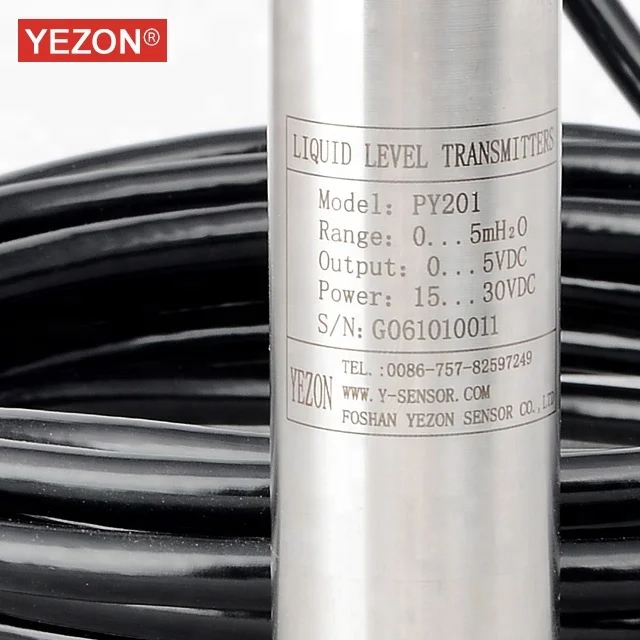

Model | PY201 |
Material | Stainless Steel |
Feature | Input level transmitter |

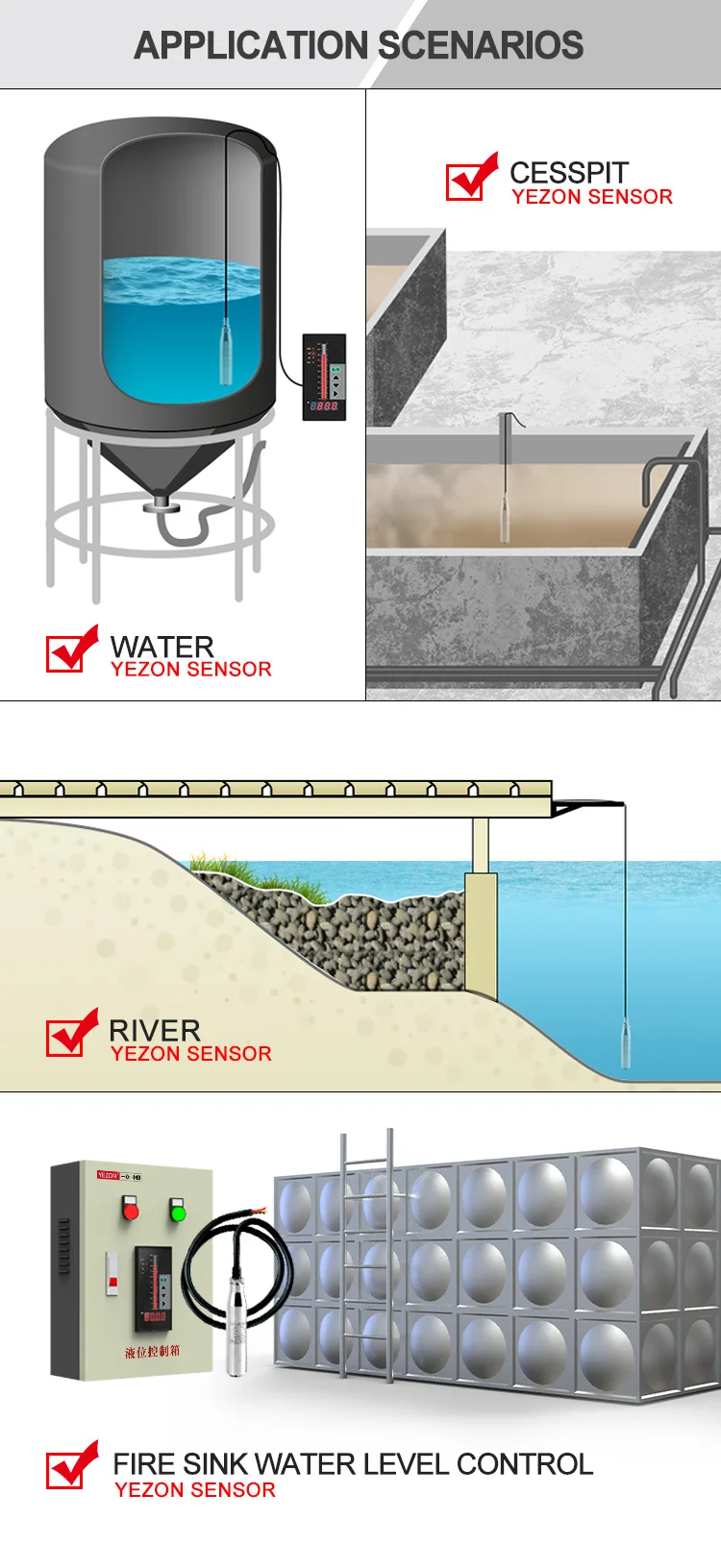

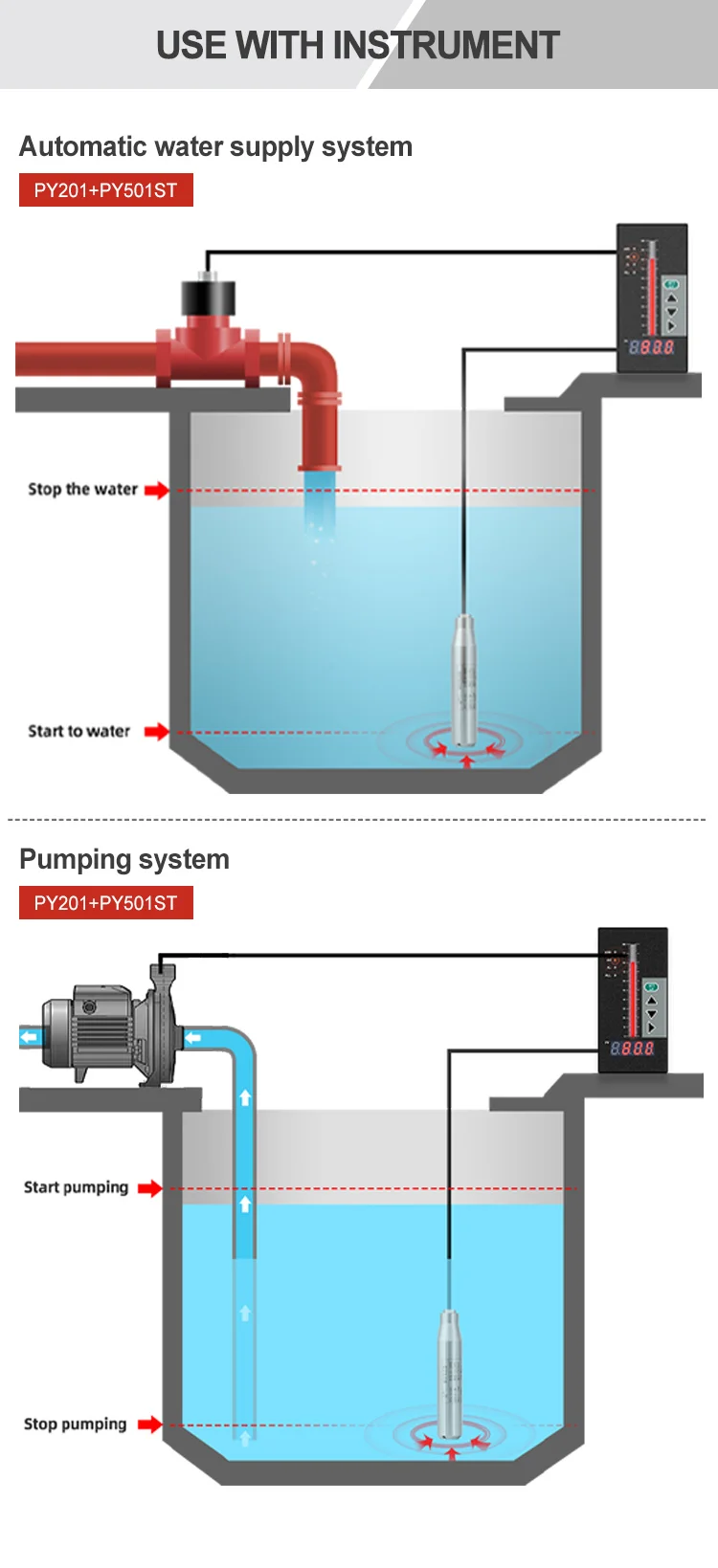

Application | Level measurement in rivers and lakes/Level measurement in vessel and storage/Control of sewage discharge and pumping stations/Level measurement in cistern and coolant reservoir |
Range | can be customized within the range of 0 ~ 0.2 ~ 500m |
Accuracy | 0.5FS% (recognized) 0.3FS% (need to be customized) |
Limit overload | 200% |
Response time | 5ms (rise to 90% F5) |
Medium temperature | -20 ~ 60°C (Temperature compensation -20 ~ 70°C) |
Power supply voltage | DC24V [15 ~ 36VDQ (default), 12VDC power supply needs to be customized |
Input signal | 4 ~ 20mA, 0 ~ 5V, 1 ~ 5V , 0 ~ 10V,RS485, RS232, wireless short distance (within 2000 meters)network transmission, GPRS wireless transmission. |
Stability | ± 0.2% FS/year |
Sealing level | IP68 |
Process connection | Input type, put into the test liquid |

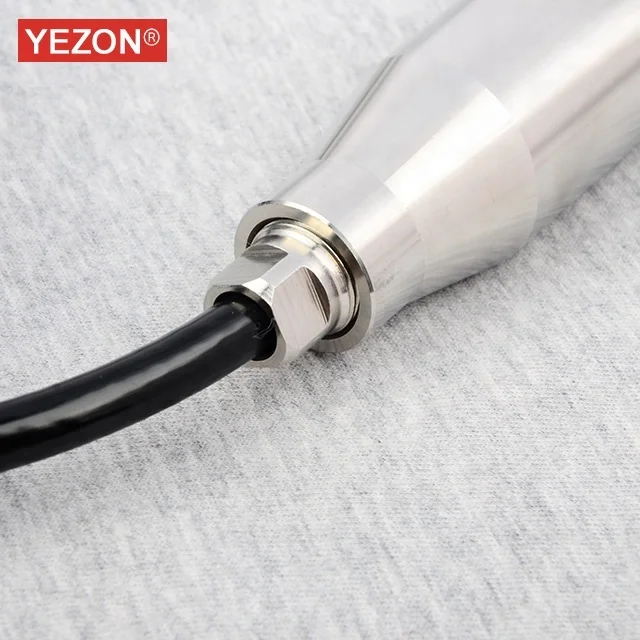

Electrical interface | Connect the tight-wire waterproof nose to the five-core air guide cable |

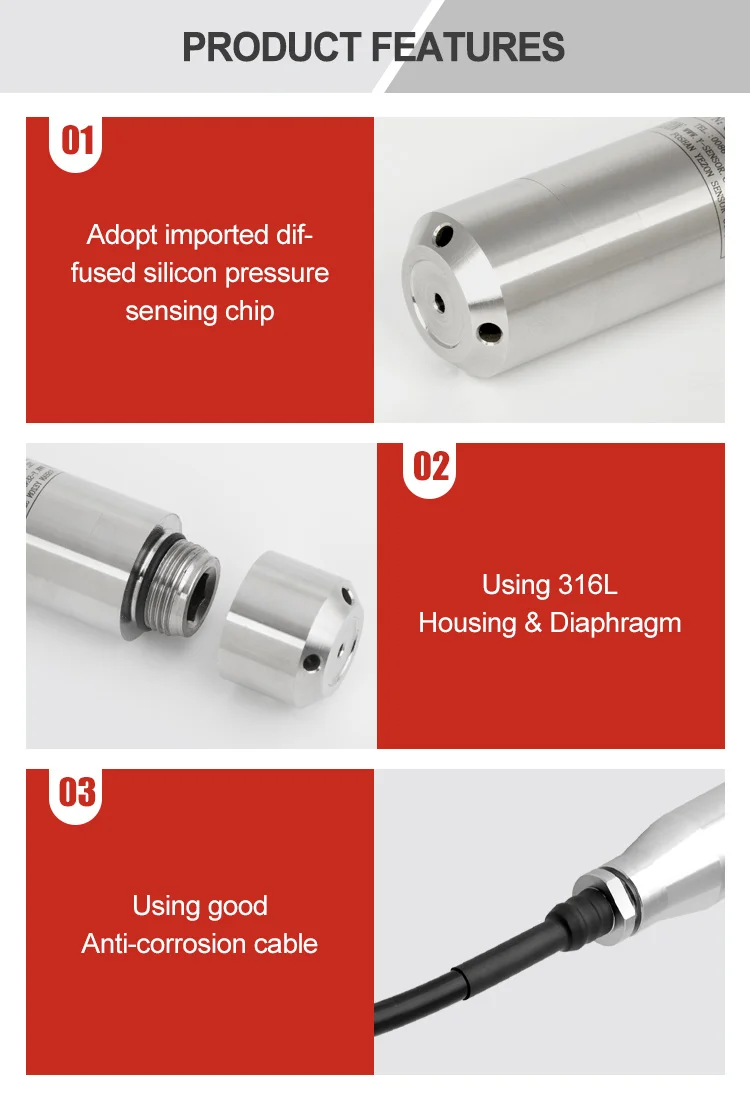

A. Precision silicon induction chip;
B.Technology with zero and full range compensation and temperature compensation;
C. High precision and high stability amplifier integrated circuit;
D. Stainless steel structure, shock resistance, fatigue resistance and high reliability;
E. Diversified output signals (including current type and voltage type); F. The protection grade is IP68 standard.
C. High precision and high stability amplifier integrated circuit;
D. Stainless steel structure, shock resistance, fatigue resistance and high reliability;
E. Diversified output signals (including current type and voltage type); F. The protection grade is IP68 standard.
Q:What kind of products do you offer ?
A:We supply pressure sensor, level sensor, flow meter and digital controllers.We’re professional in sensor area for over 13 years.
Q:Where is your company located?Could I visit your factory?
A:Our company is located in Foshan Guangdong province.Sincerely invite you to visit our factory.
Q:Could I get samples?
A:We have materials in stock to help you to get the samples as soon as we can.Welcome to contact us by e-mail or alibaba for your your required.
Q:How does your factory do regarding QC?
A:Quality is priority.We always consider quality as the most important thing during the whole production process. We have the certification of ISO, CE.We could send the certification to you if needed.
Q:Can you offer OEM or Design services?
A:Yes.Our products are independently designed and manufactured.We can offer OEM service according to your requirement,including products function,logo,packing etc.
Q:what is your after-sale service?How about the warranty?
A:We offer guarantee on our product for 12 months and we have a professional after-sales team at your service.
Q:What about your delivery time?And how do you delivery the goods?
A:RTS products can be delivery within 2-7 days.Customized products shall be arranged according to the orders.Many delivery service can be choosed,like DHL,FedEx,TNT,Airline and sea shipping.
Q: How can I get the quotation or send my inquiry to?
A: Send your inquiry to us by the inquiry from on the right-side or the bottom of this page.
How to order?
A. In order to recommend you most suitable solution and best offer, please provide the following information when send inquiry, thanks !
1. What is the tested medium? Water, oil, gas or others.
2. Measure range: 0-200bar or ...?
3. Output signal:4-20mA, 0~5V RS485 or..?
4.Medium Temperature:under normal Temp. or heating
5. Require quantity?
