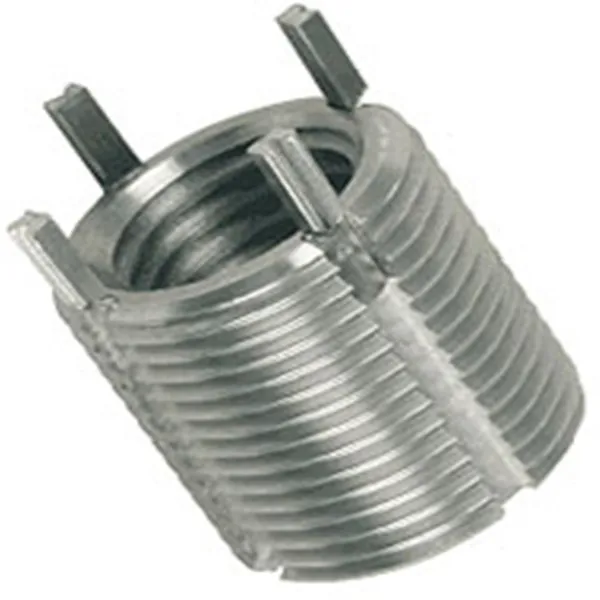

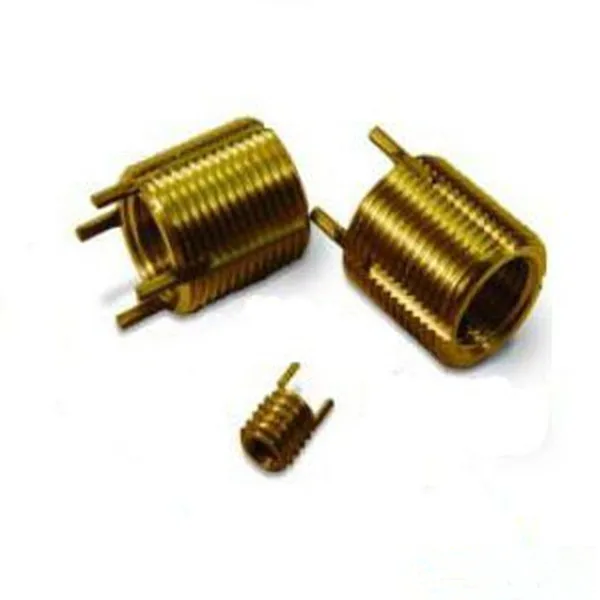

M4 M5 m7 M8 M12 Keensert key locking thread insert

M4 M5 m7 M8 M12 Keensert key locking thread insert

Keensert key locking inserts provide high strength and reliability and are designed to provide high resistance to rotation and pull-out loads. After installation into the tapped hole, the locking keys on each key locking inserts are driven down through the threads of the parent material, locking the insert firmly and permanently in place.

· Can be used in virtually any material including aluminum, cast iron, steel, & plastics

· Positive mechanical lock against rotation

· High strength and flexibility provides maximum pull out strength

· Easy installation and removal, can be installed using standard drills and taps.
However, Keensert installation kits are also available if needed

· No prewinder tool required

· No tang break off needed

Application:

Can be used in virtually any material including aluminum, cast iron, steel, plastics.

Thread standard: Metric, MS

Metric size keensert insert

Grade: 6H,5H

MS size: Grade: 2B,3B

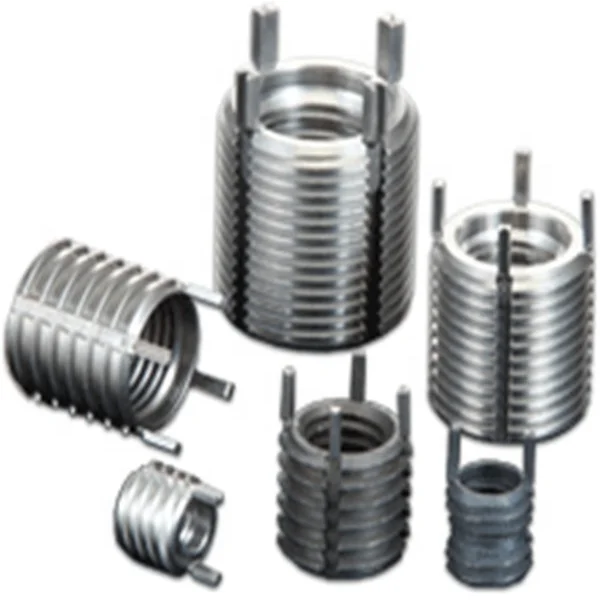

Key locking insert type:

•Thin wall

•Solid

•Heavy duty

•Extra heavy duty

 Impossible to cross-thread during installation
