This mixing machine is widely used in pharmacautical, chemical, food, dye, feed, chemical fertilizer and pesticide industries and especially suitable for mixing various solid materials with large volume.
Principle

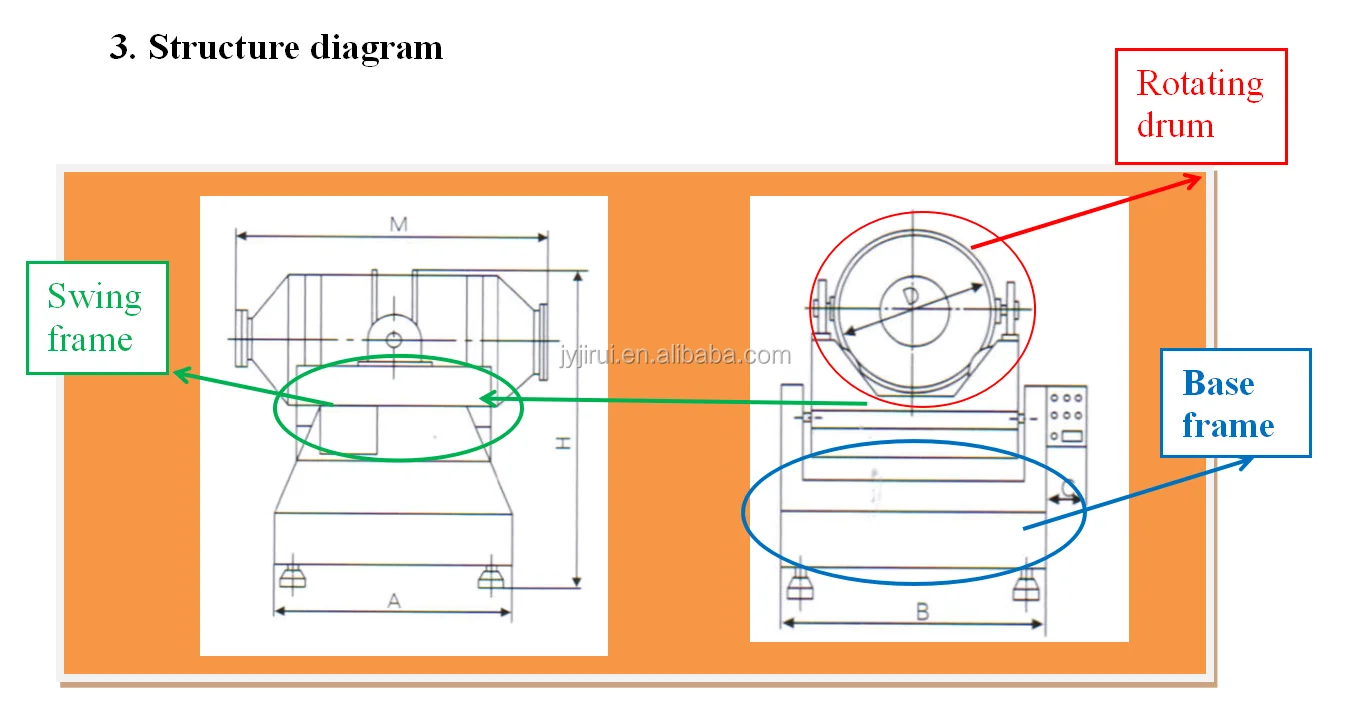

Composition structure:rotating drum+ swing frame+ base frame.
1) The material cylinder is mounted on the swing frame, supported by four rollers and axially positioned by two retaining wheels.
2) Among the four supporting rollers, two of the transmission wheels are driven by the rotating power system to rotate the drum;
3) The swing frame is driven by a set of crank swing mechanisms, which are mounted on thebase frame, and the swing frame is supported by the bearing assembly on the rack.
Features
1. The drum plays two movements at the same time, one is the axial rotation of the drum, and the other is the swing of the drum with the shaker.
2. While the material to be mixed rotates, flips, and mixes with the drum in the drum, it also undergoes mixing movement back and forth with the swing of the drum.
3. Under the combined action of these two movements, the material is fully mixed in a short time.
4. EYH two-dimensional motion mixer is suitable for mixing all powder and granules.

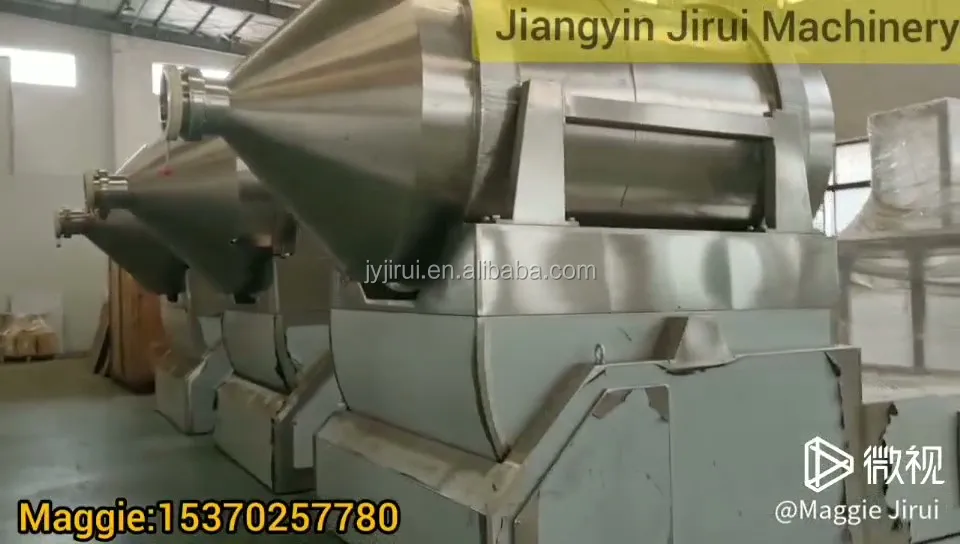

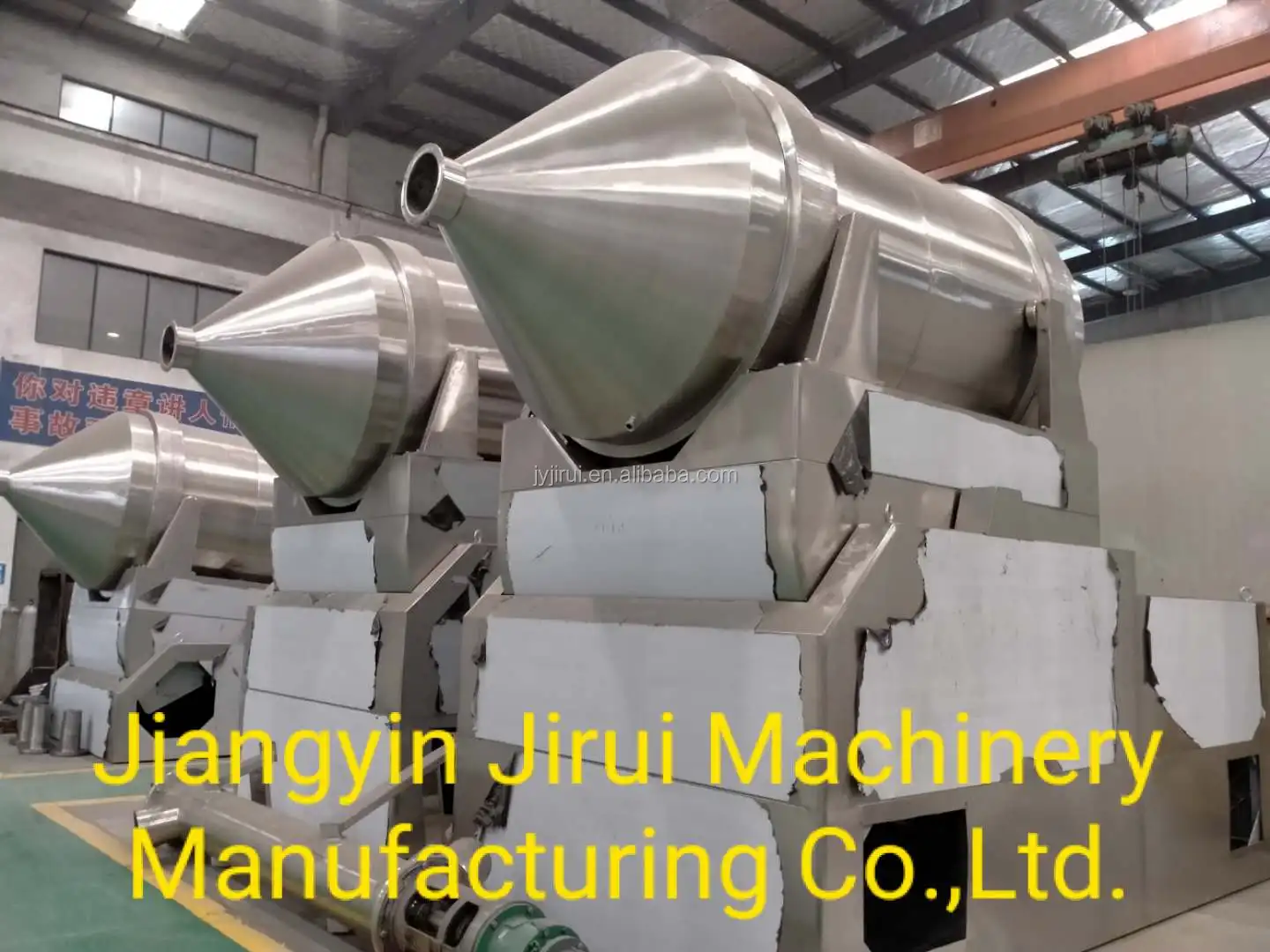

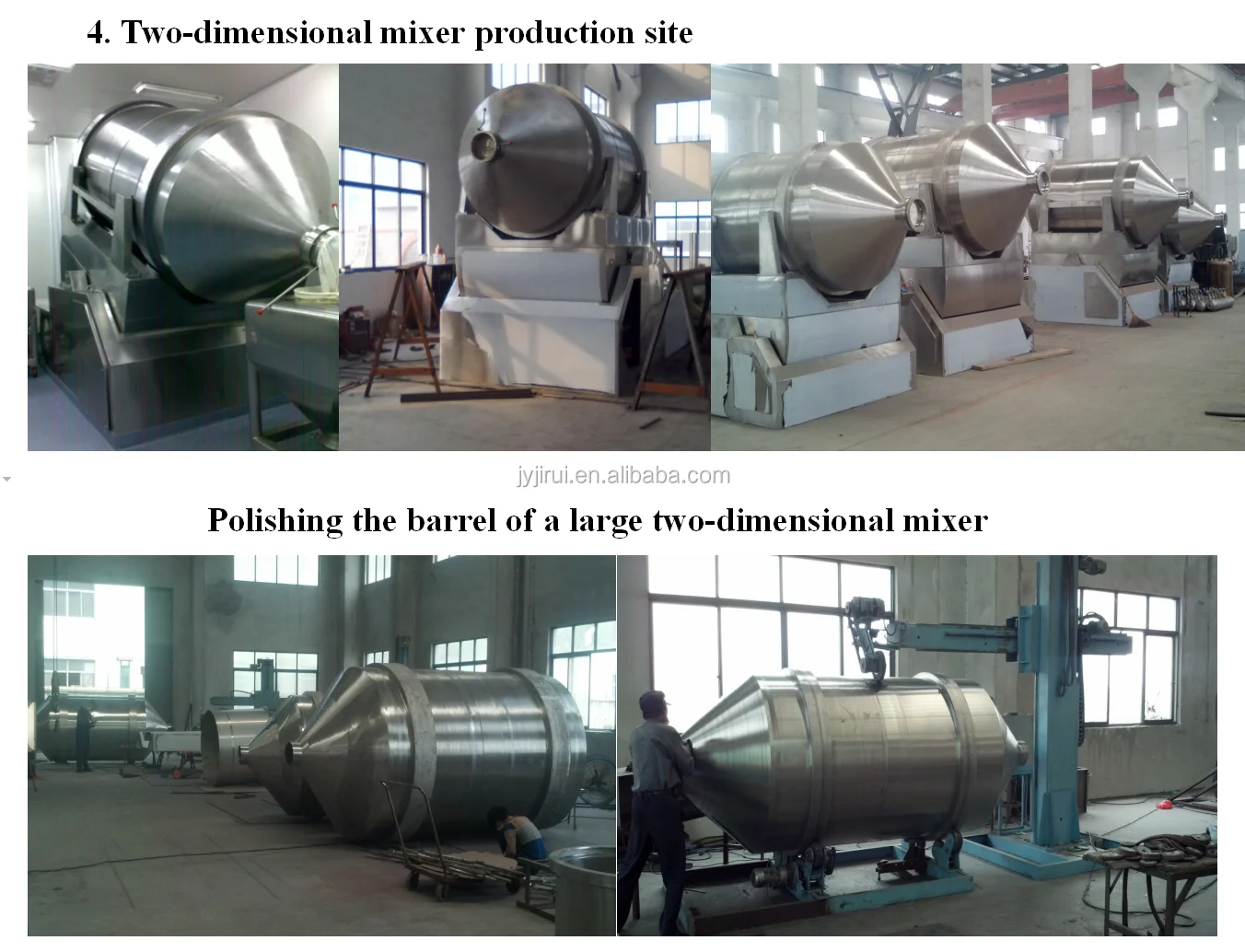

Production line

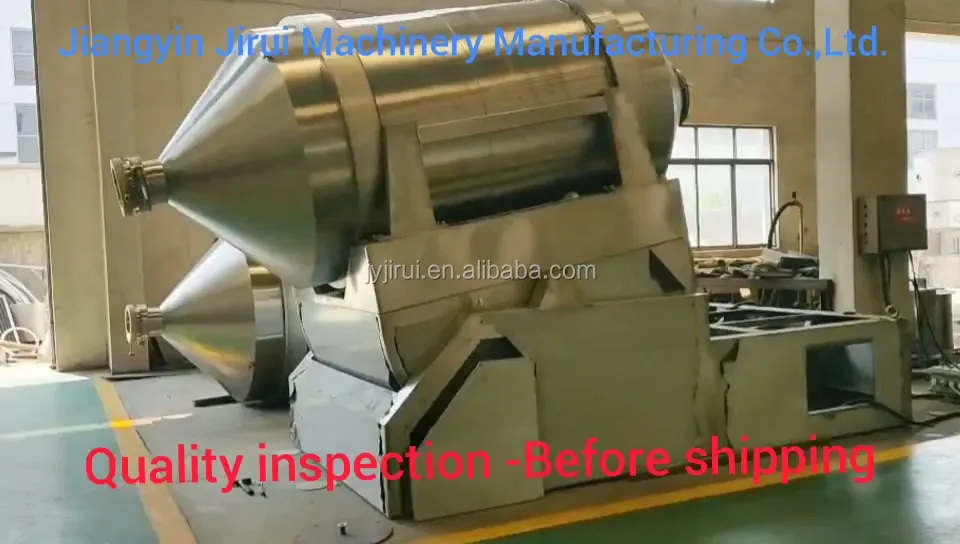

Inspection

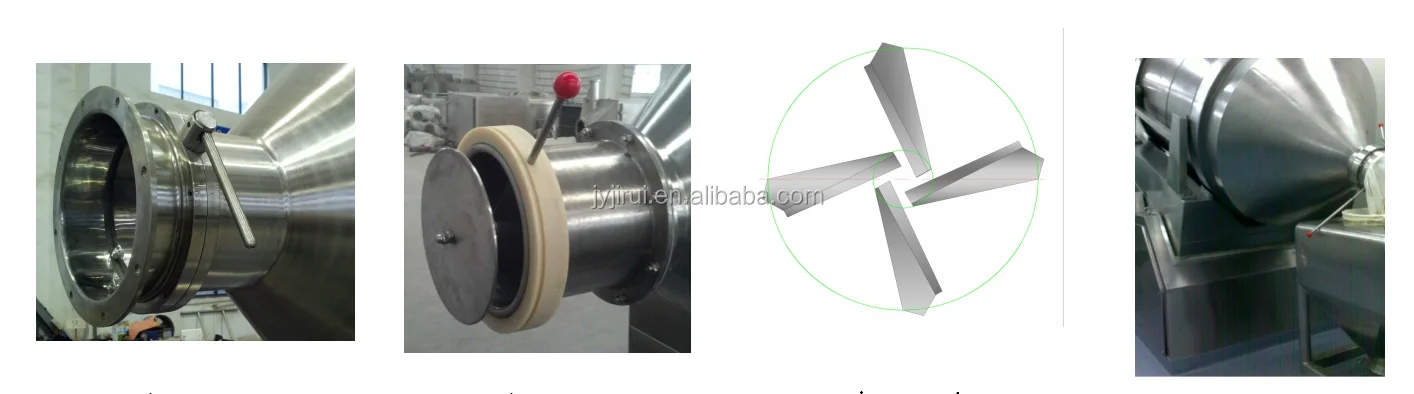

More details
Technical Parameter
Model
Barrel volume
(L)
Loading volume
(L)
Max. Loading volume
(Kg)
Oscillating times
(r/min)
Motor total power
(Kw)

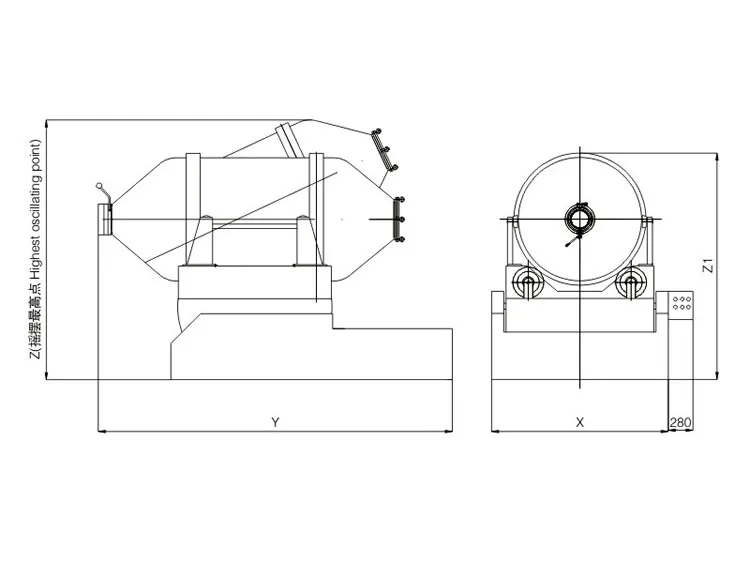

Dimensions
(X*Y*Z*Z1)mm
Total weight
(Kg)
Barrel weight
(Kg)
EYH-150
150
90
45
37
1.15
800*1050*1450*1340
190
50
EYH-300
300
180
90
17.5/11
1.3
900*1350*1550*1400
340
60
EYH-600
600
360
180
15/9
3
1150*2050*2000*1850
1150
140
EYH-800
800
480
240
11/6.4
3
1300*2010*2150*2000
1600
200
EYH-1000
1000
600
300
8/5.4
3
1300*2200*2000*1800
1700
240
EYH-1500
1500
900
450
8/5
4.4
1300*2550*2150*2008
2000
320
EYH-2000
2000
1200
600
8.3/4.7
5.2
1660*2750*2250*2120
2600
430
EYH-3000
3000
1800
900
7/4.5
8
1850*3100*2550*2350
3500
620
EYH-4000
4000
2400
1200
6.5/3.8
9.5
2010*4300*2760*2570
4100
700
EYH-6000
6000
3600
1800
5.6/3.1
13
2200*5100*3380*3050
6100
1100
EYH-8000
8000
4800
2400
4.5/2.7
13
2400*5750*3480*3210
7900
1450
EYH-10000
10000
6000
3000
3.8/2.3
18.5
2400*6300*3800*3420
9500
1650
EYH-12000
12000
7200
3600
3.8/2.3
18.5
2890*6864*4470*4070
13500
2000
EYH-15000
15000
9000
4500
3.2/2
22
3050*7100*4600*4350
15000
2500
EYH-20000
20000
12000
6000
3.2/1.9
30
3295*7500*5000*4500
18000
3100
Company Information
Services
Packaging & Shipping
We have long-term working shipping forwarder. We can do our best to send machine to your port safe and sound.
If you need, we can help you do custom clearance.
Packaging Details: 1. Outside package: Standard export wooden cases.
2. Inner package: Air bubble film and stretch film.
Delivery Details: about 40 workdays after payment.
