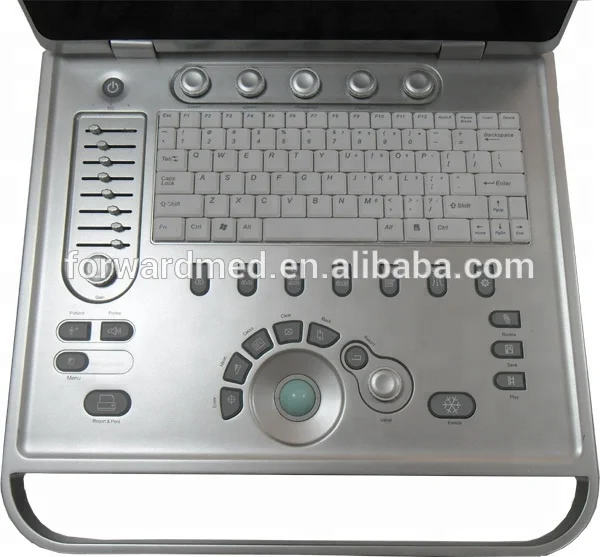

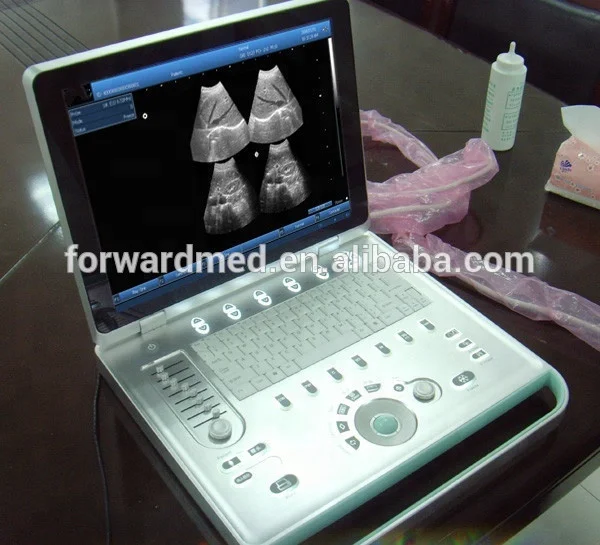

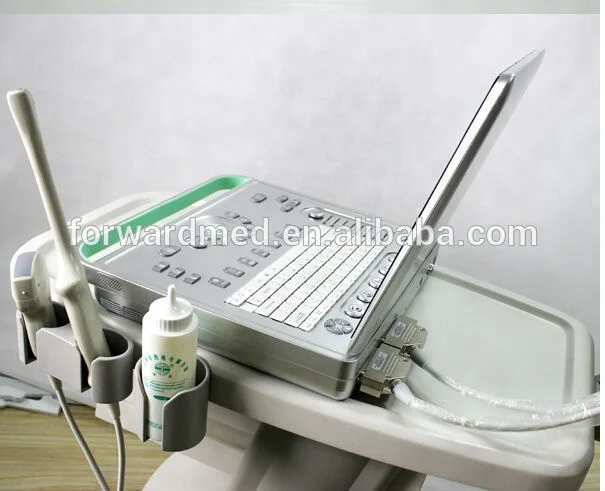

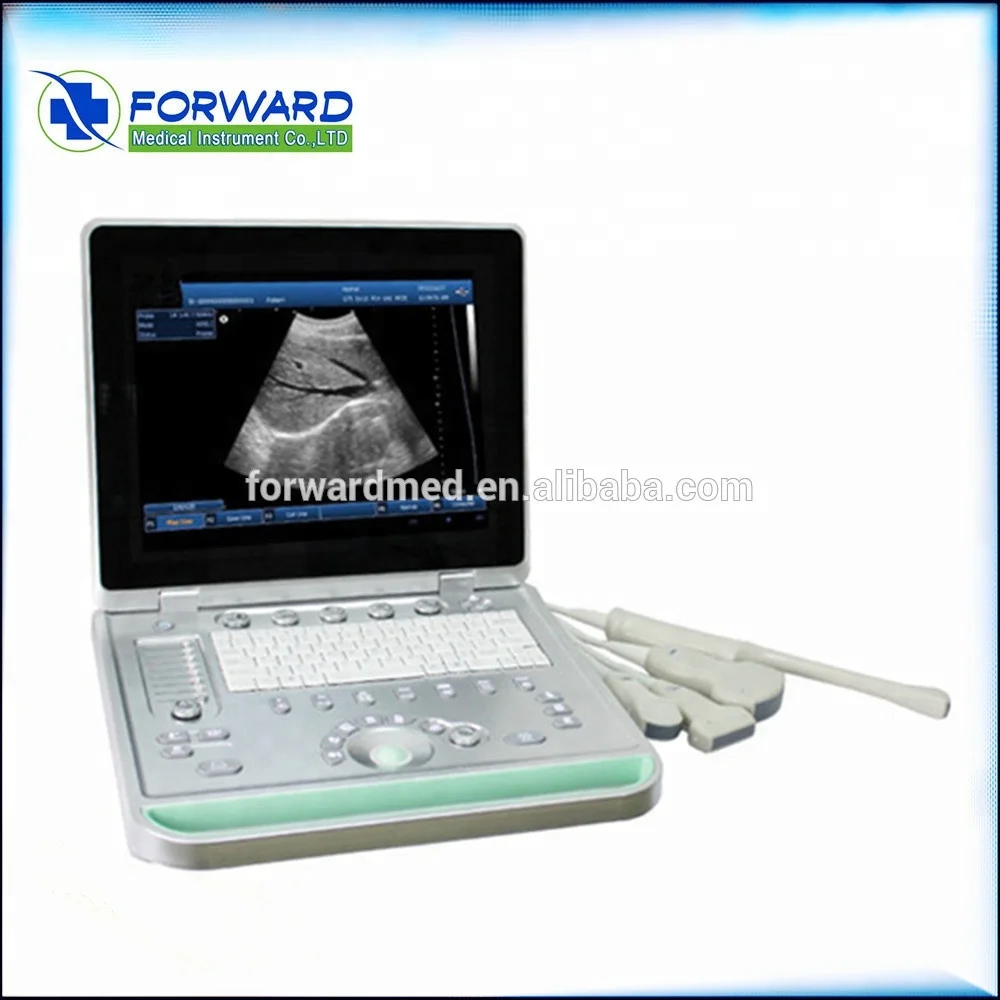

15 inch Laptop Ultrasound Machine / Portable Color Doppler Ultrasound Echo Machine
- Category: >>>
- Supplier: Xuzhou Forward Medical Instrument Co. Ltd.
Share on (60780240296):
Product Overview
Description
15 inch Laptop Ultrasound Machine / Portable Color Doppler Ultrasound Echo Machine
Feature:
-15 inch LED screen
-Pretty, thin, and light
-2 probe connector
-Full digital imaging technology, crystal-clear Image
-3D Image function
-PC based, abundant functions
-Detail report edit function
-Powerful image management
-Large volume storage image and cineloop
-Not only can save image but also can save video
-DICOM display and transfer
-Compatible with laser/inkjet printers
-Abundant calculation functions and can select different calculate formula
-Can save and select some groups inspect parameter so save time to adjust per time
-Built-in battery(Work 5 hours)
-Multilingual(English, French, German, Spanish and so on)
-Pretty, thin, and light
-2 probe connector
-Full digital imaging technology, crystal-clear Image
-3D Image function
-PC based, abundant functions
-Detail report edit function
-Powerful image management
-Large volume storage image and cineloop
-Not only can save image but also can save video
-DICOM display and transfer
-Compatible with laser/inkjet printers
-Abundant calculation functions and can select different calculate formula
-Can save and select some groups inspect parameter so save time to adjust per time
-Built-in battery(Work 5 hours)
-Multilingual(English, French, German, Spanish and so on)
- Can add ECG Modular and software then also can use as ECG
-Good aluminum trunk packing
-Good aluminum trunk packing
-Multiple language: English, French, German, Spanish, Russian, Italian, Portuguese, etc.
Specification:
-Maximum Scanning Depth: max. 250mm
-Multi-frequency: 5 segment frequencies
-Cine Loop: max. 1024 frames
-Scanning mode: B, 2B, B/M, M, 4B, 9B, ZOOM;
-Real-time Zoom on B mode
-Image gray scale: 256 level gray scale
-Image processing: Pre-processing, after-processing, dynamic range, frame rate, line average, edge;
enhancement, Black/White inversion; Gray scale adjustment, contrast, brightness, γ revision.
-Gain: 0-100dB; Time gain control(TGC): 8 segment adjustment, B, M adjustment separately.
-Measurement and calculation(human):
B mode: distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram;
M mode: heart rate, time, distance, slope and stenosis;
Gynecology measurement: Uterus, cervix, endometrium, L/R ovary;
Obstetric: gestation age, fetal weight, AFI;
Cardiology: LV, LV function, LVPW, RVAWT;
Urology: transition zone volume, bladder volume, RUV, prostate, kidney;
Small parts: optic, thyroid, jaw and face.
Veterinary: Cattle: BPD, CRL, TD; Horse: GA; Dog: GS; Cat: HD, BD; Sheep: BPD, CRL, TD
-Supported output apparatus: U-Disk, Video/Laser/ink printer, VGA
-Zoom: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
-Image store: by hardisk or USB disk, can save image and also video(avi or swf format)
-3D image function(function): can get rebuilt 3D image by any probe
-Work time by built-in battery: about 5 hours
-Monitor: 15 inch color LED screen
-Probe Connector:2
-Dimension: 362mm×340mm×60mm
-Weight: Around 4.8Kg
-Maximum Scanning Depth: max. 250mm
-Multi-frequency: 5 segment frequencies
-Cine Loop: max. 1024 frames
-Scanning mode: B, 2B, B/M, M, 4B, 9B, ZOOM;
-Real-time Zoom on B mode
-Image gray scale: 256 level gray scale
-Image processing: Pre-processing, after-processing, dynamic range, frame rate, line average, edge;
enhancement, Black/White inversion; Gray scale adjustment, contrast, brightness, γ revision.
-Gain: 0-100dB; Time gain control(TGC): 8 segment adjustment, B, M adjustment separately.
-Measurement and calculation(human):
B mode: distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram;
M mode: heart rate, time, distance, slope and stenosis;
Gynecology measurement: Uterus, cervix, endometrium, L/R ovary;
Obstetric: gestation age, fetal weight, AFI;
Cardiology: LV, LV function, LVPW, RVAWT;
Urology: transition zone volume, bladder volume, RUV, prostate, kidney;
Small parts: optic, thyroid, jaw and face.
Veterinary: Cattle: BPD, CRL, TD; Horse: GA; Dog: GS; Cat: HD, BD; Sheep: BPD, CRL, TD
-Supported output apparatus: U-Disk, Video/Laser/ink printer, VGA
-Zoom: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
-Image store: by hardisk or USB disk, can save image and also video(avi or swf format)
-3D image function(function): can get rebuilt 3D image by any probe
-Work time by built-in battery: about 5 hours
-Monitor: 15 inch color LED screen
-Probe Connector:2
-Dimension: 362mm×340mm×60mm
-Weight: Around 4.8Kg
Standard Configuration:
One main host, one convex probe(3.5MHz), one power adapter, one aluminum trunk.
Optional:
Linear, Trans-vaginal, Micro-convex,Rectal Probe; Bag; Trolley; Laser Printer.
Our Service:
1.For all your inquires about us or our medical equipments, we will reply you in detail within 24 hours.
2.We own well-tranied and passional workes who are responsible for Sales&After-Sale Services,they can speak Engligh fluently.
3.With very professional engineers, we can always offer you the best guidance and service.
4.More than 365days Warranty and Lifelong Maintenance.
Who we are?
Forward Medical Instrument Co., Limited is a leading exporter and One stop supplier for medical equipments and laboratory equipments with more than 5 years’experience. Our Company insists on Integrity First&Quality First!
What we have?

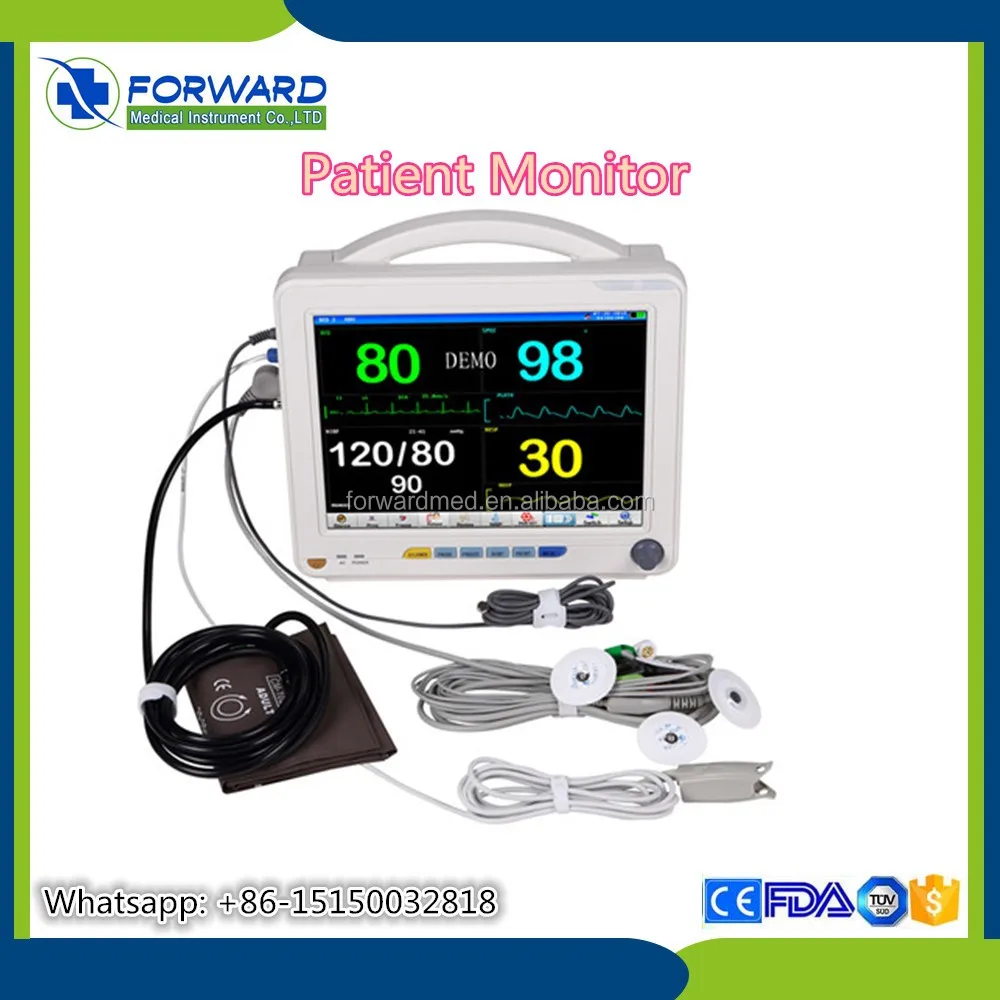

We supply B ultrasound scanners, 2D/3D/4D Color Doppler Ultrasound, 1/3/6/12 ECG/EKG, ECG Holter, handheld and Portable patient monitor, vital monitor, fetal monitor, Biochemistry Analyzer, Hematology Analyzer,Elisa Reader and Elisa Wahser,DNA&RNA Test machine,Infuison Pump, Syringe Pump, Enteral Feeding Pump,etc.
We have exported our machines to more than 60 countries such as Italy, Hungary, France, Spain, Belgium,Switzerland, Ecuador, Brazil, Bolivia, Paraguy, Nigeria, Ghana, Zambia, Kenya, Tanzania, Democratic Republic of Congo, Cameroon, Uzbekistan, Libya, Jordan, Nepal, Singapore, India, etc.
We sincerely hope to establish a nice long business relationship with your esteemd side by offering best quality and professional service in medical field.
