Fuel consumption flow sensor china

Product Overview

Description

        Fuel consumption flow sensor chinaa







Technical Data                                                                Selling Points



- Output: Pulse / 4-20mA                                                      Ø  Certificate of CE & ISO 9001: 2008
- Accuracy:±1.0 of Rate / ±0.5% of Rate                            Ø OEM & ODM services
- Operating Temp.: - 20...+60°C                                         Ø  Enough stock with short delivery time
- Fluid Temp.: - 20...+150°C                                                Ø  Quality product with competitive price
- Housing Material: SS304 / SS316                                   Ø  Fast response services
- Rotor Material: 2Cr13 / CD4MCu                                     Ø Guarantee time is 24 months.
- Bearing Material: Tungsten Carbide





Description



The liquid turbine flow meter in the series LWGY are specially designed for usage in water, diesel, gasoline and other fluid measurement and control systems. They operate according to the turbine principle, i.e. the speed of an impeller turning in the fluid flow is measured and converted into pulse or 4-20mA signals



Flow Range



Diameter (mm)	Standard Range  (m3/h)	Extended Range (m3/h)
4	0.04-0.25	0.04-0.4
5	0.1-0.6	0.06-0.6
10	0.2-1.2	0.15-1.5
15	0.6-6	0.4-8
20	0.8-8	0.45-9
25	1-10	0.5-10
32	1.5-15	0.8-15
40	2-20	1-20
50	4-40	2-40
65	7-70	4-70
80	10-100	5-100
100	20-200	10-200
125	25-250	13-250
150	30-300	15-300
200	80-800	40-800





Dimensions

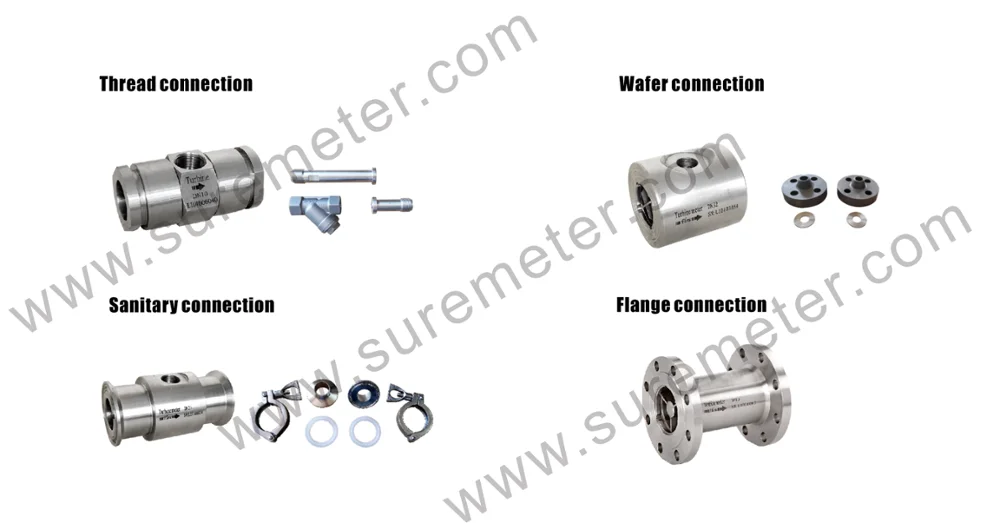

1.0 Thread connection:







Diameter (mm)	L (mm)	G Thread Criteria
4	270	G 1/2"
6	270	G 1/2"
10	390	G 1/2"
15	75	G 1"
20	80	G 1"
25	100	G 1-1/4"
32	140	G 2"
40	140	G 2"
50	150	G 2-1/2"

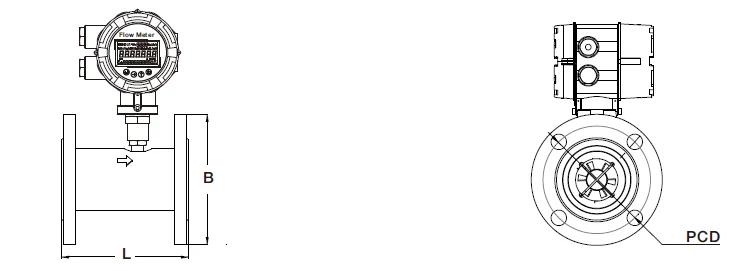

2.0 Flange connection



Notice: The standard flange is DIN PN16, and ANSI and JIS flange is available on request.





Diameter		L	B Flange Diameter	PCD Blot Circle Diameter	Bolt Hole Quantity
mm	Inch	mm	mm	mm
15	1/2"	75	95	60	4
20	3/4"	80	105	70	4
25	1"	100	115	79	4
32	1-1/4"	140	140	89	4
40	1-1/2"	140	150	99	4
50	2"	150	165	121	4
65	2-1/2"	170	185	140	4
80	3"	200	200	152	4
100	4"	220	220	191	8
125	5"	250	250	216	8
150	6"	300	285	241	8
200	8"	360	340	298	8





Notice: The above dimension is for DIN PN16 flange





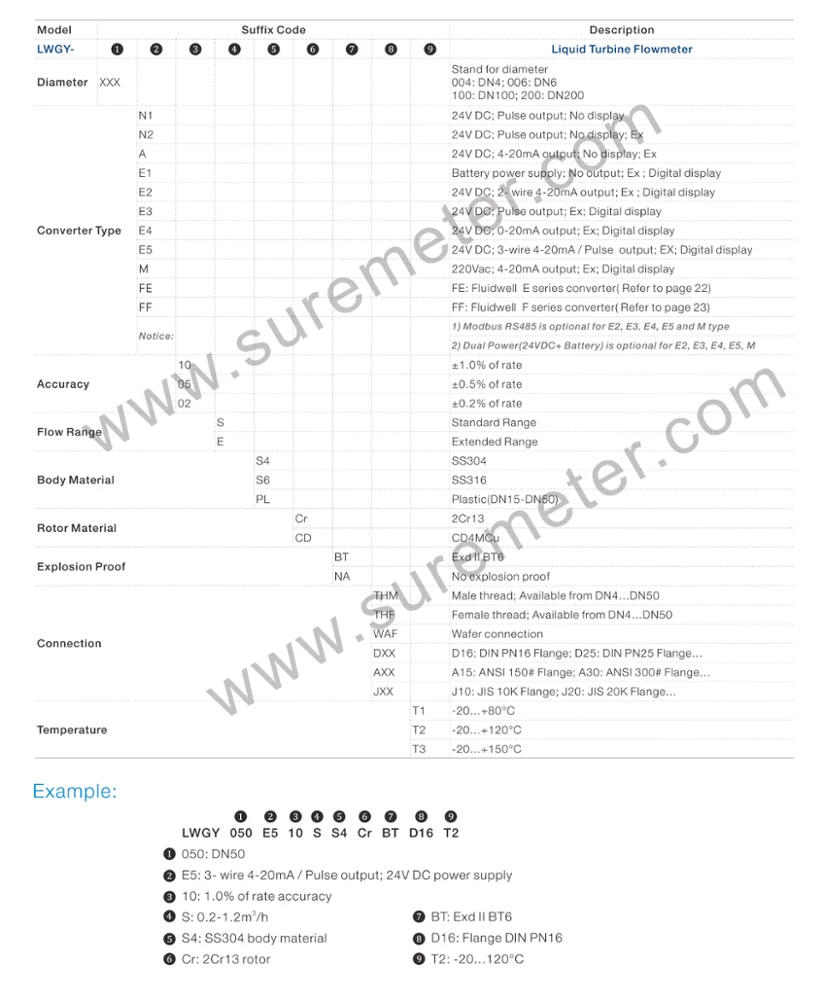

Model Selection





Connection

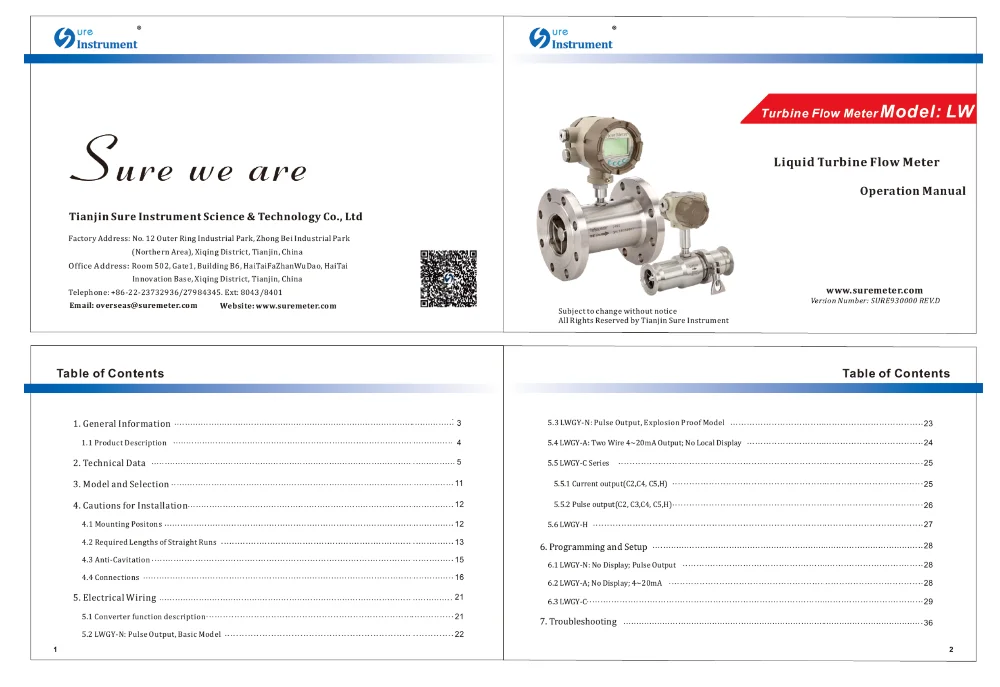

Professional Manual

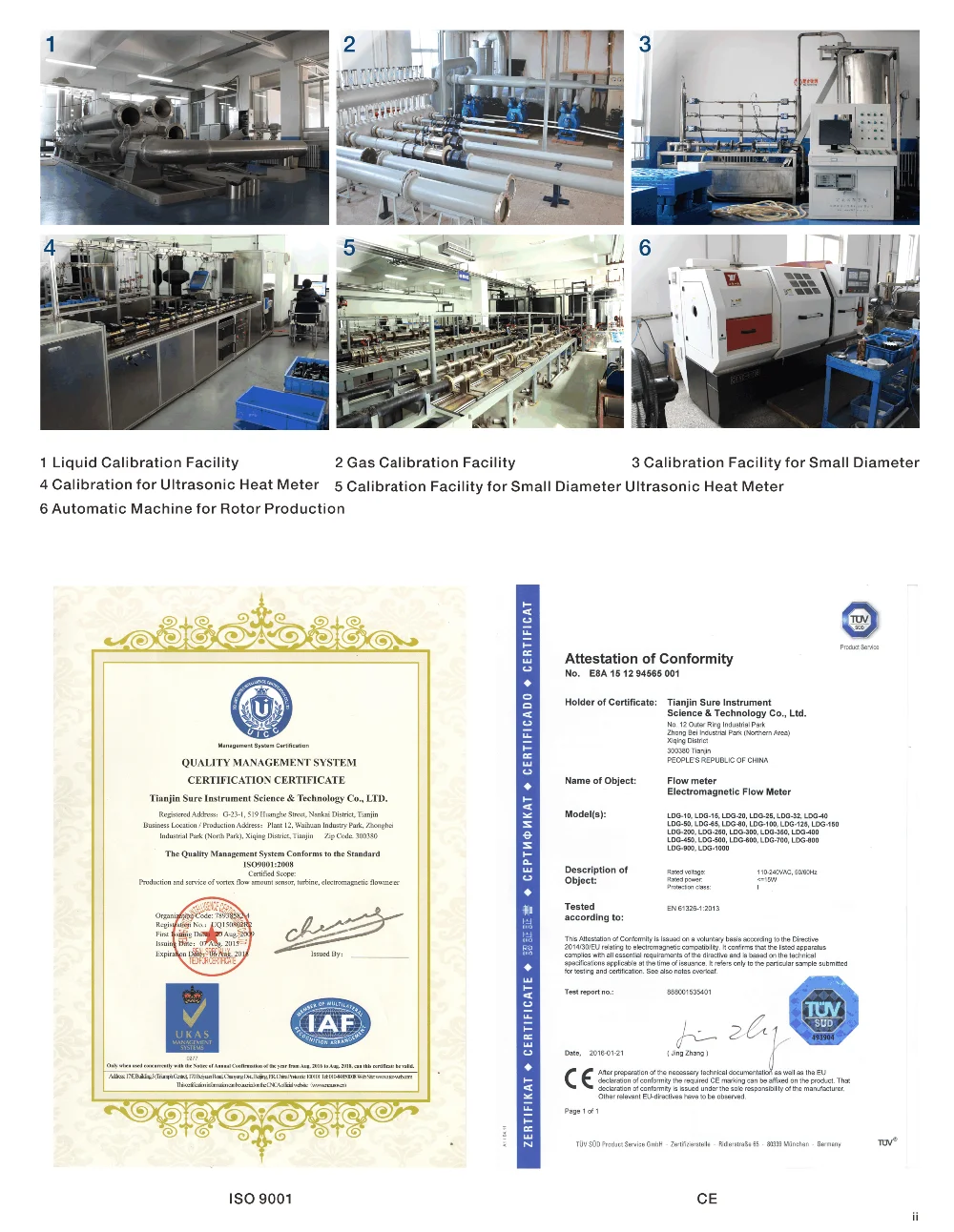

Calirbation facility & Certification

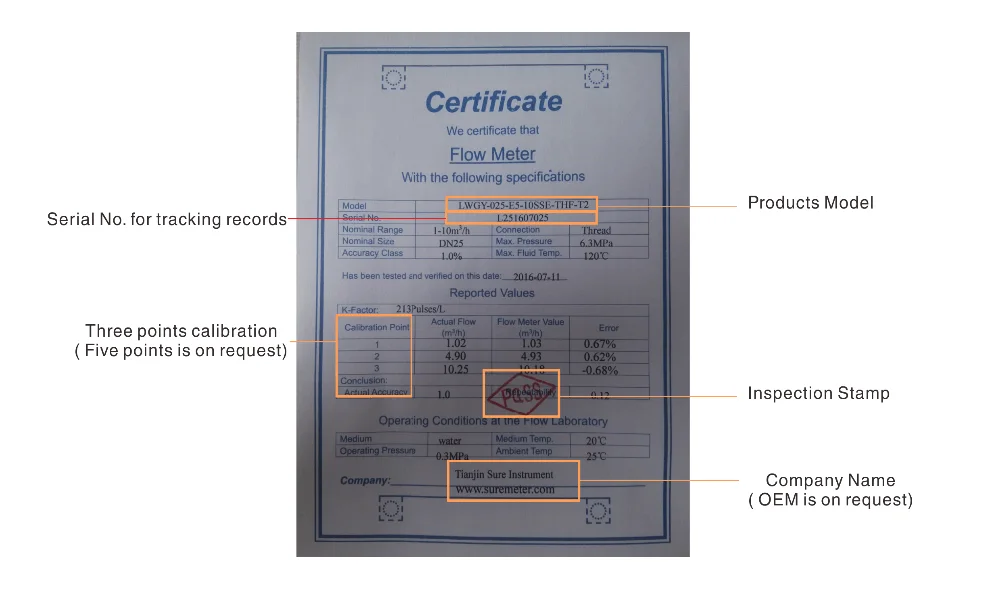

Carlibration Certification
