Roadway safety led pedestrian traffic signal light with 2 digital countdown timer
- Category: >>>
- Supplier: Wuxi Anbang Electric Co. Ltd.Wuxi Ltd.
Share on (60780302042):
Product Overview
Description

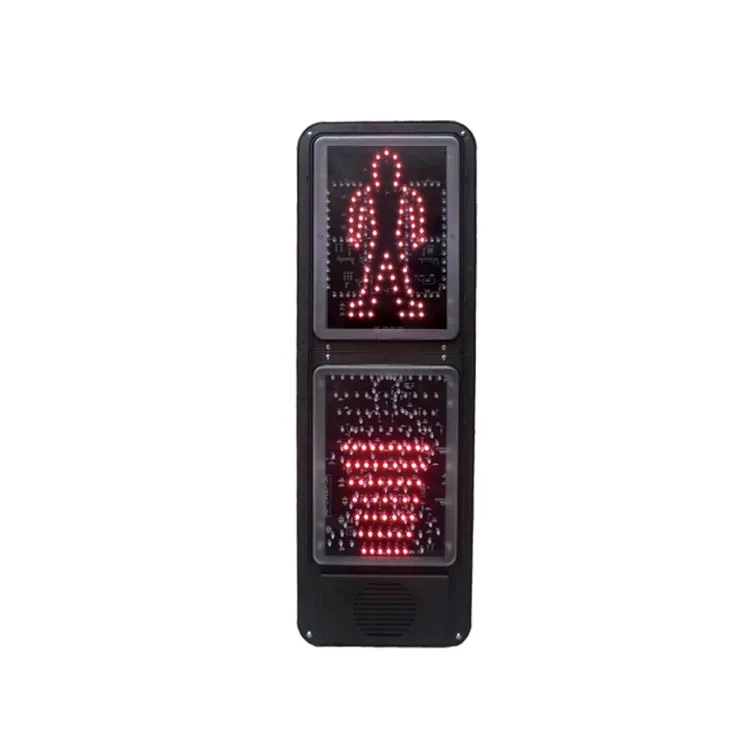

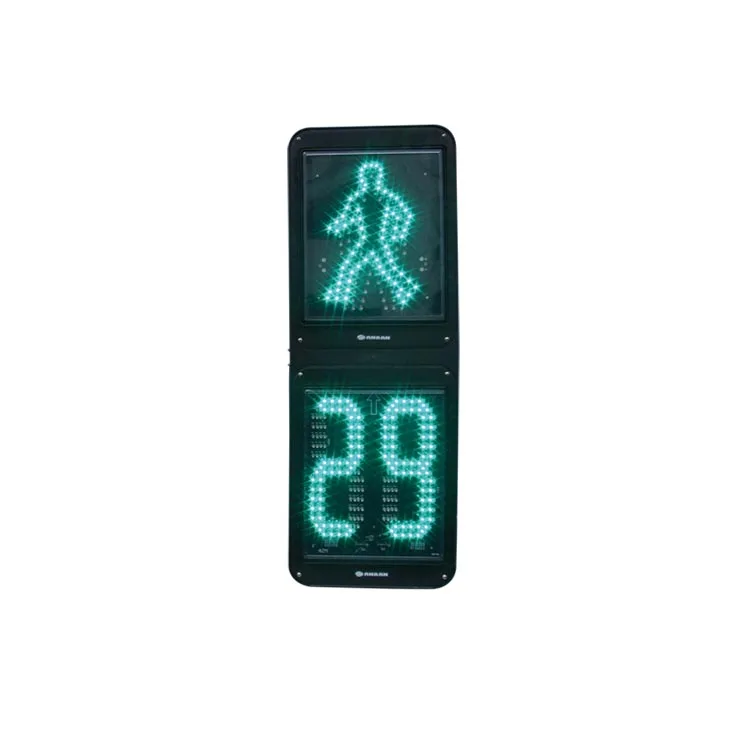

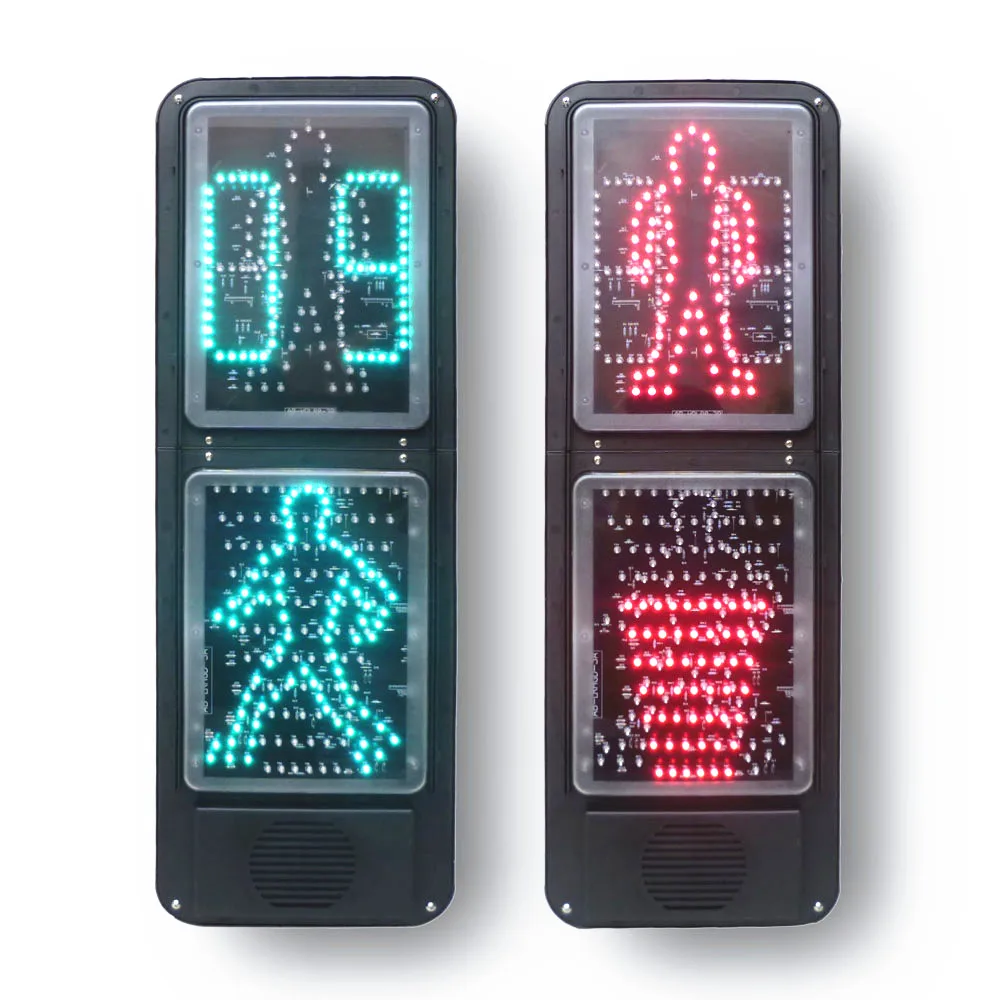

Roadway safety led pedestrian traffic signal light with 2 digital countdown timer
Product overview
RX300-3-2E pedestrian traffic head is using super bright LEDs as light sources. It has low power consumption and long life time. This traffic head is 2 sections. They are red & green pedestrians and red & green countdown lamps.
Characteristics
The pedestrian pattern is outlined by 5mm LEDs.
Working Mode
The first one or two cycles are for memorizing time. The countdown function starts from the second or third cycle.For the countdown lamp, the maximum display digital is 99.
Conform to GB14887
300mm Emitter surface
Aluminum housing
Long lifte time longer than 5000 hrs
Low power consumption less than 10W
Specification
Product parameters Roadway safety led pedestrian traffic signal light with countdown timer
Product name | Product model | Product drawing No. | Product size | Housing material | Housing color |
330mm pedestrian traffic head | RX330-3-2C | RX330-2C5B.00.00 | 820 X 280 mm | Aluminum housing | Black |
Color | Emitting surface size | Lens features | Characteristics of LED | Number of LED | Luminance | Light distribution characteristics | Voltage | Rated power | Meet standard |
Red Man Green countdown lamp | Φ300mm | Clear lens | Φ5(0.06W) | Red 70pcs Green 78pcs | >150cd | Pixel look | AC176 | ≤12W | GB14887 |
Green Man Red countdown lamp | Φ300mm | Clear lens | Φ5(0.06W) | Red 97pcs Green 75pcs | >150cd | Pixel look | ≤12W |

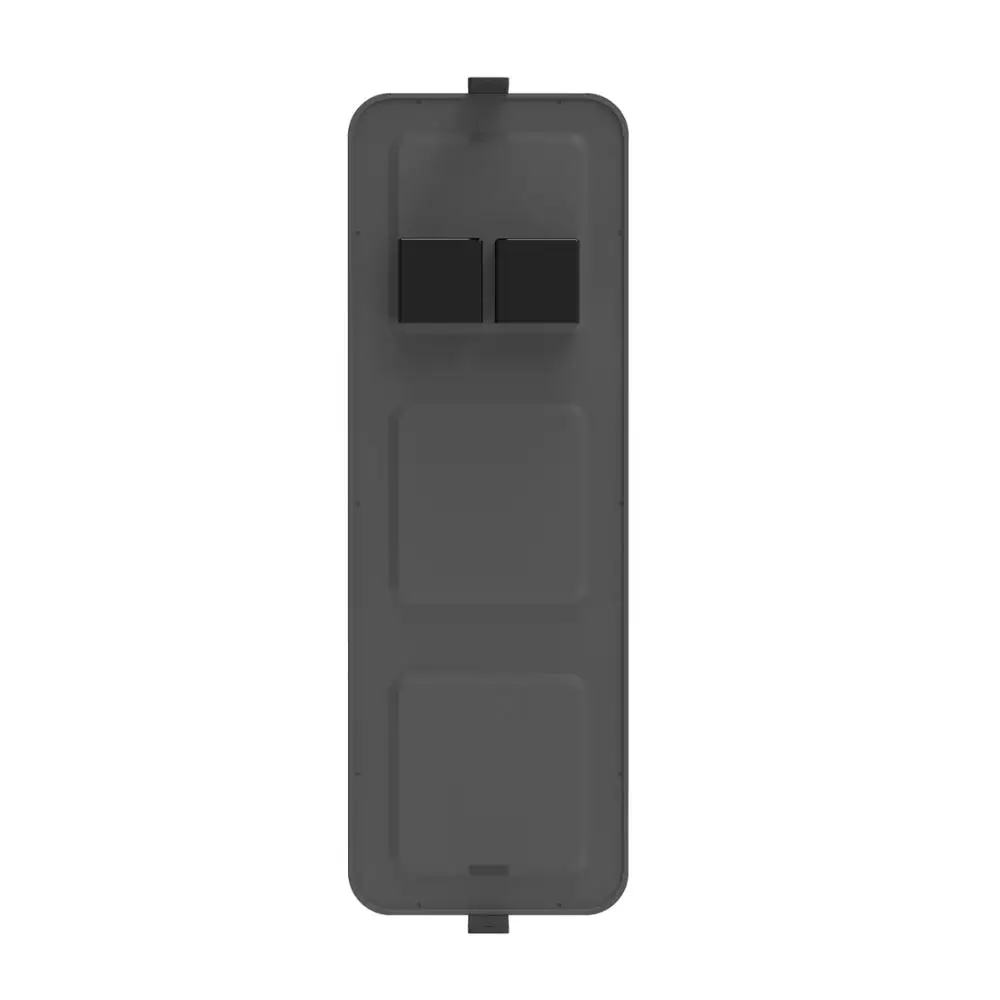

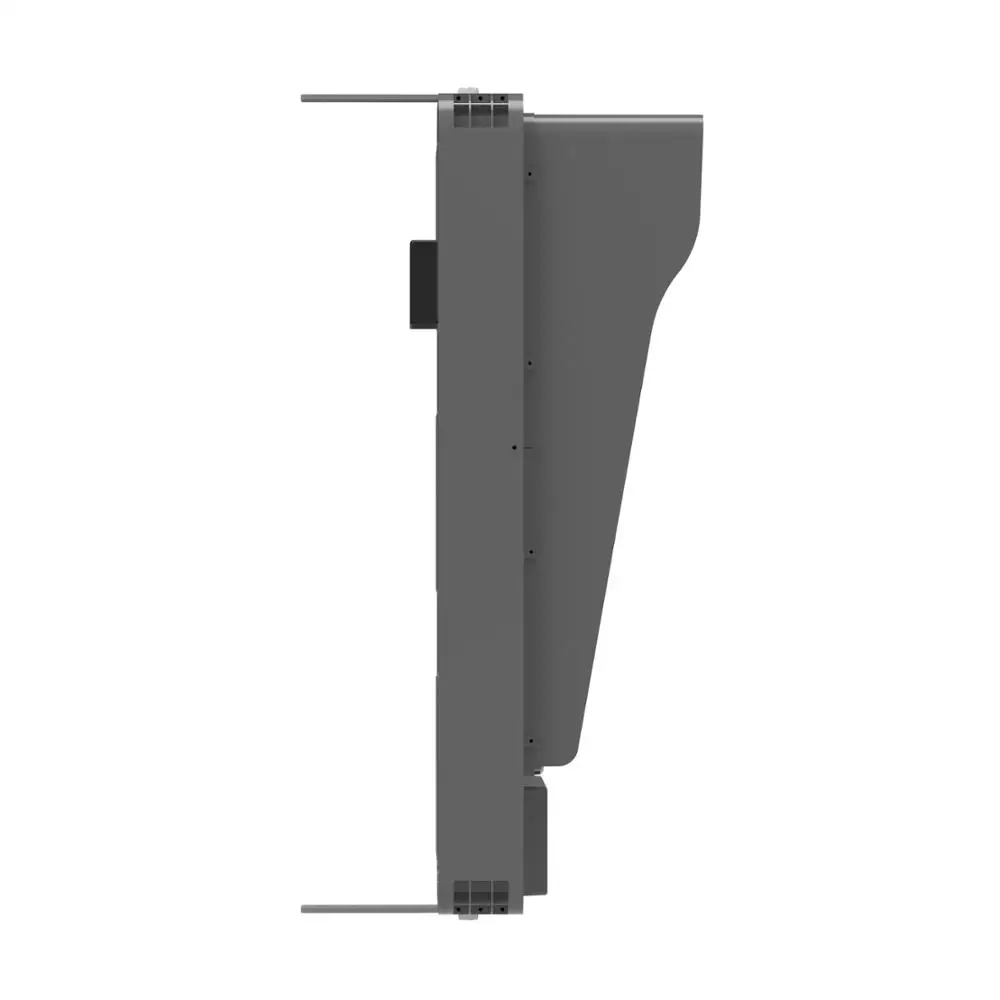

Dimension
Roadway safety led pedestrian traffic signal light with countdown timer dimension
Package:
Roadway safety led pedestrian traffic signal light with countdown timer package
Package Size (Carton) | Net Weight(kgs) | Gross Weight(kgs) | Quantity(pcs) | Accessory |
36*40*94 cm | 15 | 16 | 2 in 1 carton | Visor and bracket |
Company information
Wuxi Anbang Electric Co.,Ltd created 1998, is a high-tech enterprise specializing in researchi& develop led traffic light, include led traffic signal light(100mm/200mm/300mm), traffic signal light modules, pedestrian traffic signal light, traffic countdown, arrow traffic light, fullball solar traffic light, high mast light, led street light, Hight bay light of different Specifications.
All our traffic lights comply with ITE, EN12368, CE, RoHS, ISO9001: 2008 standards.
