2021 sell hot 3 in 1 mini lathe mill drill combo lathe and milling machine metal working multi purpose lathe machine
- Category: Machine Tool Equipment >>>
- Supplier: Shenzhen Dijin Machine Equipment Co. Ltd.
Share on (60780322158):
Product Overview
Description

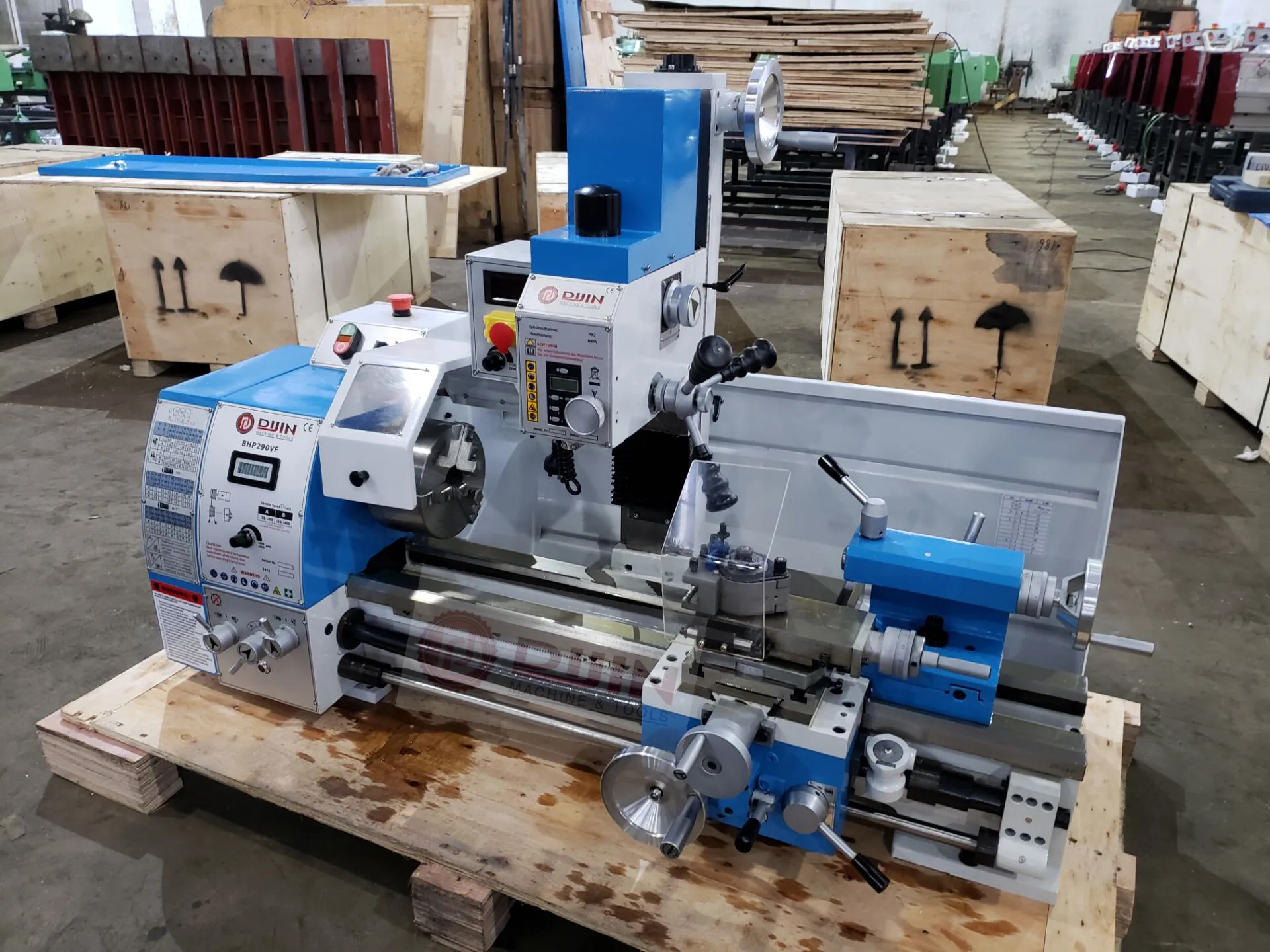

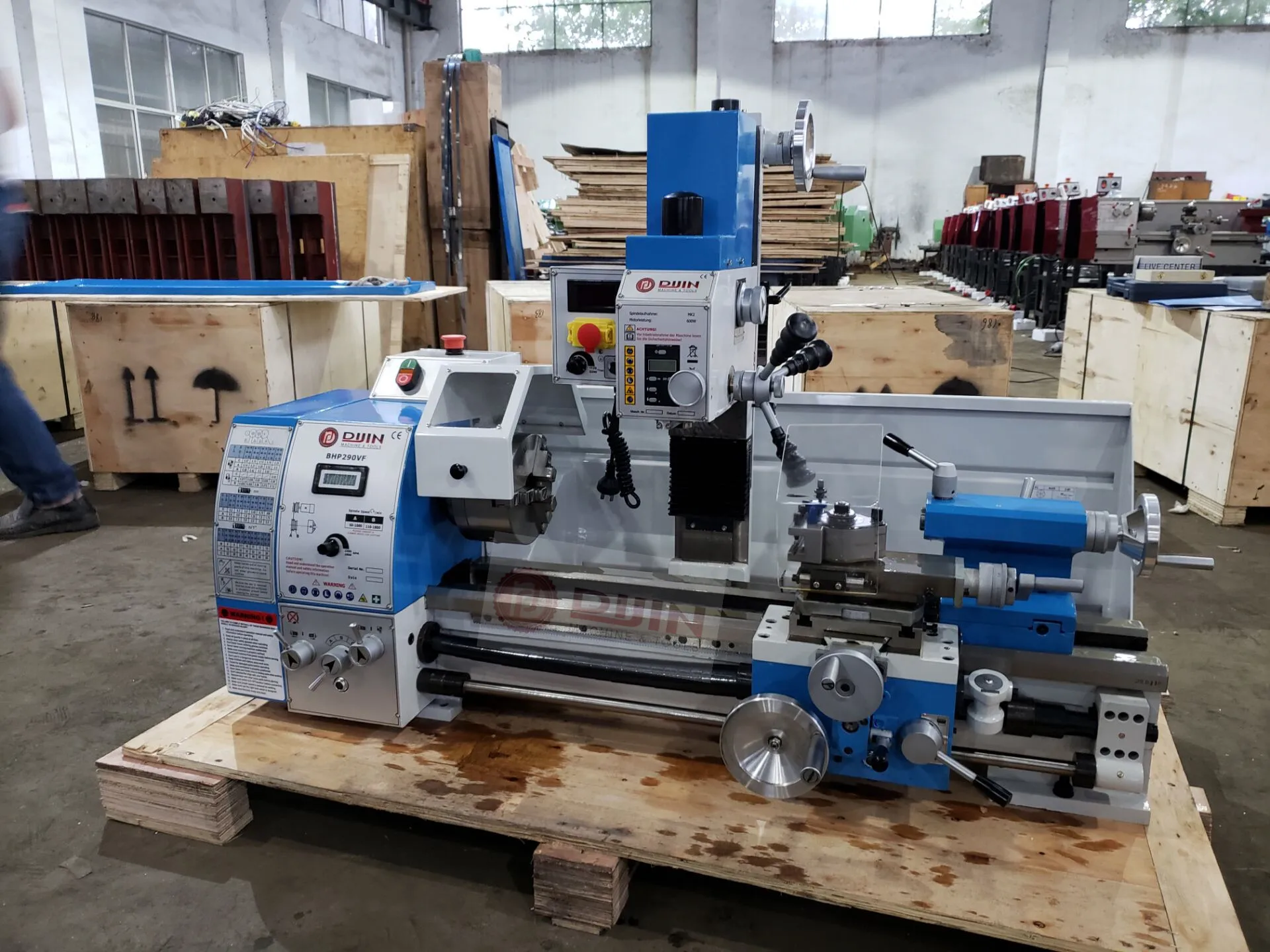

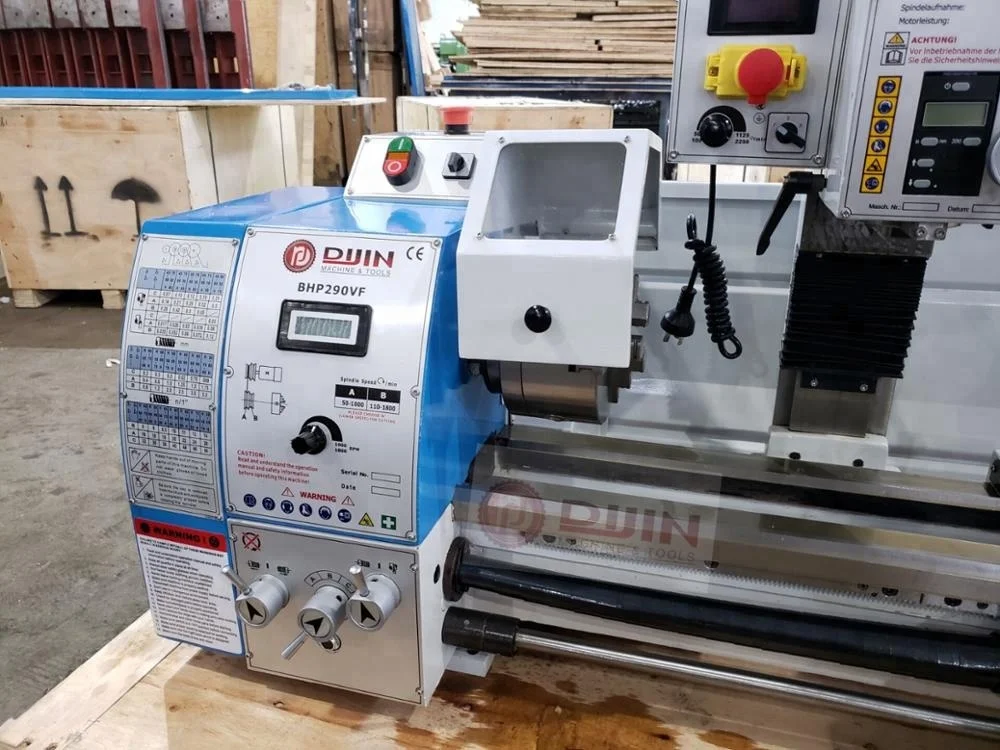

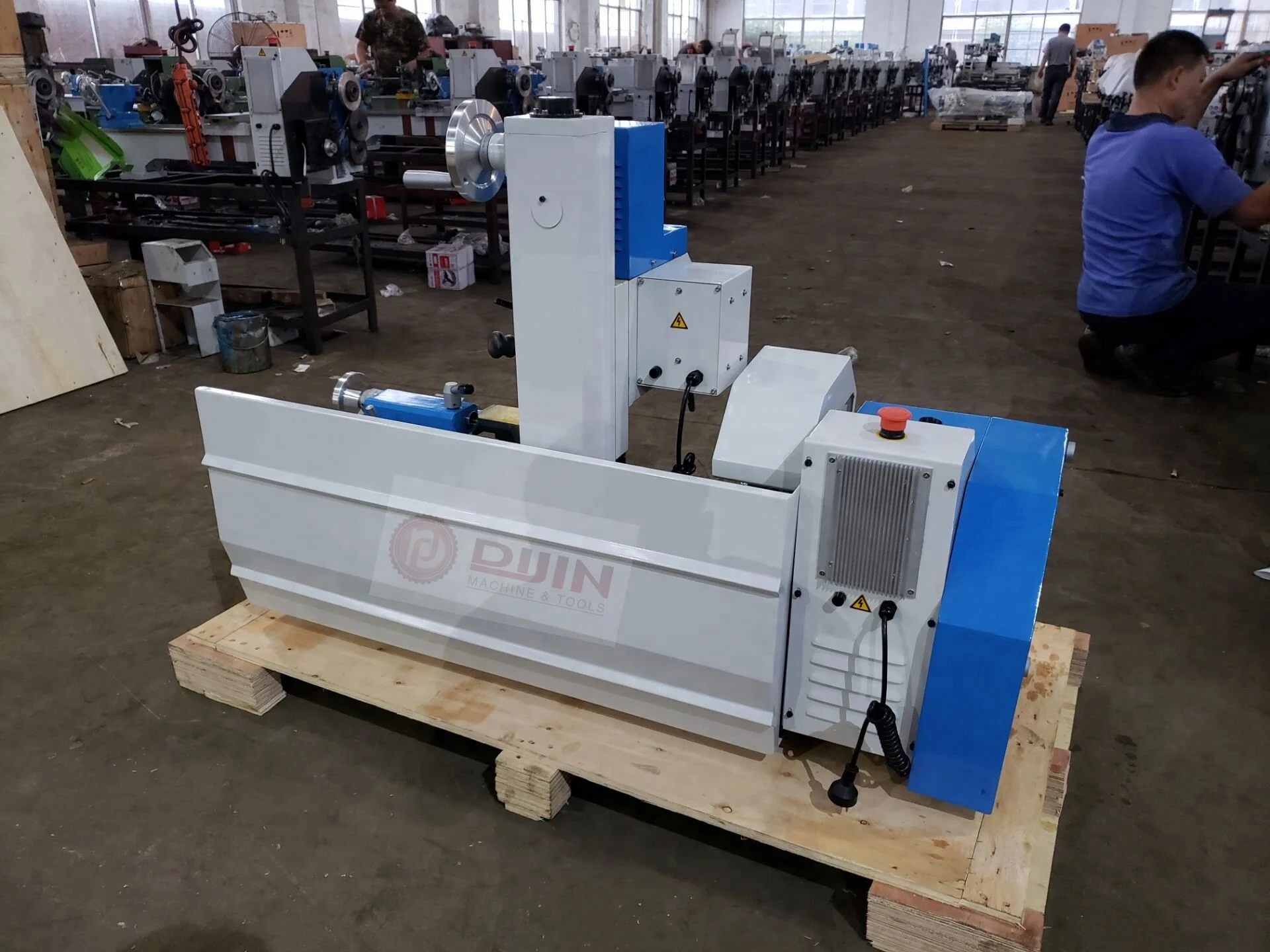

Combo lathe BHP290VF
Feature : 1. Use two rod ,more steady X,Y axis automatic feed .
2. Milling head tilt +-90 degree
3.lathe bed surface hardening.
4.equip with three jaw chuck guard ,tool post guard ,lead screw protection.
We have cheaper one BHP290V,use single rod ,X axis auto feed ,others same as BHP290VF
Model BHP290VF Specification:
Max distance between center | 700mm |
Max swing over bed | 290mm |
Max swing over cross slide | 165mm |
Taper of spindle bore | Mt5 |
Bed of width | 180mm |
Spindle bore | 38mm |
Range of spindle | 50-1800rpm |
Slide feed speed | 0.07-0.40mm/r |
Inch threads | 8-56TPI (21kinds) |
Metric threads | 0.2-3.5mm(18kinds) |
Top slide travel | 50mm |
Cross slide of travel | 165mm |
Tail stocks quill travel | 80mm |
Taper of tail stocks quill | Mt3 |
motor | 1.1KW |
Max drill capacity | 25mm |
Max end mill capacity | 16mm |
Max face mill capacity | 63mm |
Taper of spindle | Mt3 |
Max distance spindle to table | 375mm |
Max distance spindle to column | 185mm |
Main motor | 750w |
Spindle travel | 50mm |
Spindle speed | 50-2250rpm |
T-slot | 10mm |
Overall Net /gross weight | 300/320kgs |
Overall packing size | 1400*780*1070mm |
