golden color anti glare plastic led light reflector for led downlight spot
- Category: >>>
- Supplier: Foshan Chenhong Lighting Electrical Appliance Co. Ltd.
Share on (60780360498):
Product Overview
Description

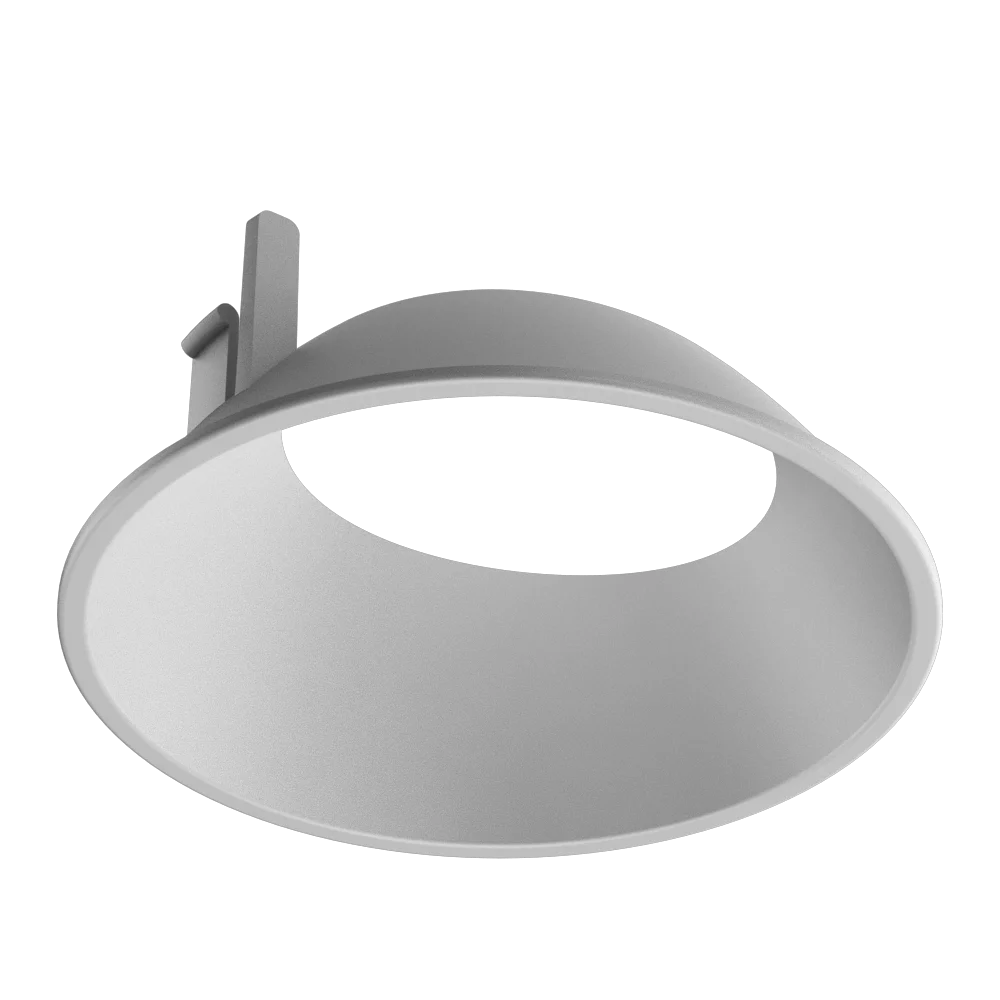

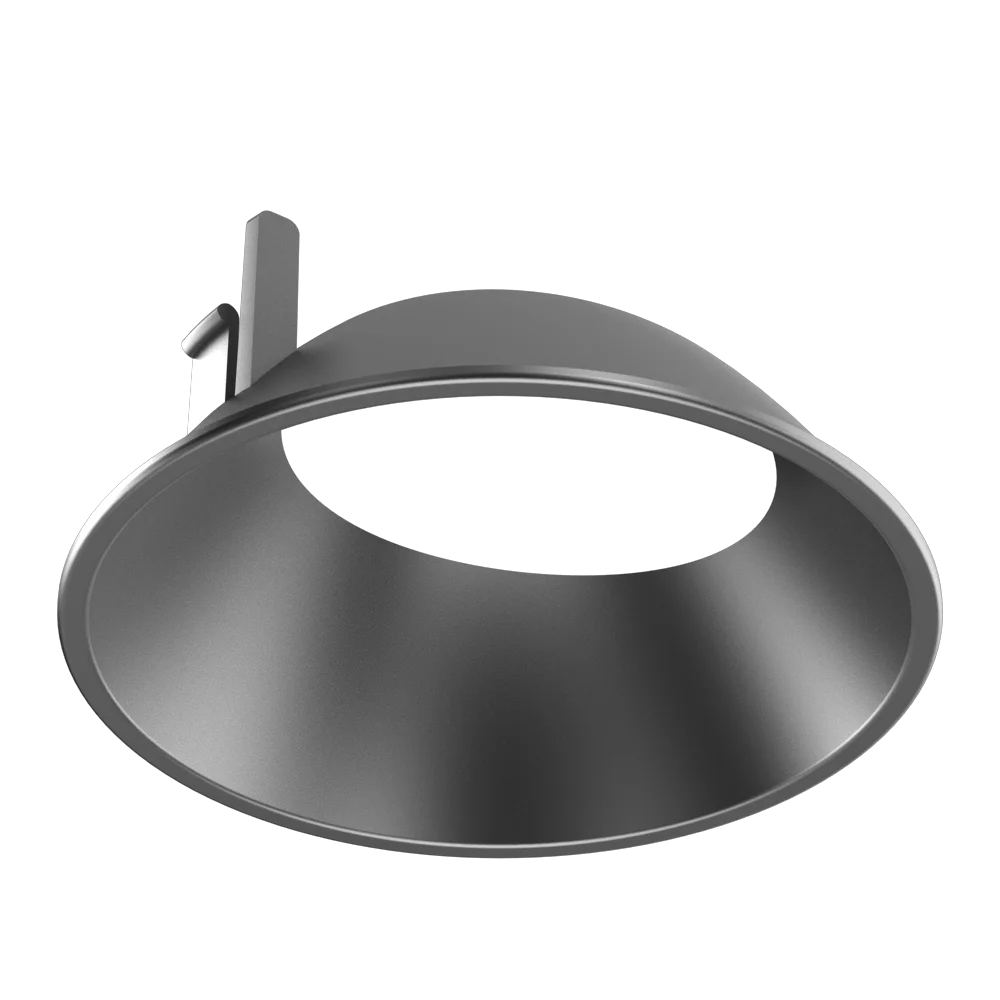

golden color anti glare plastic led light reflector for led downlight spot
Product Description
| Power | 6W/7W | 10W/12W | 15W/20W | 30W/35W | |
| Electronical | Input Voltage: | 120V/220VAC | 120V/220VAC | 120V/220VAC | 120V/220VAC |
| Frequency: | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | |
| Power Factor: | >0.5 | >0.5 | >0.95 | >0.95 | |
| Driver Brand | Lifud Tridonic philip | Lifud Tridonic philip | Lifud Tridonic philip | Lifud Tridonic philip | |
| Output | 150mA | 250mA/300mA | 350mA/500mA | 700mA/850mA | |
| Lumination | LED Chip Model | CRE e, Bridgelux | CRE e, Bridgelux | CRE e, Bridgelux | CRE e, Bridgelux |
| CRI | Ra>90 | Ra>90 | Ra>90 | Ra>90 | |
| System Lumen | 420lms | 810lms | 1600lms | 2800lms | |
| Efficiency of Fixture | 60-80lm/w | 60-80lm/w | 60-80lm/w | 60-80lm/w | |
| Color Temperature: | 2700K,3000K, 3500K, 4000K,5000K, 6000K | 2700K,3000K, 3500K, 4000K,5000K, 6000K | 2700K,3000K, 3500K, 4000K,5000K, 6000K | 2700K,3000K, 3500K, 4000K,5000K, 6000K | |
| Optical | Beam Angle | 15° 24° 38° | 15° 24° 38° | 15° 24° 38° 55° | 15° 24° 38° 55° |
| Second Reflector Color | white, black, golden, pearl black, silver | ||||
| Structure | Housing Material: | Diecase Aluminum | Diecase Aluminum | Diecase Aluminum | |
| Dimension | 60x75mm | 86x109mm | 106x126mm | 132x155mm | |
| Cut hole | 50mm | 75mm | 95mm | 120mm | |
| IP grade | IP20/IP40 | IP20/IP40 | IP20/IP40 | IP20/IP40 | |
| Frame | round, square, trimless | ||||
| Function | Dimmable | 0/1-10V, Dali, Triac, Zigbee Optional | |||
| adjustment | 355° rotatable , 30° Tiltable | ||||
Product Display
Product Display
Multi Filter options
Multi refector and frame option
No srews desgin, Easy installation and easy remove
Related Downlight
Company Overview
Introduction:
A professional manufacturer of led commerical lighting products. The company was founded in year 2009. We focus on led downlight, led track light, led ceiling spotlight, led panel lights and all types of led lighting fixtures. etc , All produts are CCC, CQC , CE, RoHs certified. In year The company has an area of more than 5000 square meters, 120workers, 2 Auto downlight assembly machines, 10 production lines, 2 auto aging test lines , one EMC test room and one powder coating factory. The monthly capacity for track lights and downlights are 780000pcs. We can ensure fast delivery and realiable quality.
FAQ
Q1. What Certifications your company has obtain?
A1. we have obtained ISO9001, SGS audit, BV audit and ICS audit
Q2. What’s the lead time for sample and batch order?
A2. 3-5 days for samples, 1-2 weeks for batch order. We normally have inventory for some of the models.
Q3. Do you accept OEM and ODM?
A3. Yes, we accept. Now 60% of our business is OEM, and 10% is ODM.
Q4. How do you ship the goods and what’s shipping time?
A4. We can ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airplane and sea shipping are also available.
Q5. Is it OK to print my logo on led light product?
A5. Yes. Please inform us in advance when place the order.
Q6. Do you offer guarantee for the led light?
A6. Yes, we offer 2-5 years warranty to all our products.
Q7. How to deal with the products fail in period of guarantee?
A7. For parts fail in guarantee, we will send free replacements with new order for small quantity. For fail batch products, we will repair and resend them without our own shipping account or we negotiate the best solution together.
Q8. What type test report can you offer?
A8. We can offer IES report, Photometric report, LM80 reports.
Q9. Will you cooperate Inspection of goods prior shipment ?
A9. yes, so far, more than half of our shipment are inspected by third party which normiated by the customers
