Light Backpack Drilling Rig Up To 30m Depth Shallow Rock Drill

Product Overview

Description

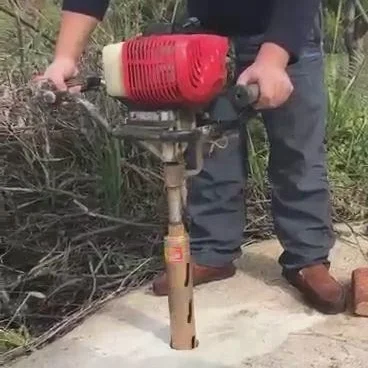

 Backpack Rig

Maximum drilling depth of up to 30 meters!

China's most lightweight shallow sampling core drilling machine!



Application:

Mineral exploration ----- geochemical exploration shallow sampling, veins exploration

Geoscience research

Geotechnical engineering

Engineering survey and inspection

Oil field survey

Investigation of Water Conservancy Project

Highway Engineering Survey

Tunnel lining, invert test

Other



Features:

Easy to carry

1. After the whole set of rigs and related accessories are loaded into the backpack, the full weight of a set of standard

2. The portable rigs and their accessories is not more than 50 kg.

3. Well equipped

All tools for drilling and collecting various rock samples can be packed in a backpack, and an ordinary adult male or female can easily afford it. In addition, there is plenty of space inside the backpack for the placement of spare fuel, drinking water and personal items.

4. Flexible operation

As long as the simple rotation and push and pull, without additional tools, you can connect or extend the entire device, easy to dismount. Coupled with the core of the feeder, can quickly and completely remove the core and core debris.

5. Drilling fast

Our drill rigs drill through various rock-level work efficiency is unique, special recipe diamond bit cut sharp, save time and effort, and to ensure adequate service life.



Technical Specifications:

1. Drill the working efficiency of different rock layers Table:

(Timing test, full speed operation, horizontal working status)

Silicon 750 mm / min

Slate 120 mm. / Min

Basalt 130 mm / min

Sandstone 136 mm / min

Dolomite 236 mm. / Min

Limestone 242 mm / min



2. Water consumption

(The material is different, the data will be slightly different) 12.3 l / h

Fuel consumption

(The material is different, the data will be slightly different) 0.42 liters / hour 0.9 oil tank / hour



3. Drill core diameter 26-102 mm

Drilling diameter 32-108 mm

Drilling speed (Full speed operation, no load) 1900 revolutions per minute

Drilling power 7.75 horsepower running at full speed



4. Petrol Engine

We use the performance of reliable, stable quality of the United States Kohler engine, and after our improvement, surrounded by a handle for easy manipulation of both hands. Drilling power system can provide original warranty.

Size: 30.50 cm x 28.07 cm x 33.60 cm
