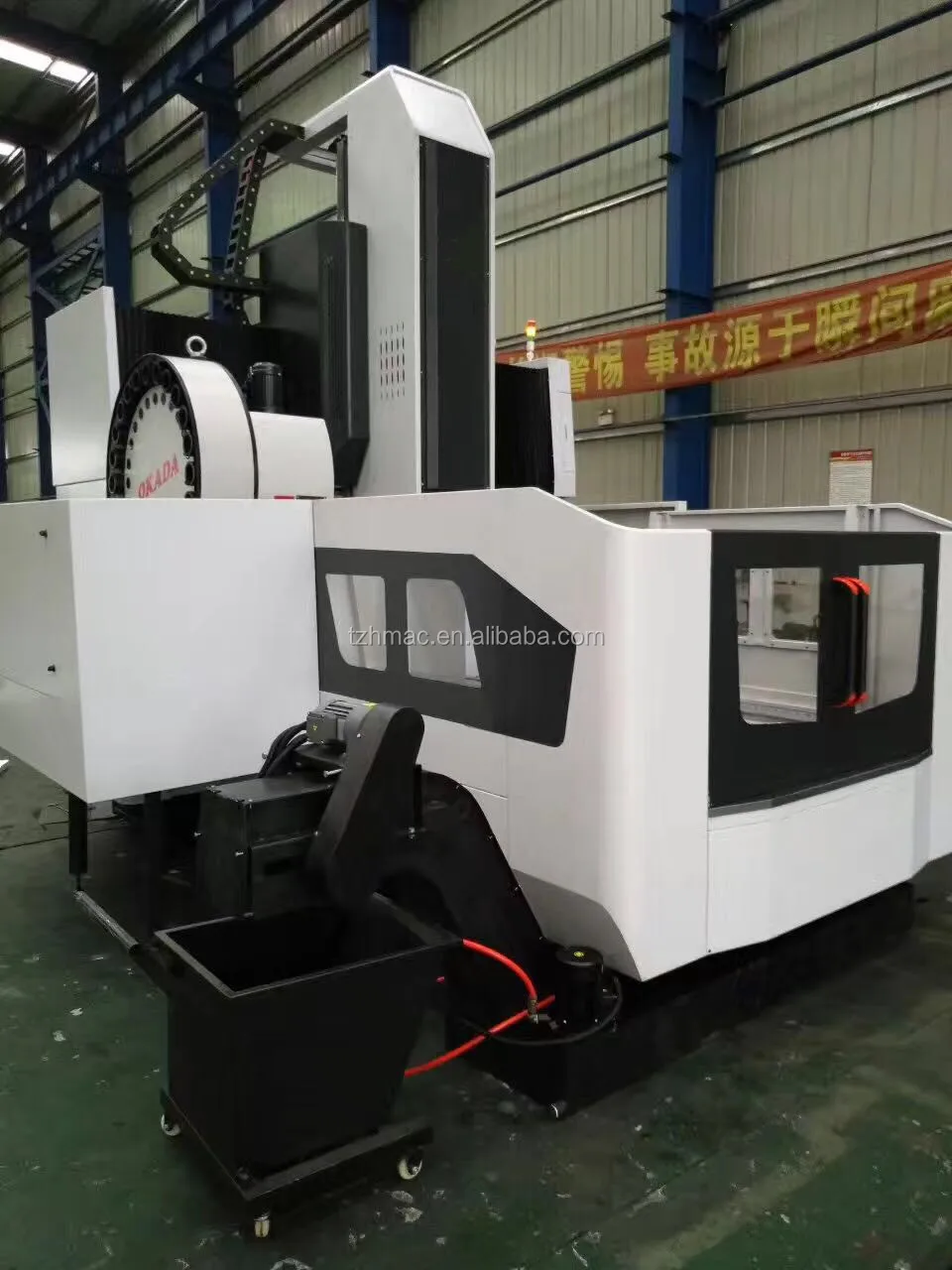

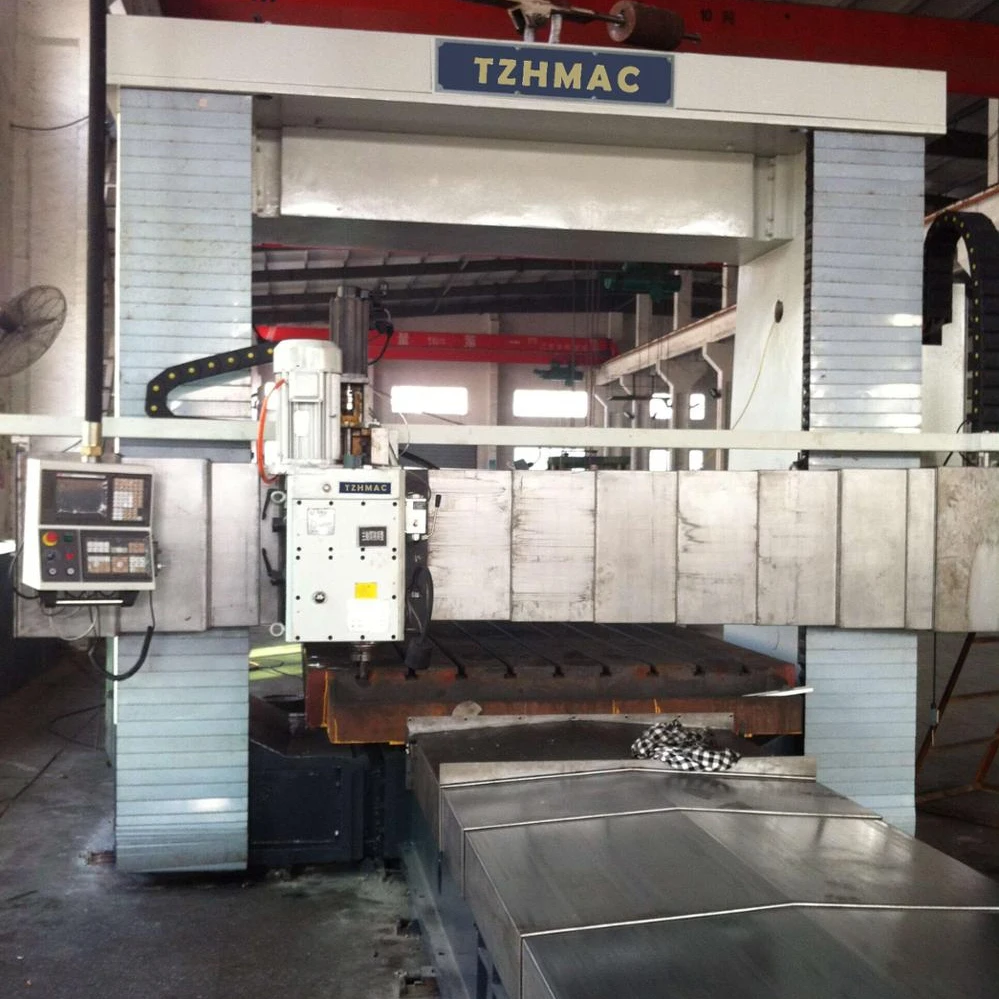

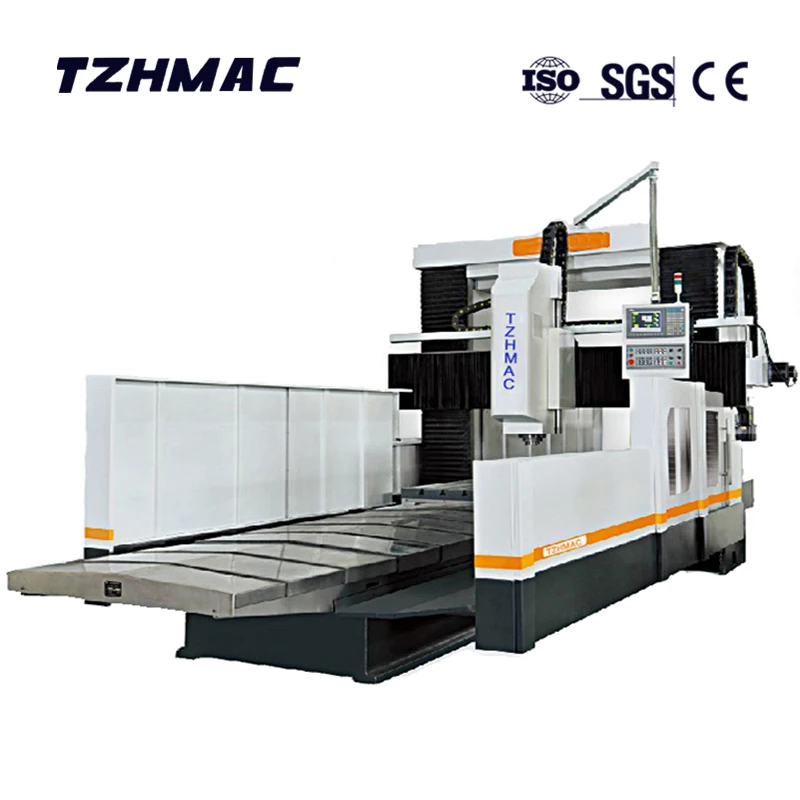

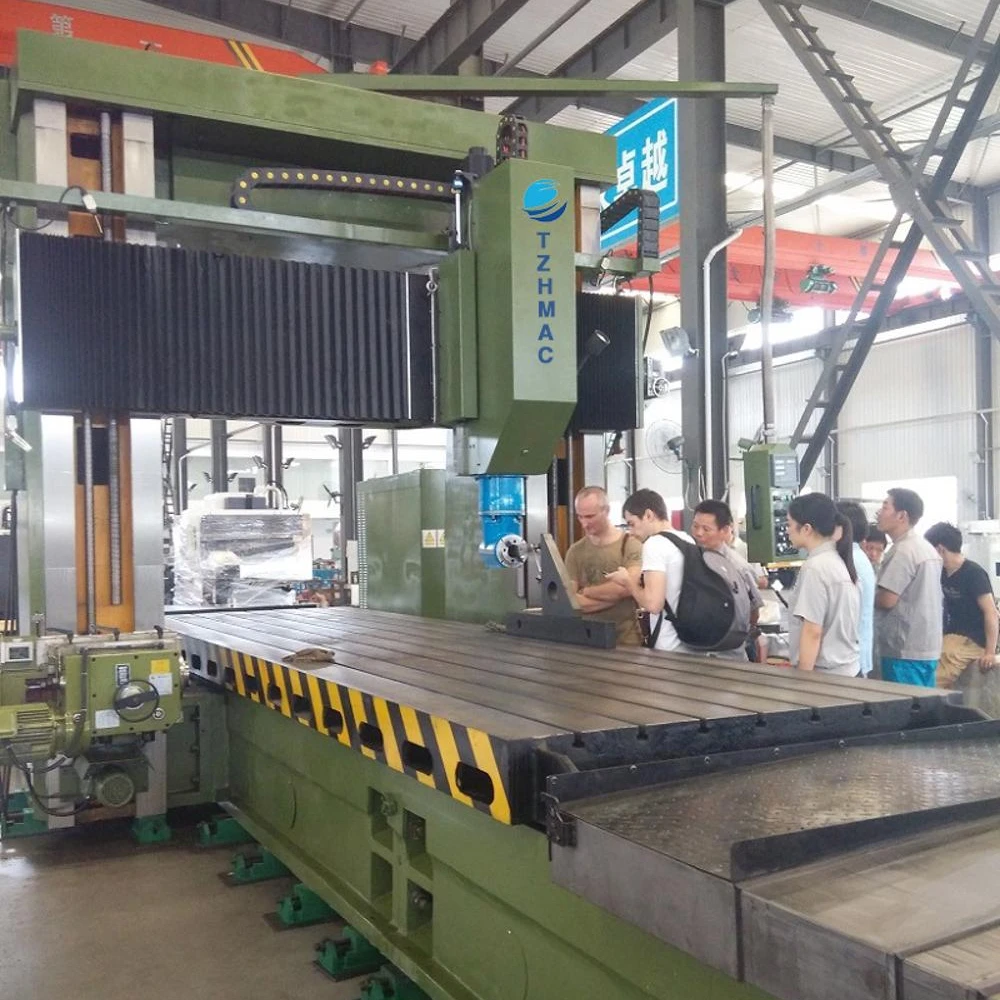

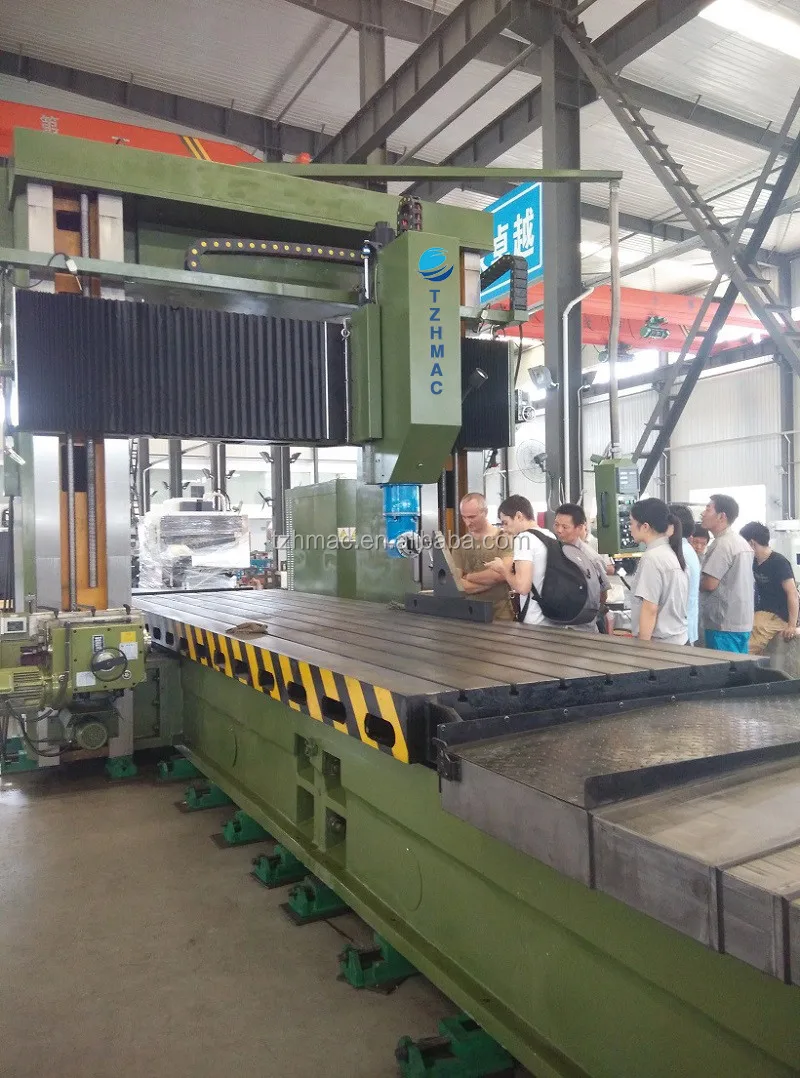

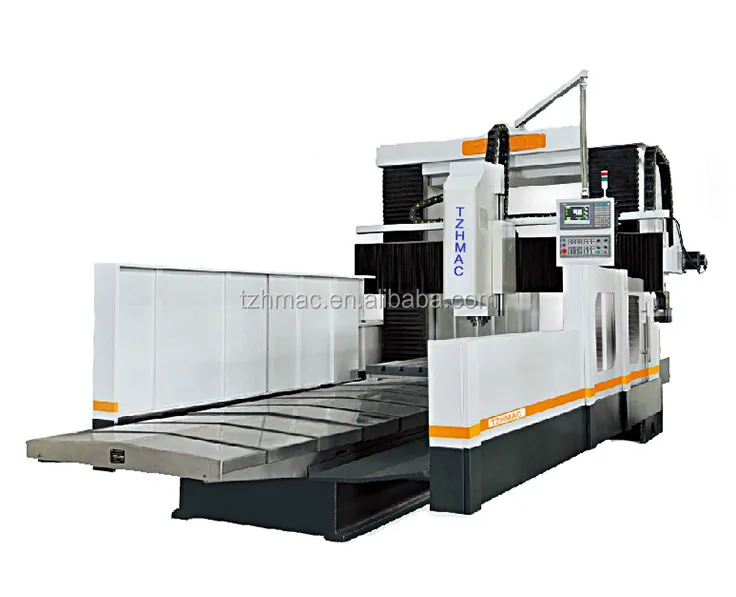

GS1215 Nantong Bossman 3 axis CNC gantry milling machine

Share on (60780371463):


Price:RUB 765,102.00 - RUB 4,590,612.00

Quantity:


Product Overview

Description

Product Description

Main Features

1.This type of machine adopts advanced technology, typical of good performance , reliable structure, easy operation, convenient maintenance, is widely used in mechanical processing department for medium and heavy black non-ferrous metal plane, inclined plane and the groove surface milling, etc..
2.It can use all kinds of standard cutter, and has large cutting torque and cutting depth.
3.The machine bed, table, bar are manufactured with high-quality cast iron, and have two quenching to eliminate the stress and deformation.

Project
Unit
YJ-DSK2516
YJ-DSK4025
YJ-DSK6020
YJ-DSK8030
Max. cutting length
mm
2500
4000
6000
8000
Distance
between two columns
mm
1700
2600
2100
3100
Vertical travel
mm
1200/1500
1500
1500
1500
Working table
mm
2500*1200
4000*2000
6000*1600
8000*2500
Working table feed motor
power
kw
5.5
7.5
11
15
Beam lift motor power
kw
3
3
3
3
Transverse left and right
motor power
kw
3
3
3
3

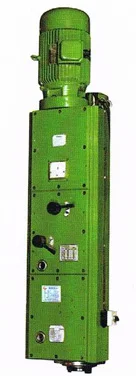

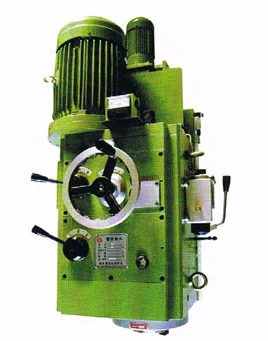

Vertical / side milling head
power
kw
7.5/5.5
7.5/5.5
7.5/5.5
7.5/5.5
Worktable movement speed
mm/min
0-4000
0-4000
0-4000
0-4000
Worktable
lubrication system
hp
1/4hp
eletronic oiler
1/4hp
eletronic oiler
1/4hp
eletronic oiler
1/4hp
eletronic oiler
Hydraulic lock motor power
kw
0.75
0.75
0.75
0.75
Worktable load
kg
9000
18000
20000
25000
Machine weight
kg
17000
33000
32000
68000
Diemension
cm
680*280*290
1050*380*330
1400*320*330
1800*430*330

Structure

The structure of machine tool is analyzed with ANSYS at all stages from foundation design to guarantee of high-speed and high-precision continuous machining. A simulation test for deformation produced when the center of machine tool bears load is conducted to guarantee excellent bending rigidity of machine tool.

FAQ

1. How should i pay for my order ? what is the procession of this purchase ?
we accept TT by bank. you can do 30% prepayment at first, then we will start to make production.
when the machine is ready , we will take pictures to you, and then you can do the ballance.
after we got your payment. i will send the machine to you.
2. How about your service after sales ? can your engineer speak fluent english ?
we offer the service from you got the machine, including how to install the machine, how to use machine. how to let machine work. and so on. usually we will teach you how to do by email or by skype our engineer has many years of experience for cnc machine service . he can speak very good english ,so he can slove the problem in short time.
3.Are you a factory or trading company?
We are the manufacturer . as only the machine made by ourself ,quality can be trusted, and most important thing is we can do better service after sales. we know how to fix the problem in each parts easliy. so welcome to visit our factory
4. How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
5. How about the documents after shipment?
Aftershipment,will send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by client.
6.How to master the stability of machine castings?
The casting of numerical control machine all adopt HT250 and HT300,It is treated by Two times temper and one time vibration aging to release internal stress,in order to ensure structural stability and the machine accuracy can be long maintained.

Our Service

 Warranty & After-sale service

1. 24-hours technical support by E-mail or telephone.
2. Provide extra accessories for the machine, Also provide service of make program according to your drawings Customized or special design is OK.
3. All of our products’ warranty period for 12 months.
4. Man-made destroy will be exception
5.We can supply the materials or tech support to our customers to help them fix the problems.
We will pay the delivery charge if the repair, return or replacement cases happen.

Contact
1.Our working time: 8:00am~6:00pm
2. All inquiries will be replied within 24 hours, So please feel free to send us your inquiry.
3. when our trade manager is off line, please feel free to leave a message, and tell us the products with model you are interested in, and your E-mail address, we will reply to you within 24 hours.

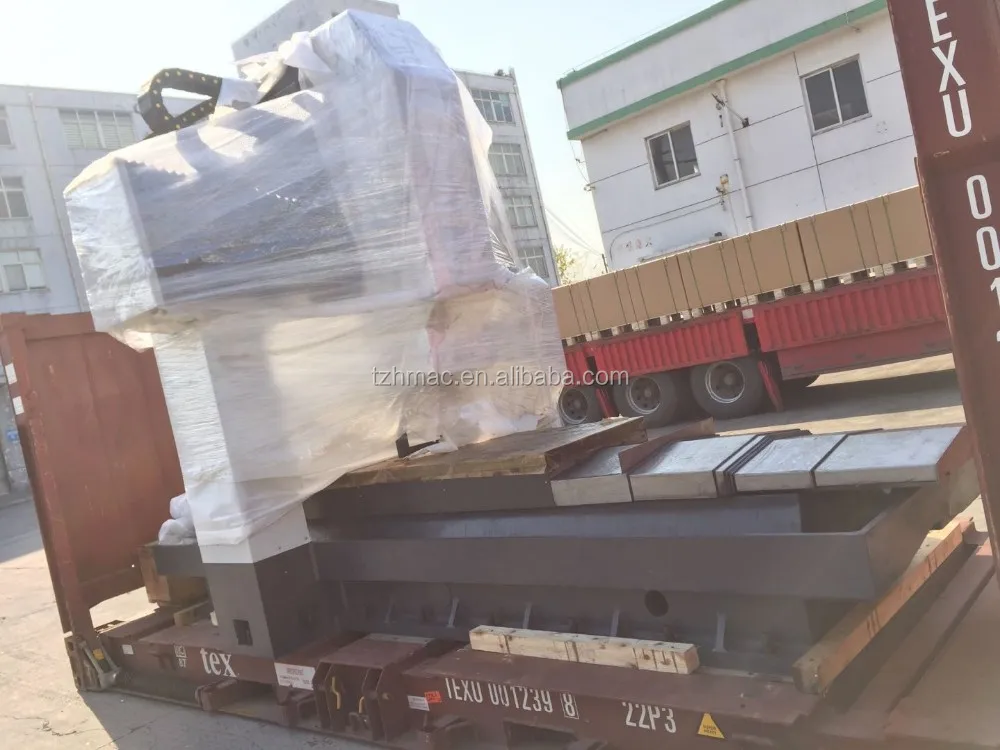

Packing & Delivery

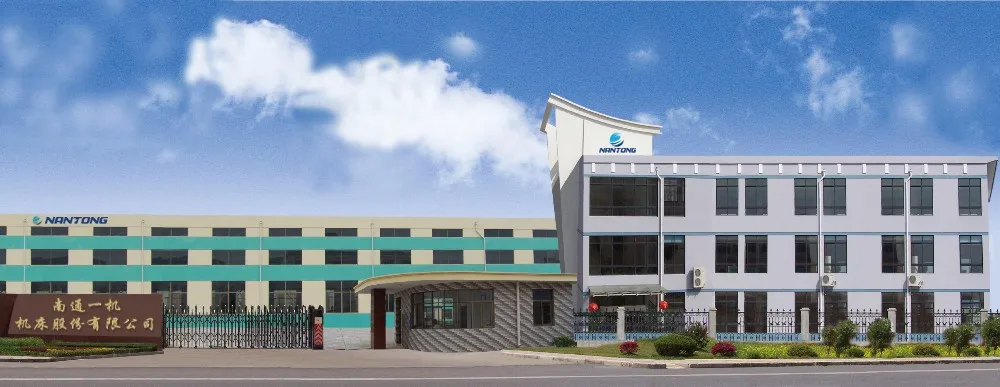

Our Company

                                               Welcome to Yiji Machiney Tool Co., Ltd

our company as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation,specializes in import & export of brand-new industrial machinery & tools.Our mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe ,milling machine,grinding machine,power press,guillotine shearer,hydraulicpressbrake,CNC Machine and so on,which have been exported to 40 or more countries & areas.
