Fruit nuts cereal candy bar snack food cutting machine/ Multi function Granol bar Protein Bar making machine

Product Overview

Description

Factory sale snack food peanut brittle cereal bar making machine/ Cereal Granola Bar making production line

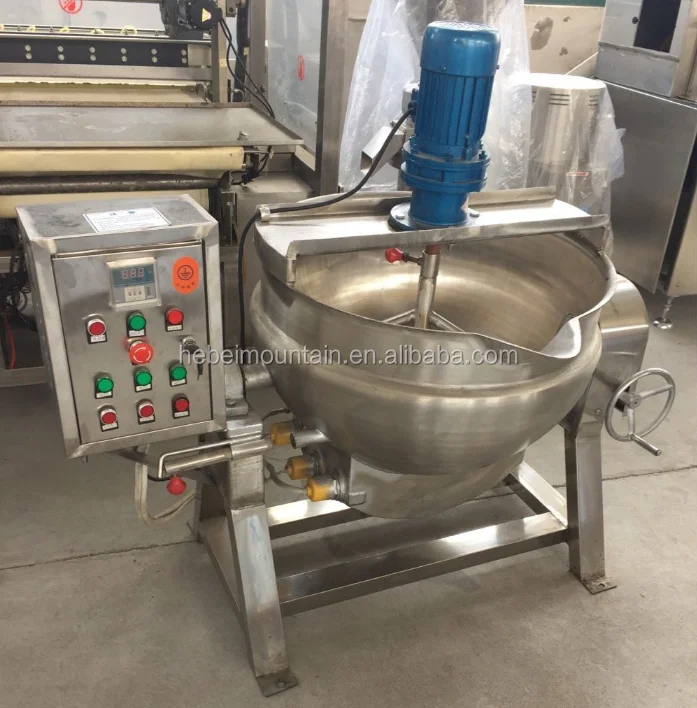

1.Cooking Pot for Sugar

Technology parameter:

Model specification		MT-050SP	MT-100SP
Equipment volume (L)		50	100
Working pressure of jacket (MPa)		<0.2
Evaporating capacity (kg/h)		30	60
Heating area (m²)		0.4	0.45
Energy consumption (kg/h)		3.3	4.4
Equipment weight (kg)		150	260
Outline dimensions (mm)	Length	720	800
	Width	600	650
	Height	830	950

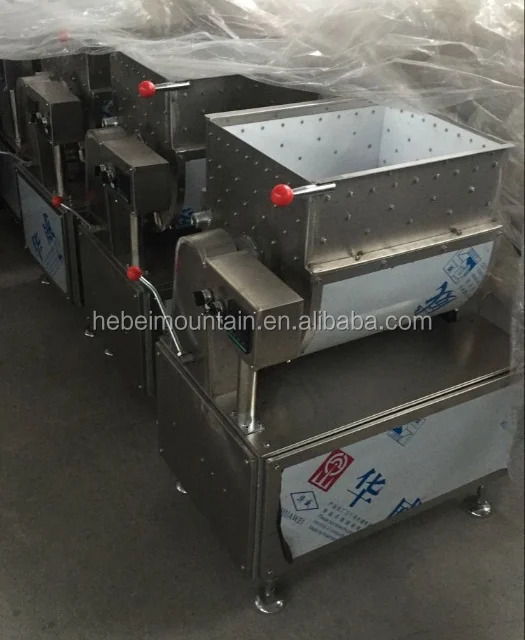

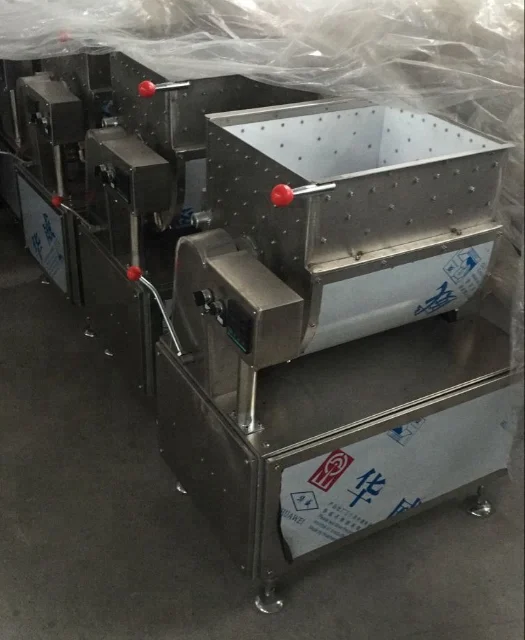

2.Cereal Bar Mixer



Product Name:food mixing machine



Voltage:220/380V 50/60HZ



Dimension:700*600*1000mm



Power:3kw



Capacity:15-30kg/pot



Material:Stainless steel



Purpose
This machine is mainly used for mixing sugar and peanut,rice,sesame etc,
Feature
1.This device fitted with a thermostat, the temperature is easy to control

2.Pot inside is painted with TEFLON,non-stick material.

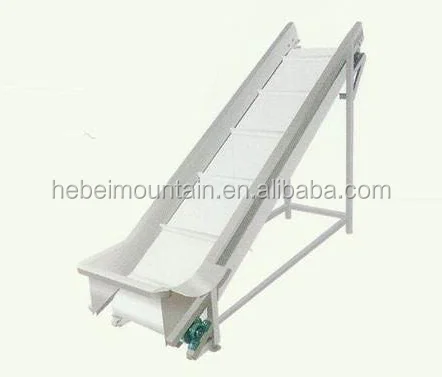

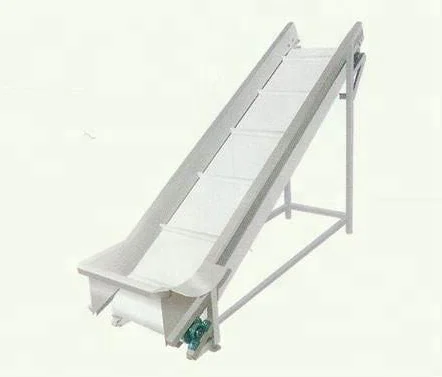

3.Conveyor

Device parameters

Power:0.37kw

Voltage:220/380V  50/60HZ

Size:2500*820*1080mm

Weight:200KG

Equipment Material:

304 The surface is austenitic stainless

The conveyor belt material is PVC

Equipment Introduction

Convey the material to the automatic cutting machine

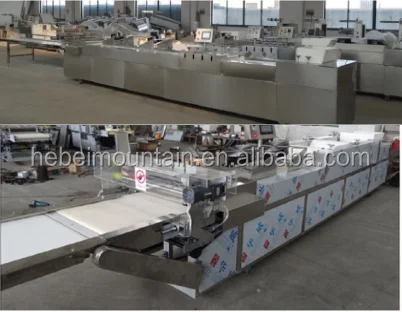

4.cereal bar making machine





MODEL	VOLTAGE	POWER(KW)	DEMENSION(MM)	CAPACITY
MT-01CB	380/220V	2.2	7500*1100*1600	3-8T/8H

Purpose:

This machine is mainly used for cutting cereal bar, rice candy ,peanut chikki etc.. This machine has a simple operation

Feature:

1.Frequency, leveling cut molding

2.Multi-level structure has reformed, pressed flat, uniform thickness

3.Automatic cutting, saving time, labor, economic convenience,good easy to use, production capacity, cut molding, etc.

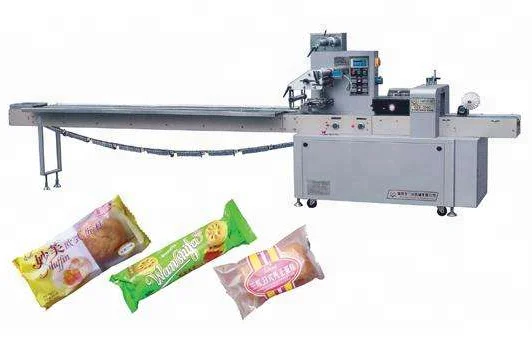

5.Packing Machine



Voltage:380/220V

Power:2.2kw

Packing speed:50-300pcs/min

Packing length:50-300mm

Packing width:50-310mm

Packing height :5-60mm

Dimension:3800*780*1500mm

Weight:350KG





6.Finished Porduct
