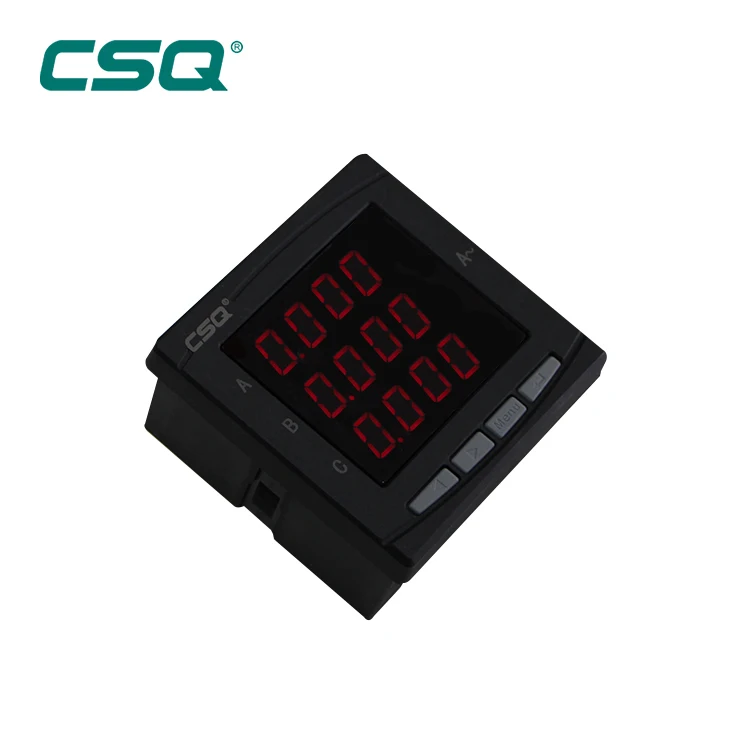

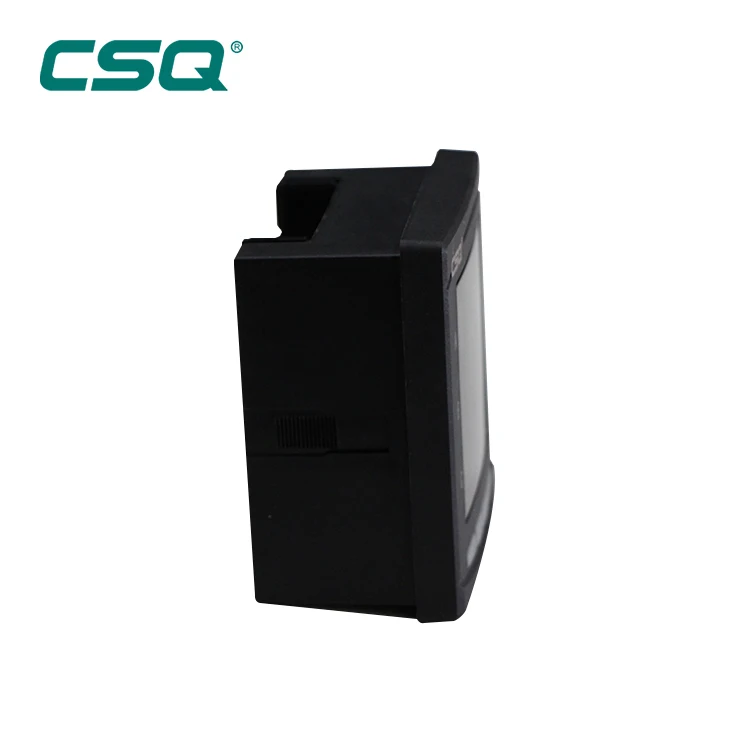

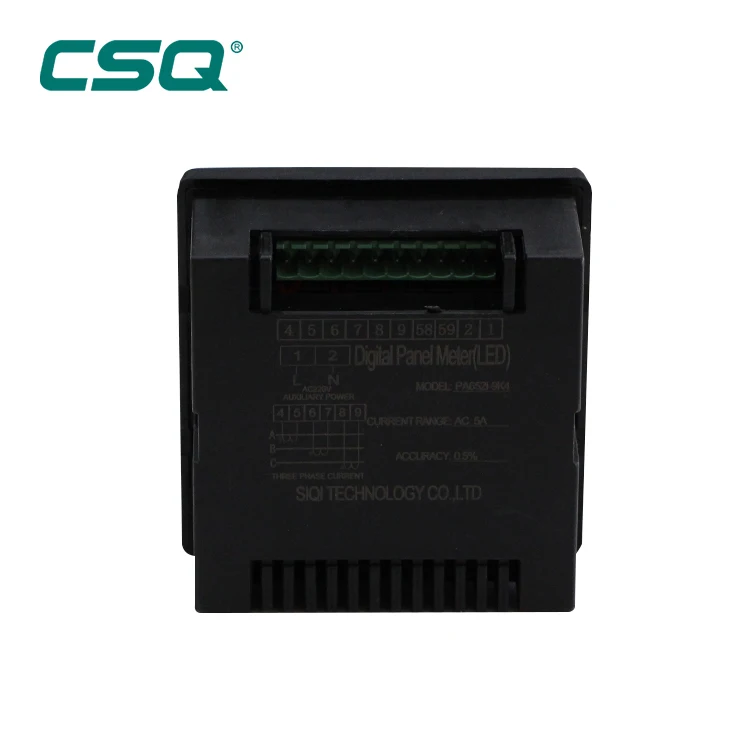

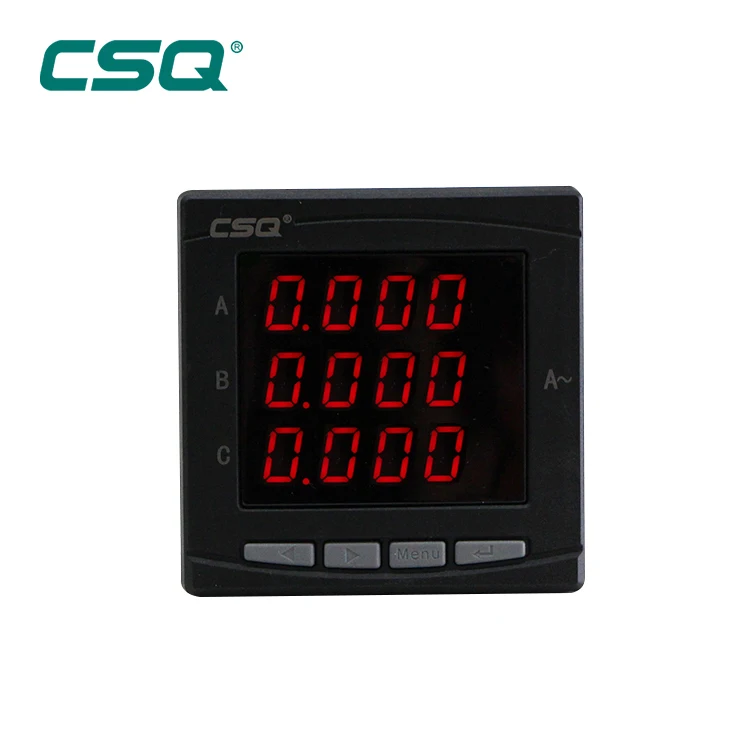

PA652I 9K4 digital ampere meter 3phase single phase amp meter rs485 5A new design LED display current meter supplier wholesale

Product Overview

Description

X/K Series Digital Panel Meter Product Description

This digital panel meter is apply to electric power&network and automatic control system. It mainly measures all kinds of electrical parameters in power grid, such as current, voltage, frequency, power factor, reactive power and active power. According to the additional functions,the meters can be divided into X,K series.

X series digital display meters mainly measure and display electrical parameters in power grid, such as current, voltage, frequency, power factor, reactive power and active power, etc, with advantages of intuitive display, high precision, good stability and anti-vibration, it adopts AC Ture RMS measurement and displays directly by LED. It also can be applied to locations where have serious harmonic distortion, transformation ratio is settable through the keyboard. A digital electric meter with muti measuring functions (voltmeter and ammeter can be switched to view frequency; power meter can be switched to view the voltage, current, frequency, etc.)

K series intelligent digital display meters are designed for electrical power system, industries and mining enterprises and so on. In addition to satisfied the functions of X series digital display meters, it also can do an optional analog transmitting output (4-20mA), switching input measuring function (realizing "remote signaling"), relay output function (realizing "remote control") and RS485 communication interface is adopt Modbus-RTU protocol to realize "remote measurement" function in needed. The transformation ratio can be set through panel key. Its flexible and convenient to connect network.





X.K series digital panel meter"Technical indexes"
Subject		Indexes
Accuracy class		Class 0.5
Display mode		LED or LCD
Input	Nominal input	Voltage AC100V,220V,380V,etc;current AC1A,5A,etc
	Overload	Last:1.2 times,instantaneous:voltage 2 times/1s, current 10 times/5s.
	Frequency	40-65Hz
Working power	Working range	AC 220V±10%(Can be customize AC/DC 85-264V)
	Power  consumption	<4VA
K series optional functions	Transmitting output	When it is DC4-20mA current output, load<51Ω. When it is DC0-5V voltage output, load>20kΩ
	Communication interface	RS485 communication interface, Modbus-RTU protocol, default baud rate is 9600bps(optional)
	Relay output	Contact capacity of relay:AC250V/1A,DC30V/1A
	Switching input	Passive dry contact
Isolation withstand voltage		Power and input>AC2KV, power and output >AC2KV, output and input >AC1KV
Insulation resistance		>=100MΩ
Mean Time Between Failures		>=50000h
Working condition		Ambient temperature: -10~55ºC, relative humidity: ≤93%, locations free of corrosive gas, altitude ≤2500m
Storage environment		Ambient temperature: -20~75ºC, relative humidity: ≤93%, locations free of corrosive gas



Note: The right symbol is A means AC ammeter. Other symbols correspond to V(Voltmeter), KV(Active power meter), Kvar(Reactive power meter), CosΦ(Power factor meter), Hz(Frequency meter)
Other digital display meters outline(such as 120*120, 83*83, 74*74) is the same series with 96*96. Only the outline size is different, so no more figures present.

Order guide:

Please specify the model, power supply, input signal, transformation ratio, display requirement and other relative information when ordering. Default precision is 0.5 class.

For example:

X series/Ammeter(A):Model PA652I-AX1(Single-phase ammeter, size:74*74); power-AC220V; input ratio-100A/5A; frequency-50Hz.
K series/Ammeter(A):Model PA652I-9K4(Three-phase ammeter, size:96*96); power-DC110V; input ratio-200A/5A; frequency-50Hz, 1 channel reply input
