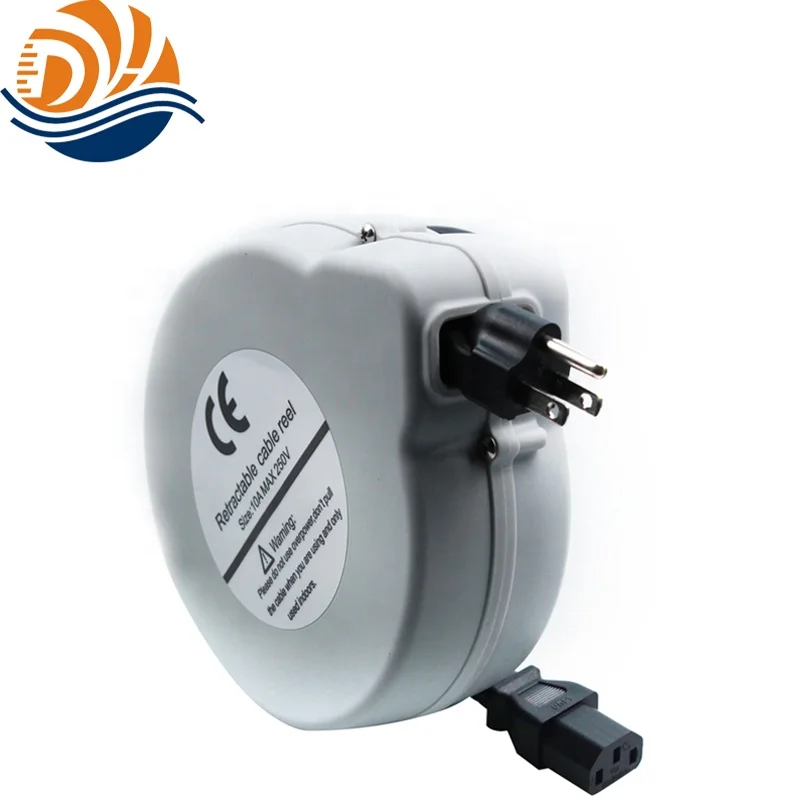

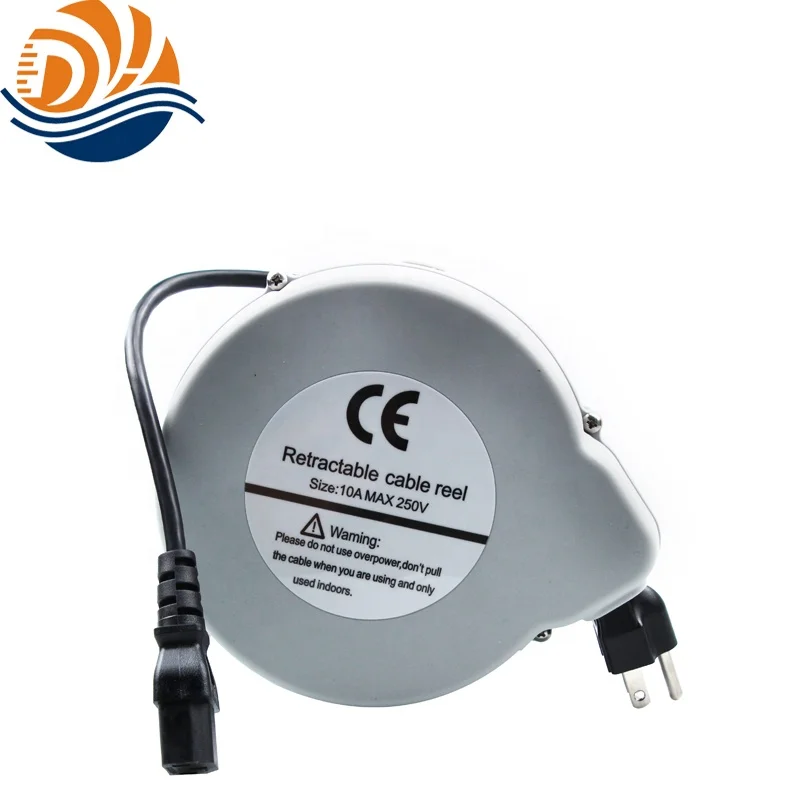

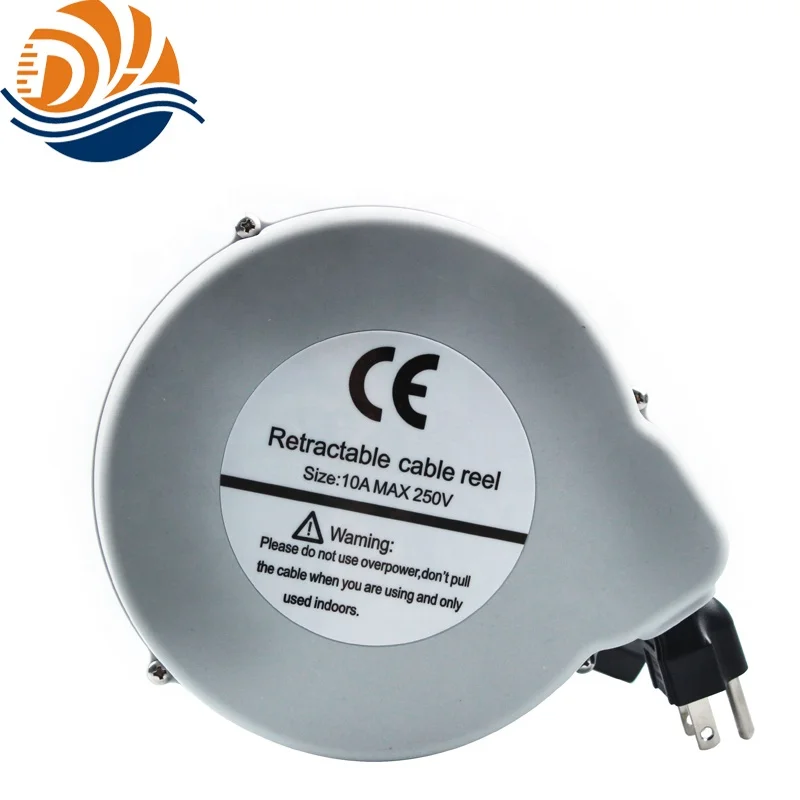

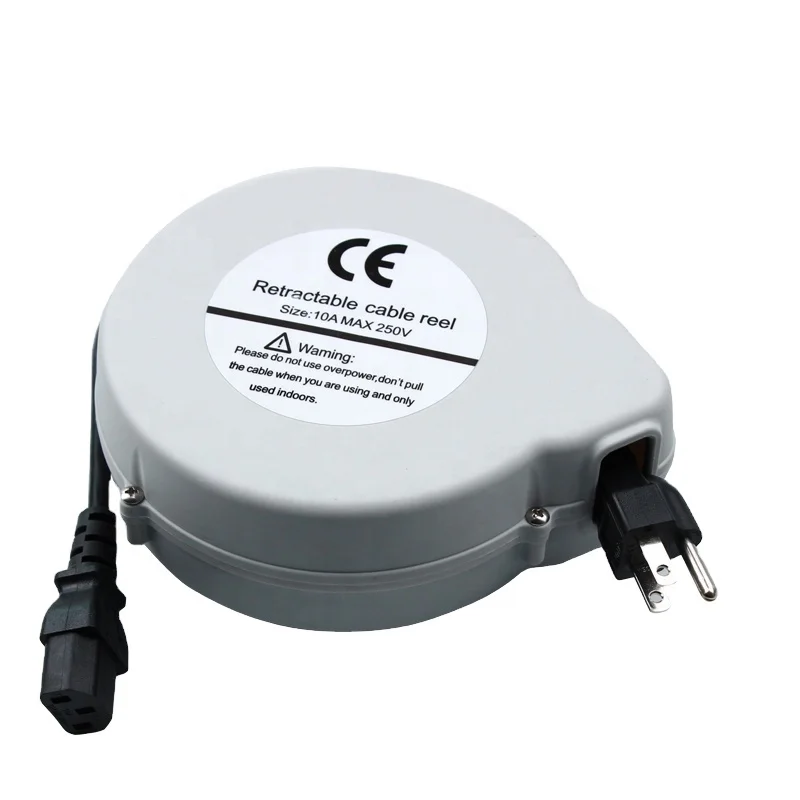

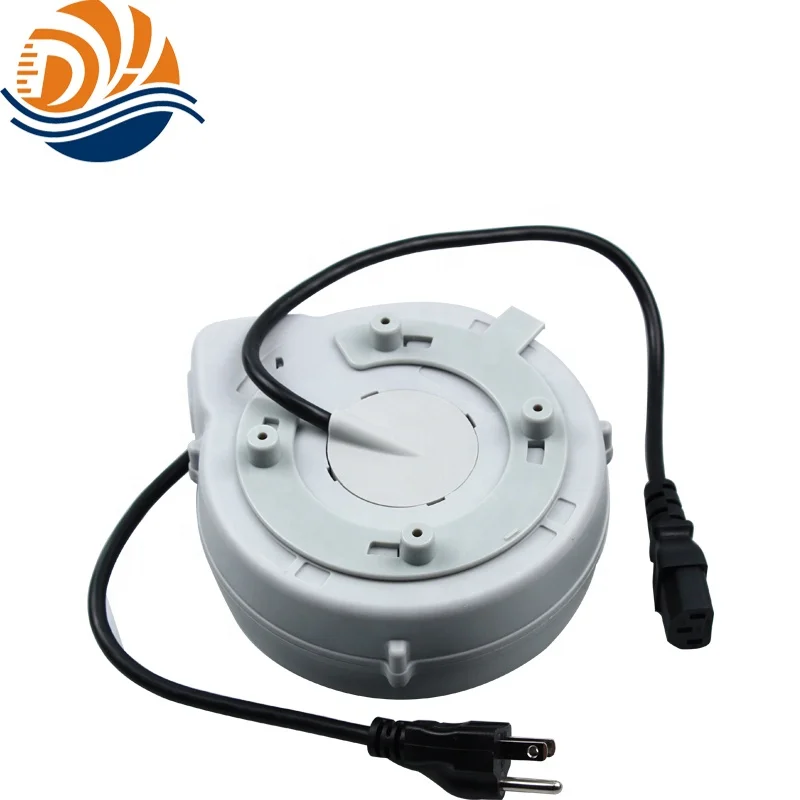

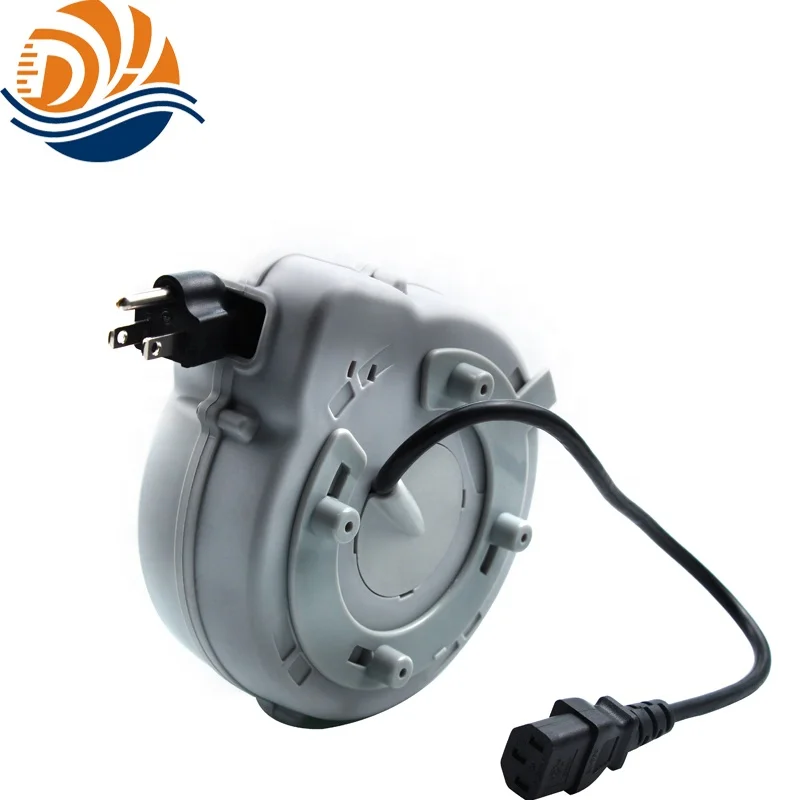

diy extension cord winder retractable spring loaded cable reel
- Category: Power Cords & Extension Cords >>>
- Supplier: Choice & Chance (hunan) Electric Technology Co. Ltd.
Share on (60780449921):
Product Overview
Description
Product Description
1. Automatic cable winder for installation
2. Size: Dia.147mm * Th.55.5mm
3. Extremely compact, 2-pole / 3-pole cable winder
4. Multi-layer with flat cables / Round cables
5. Cable lengths up to 6m
Product Name | auto rewind cable reel retractable for electric lamp |
Material | Anti-fire ABS Plastic |
Size | 147 * 55.5mm |
Color | Standard Black ; Customize avalibable,Panton Color NO. |
Standard | GB/EN/EU/SA/US... |
Cable Specification | 0.75mm² 220V 6A / 1.0mm² 300V 10A American 2C/3C 18AWG 125V 10A / 250V 6A etc can customised |
Cable Length | 1-6M ( Option ) |
Rating Volatge | 220/50HZ or 125/60HZ or 240V/60HZ |
Rating Current | 2A - 10A |
Retract force | ≥0.3-0.6kgf -Standard. Tailor to be Stronger / to be Gentle ; Adjust Spring to be thicker -Customized. |
Fire rating | V0 |
N.W. | 130g - 890g Depends on cable length and plug/socket/connectors.... |
Packing | PP bags+neutral carton 12 small Carton into 1 big neutral carton |
Used | electric scooter;electric scooter,electric rickshaw;electric bicycle;electric bicycle....... |
Sample | Sample is avalibale for testing and evaluating Sample is avaliable for Customizing Sample is avalibale to tailor the retracting force Spring is avaliable for adjusting |
Product Video
Products Show
Product Details
Model DYH-1606 it is the product only DYH company have.
It adopted constant force spring,Rolling Spring which can adjust the retracting force.
It have Mounting Ring/Bracket ,easy to fixed compared the Metal Pallet
It can be permanent pull locking system ,and pull release locking system as well.
C&C Product Testing
Packing & Delivery
Sample bubble column bag packaging
Packing Details : Packing, solid bicycle saddle, 50pcs/carton
Delivery Details : 3-30 days after order of Solid bicycle tire tubes
Applications
Cable rewinder length of 3m
For the portable and movable working plate
Retratcable Cable length:3m
Reractable cable end with SCHUKO plug
Fixed cable length:0.5m
Fixed cable end connected with clients portable equipment
Mounting Bracket/Ring Type
Customize avaliable
Cable reel for air cleaner
For the portable electric scooters
Retratcable Cable length:6m
Reractable cable end with SCHUKO EU standard 3 prong plug
Built-in Type
Customize avaliable
Cord reel for portable screen display
For the portable display
Retratcable Cable length:3m
Reractable cable end with EU Standard plug
Fixed end Built-in Type
Customize avaliable
Our Company
Retracting life time test
To test our retractable devices working life
Shake environment test
To test our retractable devices shake endurance test
