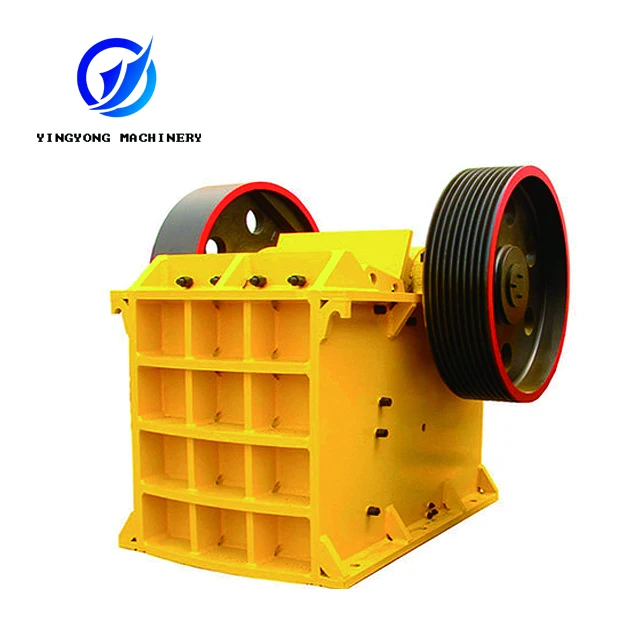

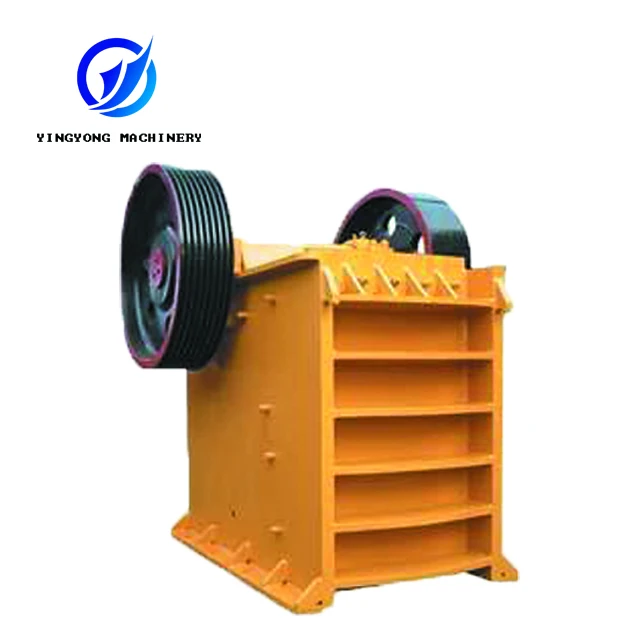

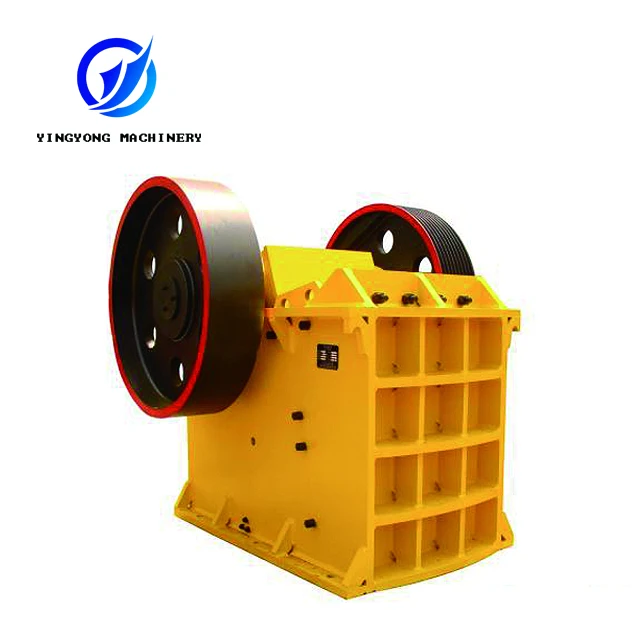

2019 high quality low price jaw crusher with double toggle jaw crusher

Share on (60780457877):


Price:$1,000.00 - $2,500.00

Quantity:


Product Overview

Description



Product Description


 The Jaw Crusher is widely used in mining, building materials, chemical industry, metallurgy and so on. The Jaw Crusher is suitable for primary and secondary crushing all kinds of minerals and rocks with compressive strength less than 320 MPa.


PE(X) series Jaw crusher, whose size reduction ratio up to 4—6 and the final products are even,can be widely used in crushing hard, medium-hard, soft ore, and various kinds of ore, the solvent, slag, building stones,marble, etc. Compression strength does not exceed 320 Pa. This machine is suitable for mining, building construction, highway, railway, water conservancy and chemical industry.









 specific details

























TypeJaw Crusher


Capacity(t/h)



15-50tph
Max feeding size200-1020mm
priceCan be negotiable
After-sales serviceGuaranteed technical video support

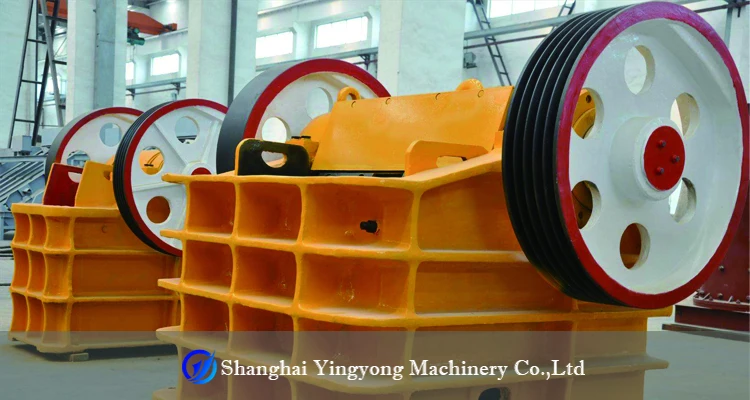

PE(X) Series Jaw Crusher
Structure description and assembly

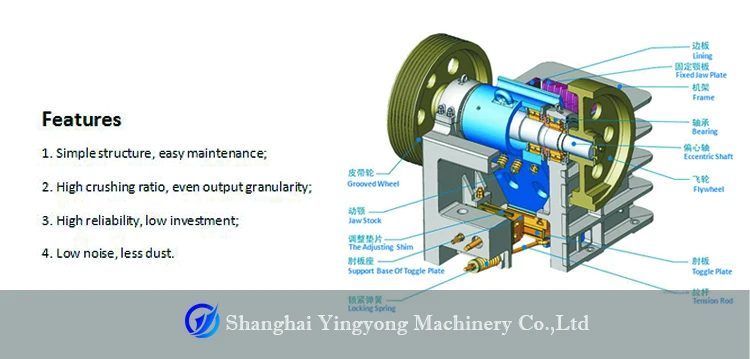

Diagram 1 Structure of Jaw Crusher:
1. Fixed jaw plate     2. Side plate(Up)    3.Movable jaw plate   4. Jaw    5.Toggle Plate       6.Tension device(spring and tension rod)   7. Side plate(lower) 8. Pulley      9.Bearing 10.Bearing       11.Eccentric Shaft          12. Fly wheel


Working Principle:


The strip and strip pulley are driven by a motor, and the movable jaw moves up and down via eccentric shaft. The angle between fixed jaw and movable jaw becomes smaller when the movable jaw runs down, then the materials are crushed into pieces. It will become bigger when the movable jaw runs up. The movable jaw board leaves the fixed jaw board under the action of pole and spring , then the end products come out from the crushing cavity.







Specifications:











Product case

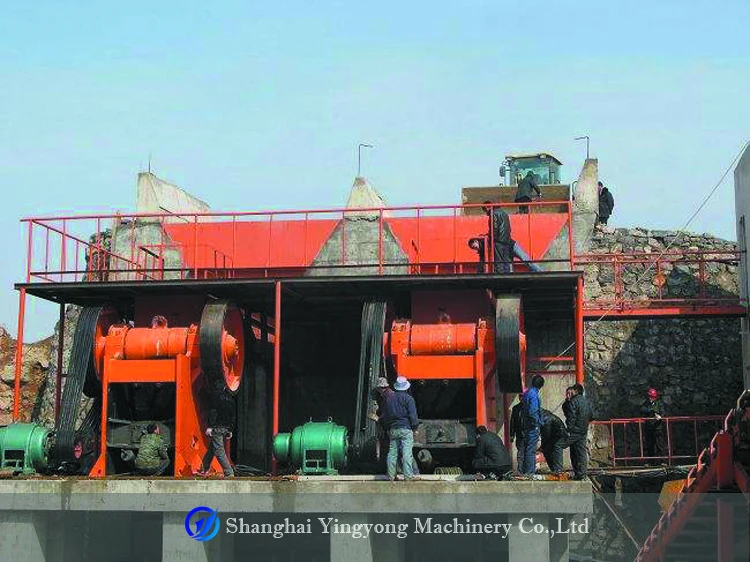

 2 sets of PE600×900 Jaw Crusher in Kazakhstan




Material:  limestone


Feeding: 500mm


Discharging: 20-50mm


Capacity: 110TPH





.jpg





1 sets of PE500×750 Jaw Crusher in Turkey


Material:  limestone


Feeding: 45mm


Discharging: 20-50mm


Capacity: 70TPH







1 sets of PE1000×1200 Jaw Crusher in Australia


Material: Basalt


Feeding: 100mm


Discharging: 20-50mm


Capacity: 300TPH














Packaging & Shipping


 Ways of Packing:


1.Sand blasting, coat with high quality paint;


2.Product wrap by PP-Bubble


3.Load container, Spear Parts in wooden case.











Transportation:


1. By sea Freight;


2. MSK/MSC/APL/EMC/WANHAI/KLINE


3. We will remind you before boat arrival



Company Information


 Our company is a high-tech enterprise, which is specializing in the research,development, and manufacture of industrial stone crushing & screening equipments,grinding mills, mining equipments and so on. So far, we have established a wholeproduction chain, of which main products cover stone crushing & screening equipments: Jaw Crusher, Cone Crusher, Impact Crusher, Vertical Impact Crusher,Hammer Crusher, Vibrating Feeder ...










YINGYONG is able to produce large piece or manufacture according to requirements: rotary kiln up to 6m, grinding mill up to 5*16m, our bending machine could bend up to 6m and thickness 120mm, casting piece could be up to 24t net weight, equipments could treat all kinds of pieces up to 8m and 80t weight, hobbing machine up to 8m.






FAQ





Q: Hi, are you mining machinery manufacturer?


A: Yes, our company warmly welcome clients to visit our plant at any time. We can also provide samples test, mine design, equipment manufacture, after-sale service, etc...





Q: Which country have your products been exported?


A: We have been exported business for 10 years and we have lots of customers and agents in the world, such as Middle East, Malaysia, South Africa, Canada, America, etc…





Q: What information should customers give us, so that we can be able to provide you suitable quotation and service.


A: What minerals to be crushed?


What's the maximum size of your raw minerals?


What is the capacity do you need per hour for your project?





Q: How long is the warranty of your equipment? Does your company supply the spare parts?


A: The usual warranty period is one year. And of course, we will supply the spare parts for you at lowest cost.





Q: If I need the complete mineral processing line, can you help us to build it?


A: Yes, we can help you combine a complete mineral processing line and give you related professional advices as long as you need. We had already build many mining projects in China & Overseas. We can set a complete processing line just as you require.
