0 10v dimmer 315w cmh dimmable digital electronic ballast For 315w Ceramic Metal Halide and 250w HPS Lamp

0-10v dimmer 315w cmh dimmable digital electronic ballast For 315w Ceramic Metal Halide and 250w HPS Lamp

EBM Lighting is professional manufacturer of next-generation smart digital electronic ballast. Innovative design drives CMH (Ceramic Metal Halide) lamps. HPS (High Pressure Sodium) Lamps, MH (Metal Halide) Lamps which whidly use for hydroponic grow lights!

This Is Much Better Electronic Digital Ballast:

Leading Technology:

Digital ballast is Low Operate Frequency (140-160HZ), Square Wave, Internal RF Shielding, Soft Start, Low Heat, Quiet. With short-circuit/circuit overheat/ lamp-failure protection,etc.

Save Bulb Cost:

Ballast protect lamp's life very well! No need to change bulb within 3-5 years!

Save Electricity Bill Cost:

Use less electricity to output a lot of full spectrum light that usable by plant. (At least 25% per day)

Maintain High Efficiency:

Patented output control maintains maximum PAR value over lamp life.

High Yield:

Under Maintain a lot of full spectrum light and maximum PAR, Plant grow fast and better, high yield fast, win more profit fast.

Quality Guarantee:

CE / ROHS/ CB/ SAA Certification! Meet different country standar, Warranty 3 years!

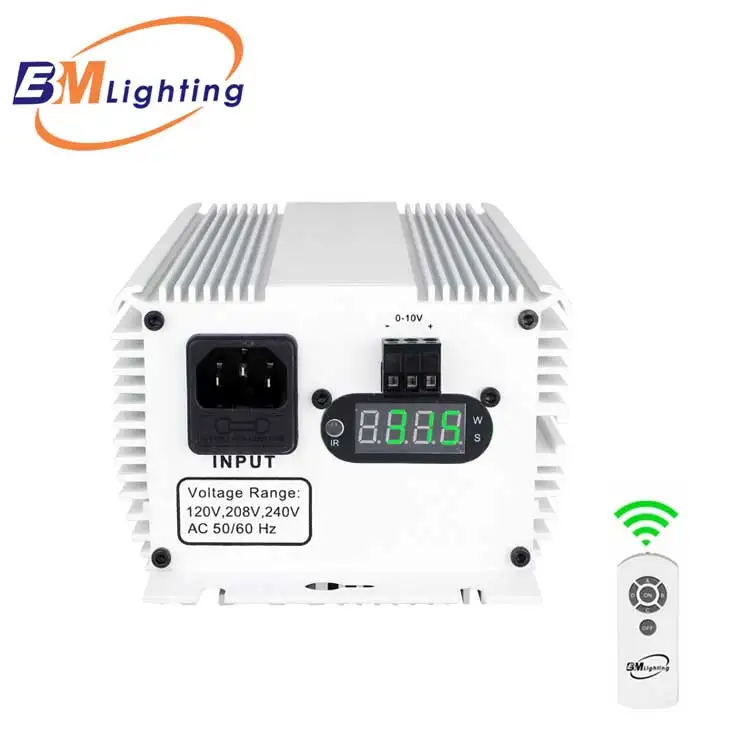

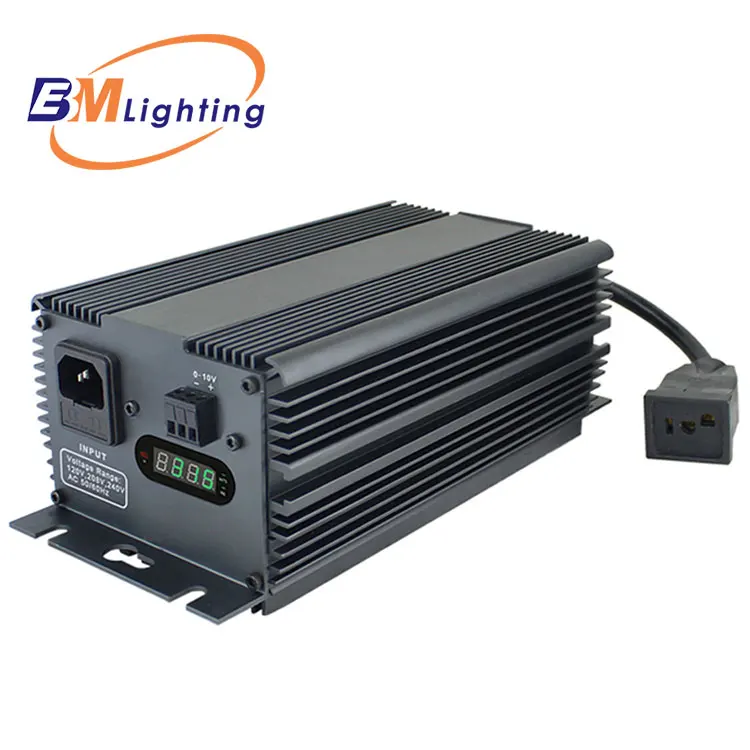

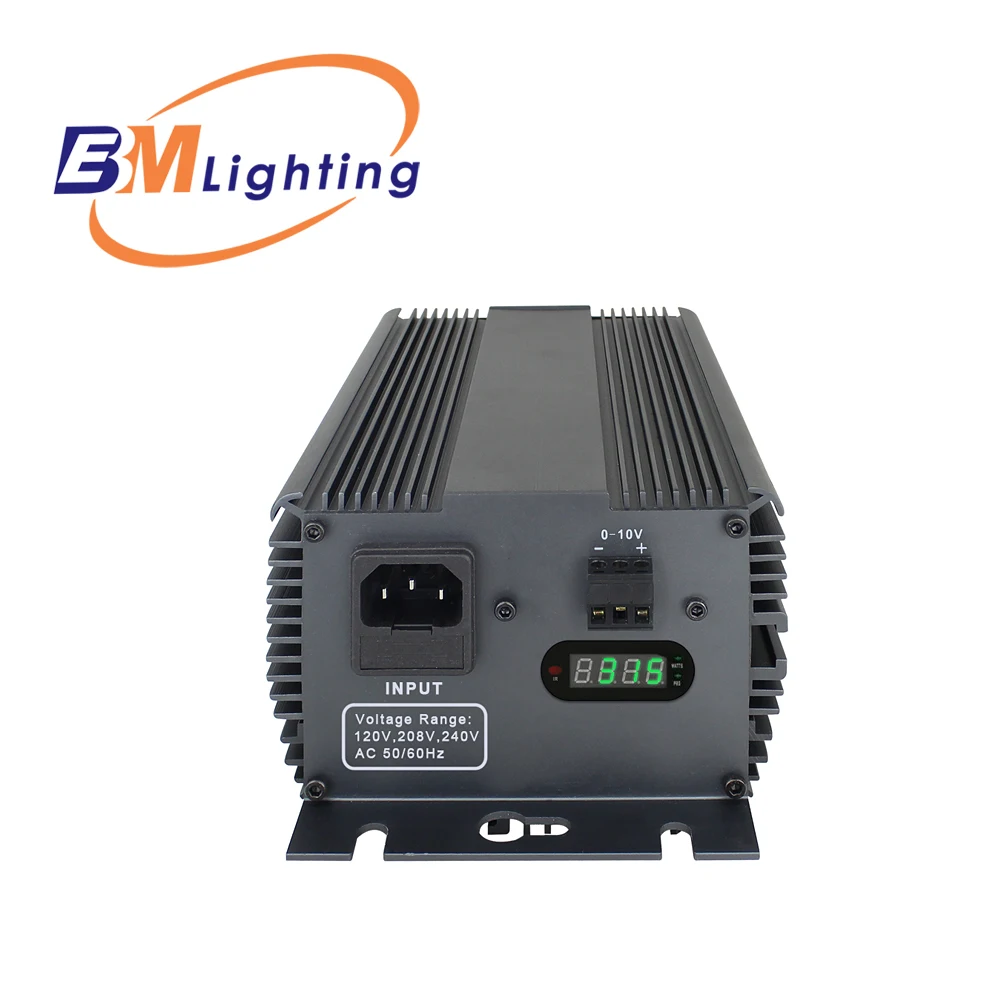

Best CMH 315W Digital Ballast:

• 315W Low Frequency, Square wave, Soft start technology, CMH Ballast.


• Operating Frequency: 140-160Hz  (Low Frequency)


• With short-circuit/circuit overheat/ lamp-failure protection,etc,


• Multi-aspect protection circuitry. Internal RF shielding.


• Match well with CMH 315W /210w lamp. HPS 250w,  MH/QMH315w, 350w lamp.


• Support Lamp Type: Ceramic metal halide(CMH),MH/QMH,HPS.


• Patented output control maintains maximum PAR value over lamp life.


• It can ignite CMH lamp up to 66 feet/20 meters away.


• Power Factor(PF):>0.99,   Efficiency:>91% , Crest Factor(CF):<1.5


• Total Harmonic Distortion(THD):<6%


• Voltage Input:   AC 120V / 208V / 240V, 50/60HZ


• Output  voltage:  AC 100V  (power supply to the bulb)


• Temperature: Ta=40℃ , Tc=70℃ .


• Power Outputs: Dimmable ( Support IR remote control )


• 0W(OFF),145W, 215W, 315W, 355W or 145-355W ( with 0-10V dimmer )

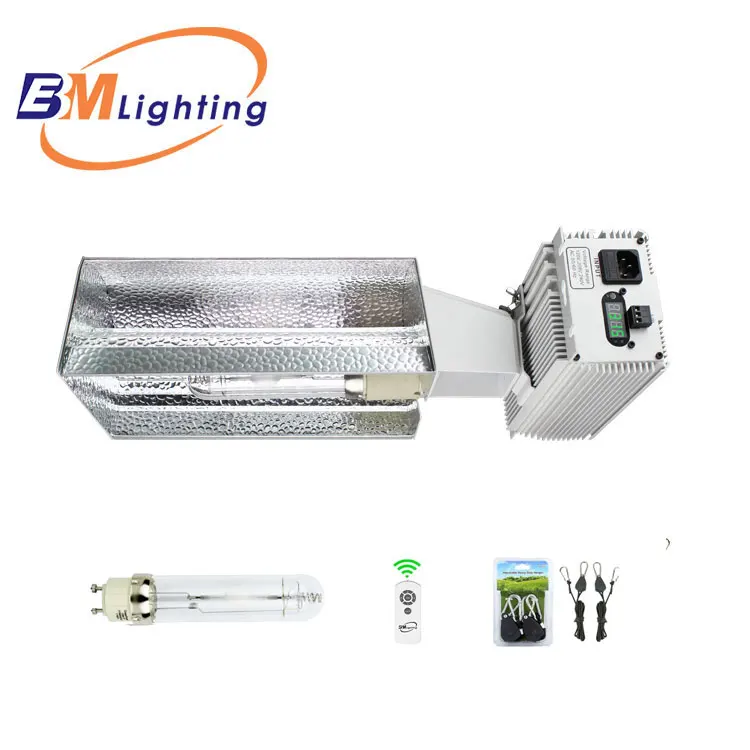

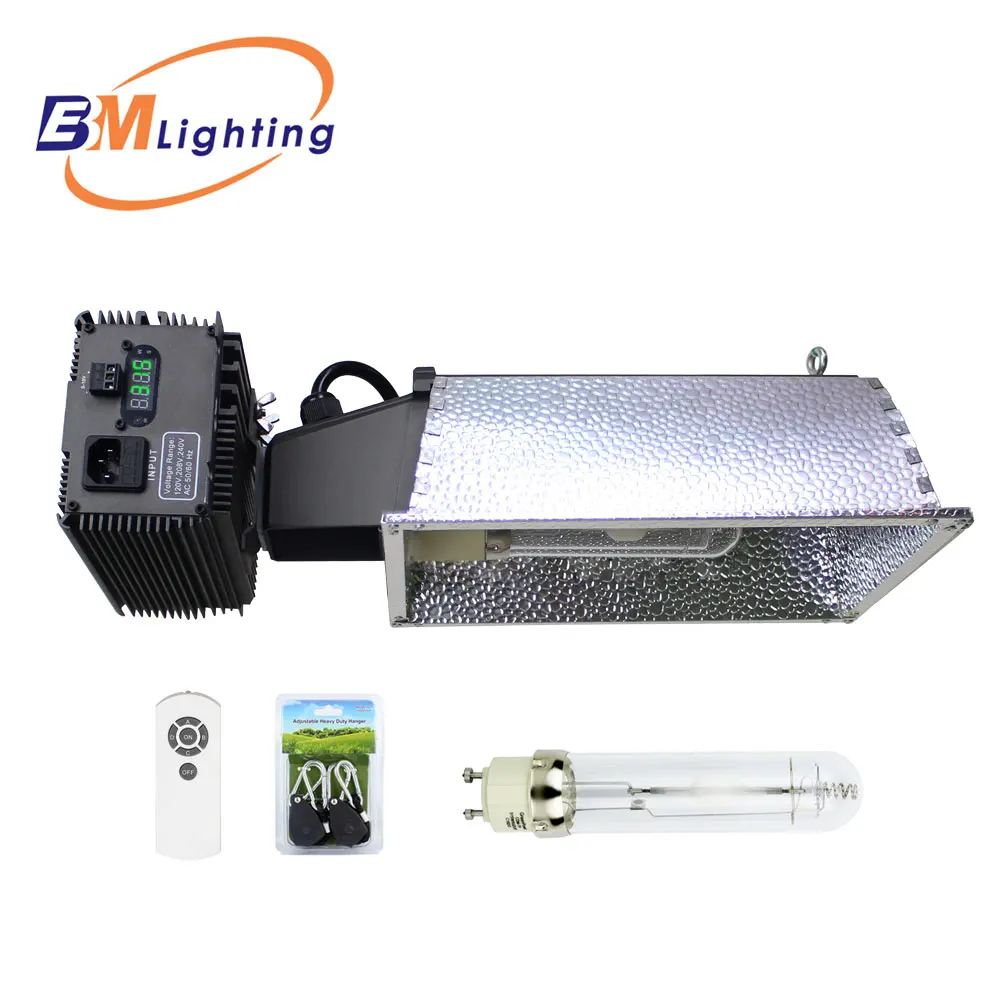

Complete 315w CMH Kit With This Digital Ballast You May Like:

High Reflective Reflector:

• Size: 391x238x123 mm.


• Material:Imported ALANOD® aluminum reflector.


• Light reflection≥95%.


• Mounting plate: 1.5mm Galvanized sheet with white powder coating.


• Power cord: 16AWG/3C STW 105℃ 600V, with 3Pin Plug, L=18 Inch.


• Lamp holder: 1 pcs PGZX18,4KV


• Suitable for GreenPower CDM-T Elite Agro 315W Lamps.

  Full Spectrum CMH 315W Bulb:

• Type: 315W Single Ended Ceramic Lamp


• Lamp Wattage: 315W


• Light output (lumens @ 100 hours): 37000


• Lumens per Watt (lm/w) : 120


• Rated life (Hours @ 10 Hour / start): 15000


• Correlated Color Temperature(K): 3100


• Color Rendering Index (CRI) or (Ra): ≥90


• Photon flux (μ mol/s):570


• Burning Position:U


• Max. Base Temperature(°C): 250


• Max Bulb Temperature(°C): 350


• Luminaire Type: Open/Enclosed


• ANSI Standard Ballast: C182/0 or Electronic


• Lamp Operating Voltage(V):100v


• Lamp Operating Current (Amps) 3.15A


• Min.-Max. Starting pulse (Peak KV) 3-4


• Min. Open Circuit Voltage( RMS): 198v


• Min. Pulse Width @ 2700V(Microseeconds): 1.9


• There different color temperature bulb are optional. please contact us for more information. Thank you.

Contact Us For Complete Catalogue:

315w CMH Grow Light Kit	630w dual output grow light kit (one ballast operate 2×315w cmh lamps)
315w CMH Grow Light Kit	630w CMH Double Ended Grow Light Kit

Application

Payment

• We accept TT, L/C, Western Union and Paypal.


• If Customer has any problem about payment terms, please kindly contact us.

Shipping

• Goods will be sent during 5-25 working days after we get payment (base on acutal quantity).


• Tracking No. will be sent after we ship out the goods.


• By air / By sea/ by customers forwarder

Our Services

• OEM/ ODM service ( Design your own color box , Own digital ballast case, Reflector, Print Logo Ect.) !


• Warranty 2 years!


• After sales service: If any quality problem within warranty time, We will responsible to repair it or send a new one to instead for free!

Factory Information:

Established in 2009, Guangzhou EBM Lighting Limited is one of the leading HID electronic ballast & CCTV camera manufacturer in China.

EBM is specialized in electronic ballasts for CMH (Ceramic Metal Halid), HPS ( High Pressure Sodium) , Which are widely used in commercial lighting, industrial lighting, road lighting, hydroponics lighting and plant grow lighting.

EBM has achieved more than 20 patents, and developed smart digital ballast source auto-adapt lighting attenuation control technology for HID, Which has independent intellectual property right. Then EBM became the first company on this advanced technology in China.

We are looking forward to your cooperation sincerely. Welcome Inquiry!

Q1: Are you factory?
A1: Yes. Welcome to visit our company and factory.

Q2: What's warranty time?
A2: Digital ballast warranty 2 years, CMH bulb warranty 1 year.

Q3: Is your ballast low frequency, square wave, Soft start, Internal RF shielding?
A3: Yes.

Q4: What certificate does your digital ballast have?
A4: CE, ROHS, CB, SAA, Meet every country standar!

Q5: We have different input voltage, Is this grow lights usable in our country?

A5: please contact us, We will give you the professional suggestion!

Q6: Do you accept OEM/ ODM?
A6: Yes, You can design your color box, digital ballast case, reflector , print logo ect.

Q7 Do you accept sample order?

A7: Yes. Welcome!

Welcome Inquiry EBM Lighting!
