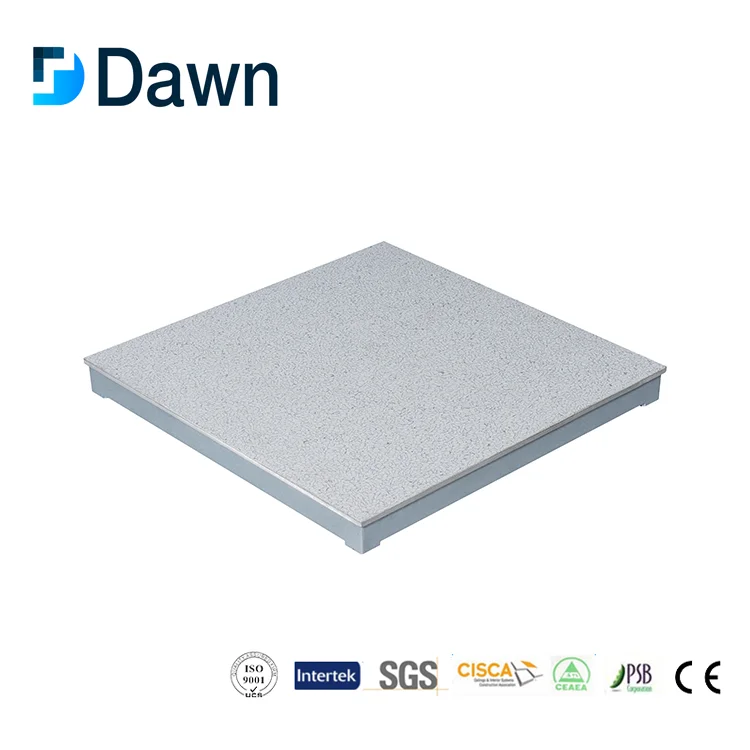

Aluminum raised access floor system with HPL finish
Aluminum raised access floor system with HPL finish
Aluminum raised access floor system with HPL finish
Aluminum raised access floor system with HPL finish
Aluminum raised access floor system with HPL finish
Aluminum raised access floor system with HPL finish
Aluminum raised access floor system with HPL finish
Aluminum raised access floor system with HPL finish

Aluminum raised access floor system with HPL finish

Share on (60780466324):


Price:$25.00 - $35.00

Quantity:


Product Overview

Description


Product Introduction

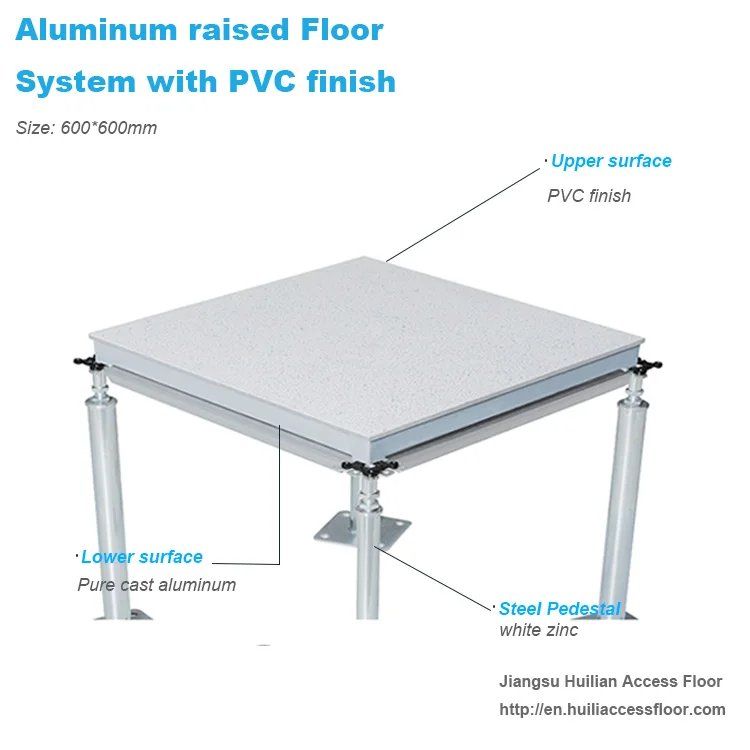

Structure:

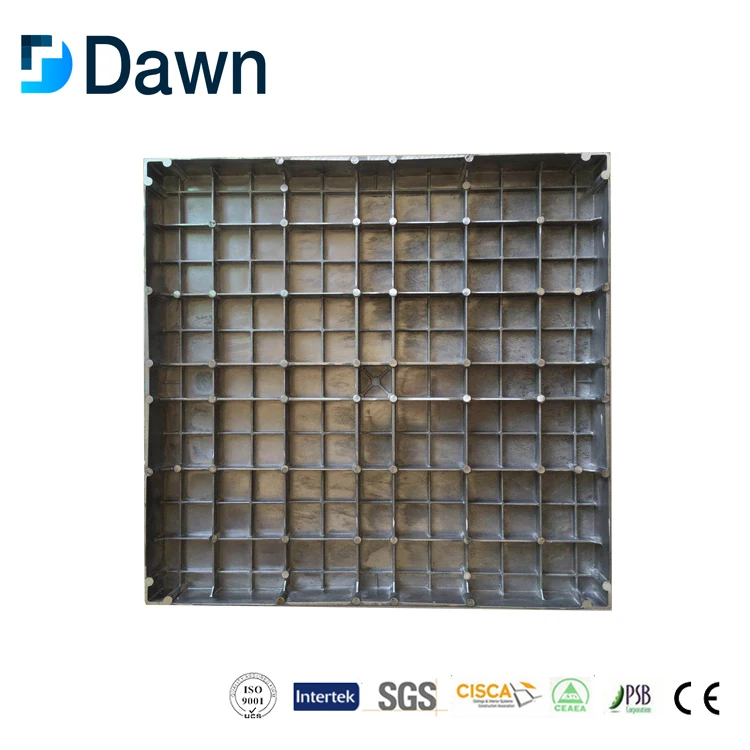

Made of high strength and pure cast aluminum, and due to vacuum die casting process, the aluminum panels has superior mechanic strength and excellent performance of anti-corrosion. All aluminum panel can be coated with static epoxy powder and light gloss, that is good for anti-wear and anti-static. The top sheet is stuck with anti-wear and antistatic HPL or PVC surfaces.

Product Parameters
\t
Type
\t
Concentrated load
\t
Ultimated load
\t
Uniform load
\t
Special Treatment
\t
System Resistance
\t
HLS300
\t
300kgf/6.45cm2
Deflection≤2.0mm
\t
600kgf/6.45cm2
\t
800kgf/m2 Deflection≤1.0mm
\t
♦High pressure laminate
♦Stainless steel plate finish
♦Panel with PVC edge trim
♦Panel with corner-lock holes
♦Epoxy powder coating
♦Nickel chrome coating
♦Various panel thickness
\t
Anti-static floor Conductive 104-106Ω

Static dissipative 106-109 Ω
\t
HLS500
\t
500kgf/6.45cm2
Deflection≤2.0mm
\t
1000kgf/6.45cm2
\t
1250kgf/m2 Deflection≤1.0mm
\t
HLS700
\t
700kgf/6.45cm2 Deflection≤2.0mm
\t
1400kgf/6.45cm2
\t
1700kgf/m2 Deflection≤1.0mm
\t
HLS1000
\t
1000kgf/6.45cm2Deflection≤2.0mm
\t
2000kgf/6.45cm2
\t
2000kgf/m2 Deflection≤1.0mm
\t
HLS1200
\t
1200kgf/6.45cm2Deflection≤2.0mm
\t
2400kgf/6.45cm2
\t
2200kgf/m2 Deflection≤1.0mm
\t
HLS1500
\t
1500kgf/6.45cm2Deflection≤2.0mm
\t
3000kgf/6.45cm2
\t
2500kgf/m2 Deflection≤1.0mm
Features

♦Good performance of waterproof, excellent fire-proof, contains no ferrous material to disrupt magnetic fields;
♦Light weight, and very high loading capacity;
♦Patent design with high dimensional accuracy;
♦Conductive gasket ensures continuous and steady conductivity;
♦Recyclable and economical system;

♦It is widely used in military command, space center, data center, ultra clean electronic factories and other high demand place.

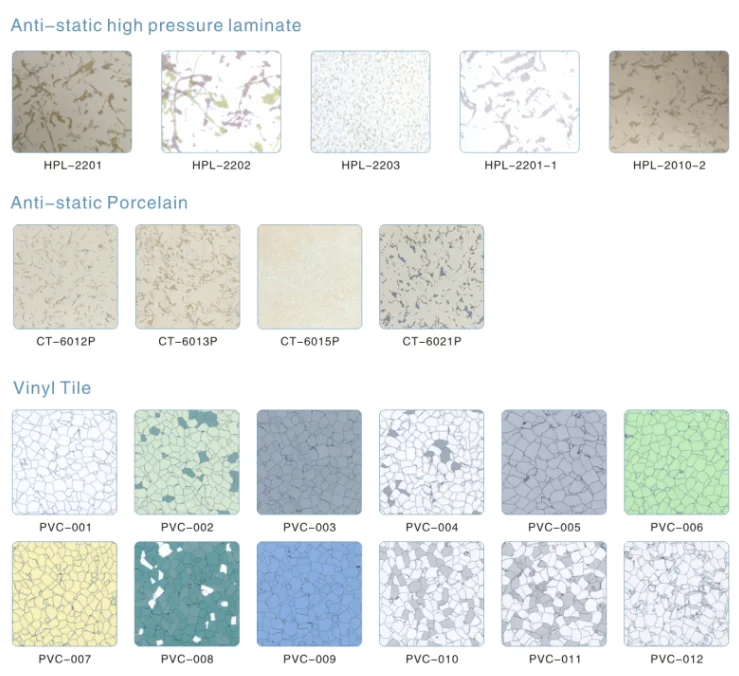

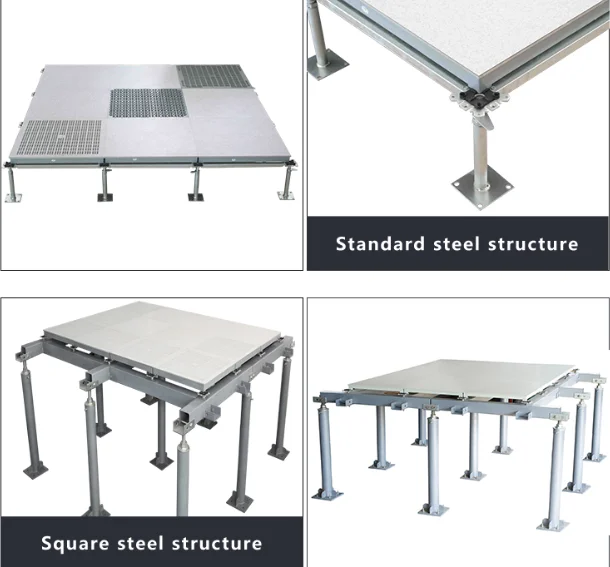

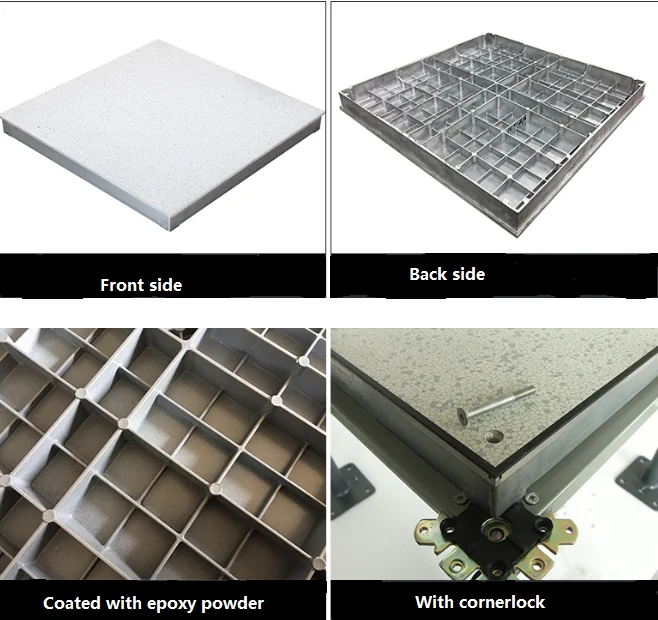

Product Details Show

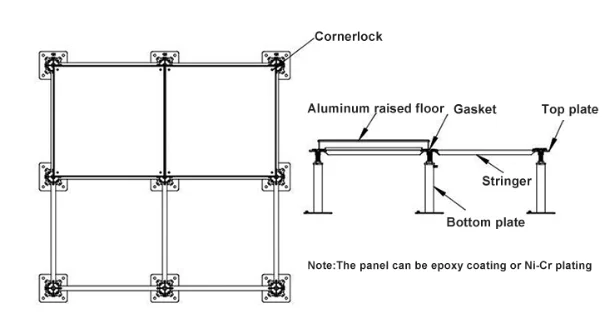

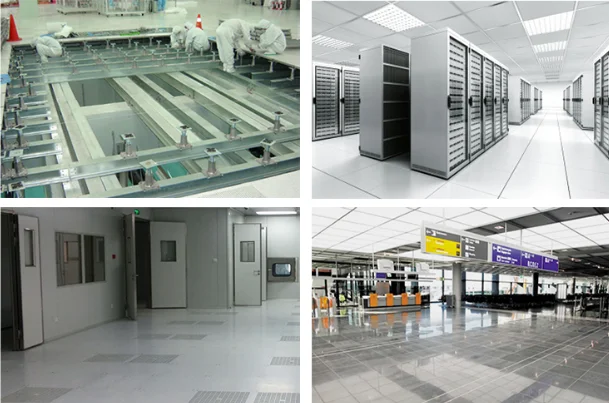

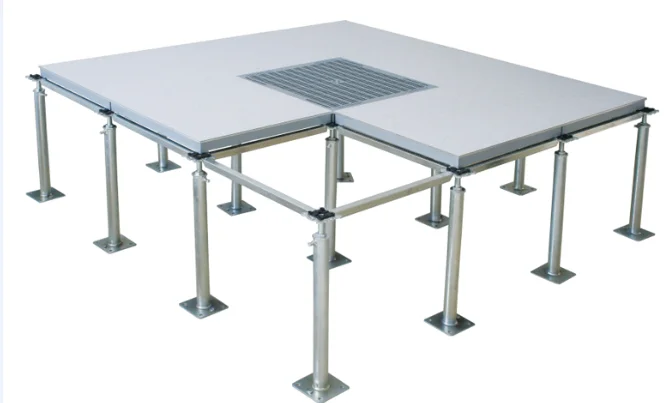

Product installation

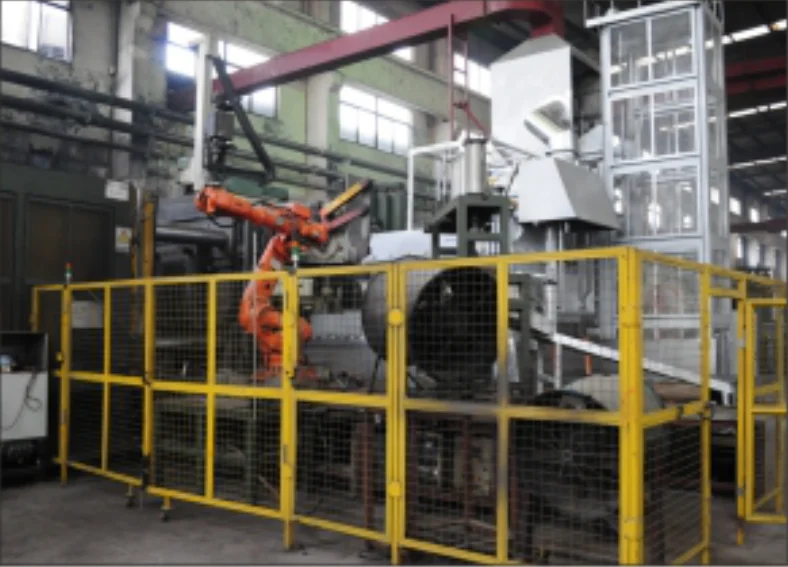

Company Introduction

Changzhou Huili Accesss Floor CO.,Ltd is an export oriented access floor manufacturer with design, distribution and installation. The factory covers an area of 400acres, which the workshop area is around 500,000 squaremetres and more than 500workers. In the past 20 years, we have cooperated with many famous companies, such as TATE, ASM, TOPCRETE, UNITILE AND USG., etc.

For the sake of company IPO progress, under the approval of Jiangsu Administration for Industry and Commerce, "Changzhou Huili Access Floor Co., Ltd" has been officially changed to "Jiangsu Huili Access Floor Co., Ltd" from 04th. Dec, 2017. New title will remain same license level and will not affect any daily operation.
