Product Overview
Description

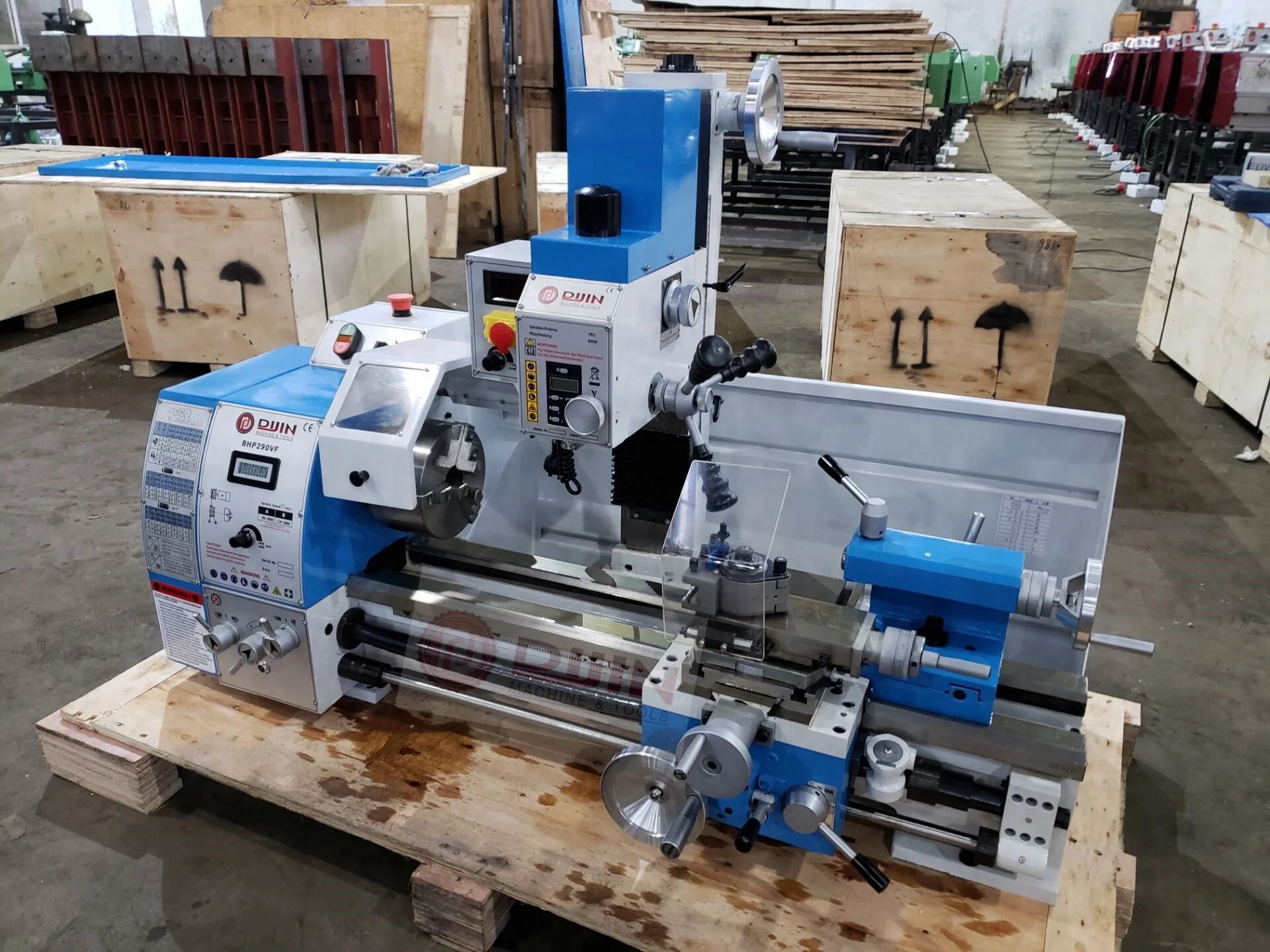

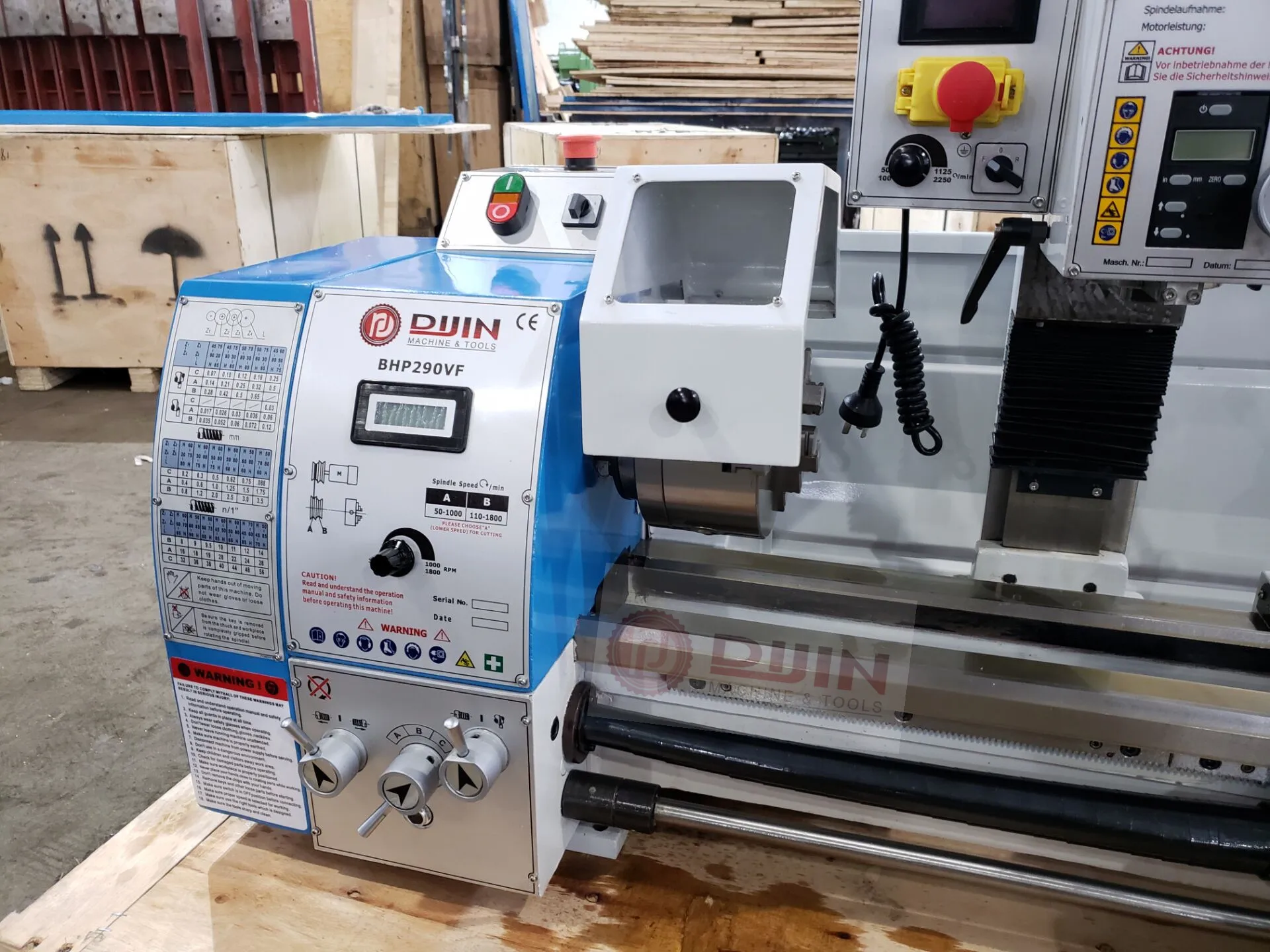

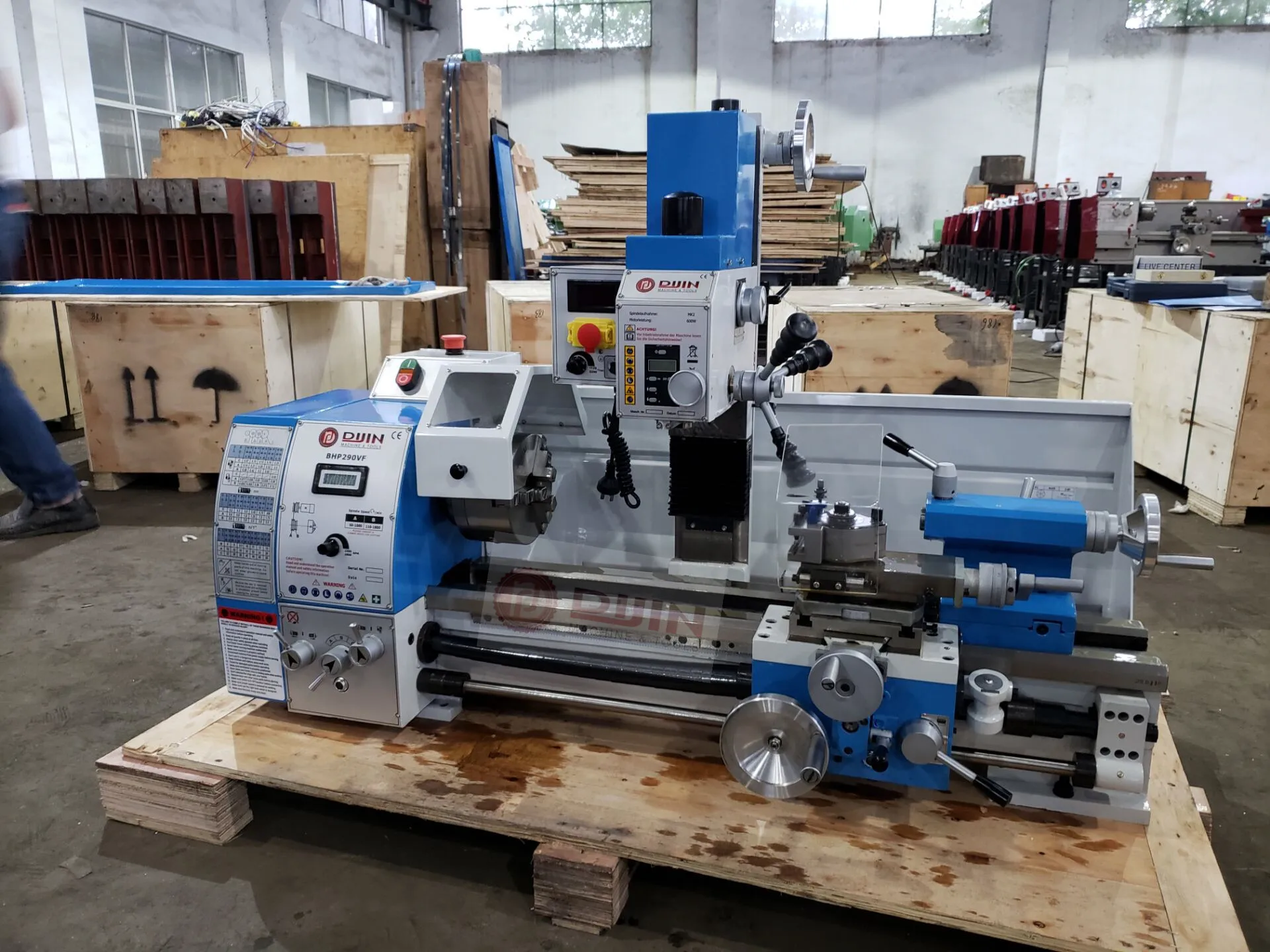

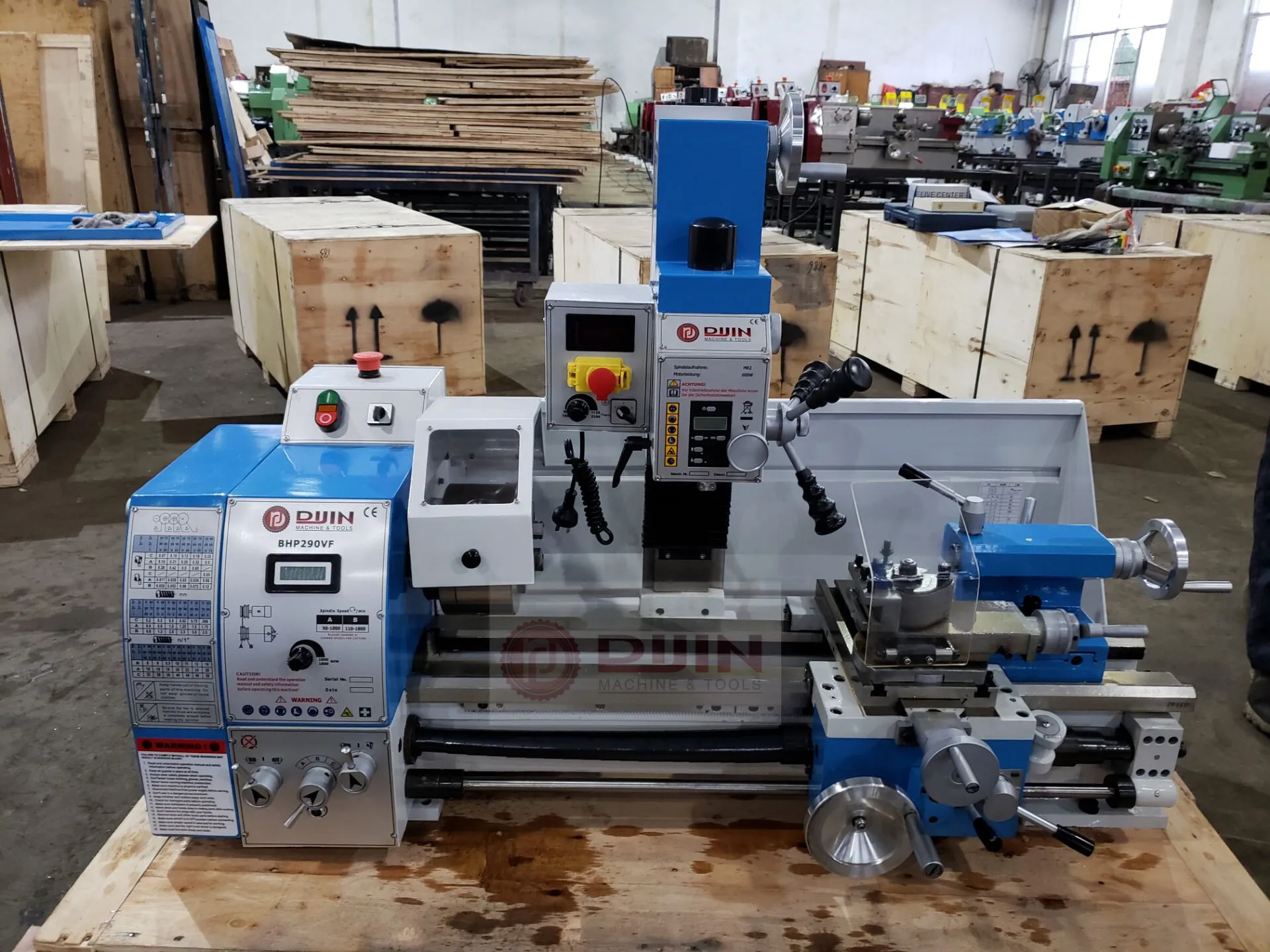

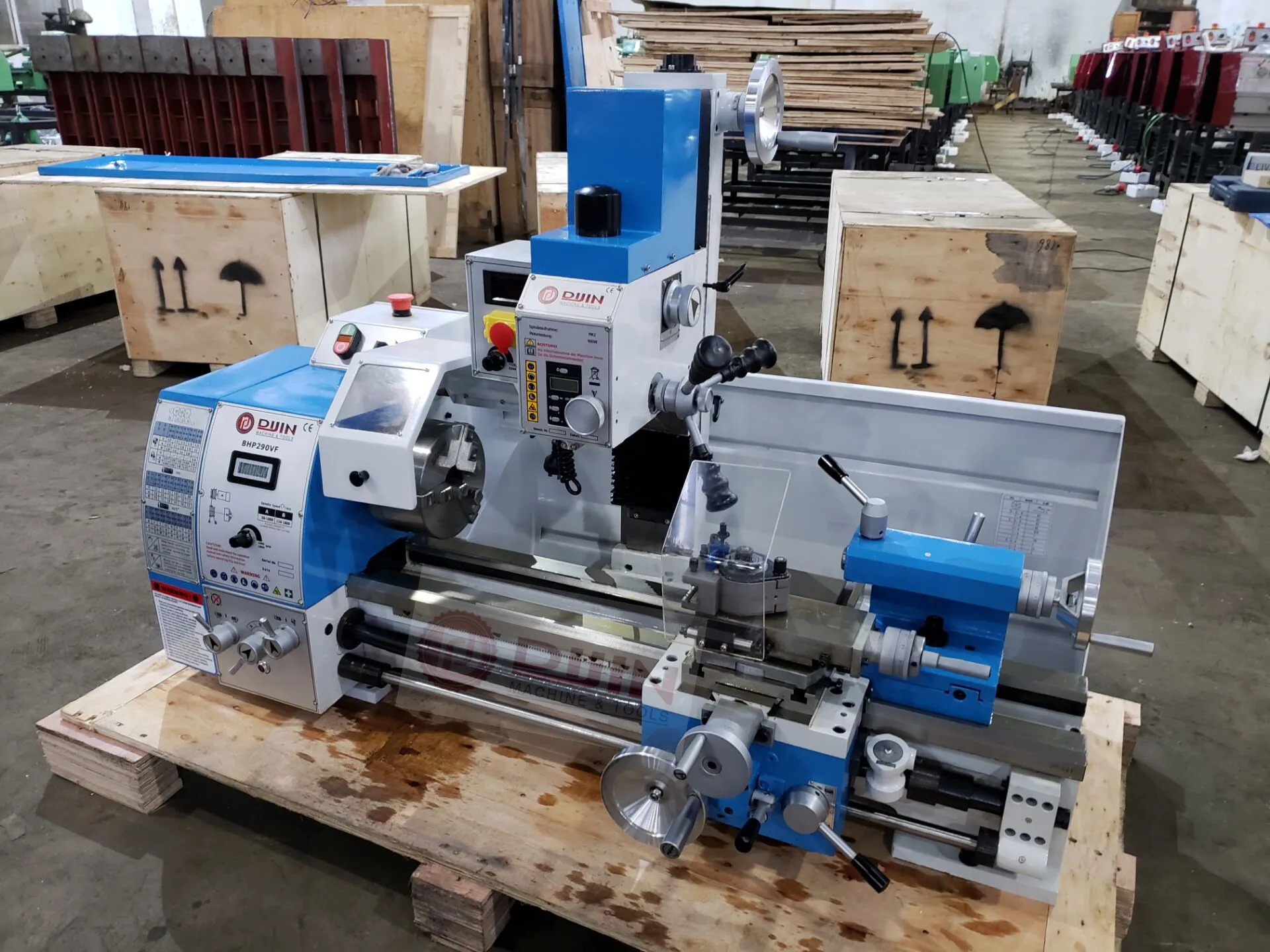

Combo lathe BHP290VF
Feature : 1. Use two rod ,more steady X,Y axis automatic feed .

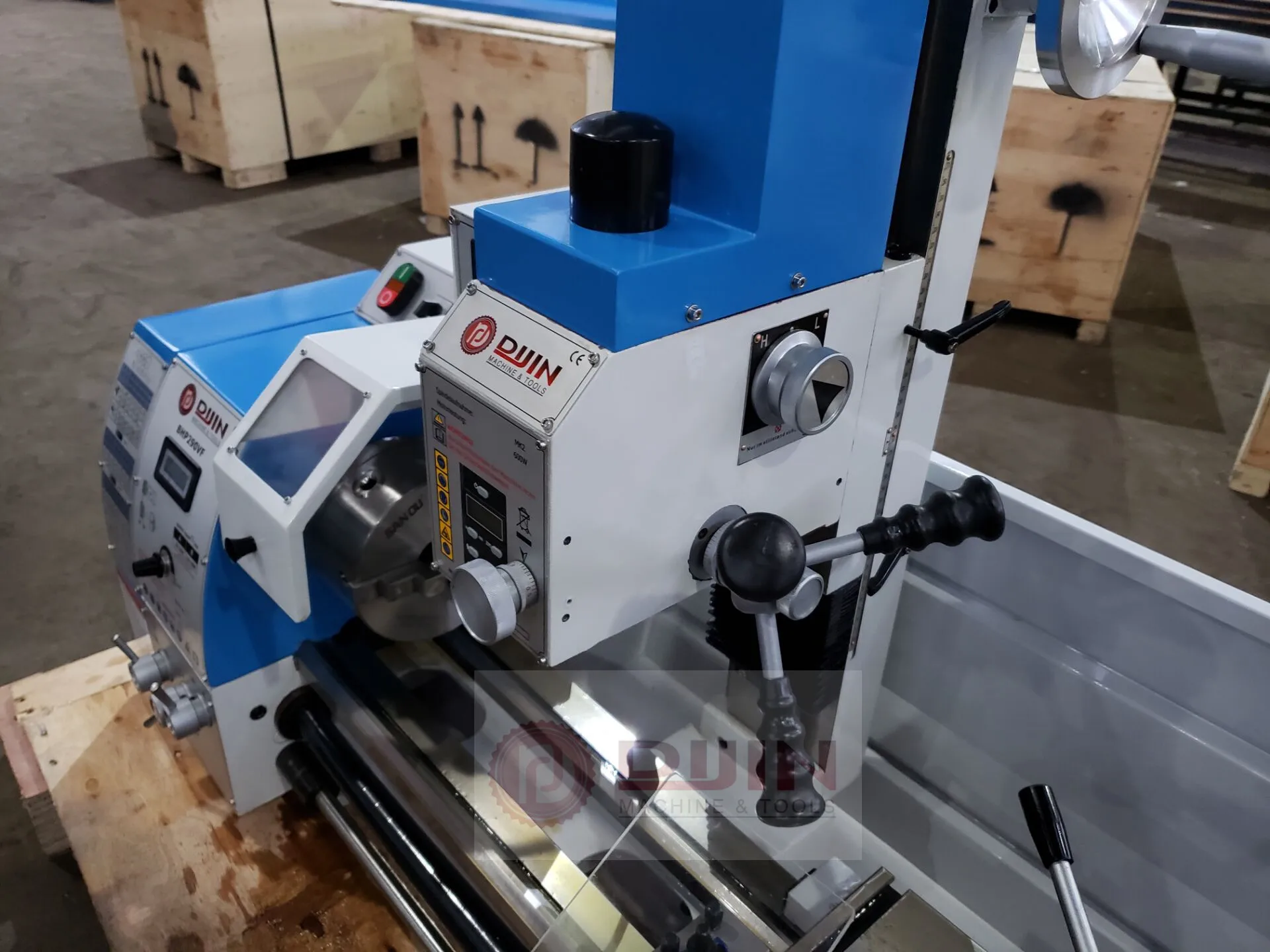

2. Milling head tilt +-90 degree
3.lathe bed surface hardening.

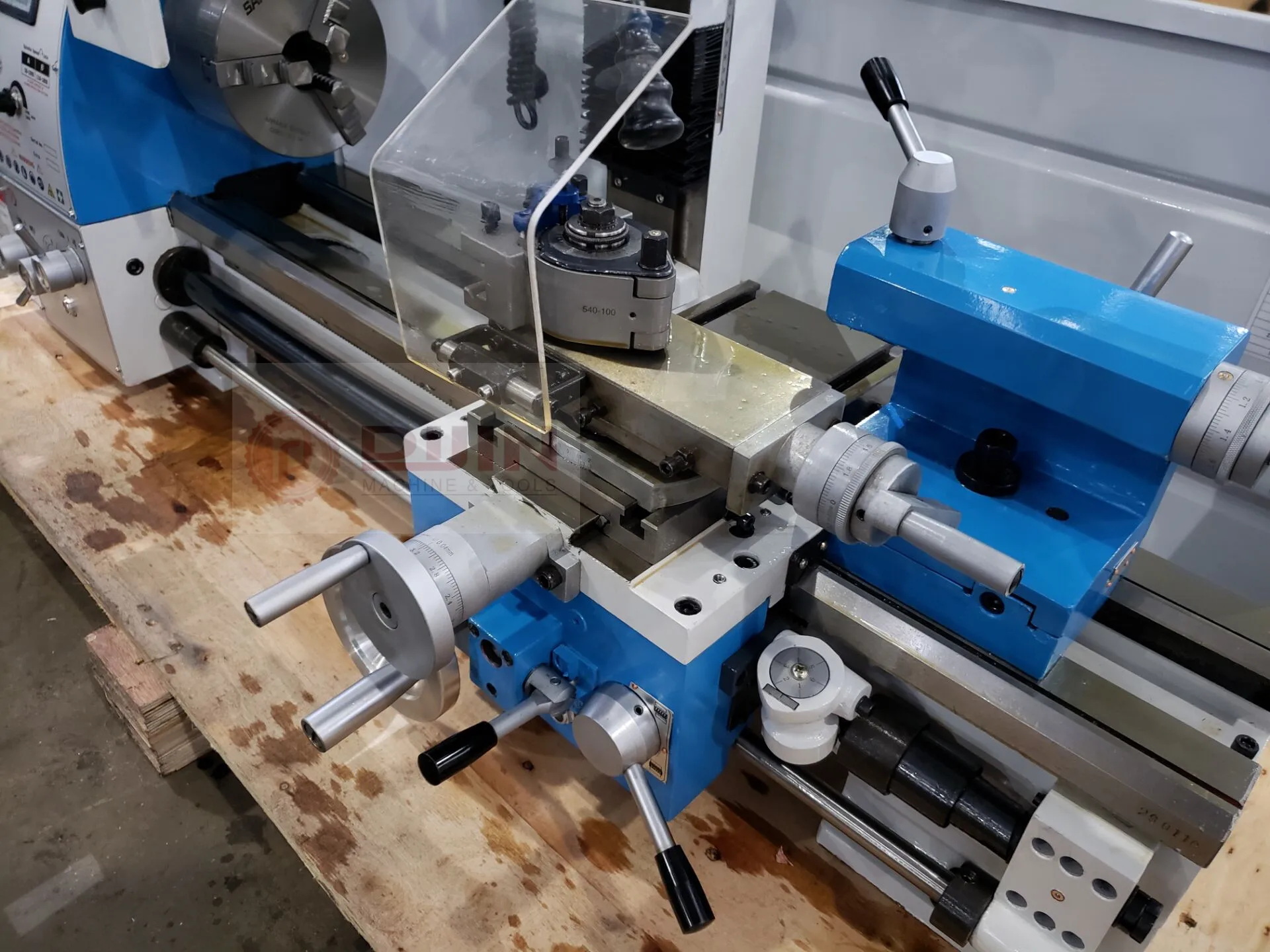

4.equip with three jaw chuck guard ,tool post guard ,lead screw protection.

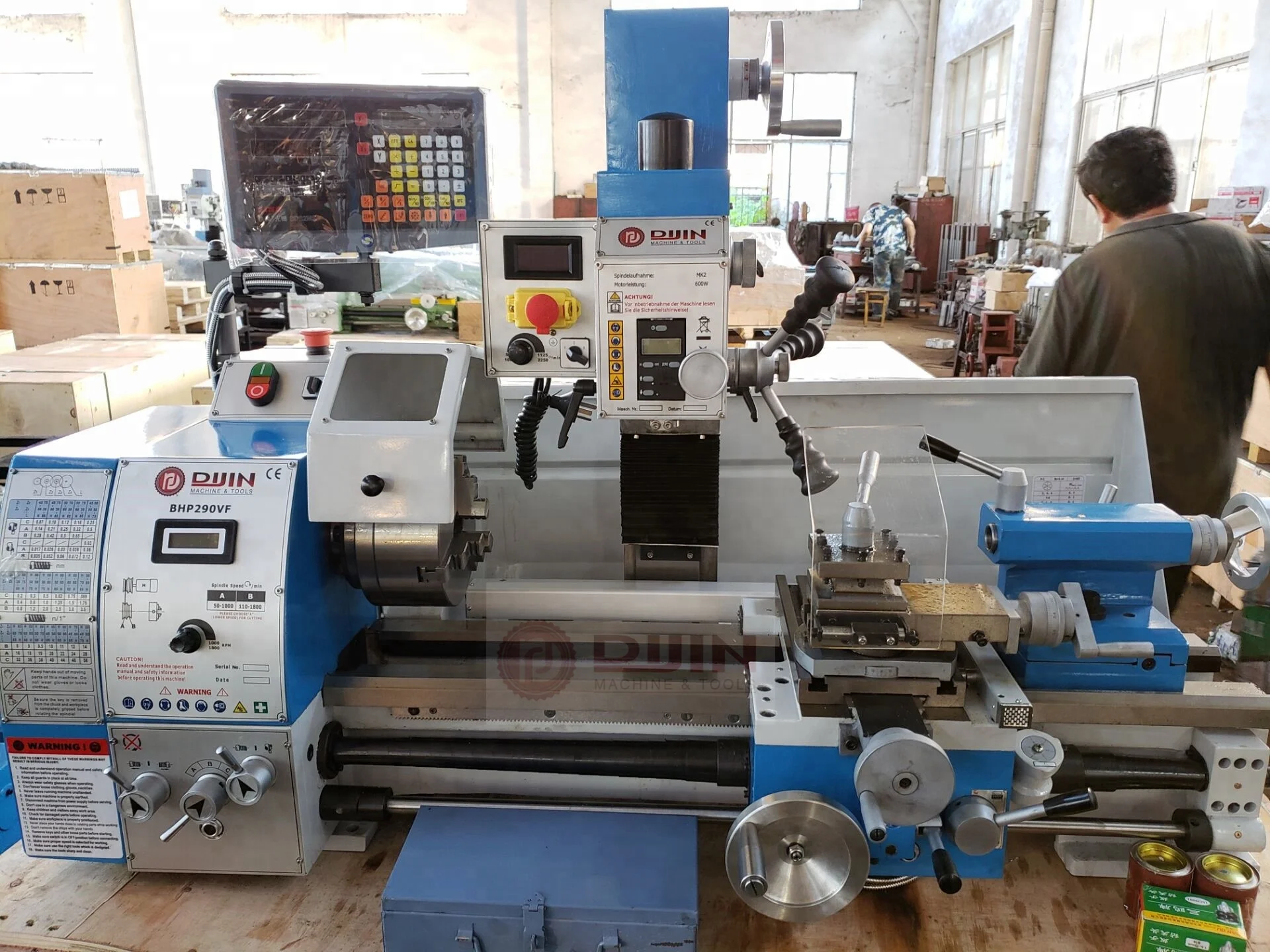

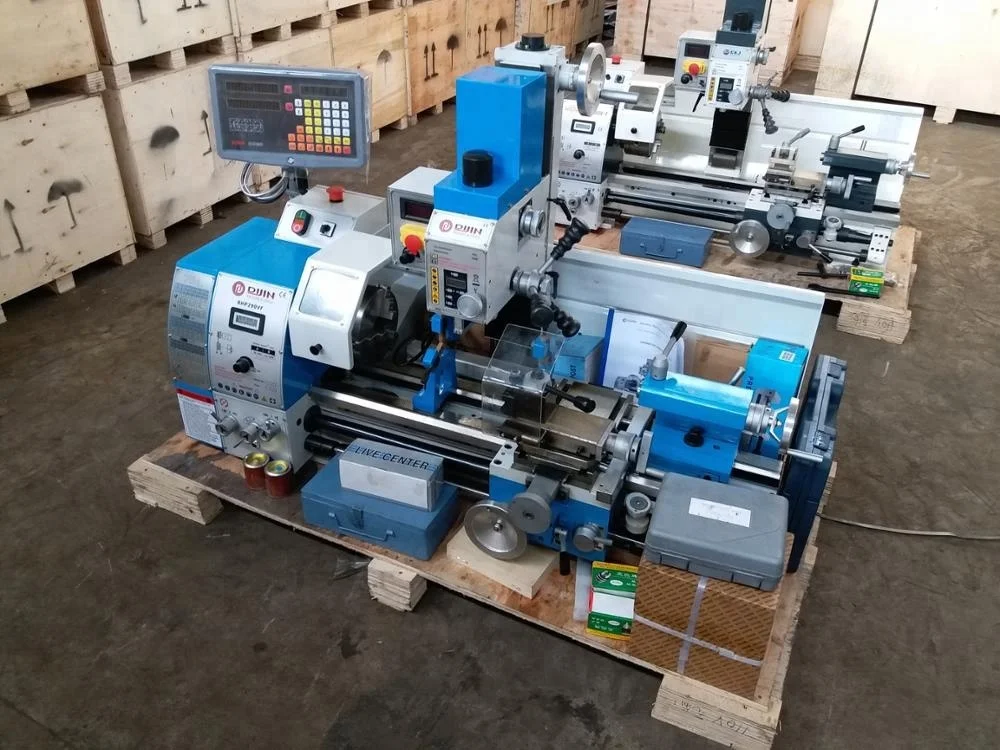

NOTE: Machine stand,Euro quickly change tool post and digital readout are optional accessory ,Not standard part,The website picture just for display purpose .
Model BHP290VF Specification:
Max distance between center | 700mm |
Max swing over bed | 290mm |
Max swing over cross slide | 165mm |
Taper of spindle bore | Mt5 |
Bed of width | 180mm |
Spindle bore | 38mm |
Range of spindle | 50-1800rpm |
Slide feed speed | 0.07-0.40mm/r |
Inch threads | 8-56TPI (21kinds) |
Metric threads | 0.2-3.5mm(18kinds) |
Top slide travel | 50mm |
Cross slide of travel | 165mm |
Tail stocks quill travel | 80mm |
Taper of tail stocks quill | Mt3 |
motor | 1.1KW |
Max drill capacity | 25mm |
Max end mill capacity | 16mm |
Max face mill capacity | 63mm |
Taper of spindle | Mt3 |
Max distance spindle to table | 375mm |
Max distance spindle to column | 185mm |
Main motor | 750w |
Spindle travel | 50mm |
Spindle speed | 50-2250rpm |
T-slot | 10mm |
Overall Net /gross weight | 300/320kgs |
Overall packing size | 1400*780*1070mm |
