PP PE PET bottle plastic recycle grinder crusher

Product Overview

Description

high quality  PC series Plastic Crusher



plastic crusher, this model are efficiently capable for shredding materials that are quite thick and tough such as those wasted junks in the die, large plastic pipes, packing buckets and splints of the forklift truck and especially for recycling different materials such as plastic, rubber and wood in shredding ways Variety of plastic material is put into the flat feeding tank, and the tank closed automatically and push the material by hydraulic into the center axis for crushing. This kind of shred master has features like strong crush ability, high output, low temperature and convenient operation ect. It's protected by many switches and use safe.



Main technical parameters:



Model	PC300	PC400	PC500	PC600	PC800	PC1000
Power	5.5	7.5	11	15	22	30
chamber(mm)	220x300	246x400	265x500	280x600	410x800	500x1000
rotary blade	9	12	15	18	24	34
fixed blade	2	2	4	4	8	9
capacity(kg/h)	100-200	200-300	300-400	400-500	500-600	600-800
net diameter(mm)	10	10	10	10	12	14
Weight(kg)	480	660	870	1010	1250	1600
dimension(L*W*H)	400x400x2000	500x500x2000	600x600x2500	700x700x2500	900x900x2500	1000x1000x3000

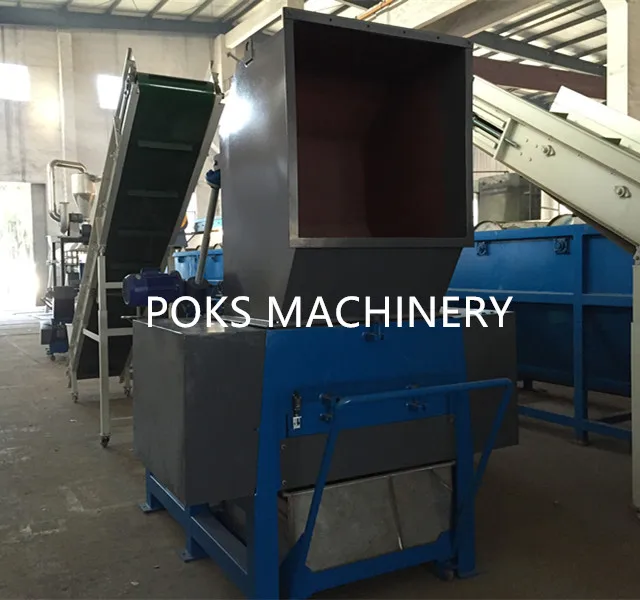

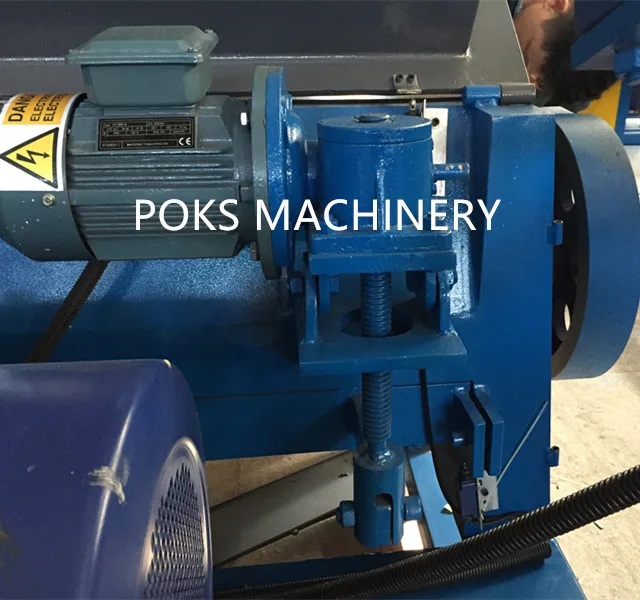

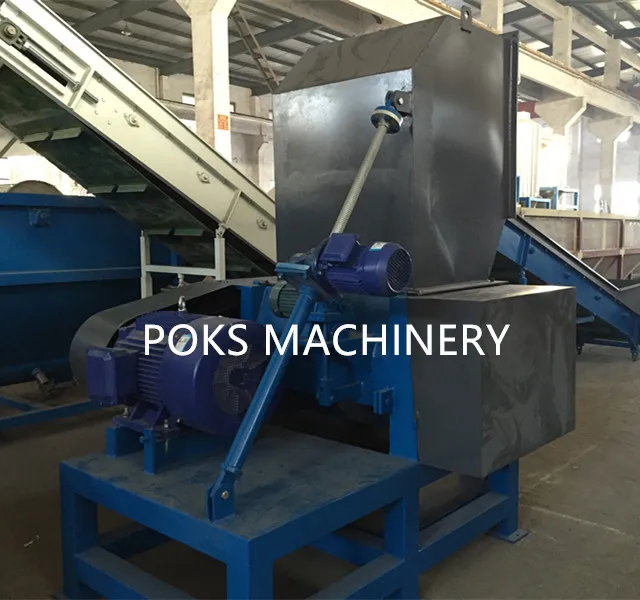

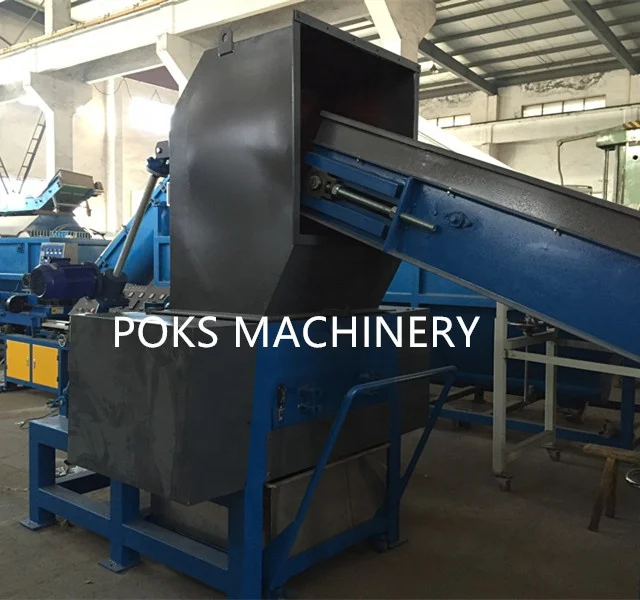

 Pidtures:
