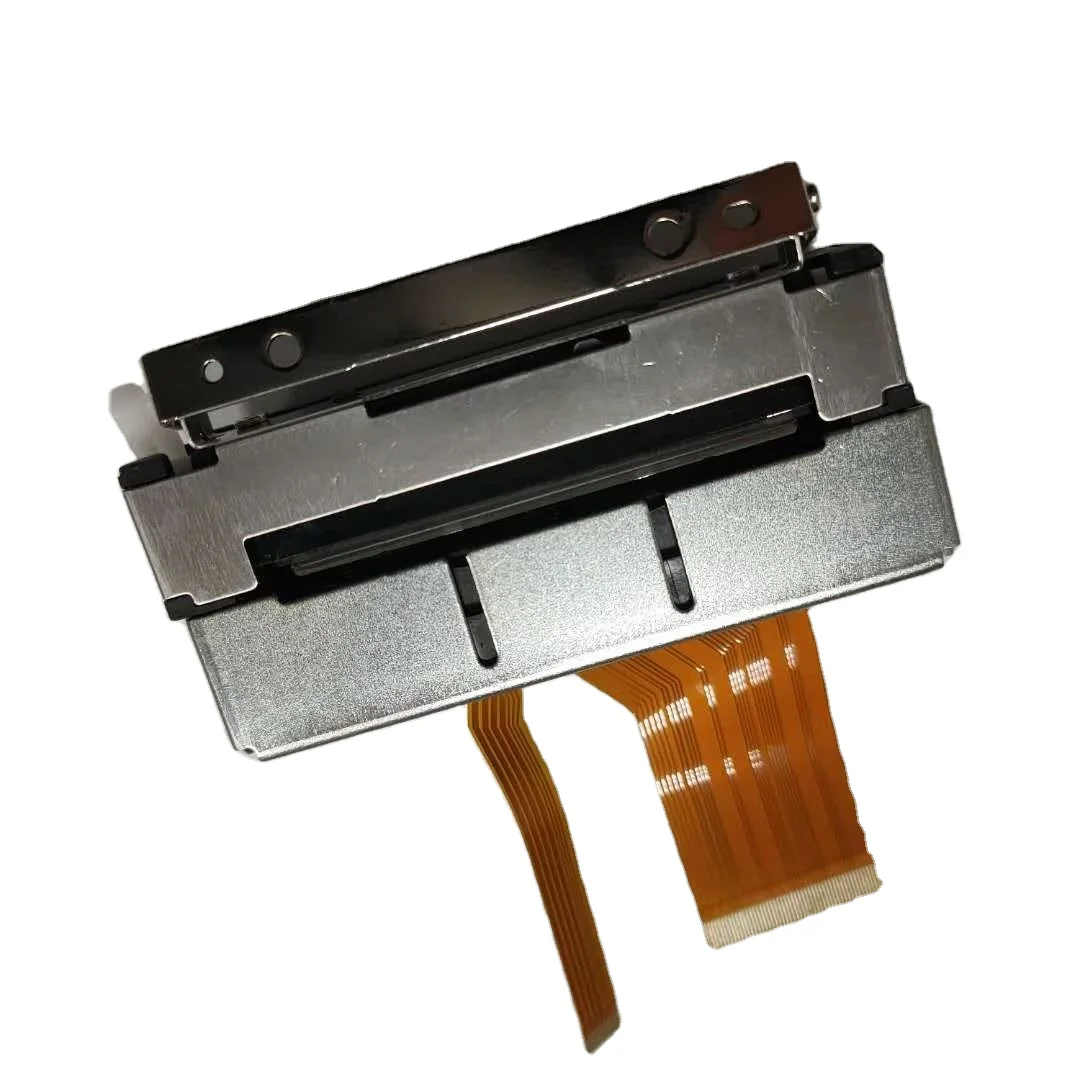

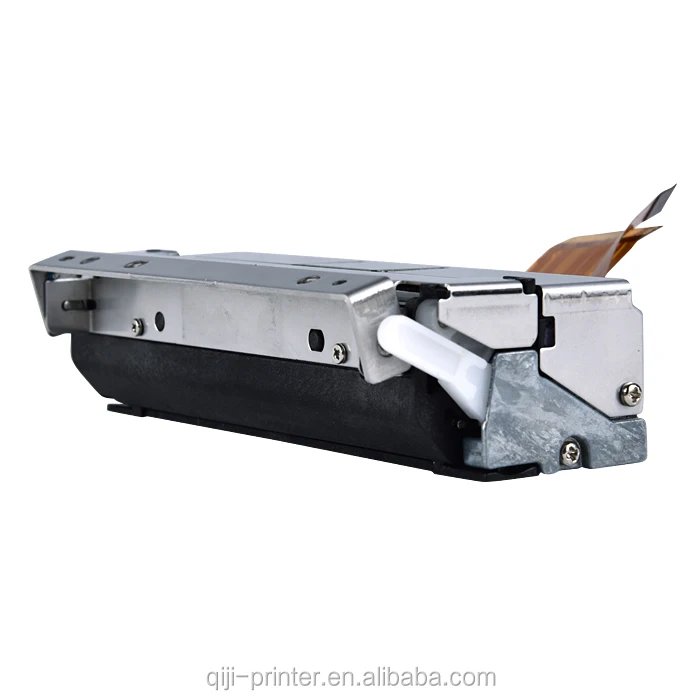

3 inch 80mm PT72E Thermal Printer Mechanism JX 3R 06 printer mechanism with auto cutter compatible with CAPD347/CAPD347H E

Product Overview

Description

Brand Information:



PRT is the world leading manufacturer of thermal printer mechanisms and thermal printer modules, and the world leading solution provider of thermal printing technology. With a full product range of thermal printer mechanisms from 1.5inch to 8inch, Kiosk label printer mechanism, label printer mechanism, dot matrix printer mechanism, PRT totally shipped out 4.1M pcs of products domestic and overseas in 2012, ranked the second largest supplier of thermal printer mechanisms all over the world.



Product Basic Information:

• High speed printing: 200mm/s
• Low volume compact and light
• Reliable auto-cutter
• Support full/partial cut

Product Key Benefits:



1.Operating voltage range

The range of operating voltage is 24~26.5V and the range of logic voltage is 3.0~5.5V.



2.Low volume compact and light

The mechanism is compact and light.

Dimensions:105.1mm(width)*43.9mm(depth)*27.4mm(height).



3.High resolution printing

A high-density printer head of 8dots/mm make the printing clear and precise.



4.Printing speed adjustable

According to driving power and sensitivity of thermal paper set different printing speed required. The max speed is 200mm/sec.



5.Easy paper loading

Detachable rubber roller structure makes the paper loading easier.



6.Low noise

Thermal line dot printing is used to guarantee low-noise printing.



Product Applications:

• EFT POS terminals
• POS printers
• Kiosks
• Measuring instruments and analysers
• Medical equipment
• Ticketing

Product Specifications:





Item	Specifications
	PT72
Print method	Thermal dot line printing
Total Dots per line	576 dots/line
Simultaneously activated dots	288 dots
Resolution	8dots/mm
Paper feed pitch	0.0625mm
Maximum print speed	200mm/s
Print width	72mm
Paper width	80mm
Paper path	Curved
W*D*H(mm)	105.1mm*43.9mm*27.4mm
Weight	Approx.154g
Recommended paper	PD160R(OJI)
Head temperature detection	Via thermistor
Platen position detection	Via mechanical switch
Out-of-paper detection	Via reflection type photo interrupter
Cutter home position detection	Via transmission type photo interrupter
Power supply	TPH logic voltage	3.0V-5.5V
	Drive voltage	24V±10%
Peak current	Head(Max.)	5.3A(26.4V/288dots)
	Paper feeding motor	Max. 220mA
	Cutter motor	Max. 320mA
Auto cutter	Method	Slide type
	Paper Thickness	54um-91um
	Cutting Type	Full/Partial cut
	Operating time (Max)	Approx. 0.5s
	Cutting Pitch (Min)	10mm
	Cut Frequency (Max.)	30cuts/min.
Reliability parameter Life span      (at 25℃ and rated energy)	Activation pulse      resistance	100 million pulses
	Abrasion resistance	100 km or more
	Paper cutting resistance	1 million cuts or more
Operating temperature range (℃)	-10~+50 (Non-condensing)
Operating humidity (RH)	20%~85%
Storage temperature range (℃)	-20~+60 (Non-condensing)
Storvalign="top" colspan="2"> 10%~90%
