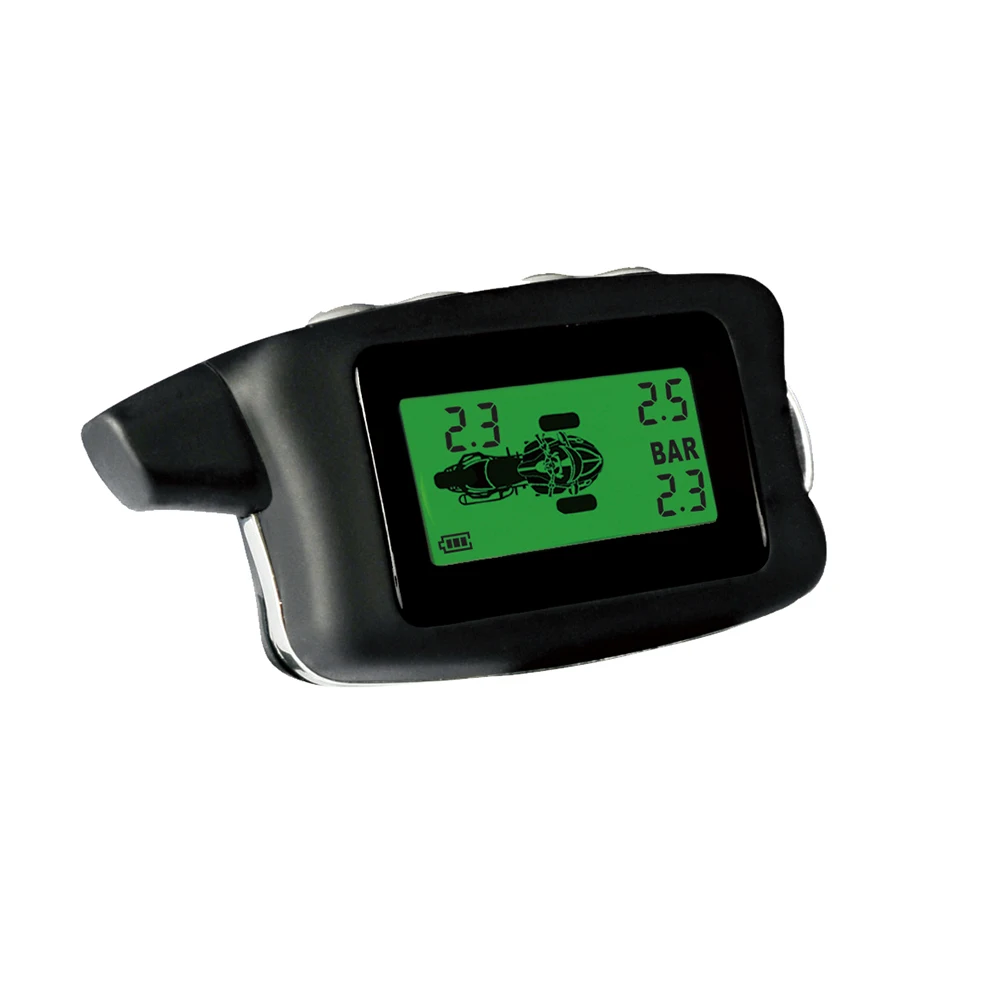

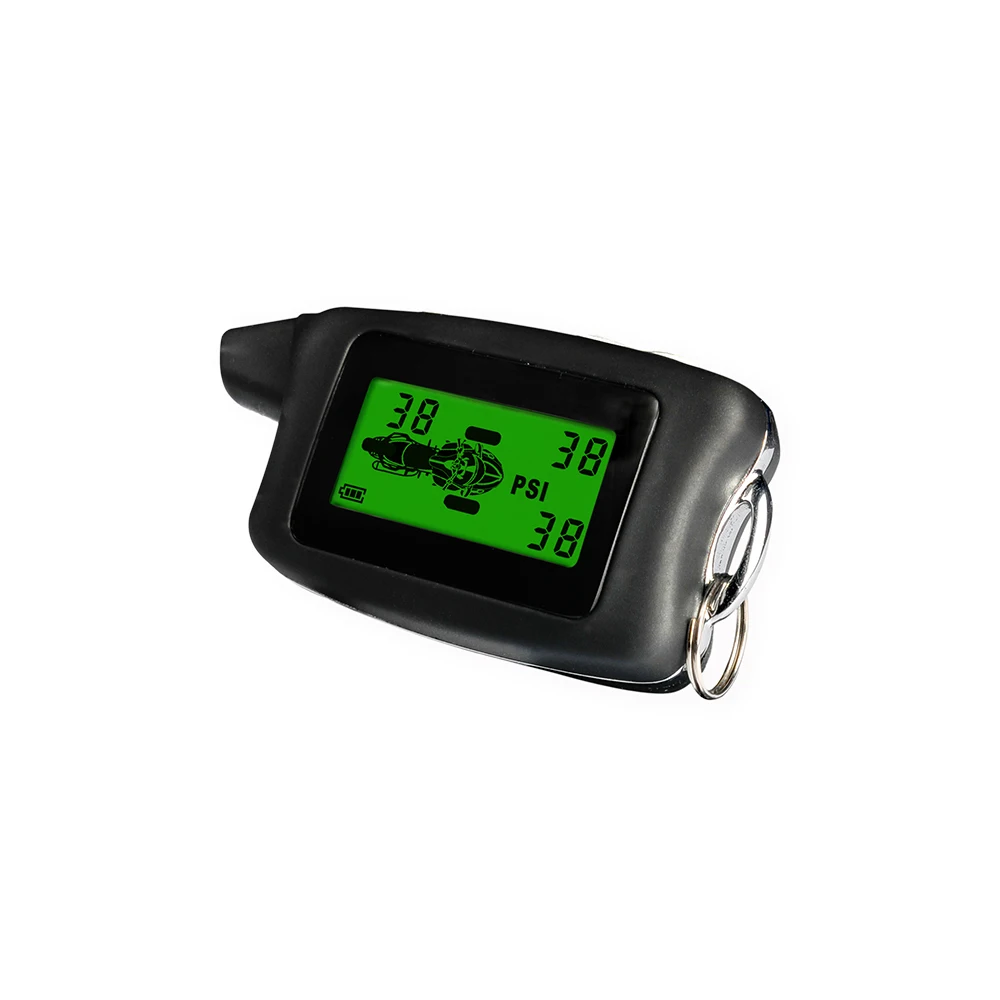

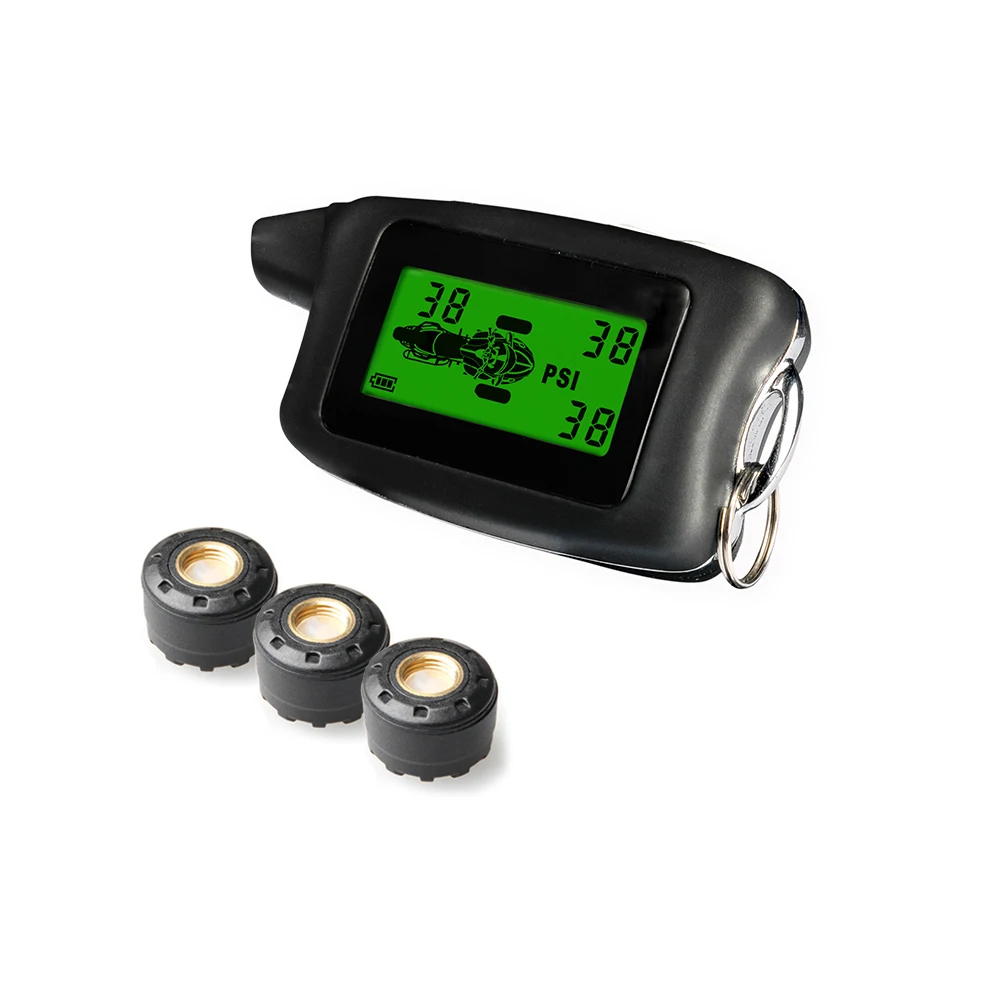

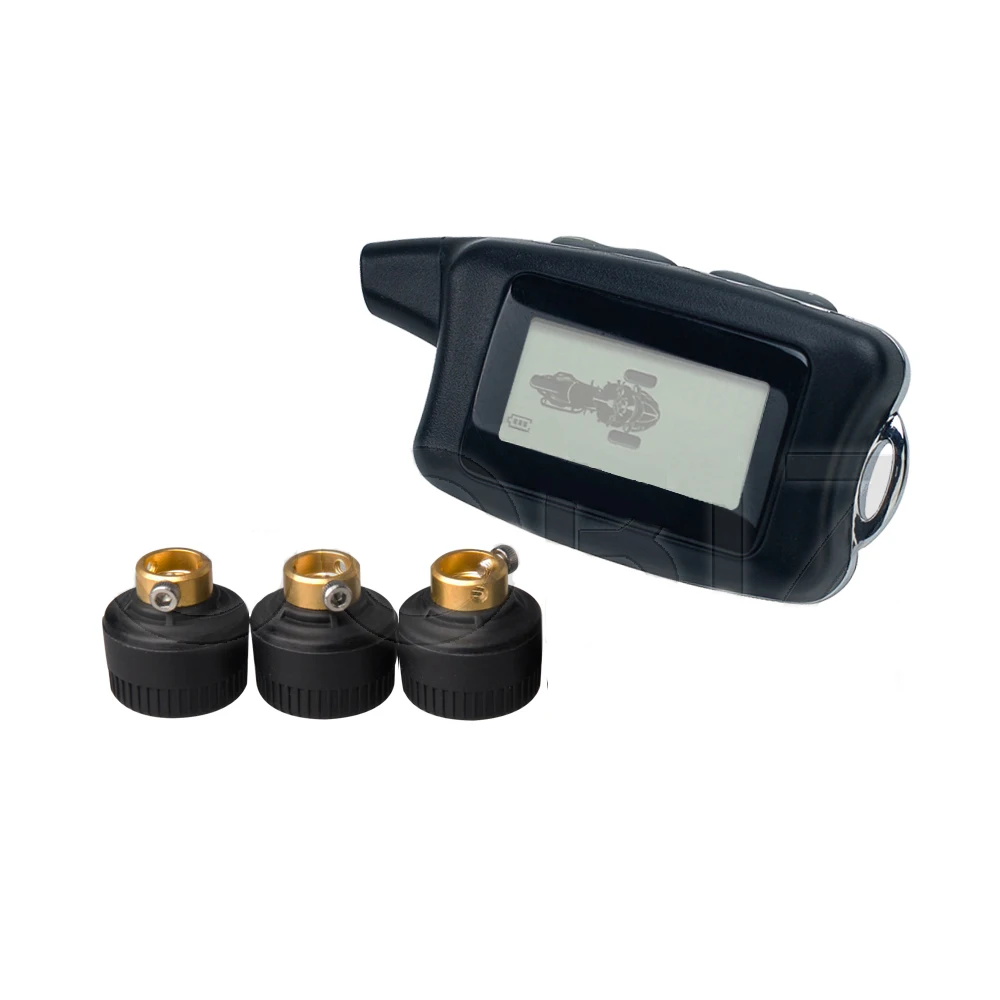

tire pressure monitoring system motorcycles, karts tpms, with cheap sensor

Product Overview

Description

tire pressure monitoring system motorcycles, karts tpms, with cheap sensor







1. What are the advantages of TPMS ?



Reduce Driving Risks



Improve Fuel Economy



Prolong lifetime of the tires



2. Monitor Features & Specifications:



Monitor Features:



1,Reliable cap sensors, easy to install.

2,Water resistant.

3,Replaceable sensor batteries.

4,Sensors transmit pressure and temperature data every 5 minutes.

5,Fast leakage alert.

6,Individually coded sensors.

7,Anti-theft design.



Monitor specifications:



Pressure range	0 to 6 bar, 0 to 87psi
Pressure sensitivity	± 0.1 bar or 1.5psi
Temperature sensitivity	-40 to +80° C
Transmission power	< 10dBm
Transmission frequency	433.92MHz
Battery life	2 years (Sensor battery replaceable)
Operating temperature	-40 to +80° C
Weight	9 grams
Size	diameter:21 mm, height:17.5 mm





3. Sensor Features & Specifications:



Sensor Features:



Reliable cap sensors, easy to install.

Water resistant.

replaceable sensor batteries.

Sensors transmit pressure and temperature data every 5 minutes.

Fast leakage alert.

Individually coded sensors.

Anti-theft desigh.







External Sensor Specifications:



Pressure range:	0 to 6 bar, 0 to 87psi
Pressure sensitivity:	± 0.1 bar or 1.5psi
Temperature sensitivity:	± 3℃
Transmission frequency:	433.92MHz
Battery life:	1 years(Sensor battery replaceable)
Operating temperature:	-20 to +85° C
Weight:	6grams
Size:	Diameter:18mm  Height:13mm



4. Our Facilities:





5. Our Certificates (CE, E-mark, FCC, RoHS, ISO9001) & Patent





6. Cooperate with us, you will gain:



0EM or ODM service



Professional Research & Development Engineer



Competitive Price & Professional sales team



2-4 weeks leadtime

Looking Forward to Cooperating with You!
