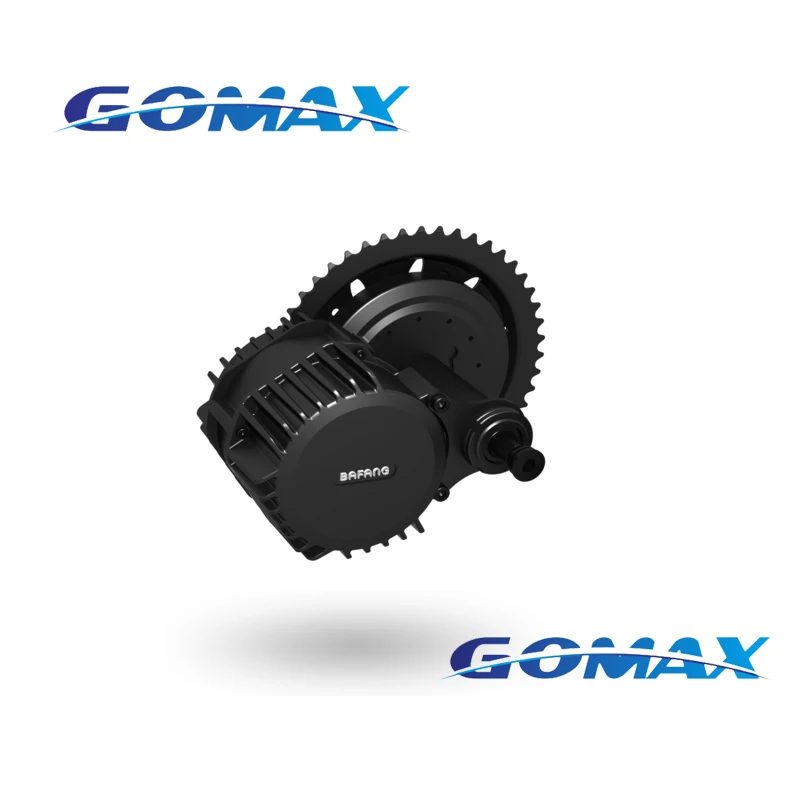

bafang 8fun motor 48v 1000w brushless dc motor mid drive motor

Product Overview

Description

bafang 8fun motor 48v 1000w brushless dc motor mid drive motor

Position	Mid Motor	Weight (kg)	5.6
Wheel Diameter (Inch)	Optional	Noise Grade (dB)	< 55
Construction	Gear drive	Operating temperature	-20-45℃
Rated Voltage (DCV)	48	Color	Black
n0 (Rpm)	160	IP	IP 65
Rated Power (W)	750/1000	Certifications	CE / EN 14764 / ROHS
nT(Rpm)	140/125	Salt Spray Test Standard(h)	96
Max Torque	160 N.m	Efficiency (%)	≥ 80

    With an integrated speed sensor, this mid-drive motor, which is compatible with a 68-120mm bottom bracket, has a rated power of 750W, a reduction ratio of 1: 21.9 and a maximum torque of 160 N.m, will provide the rider with great explosive force when starting the system. Highly strong and efficient, this motor greatly enhances riding joy and is suitable for mountain bikes and sand bikes which are the favorites of riders who love challenges as well as transport bikes. This motor is black.
