Product Overview

Description


ZO-RKMPLH48-01

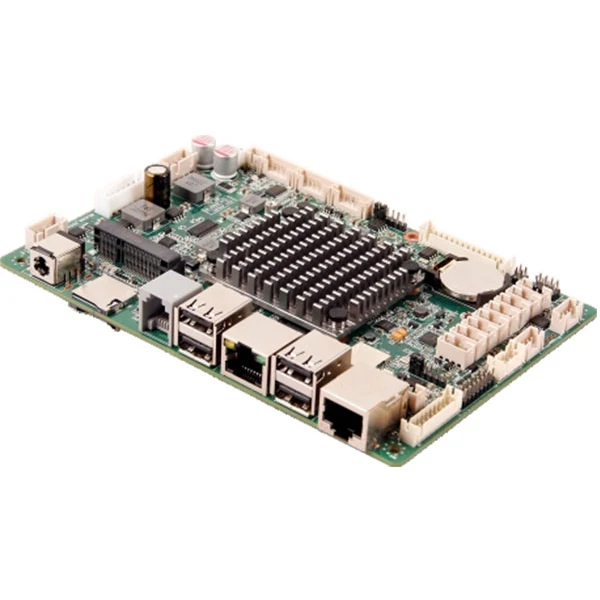

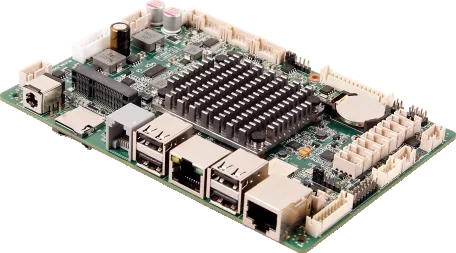

Mini industrial motherboard compatible with Rockchip RK3288 Cortex-A17 1.8GHz processor board support 1GB/2GB memory available


 1.png=












Feature:





1.Rockchip RK3288 Cortex-A17 1.8GHz processor board with 1GB/2GB memory available





2.Board mount eMMC8GB/16GB/ 32GB storage optional





3. Support High Definition Multimedia slot, LVDS, EDP display





4. Built-in ARM Mali-T764 display chip





5. Integrated ES8323S audio decoding controller, onboard power amplifier board with Wifi/Bluetooth module





6. Support 11*USB 2.0, support 4*COM





7.Support DC IN 12-19V power supply

















































































Processor



Rockchip RK3288 Cortex-A17 1.8GHz



chipset



/



Display chip



ARM Mali-T764



Display output






High Definition Multimedia slot,LVDS,EDP



RAM



1GB/2GB LPDDR3 option



Audio



Onboard ES8323S Audio decoding controller



Ethernet



Onboard Realtek RTL8211E Gigabit Ethernet



Storage



eMMC 8GB /16GB/32GB option



Expansion slots



1*MINI-PCIE(USB only) , 1*SIM Card, 1* SD Card



USB



11*USB2.0



COM



4*COM

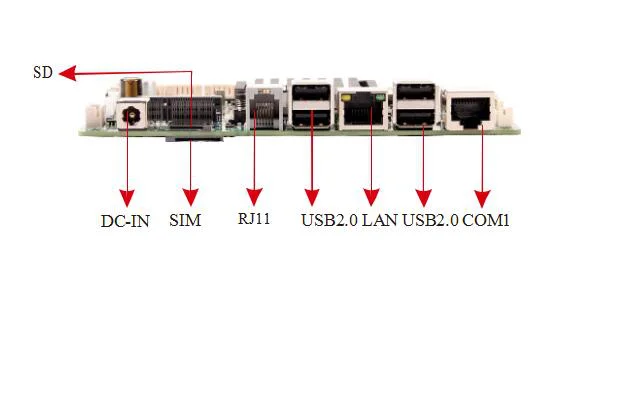

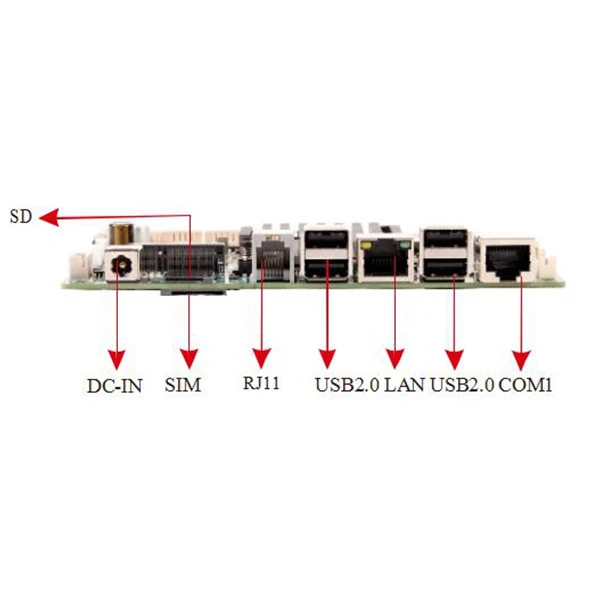

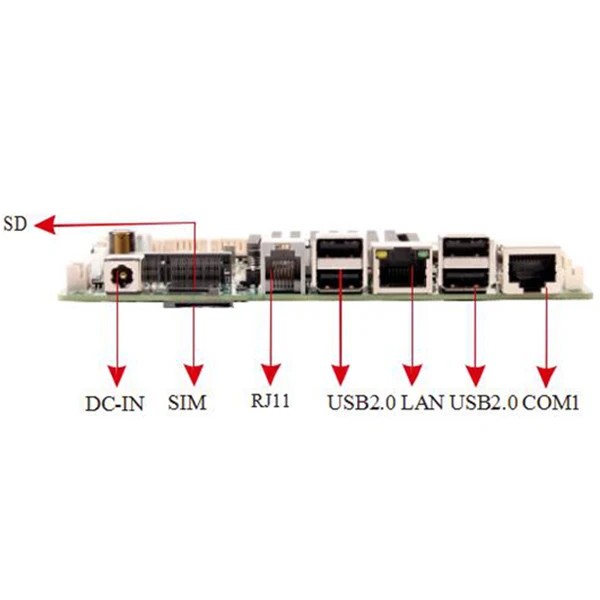

Rear I/O interface



4*USB2.0 ports


1*COM port (10 PIN)


1*LAN port


1*DC- IN port


1*RJ11 port(Control cash box)

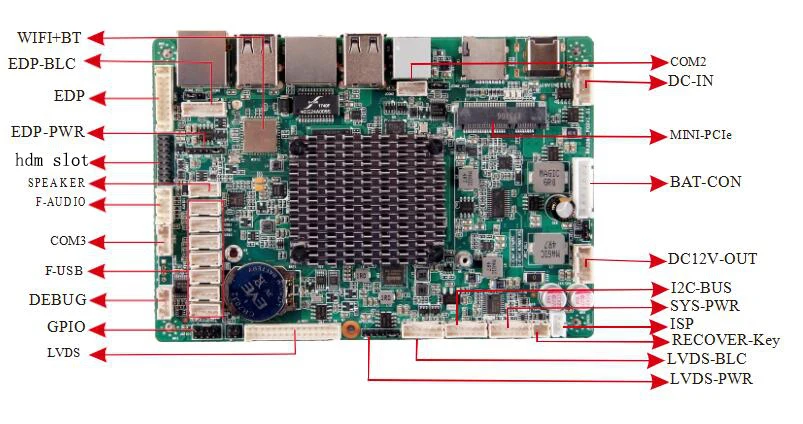

Internal I/O interface



7*F-USB2.0 pins (Scalable 7*USB2.0 port)


3*COM pins


1* DC-IN pin


1* Batterry package (3-cell lithium parallel)-CON pin


1* DC12V-OUT pin


1* I2C-BUS pin


1* SYS-PWR pin


1* ISP pin


1* RECOVER-Key pin


1*LVDS pin


1* LVDS-PWR pin


1* LVDS-B/L Control pin1* EDP-B/L Control pin


1* EDP pin


1* EDP-PWR pin


1* HDMI pin


1* DEBUG pin


1*F_AUDIO pin


1*SPEAKER pin


1*GPIO pin( 6 PIN)



Operation system



Linux/Android



Power supply



DC 12V-19V@2A



Cooling system



fanless cooling



Working environment



-10~60℃;0% ~ 95% Relative humidity, no condensation



Board  type



148X102MM












Producing Process :





1. SMT.jpg


SMT





2. DPI.JPG





DPI


3. AOI.jpg


AOI





4. Assembly.png


Assembly





5. burn_in_room.png





Burn- in Room





6. PACKING.jpg





Packaging





Test And  Packing into box



















Shippment
