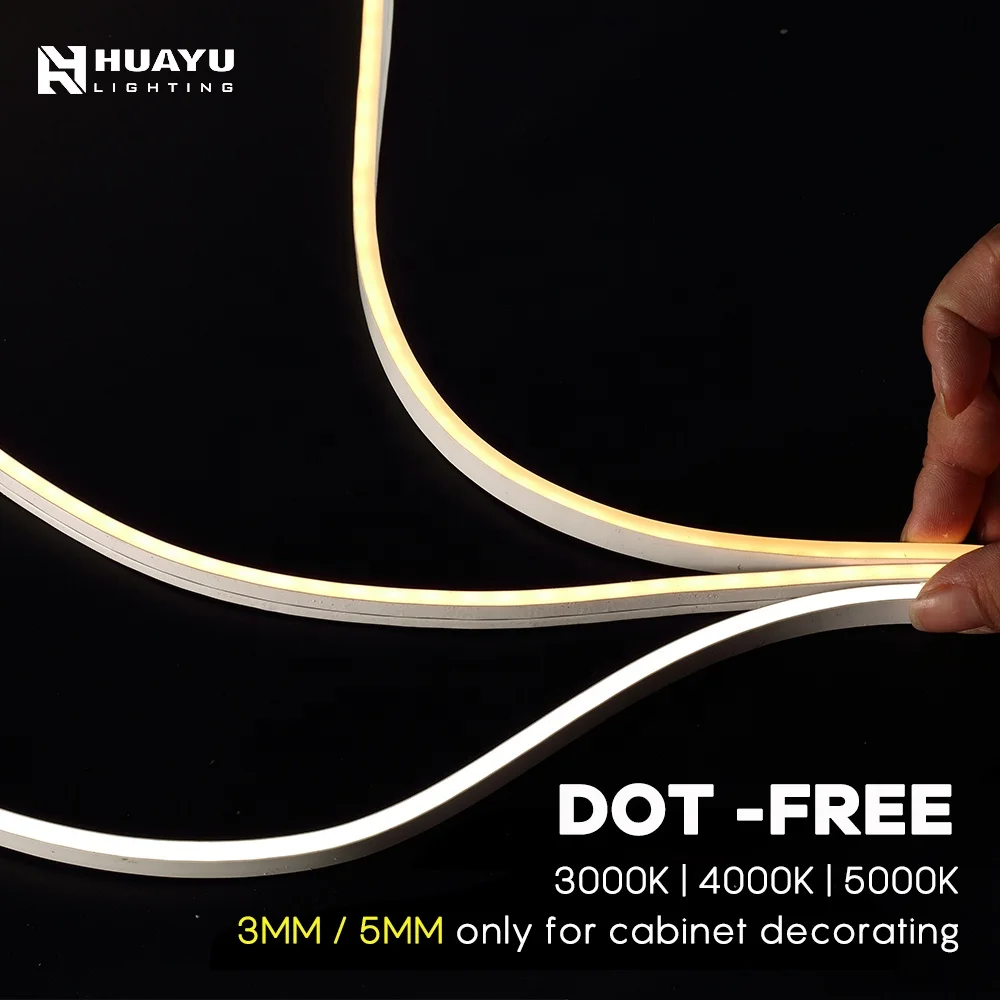

Supper Slim 5 X 8 mm led flexible neon strip light 12v dc ip67 silicon linear light with ETL TUV CE CB
- Category: >>>
- Supplier: Shenzhen Hua Yu Lighting Manufacture Co. Ltd.
Share on (60780637018):
Product Overview
Description
Neonjoy Series - Key feature

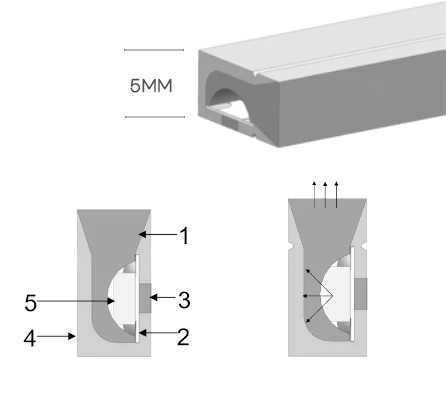

1.High luminous efficiency, unique optical light distribution structure, uniform and soft lighting, dot-free and no shadow.
2.High light transmittance, food-grade environmental silicone material, with good flexibility and stylish appearance, exquisite and unique.
3.IP67, with resistances to saline solutions, acids & alkalis, corrosive gases, fire and UV.
4.Top bend and side bend, limitless application.

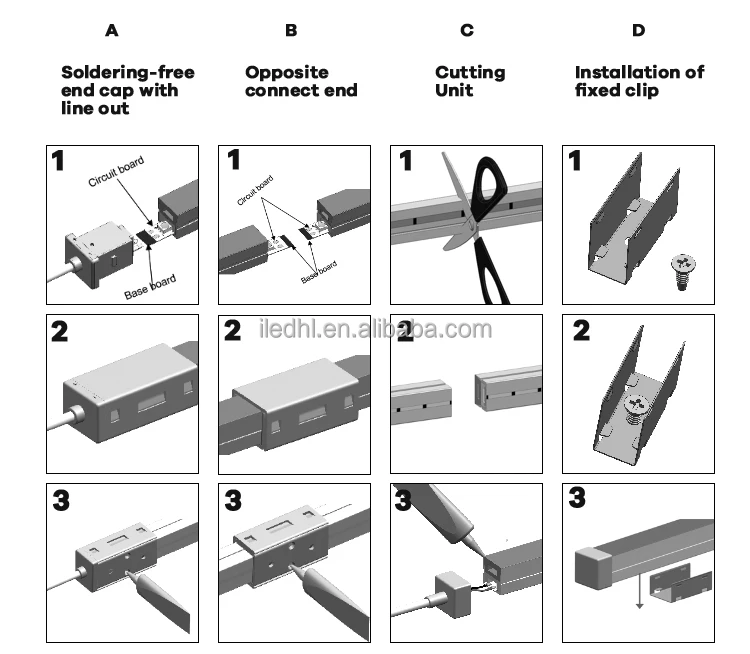

5.Convenient cutting any length with cutting window.
6.Adopt integrated silicone extrusion one molding technology to ensure a good product.
LED Source | SMD2835 | Dimension | W5 * H8mm |
LED Qty | 120LEDs/M | Lighting Direction | Top Emitting; Up&Down bending |
LED Level | 22-24lm/LED | Finish Material | Food silicone extruded |
Power | 5-14.4W/M | CRI | Ra80+ / Ra90+ |
PCB | 10mm width, 2oz copper | Certificate | ISO9001, CE, RoHS, ETL, SABER |
Cutting Unit | DC12V-2.5cm (3LEDs) DC24V-5cm (6LEDs) | Color Supported | 2700K, 3000K, 4000K, 6000K, Pink, Amber, Red, Green, Blue, Golden, Yellow, Ice Blue, CCT, RGB etc. |
IP Level | IP67 Waterproof | Pacakge | 5Mtr/roll; 10Mtr/roll |
Input Voltage | DC12V or DC24V | Warranty | 3 years |

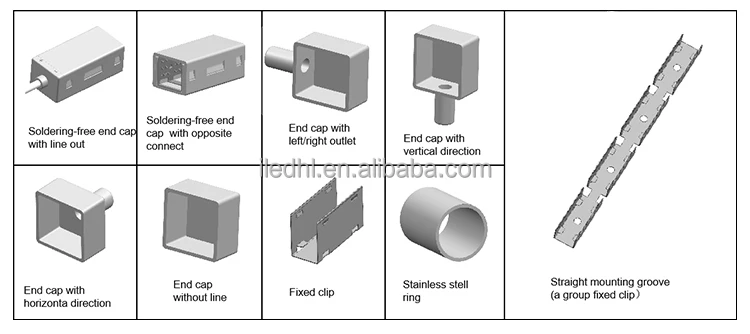

Accessories List ：
Soldering-free end cap with line out
Soldering-free end cap with opposite connect
End cap with left / right outlet
End cap with vertical direction
End cap with horizonta direction
End cap without line
Fixed clip
Stainless ring
Straight mounting groove
Soldering-free end cap with opposite connect
End cap with left / right outlet
End cap with vertical direction
End cap with horizonta direction
End cap without line
Fixed clip
Stainless ring
Straight mounting groove
Size | Bend Direction | Voltage | Power | Cut Unit | Color Supported |
5*8mm Flat | Side Emmitting | 12V | 24V | 6 |7.2 | 9.6w | 2.5 | 5 cm | ww nw cw iceblue red green yellow |
6*12mm Flat | Side Emmitting | 12V | 24V | 7.2 | 9.6 |12W | 2.5 | 5 cm | ww nw cw iceblue red green yellow |
8*15mm Flat | Side Emmitting | 12V | 24V | 7.2 | 9.6 |12 |14W | 2.5 | 5 cm | ww nw cw iceblue red green yellow RGB RGB addressable |
10*18mm Flat | Side Emmitting | 12V | 24V | 7.2 | 9.6 |12 |14W | 2.5 | 5 cm | ww nw cw iceblue red green yellow RGB RGB addressable |
10*20mm Flat | Side Emmitting | 12V | 24V | 7.2 | 9.6 |12 |14W | 2.5 | 5 cm | ww nw cw iceblue red green yellow RGBW RGB addressable |
15*15mm Flat | Side Emmitting | 12V | 24V | 7.2 | 9.6 |12 |14W | 2.5 | 5 cm | ww nw cw iceblue red green yellow RGB RGB addressable |
10*10mm Flat | TOP Emmitting | 12V | 24V | 7.2 | 9.6 |12 |14W | 2.5 | 5 cm | ww nw cw iceblue red green yellow |
13.5*13.5mm Flat | TOP Emmitting | 12V | 24V | 7.2 | 9.6 |12 |14W | 2.5 | 5 cm | ww nw cw iceblue red green yellow |
15*15mm Flat | TOP Emmitting | 12V | 24V | 7.2 | 9.6 |12 |14W | 2.5 | 5 cm | ww nw cw iceblue red green yellow RGB RGBaddressable |
20*18mm Flat | TOP Emmitting | 12V | 24V | 14 | 16 | 18 |14W | 2.5 | 5 cm | ww nw cw iceblue red green yellow |
5*13mm Dome | Side Emmitting | 12V | 24V | 6 |7.2 | 9.6w | 2.5 | 5 cm | ww nw cw iceblue red green yellow |
6*13mm Dome | Top emitting | 12V | 24V | 7.2 | 9.6 |12W | 2.5 | 5 cm | ww nw cw iceblue red green yellow |
7*14mm Dome | Top emitting | 12V | 24V | 7.2 | 9.6 |12W | 2.5 | 5 cm | ww nw cw iceblue red green yellow |
8*16mm Dome | Top emitting | 12V | 24V | 7.2 | 9.6 |12 |14W | 2.5 | 5 cm | ww nw cw iceblue red green yellow RGB RGB addressable |
10*22mm Dome | Top emitting | 12V | 24V | 7.2 | 9.6 |12 |14W | 2.5 | 5 cm | ww nw cw iceblue red green yellow RGB RGB addressable |
12*25mm Dome | Top emitting | 12V | 24V | 7.2 | 9.6 |12 |14W | 2.5 | 5 cm | ww nw cw iceblue red green yellow RGB RGBW RGB addressable |
