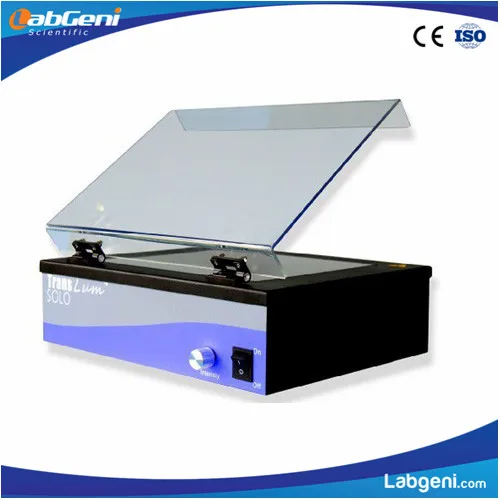

UV Transillumination,Transilluminators

Product Overview

Description

Instrument Introduction
External UV transillumination imaging system units are BIOSENS gel series accessories Able in various types of BIOSENS series gel imaging compatible, can be used for nucleic acids (DNA, RNA) and protein gel electrophoresis and gel detection. Unique UV protective board design will not affect the gel operation, And maximize the human body to prevent UV damage. It is suitable for the in bio-engineering, Molecular genetics, molecular biology, biochemistry, medical health, biological products, pharmaceutical, agriculture, scientific research units and higher professional colleges.



Features
1 UV guard, Fully adjustable guard, with the operator can place perspective, provide UV protection.
2 long-life filter, UV transilluminator equipped with a long filter life, the entire work area has good UV permeability
3 UV light intensity adjustable, UV intensity can be adjusted for a variety of purposes. Suitable for analysis of high-intensity, low intensity observed for preparation, and cut strips to reduce DNA damage
4 Metal, Makes the instrument easy to maintain



Technical parameters

Name	UV transillumination table	Dual wavelength UV transillumination table	Four-wavelength UV transillumination table white	Portable UV lamp
Model	GI-UT1002	GI-UT1202	GI-UT1402	GI-UT1003
Light source	Single-wavelength ultraviolet light source	Dual-wavelength ultraviolet light source	Dual-wavelength ultraviolet light source White blue light source	Single-wavelength ultraviolet light source
UV wavelengths	312 / 365nm optional	312nm and 365nm	312nm and 365nm	312 / 365nm optional
Number of lamps	6	9	10	2
Mm filter area	210 * 260	210 * 260	200* 200	no
Lamp power	8W	8W	8W	8W
UV protection board area	362 * 292	362 * 292	300 * 292	no
Lamp life	500 hours	500 hours	500 hours	500 hours
Dimensions	362 * 292 * 95	362 * 292 * 95	500 * 330 * 97	350 * 90 * 80
Voltage	220V, 50Hz	220V, 50Hz	220V, 50Hz	220V, 50Hz
