4 Colors Gravure Printing Machine Engineers Available to Service Machinery Overseas Multicolor Semi automatic 10 60m/min 15000kg

Product Overview

Description

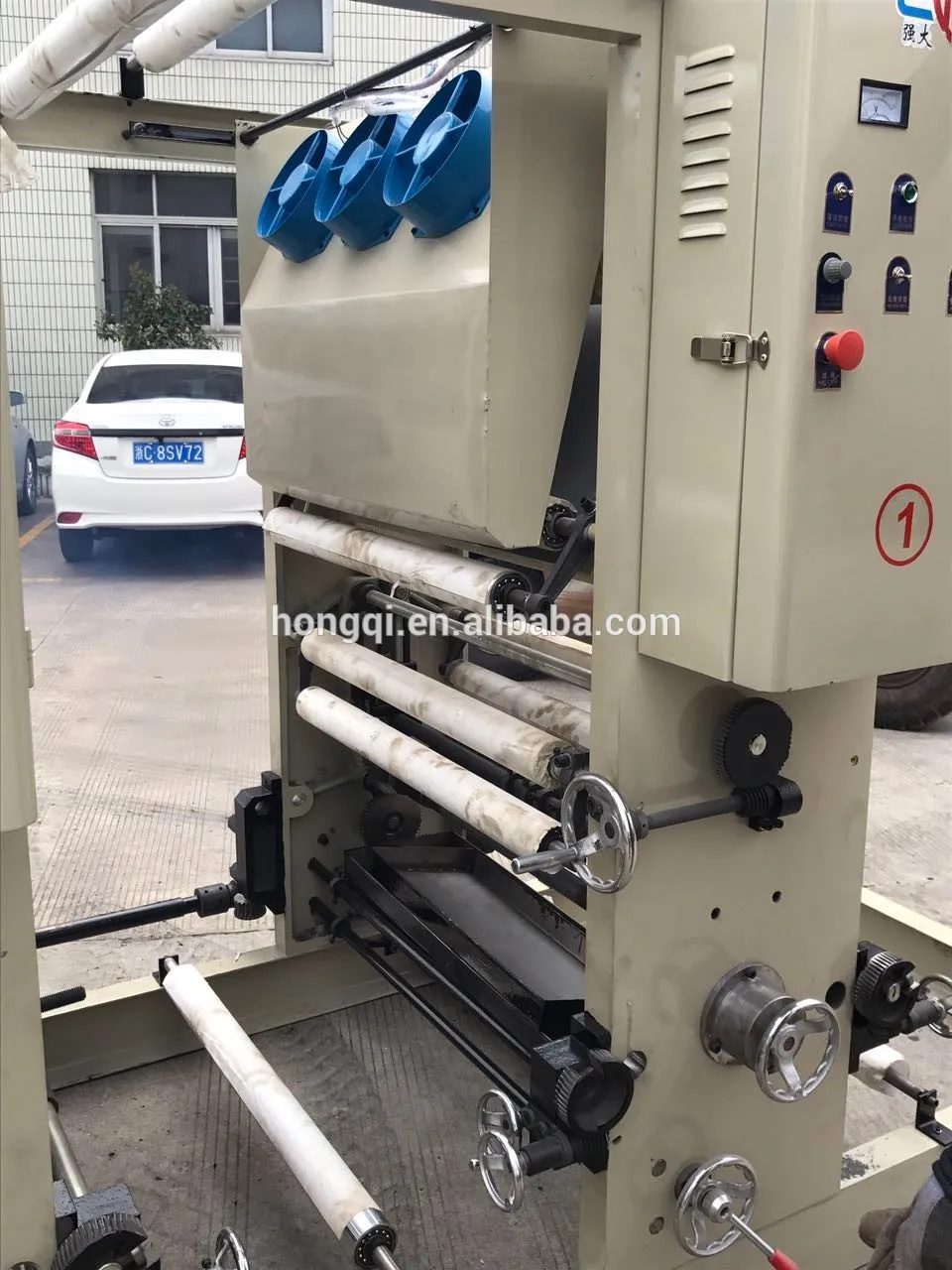

ASY-4800 Gravure Printing Machine



This machine set is suitable for continuously such packing products as various plastic film, currency, cloth and thin leather, etc. Printing of one side or two sides can be finished through once operation. The register sets of 360 can make the color registration of printing be adjusted at any time at will with accurate registration.



MODLE	ASY-600	ASY-800	ASY-1000
Printing width	600mm	800mm	1000mm
Max.printing width	200-750mm	200-1000mm	200-1100mm
Printing speed	10~60m/min	10~60m/min	10~60m/min
Format precision	±0.25mm	±0.25mm	±0.25mm
Main motor	2.2kw	4kw	7.5kw
Total power	0.12kw×2/group	0.12kw×2/ group	0.12kw×2/ group
Heating Power	2kw/ group	3kw/ group	4kw/ group
Dimension LxWxH(mm)	1200×( set +1)×1400×2000	1200×( set +1)×1600×2000	1200×(set+1)×1800×2000
