BS-PET polyester expandable sleeving is flame-retardant and halogen-free.It offers durable abrasion resistance in a wide range of industrial applications.The open weave construction allows an easy installation on a bundle of hoses and cables,even if some with bulky or large connectors.
Totally expanded the sleeving can reach at least one point five times than initial dimension.
Technical data
Material
Polyester
Operating range
-50℃-+150℃
Flammability
VW-1
Standard color
Black
Color
64colors available
Certificate
RoHS,Halogen free
Tool
Hot knife
Application

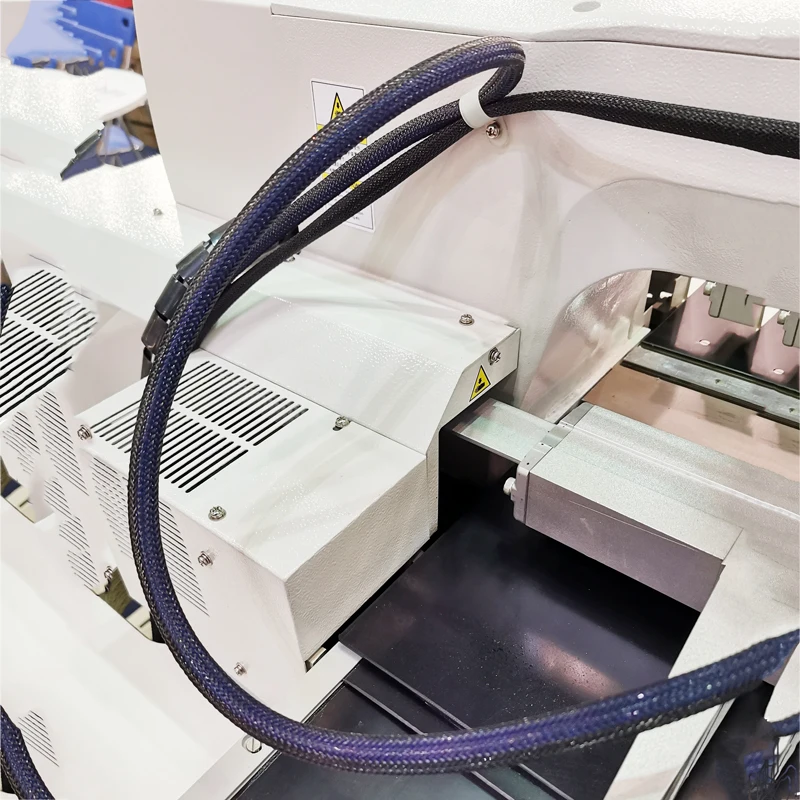

PET briaded expendable sleeving is used in electronics, automotive, marine and industrial wire harnessing applications where cost efficiency and durability are critical.The unique braided construction and wide expandability allows quick and easy installation over large connectors and long runs. PET sleeveing can be found in applications ranging from small office/home office to high tech wire and cable harnesses.
The protection of wire and tightening up, for automotive, computer power cord, audio-video, aviation , wire and cable industries. Also can be used for fishing rod sleeve, such as: Casting Rod and Spinning Rod cover,etc.

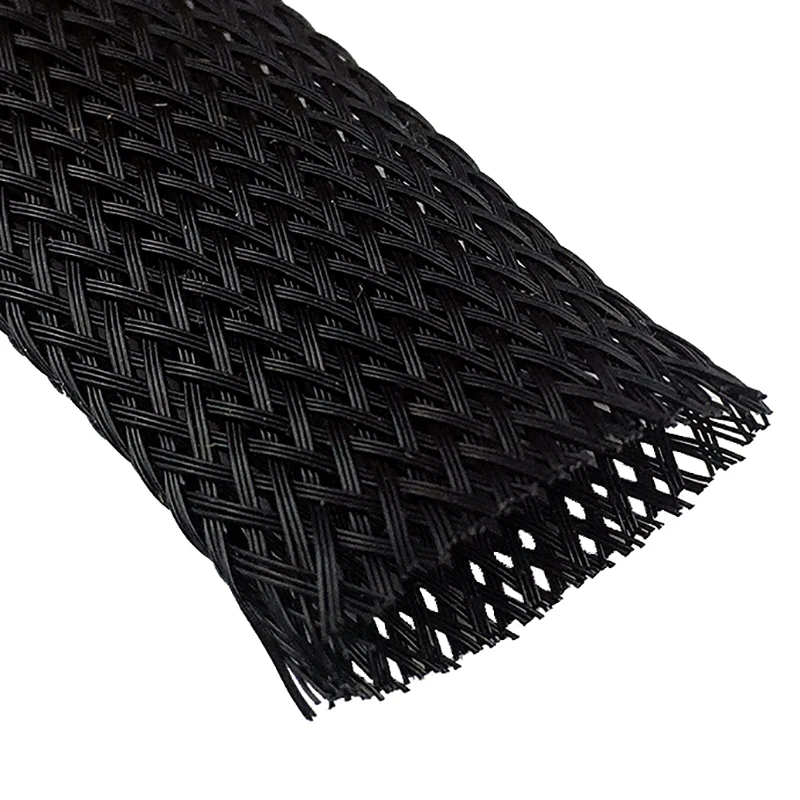

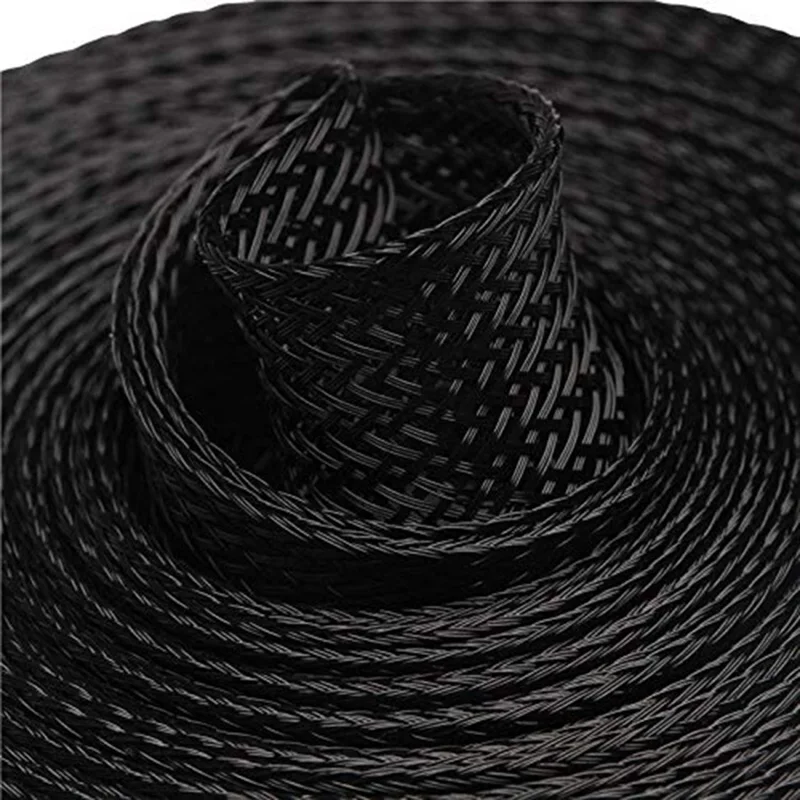

Detailed Images
1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications. 2. Braided of 0.25mm / 0.2mm Pet monofilament. 3. Totally expanded the sleeving can reach at least one point five times than the initial dimension.

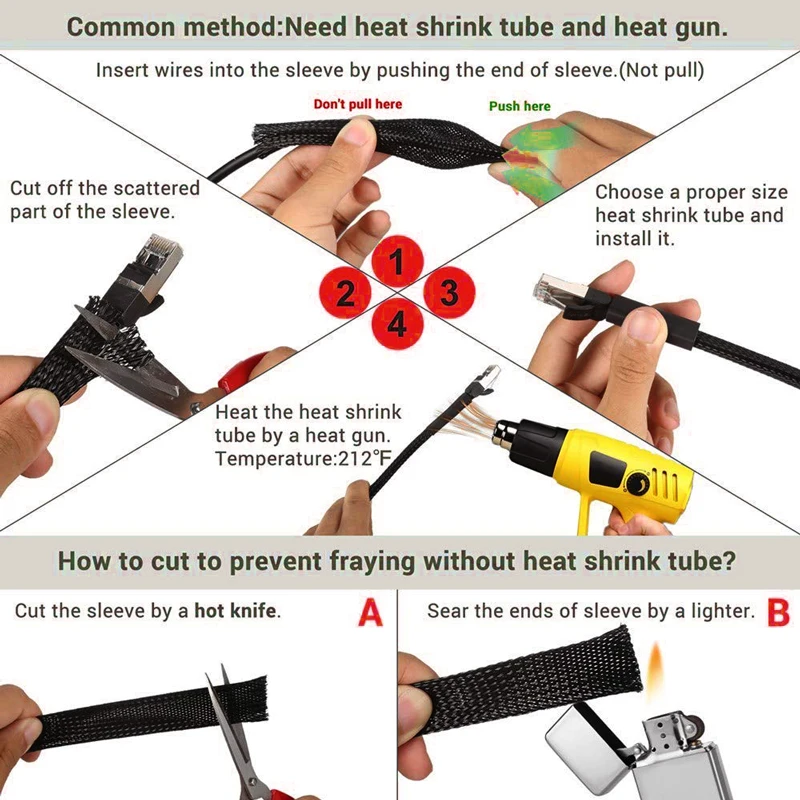

4. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors. 5. Logo printing is available. 6. Customized,Special package is willing to accepted,can be product according to customers requirements.
Size Information
Part No.
Nominal size(W)
Wall Thickness
Expanded range
Packing(L)
Inch
mm
Min.(I)
Max.(O)
BS-PET003
1/8"
3.0
1.0
6.0
1000m/roll
BS-PET006
1/4"
6.0
3.0
9.0
500m/roll
BS-PET008
5/16"
8.0
5.0
16.0
300m/roll
BS-PET010
3/8"
10.0
7.0
19.0
300m/roll
BS-PET012
1/2"
12.0
8.0
24.0
300m/roll
BS-PET016
5/8"
16.0
10.0
27.0
300m/roll
BS-PET019
3/4"
20.0
14.0
30.0
300m/roll
BS-PET025
1"
25.0
18.0
35.0
200m/roll
BS-PET032
1-1/4"
30.0
20.0
50.0
200m/roll
BS-PET038
1-1/2"
40.0
30.0
60.0
100m/roll
BS-PET045
1-3/4"
45.0
35.0
75.0
100m/roll
BS-PET050
2"
50.0
40.0
80.0
100m/roll
BS-PET064
2-1/2"
64.0
45.0
105.0
100m/roll
BS-PET076
3"
76.0
64.0
120.0
100m/roll
