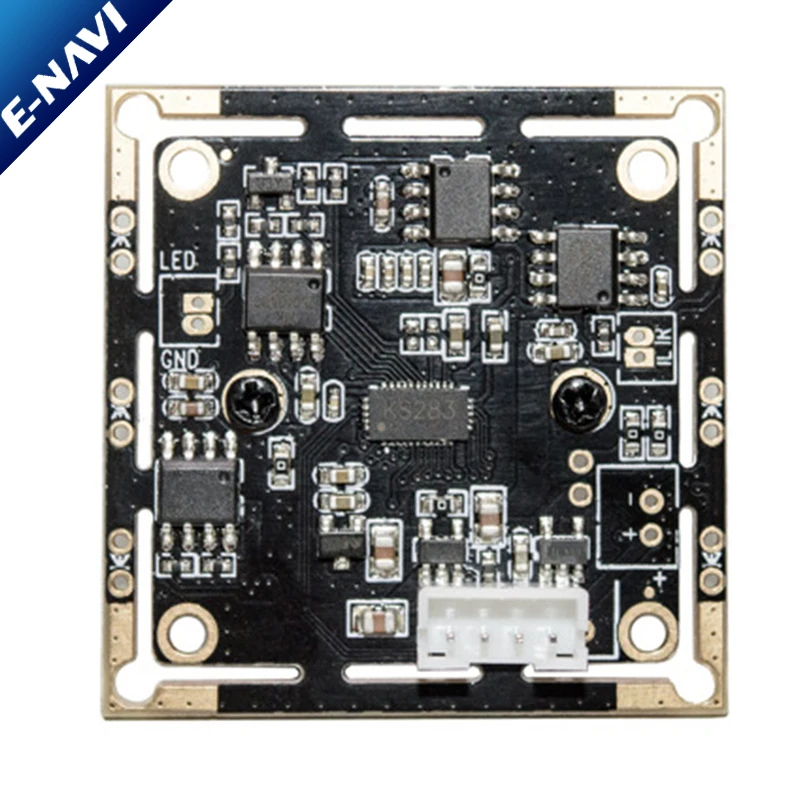

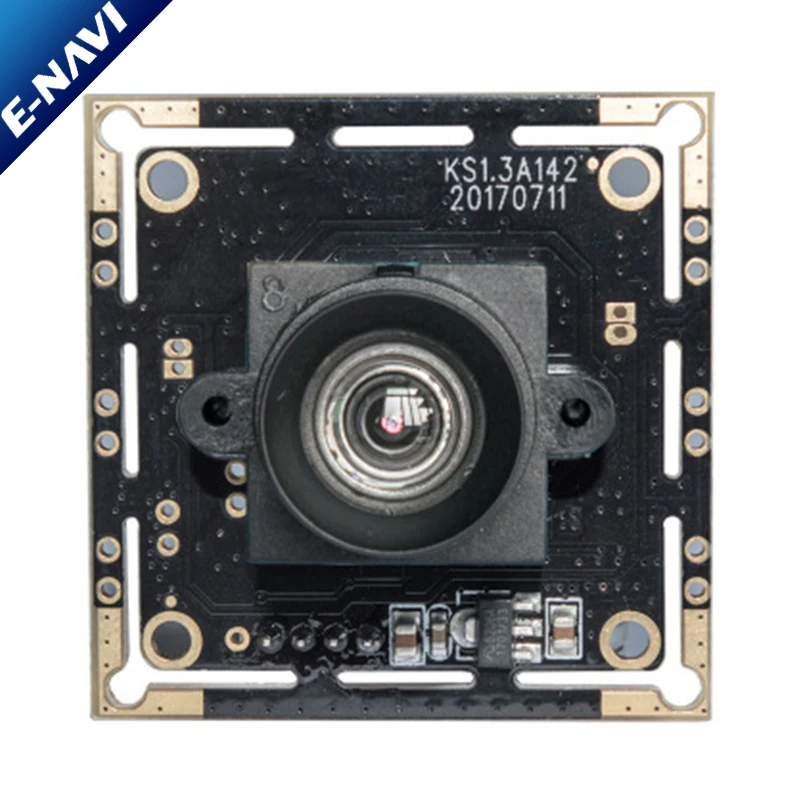

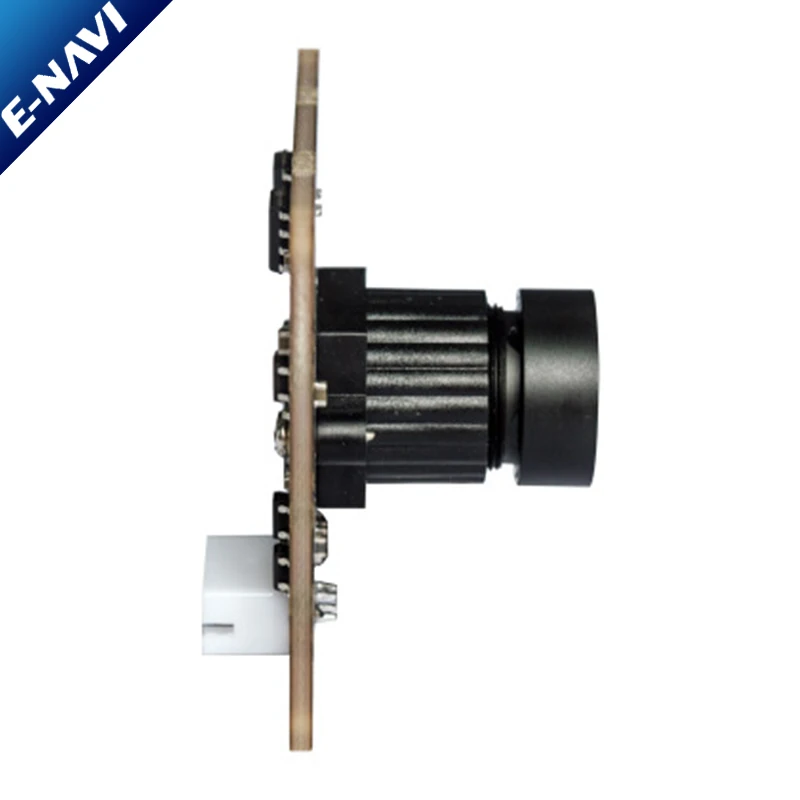

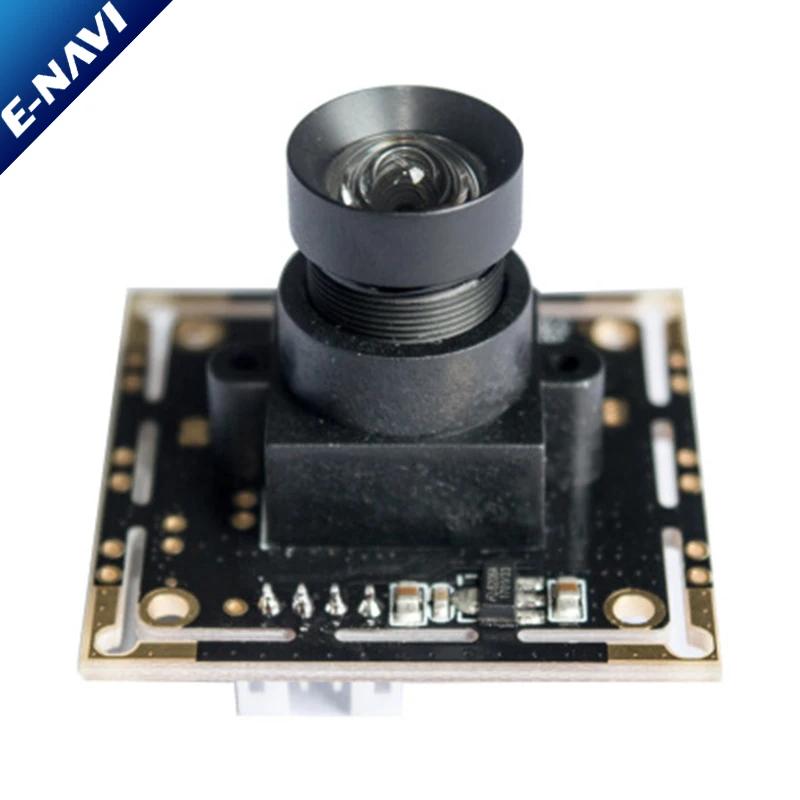

ODM Wide Dynamic AR0310 Infrared Monitoring with IR CUT 1.3M pixels Camera Module
Product Description
Pixels
1.3 million pixels
Photosensitive Chip
AR0310
CCD Size
2.35
Focal Length
Adjustable
Diagonal Angle
130 °
Sensor pixels
1080p
Size
25mm × 24mm
Power Supply
Support 3.3V external power supply
Product Application:
Camera meter, Robot, Unmanned aerial vehicles, MR/AR, Car DVR, Intelligent recognition system, Smart Home, Notebook camera module, Site enforcement Recorder, Scanner, Toy, DV, Parking sensors, Video door bell, Electron telescope, Mp4, MID, Endoscope system, Capsule endoscopy, mobile camera module, Surveillance camera, ZebraScan, SmartCam etc.
Sample:
Welcome to customize the camera board as for your requirements.
Answer: The field of view is approximately 80 degrees. It is set with autoexposure and autofocus, although both of these can be changed if the right drivers are downloaded. I use Open CV 2 library.
Answer: My board-to-USB cable connection has a 4-pin connector. Not sure if you mean the connecotr broke off, or the wire snapped at the connector, but regardless, the easiest way to fix is to just trim off the wire and connector and solder it to the board. The pin order on mine (from edge inward) [Blk,Grn,Wht,Red] which corresponds to [Ground, Data+, Data-, 5V]. Mine is also marked on the board "GND","DP","DM","5V". If your entire cable is damaged just grab any other USB cable (so long as it is shielded and contains data wires, which some of the more flimsy-feeling "power only" cables won't) and cut off the device end. If you don't know how to solder, just go to your local Makerspace and ask someone to show you how.
Answer:Plug and play with Windows 10, camera app, the settings button lets you switch to 720p @ 60Hz. I just tried it and windows reports that's what the video is (59.49fps, actually).
