RED LIFT Three wheel Forklift CPD15TV8
- Category: Forklifts >>>
- Supplier: Hangzhou Reddot Equipment Co. Ltd.
Share on (60780689365):
Product Overview
Description
Product Description
Three wheel Electric Forklift Truck
- Model number: CPD15-18tv
- Capacity: 1.5ton-1.8ton
- Lifting height: 3000-6000mm
- Controller,AC ZAPI Controller
- Transmission:Automatic transmission

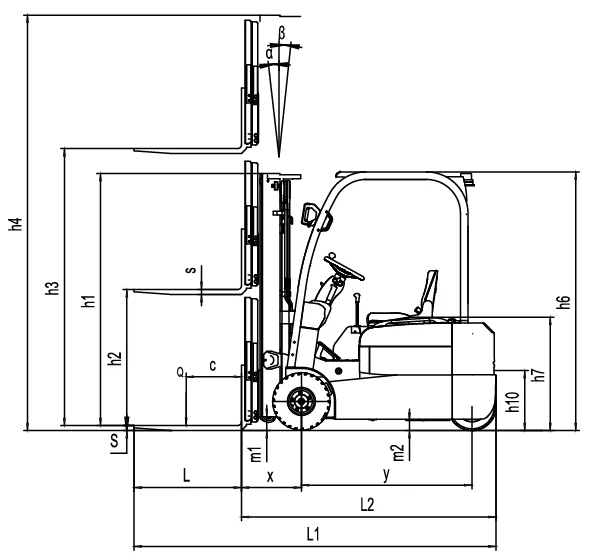

| Characteristics | |||||
| 1.1 | Manufacturer | RED-LIFT | RED-LIFT | RED-LIFT | |
| 1.2 | Model designation | CPD15TV8 | CPD16TV8 | CPD18TV8 | |
| 1.3 | Drive unit | Battery | Battery | Battery | |
| 1.4 | Operator type | Rider seated | Rider seated | Rider seated | |
| 1.5 | Load capacity | Q (kg) | 1500 | 1600 | 1800 |
| 1.6 | Load center | c (mm) | 500 | 500 | 500 |
| 1.8 | Load distance | x (mm) | 395 | 395 | 395 |
| 1.9 | Wheelbase | y (mm) | 1258 | 1358 | 1358 |
| Weights | |||||
| 2.1 | Service weight | kg | 3050 | 3100 | 3160 |
| Wheels, Chassis | |||||
| 3.1 | Tyre type | Solid tyre | Solid tyre | Solid tyre | |
| 3.2 | Tyre size, front | 18X7-8 | 18X7-8 | 18X7-8 | |
