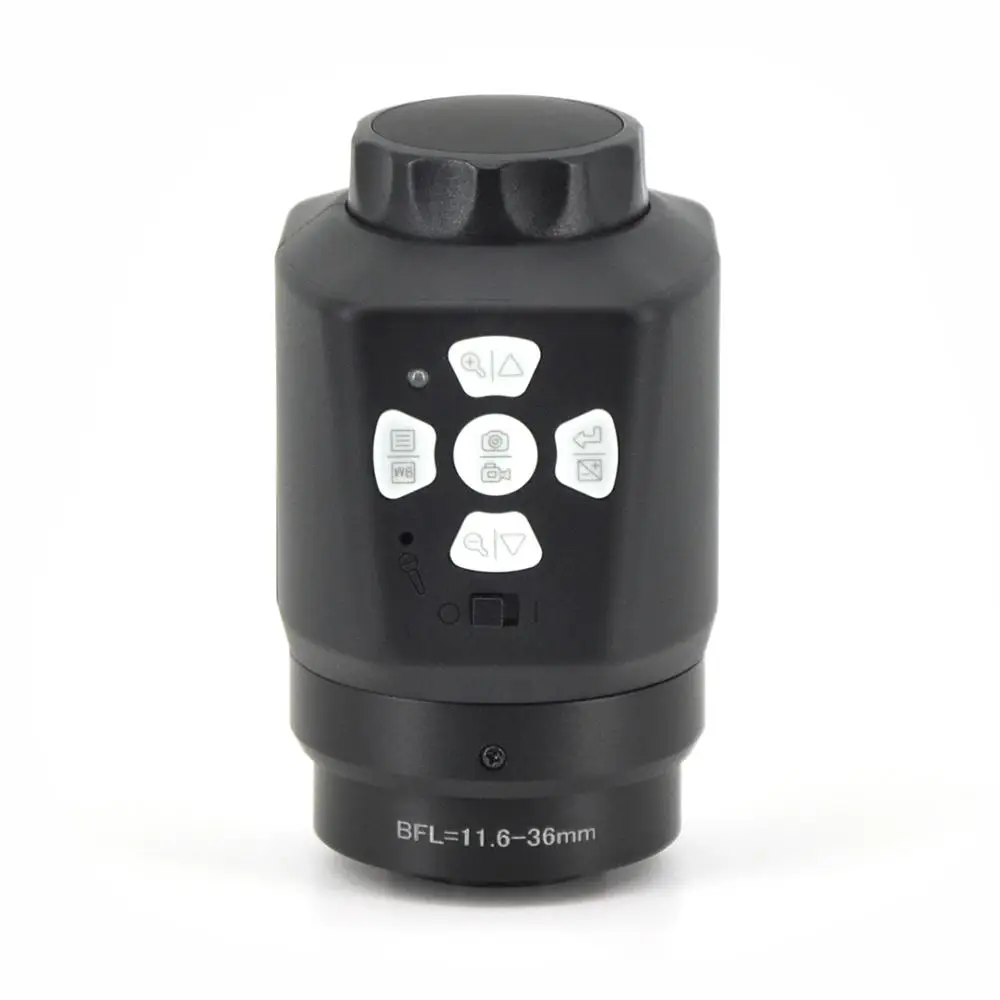

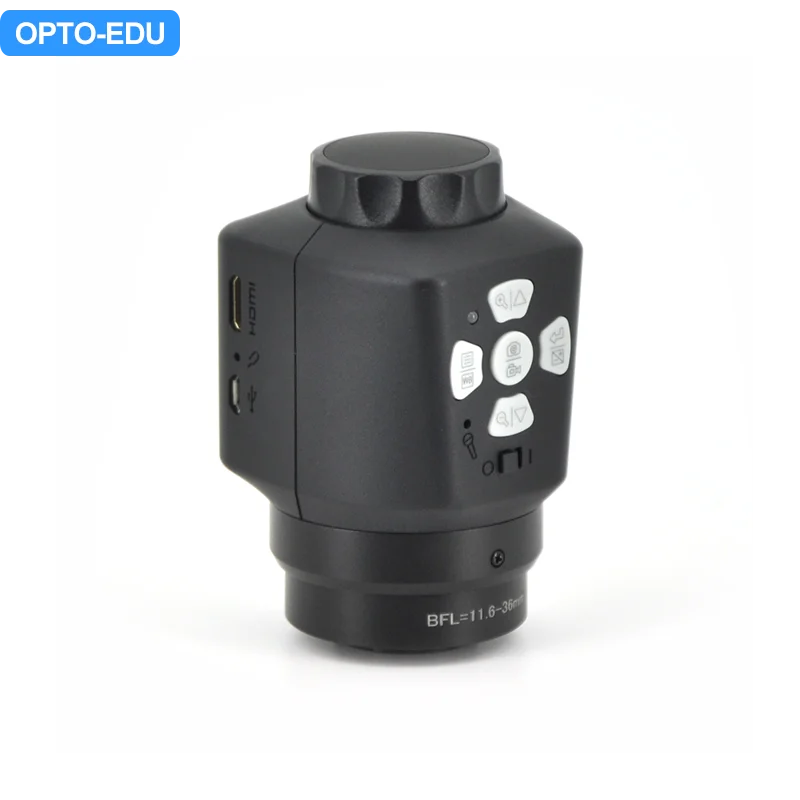

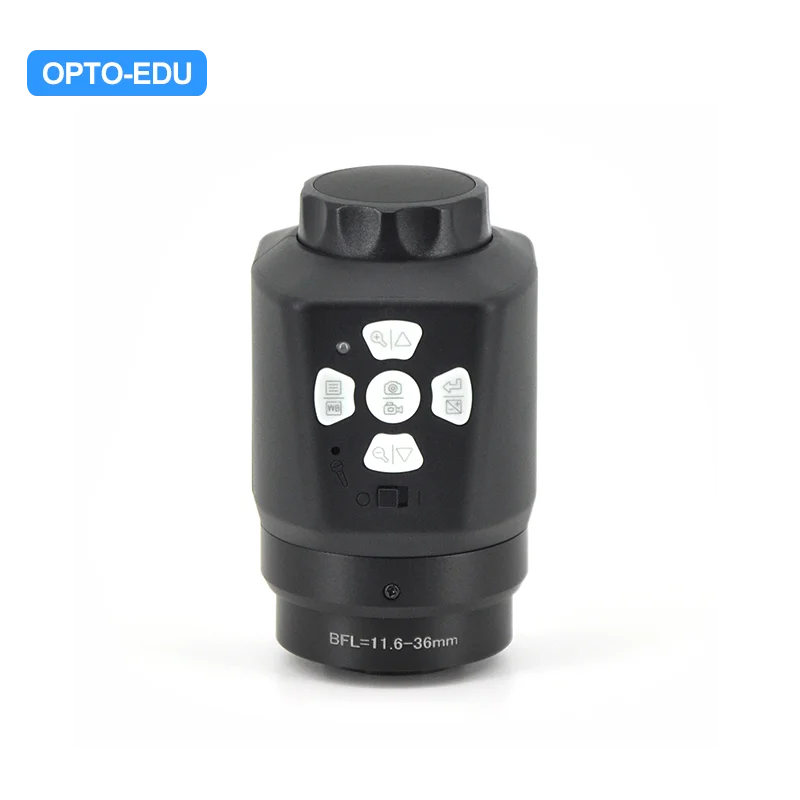

OPTO EDU A59.4902 M05 Microscope Digital Eyepiece
- Category: >>>
- Supplier: Opto-Edu (Beijing) Co. Ltd.
Share on (60780705335):
Product Overview
Description

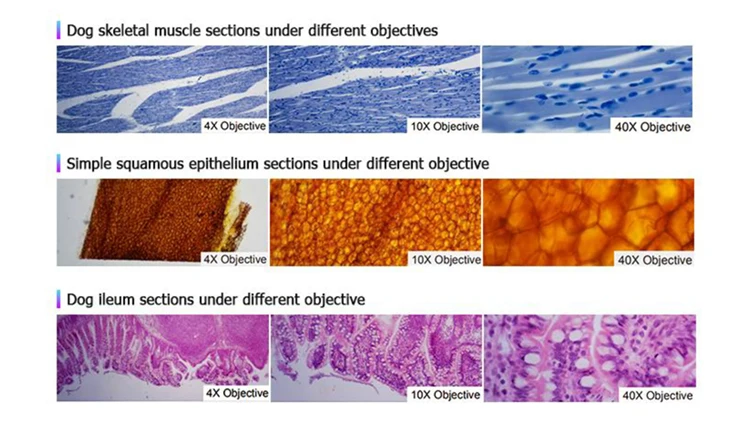

Product Application

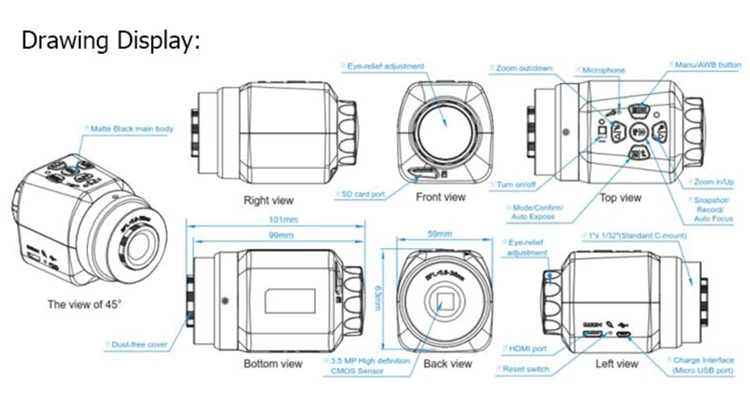

Details Images

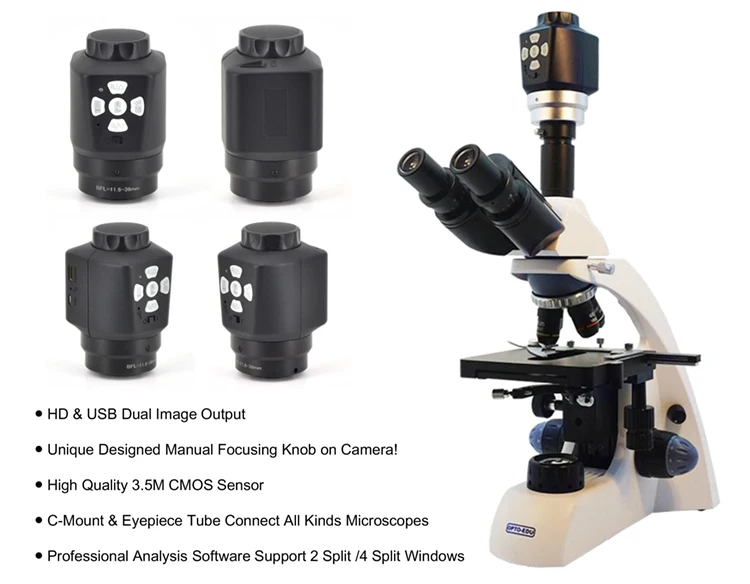

A59.4902 digital eyepiece, combines USB and HD output, with professional imaging software, high quality 3.5M pixel HD color image sensor

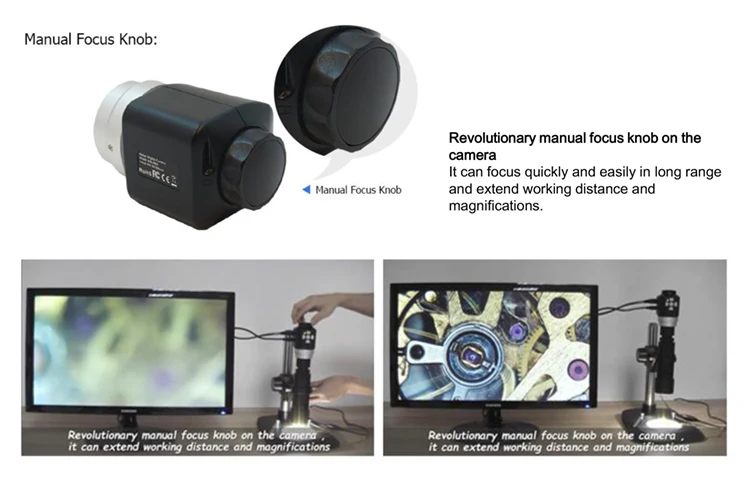

Large depth of field, wide field of view, long operation distance. Manual focusing knob can focus quickly and easily in long
range.
range.
Dual output HD & USB to support photograph/record and real time storage of SD card image, with USB 3.5M, HD 1080p/30fps.
Adopt advanced HDR image processing technique under HD mode to largely reduce light reflection of the observation object surface.
High quality USB 2.0 & HD cable support plug & play for high speed data transfer.
Professional analysis software support OEM different language version.9.
Dynamic and still annotations, powerful measure functions for choice in (PC).
2 split and 4 split screen to compare and analysis different images at same time in (PC).

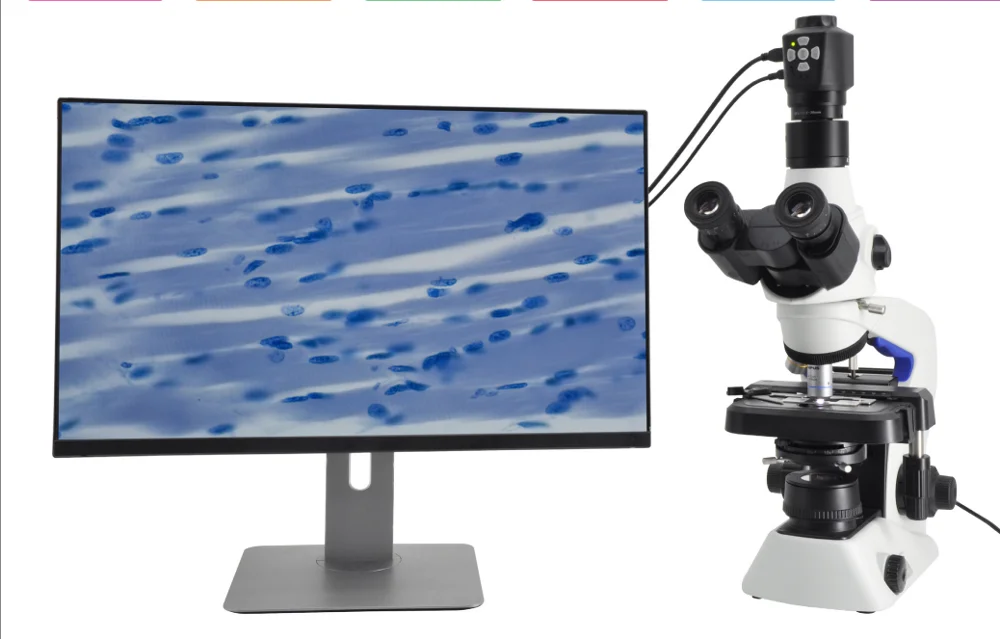

It is ideal tool to show real time micro image on your HD monitor or PC, easily capture image, record, and manage the pictures.
Fix-time continuous capture photo function to track the whole changing process of observe things (PC).
Rotate picture with any angle when preview, no need to move the objective (PC).
Creative image manager to store, search, view user's image freely.
All hardware support hot plug/unplug without stopping software work (PC).
TF Card Slot support maximum 64G for local image & video recording, (TF card not include).

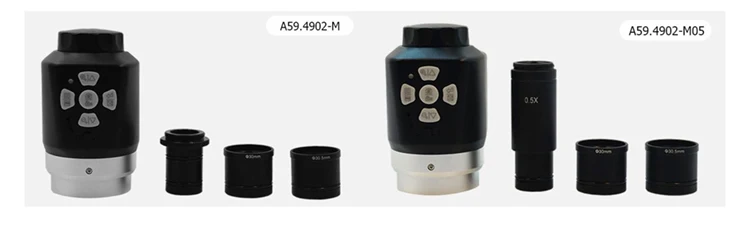

Fit all microscopes with standard C-Mount, and adapter for microscope eyetube 23.2mm/30mm/30.5mm.
Products Description
Hardware Configuration | ||
Imaging Sensor | Aptina AR0330 CMOS Sensor | |
Scan Mode | Scan line by line | |
The maximum resolution | 2304 x 1535(3,538,944 pixels) | |
Sensor Optical Format | 1/3“ (5.07mm(H) x 3.38mm(V), Diagonal 6.09mm) | |
Pixel Size | 2.2μm x 2.2μm | |
Dynamic Range | 69.5dB | |
ADC | 12-bit, 8-Bit R.G.B to PC | |
SNR(Signal Noise Ratio) | 39dB | |
Spectral Characteristics | 380-650nm | |
Video Mode Resolution | 1080P@30FPS, 720P@30FPS,WVGA@30FPS | |
Snapshot Mode Resolution | 2304x1536, 2304x1296, 1920x1080, 1280x720, 800x480 | |
Exposure Capability | Real-time auto, Single auto, Manual adjustment | |
White Balance | Real-time auto, Single auto, Manual adjustment | |
Capture Modes | Picture | |
Resolution: 1920x1080, 1280x720, 800x480 | ||
Format: JPG | ||
Video | ||
Resolution: 2304x1536, 2304x1296, 1080P@30FPS, 720P@30FPS, WVGA@30FPS | ||
Format: MOV | ||
Record Route | The local and TF card | |
Interface Parameter | ||
Camera Interface | C mount thread (1“x1/32) BFL: 11.6-36mm | |

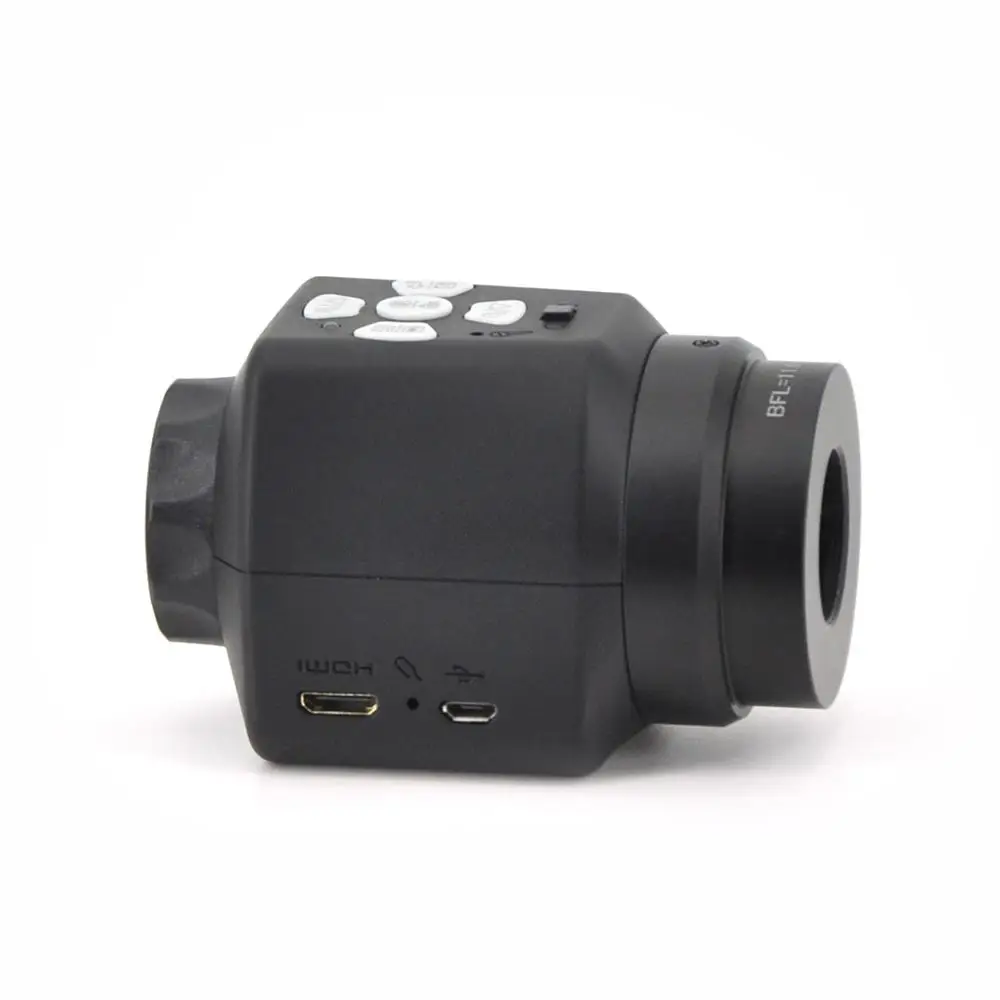

Wired Picture Interface | HD Model: Mini HD | |
USB Model: Micro USB | ||
Charger Interface | Micro USB, DC5.0V 2A | |
Software Environment | ||
Operation System | Microsoft®Windows®XP/7/8/8.1/10(32&64 bit) | |
Computer Configuration | CPU: equal or more than the second generation Intel core 2.8GHz | |
Memory: 2G or more | ||
USB port: USB2.0 high speed port or compatible port | ||
Displayer: Suggest 17 inches or larger | ||
Operating Environment | ||
Operating Temperature | 0℃~ 40℃ | |
Storage Temperature | -20℃~ 60℃ | |
Operating Humidity | 30~60%RH | |
Storage Humidity | 10~80%RH | |

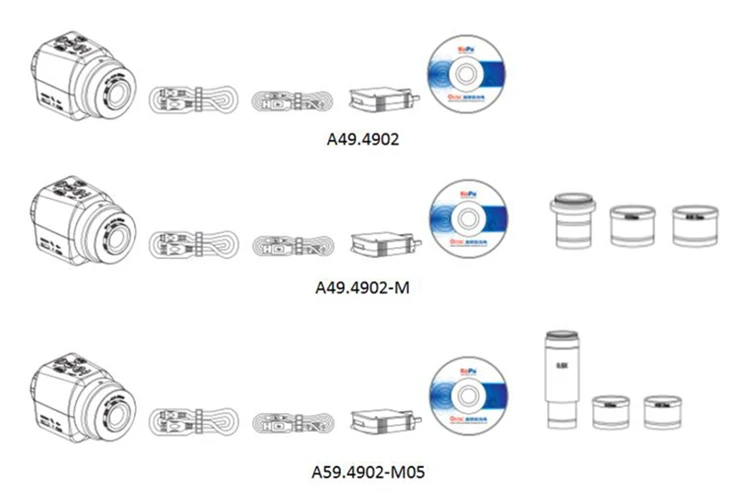

Product Packaging
