Product Overview

Description



popular high quality cheap water filter housing/ multi bag filter housing/micro bag housing

♦ Part one: Frotec Filter Housing Description



1.Brief introduction and Technical Specification



This item mainly composed of filter bag , shell, support rack and fixture and measuring device. The fluid flows from the filter entrance into filter cartridge with miscellaneous quality piece retained on the surface or deep in ,while purified fluid runs off from the outlet. Filter adopt clamps, ordinary flange, fast shackle bolt to lock ears. with female or sanitary clamp connect with the top cap, which usually install the gauge or platoon air valve, the inlet /outlet are connected with flange, silk thread and sanitary clamp.

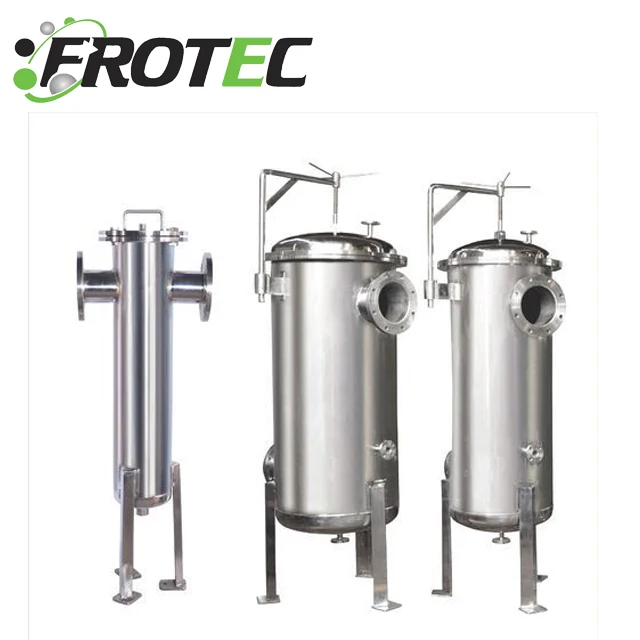

 2. Product Show

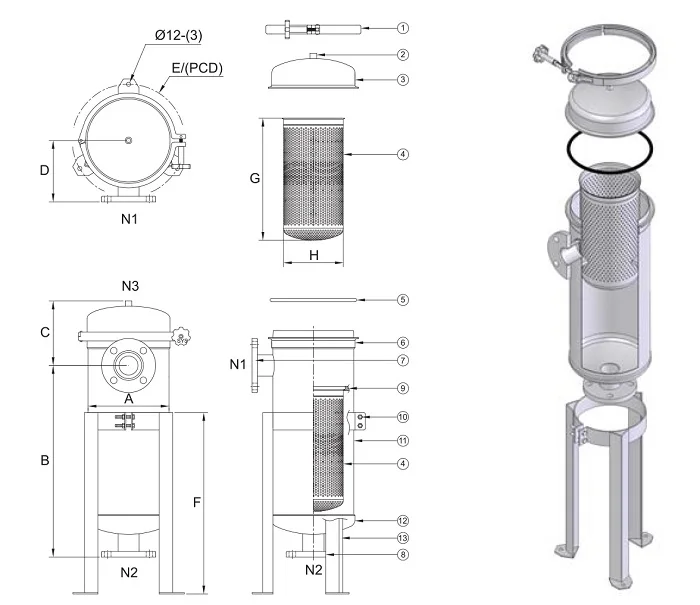

No.	Name	No.	Name
1	Clamp	8	Port outlet
2	Vent	9	Filter bag plate
3	Top cover	10	Bolt
4	Basket	11	Shell
5	O-ring	12	Bottom cover
6	Shell flange	13	Support leg
7	Port inlet



SBS-1 Series - Single Bag Style (Union Closure)

Material: SUS304L, SUS316L

Max working pressure:100PSI

Making method: Polished or sandblast



Model	B mm	G mm	B+C mm	A mm	Inlet/outlet
SBS-A	500	380	700	200	1"-3"
SBS-B	700	720	1050	200	1"-3"
SBS-C	350	190	400	114	3/4"-2"
SBS-D	500	340	540	114	3/4"-2"

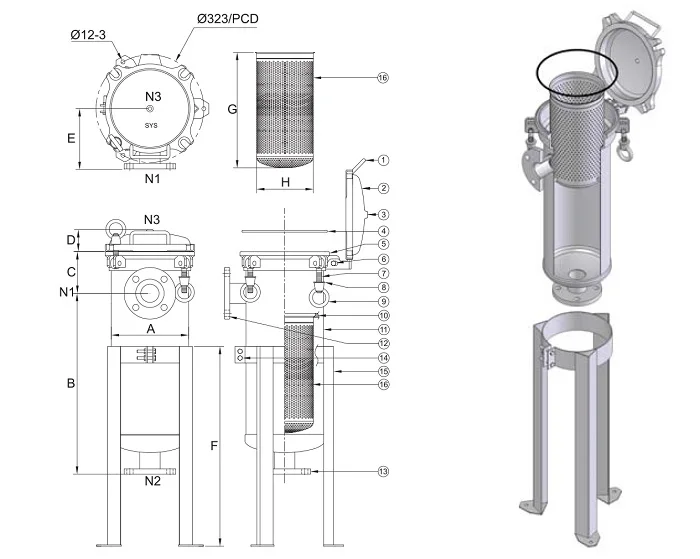

No.	Name	No.	Name
1	Handle	9	Eye nut
2	Top cover	10	Filter bag plate
3	Vent	11	Shell
4	O-ring	12	Port inlet
5	Shell flange	13	Port outlet
6	Spindle	14	Bolt
7	Eye bolt	15	Support leg
8	Washer	16	Basket

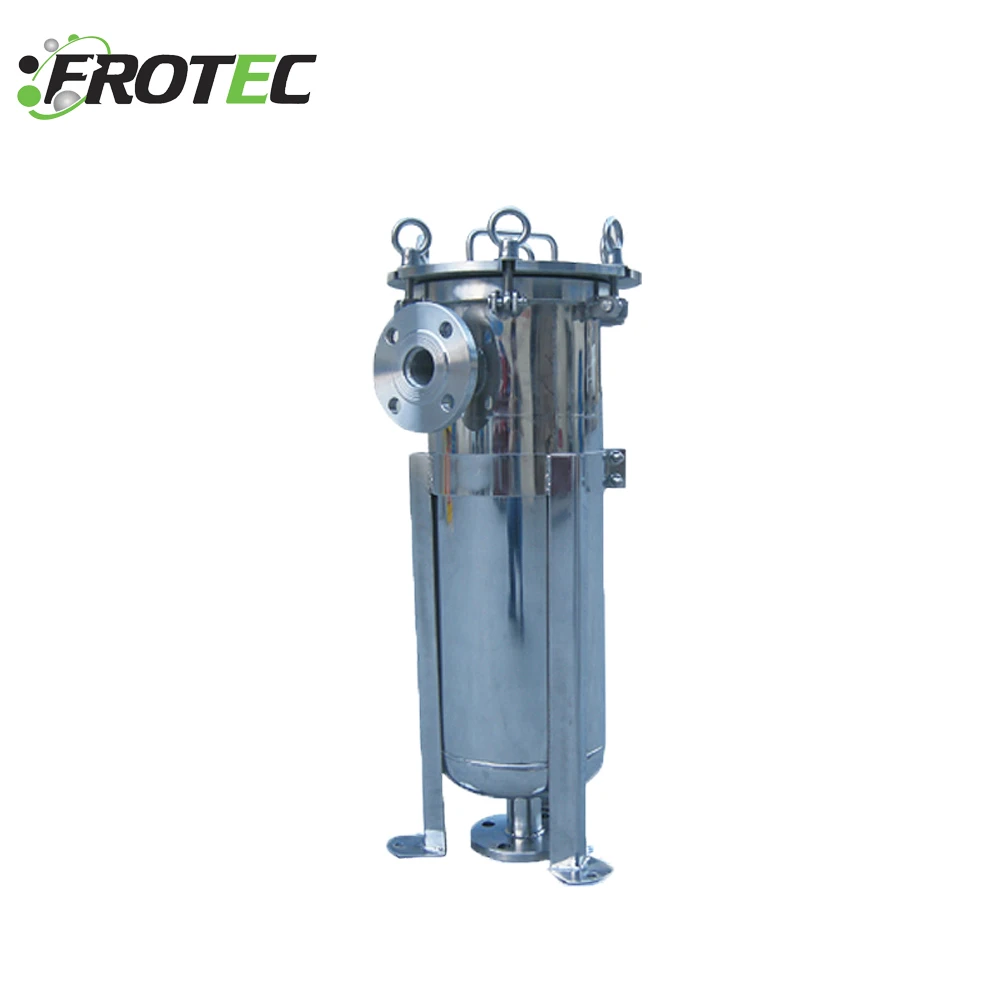

SBS-2 Series - Single Bag Style (Bolt&nut Closure)

Material: SUS304L, SUS316L

Max working pressure:150PSI

Making method: Polished or sandblast

Model	mm	G mm	B+C mm	A mm	H mm	Inlet/outlet
SBS-1	500	380	700	219	170	1"-3"
SBS-2	700	720	1070	219	170	1"-3"
SBS-3	350	190	430	114	97	3/4"-2"
SBS-4	500	340	580	114	97	3/4"-2"

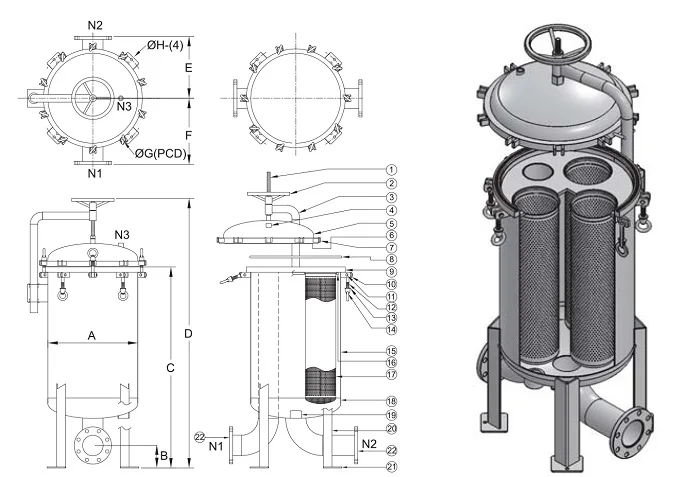

No.	Name	No.	Name
1	Screw	12	Eye bolt
2	Turntable	13	Washer
3	Hanger	14	Eye nut
4	Vent	15	Shell
5	Top cover	16	Flat bag plate
6	Top cover flange	17	Basket
7	Eye nut socket	18	Bottom cover
8	O-ring	19	Drain
9	Shell flange	20	Support leg
10	Eye bolt socket	21	Leg base plate
11	Spindle	22	Port(In/Outlet)

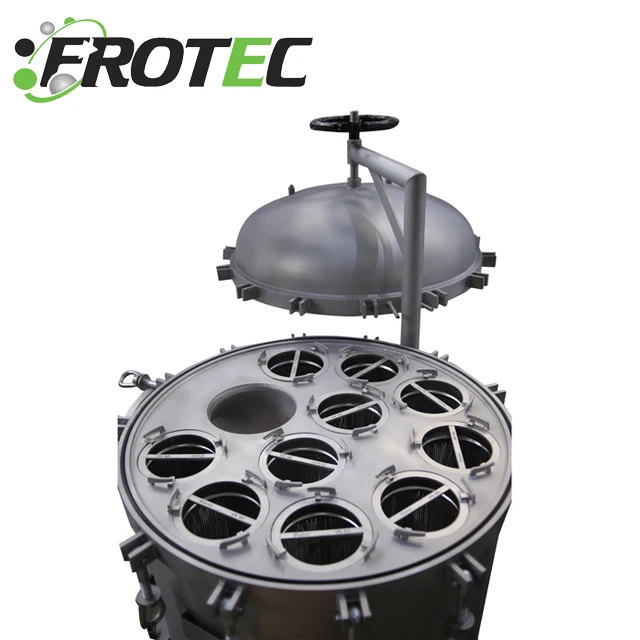

SBS-3 Series - Multi Bag Style (Bolt&nut Closure by lefting)

Material: SUS304L, SUS316L

Max working pressure:150PSI

Making method: Polished or sandblat

Model	B mm	C mm	D mm	A mm	Inlet/outlet	No.Bags
SBS-A	108	1100	1430	450	3"	2
SBS-B	150	1190	1540	500	4"	3
SBS-C	150	1200	1560	550	4"	4
SBS-D	150	1250	1630	600	5"	5
SBS-E	200	1380	1780	700	6"	6
SBS-F	200	1460	1920	750	8"	8
SBS-G	200	1470	1950	800	8"	9
SBS-H	250	1550	2050	900	8"	10
SBS-I	250	1570	2100	1000	8"	12
SBS-J	250	1600	2150	1100	8"	16
SBS-K	300	1780	2350	1200	10"	18



3. Application



• Prefiltration of RO,Pretreatment of sea water desalination

• Bottled water, high Fructose,edible oil,soft drinks

• API, solvents,and water filtration in BioPharm market

• Paints and coatings,Petrochemical,Refineries

• Microelectronics
