Product Overview

Description

Product Description

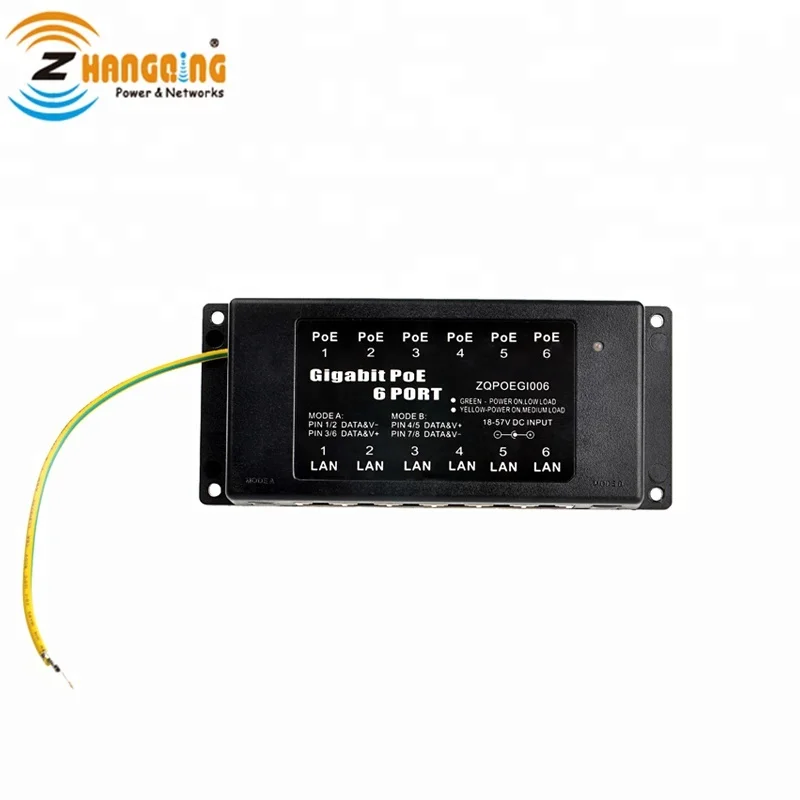

6 Ports Multi Port Passive Gigabit PoE Injector



Overview

The 6 port Gigabit PoE Panel is used 10/100/1000M Ethernet,The RJ45 (LAN)sockets is for “LAN/Switch/PC ”

Each socket provides protection against short overflow (current protection 650mA). The sum total output power must be lower than the MAX input power of AC-DCpower converter. If not, it is necessary to consider taking higher AC/DC power converter. The recommended formula for AC-DC power converter is: 10W per RJ45 set. For example, 6 x 10W = 60W for 6 port Passive PoE panel .



The configuration size of panel is 150mm(3.4U) L, 65mm(1.5U) W and 26mm(0.6U) T, as isavailable to answer market demand and convenient to be installed directly.



Welcome to contact us on WhatsApp: +86 15012557721 / Skype: Karo thnia

For cables and power supply - see our web.



Features



Use 10/100/1000M Ethernet
Flexible power(DC 18 - 57V)
Built-in LED Indicator
Use with any Ethernet switch
650ma automatic resettable fuse on each port
Supports IEEE 802.3at or 802.3af devices
                        --Mode A operation-minus on pins1/2,plus on3/6(802.3af/at)
                        --Mode B operation-minus on pins7/8,plus on4/5

Ideal for IP cameras,VOIP phone,WiFi Access Points

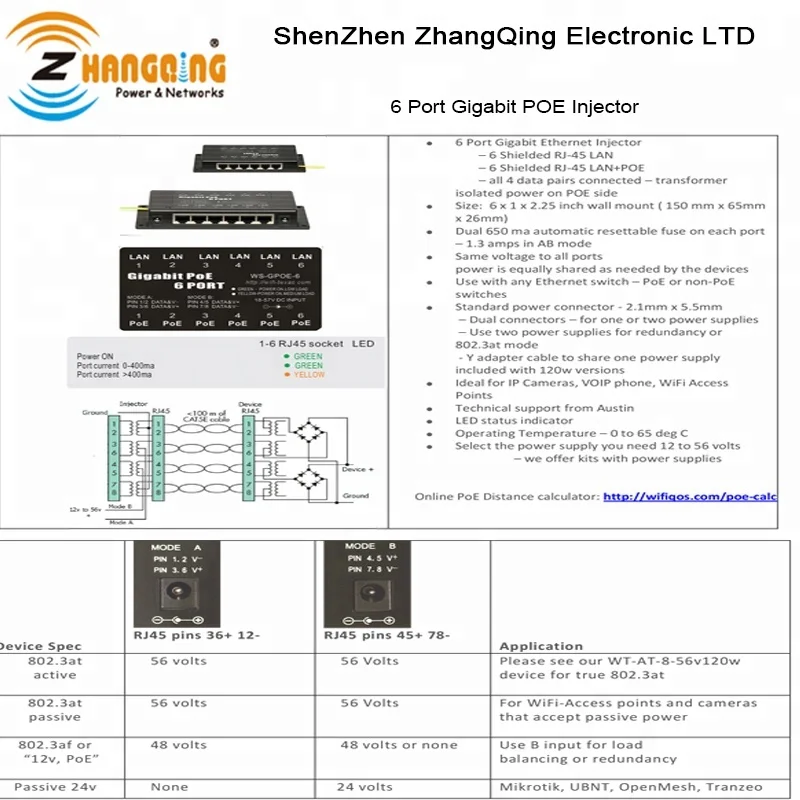

Specifications



Input	100-240Vac (18-57V dc In)
Output	18-57V 90W (Max)
Data	1/2&3/6&4/5&7/8
Power	3/6+ & 1/2- ,4/5+&7/8-
Data In	Connects PC/HUB/Switch
Weight	6 Port 180g
Dimensions	150mm×65mm×26mm
Ethernet Cable	TIA/EIA 568 Cat5/6
Data rate	10/100/1000Mbps
Connector	RJ-45
Operating Temperature	0°C ~ 40°C
Storage Temperature	-40°C~+70°C
Operating Humidity	10%~80%RH
Storage Humidity	5%~90%RH
Certification	CE FCC





LED Indicator



Power On                                                                               GREEN

Port current 0-400ma                                                            GREEN

Port current >400ma                                                            YELLOW







Application



Wireless Access Point (WiFi AP), such as MikroTik, Ubiquiti, OpenMesh etc

IP Phone

WiMAX Basestation

IP Survellance Camera

Door Security

POS

Netbook/mini Notebook

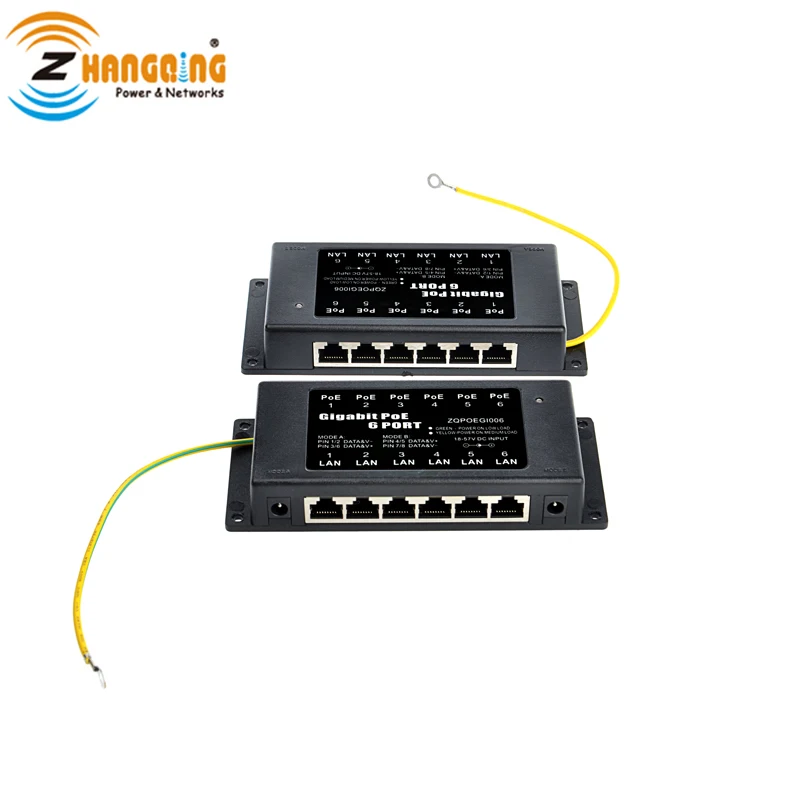

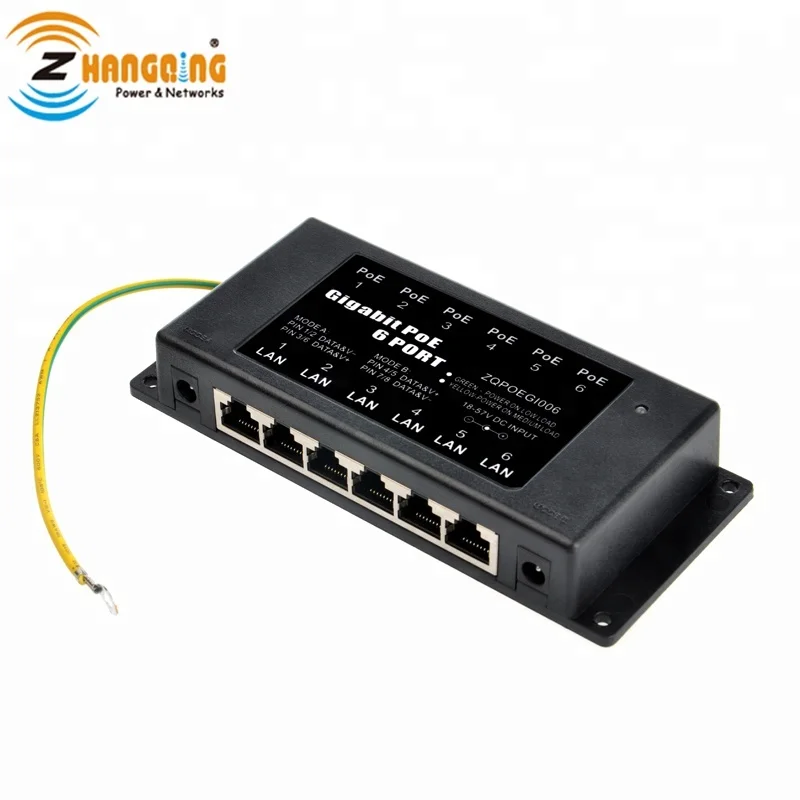

Detailed Images
