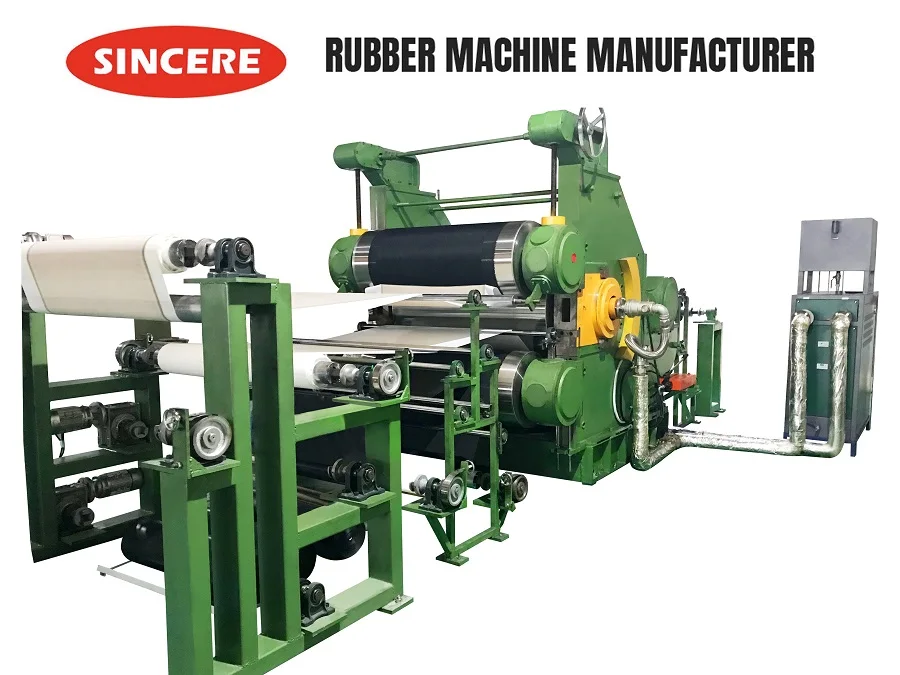

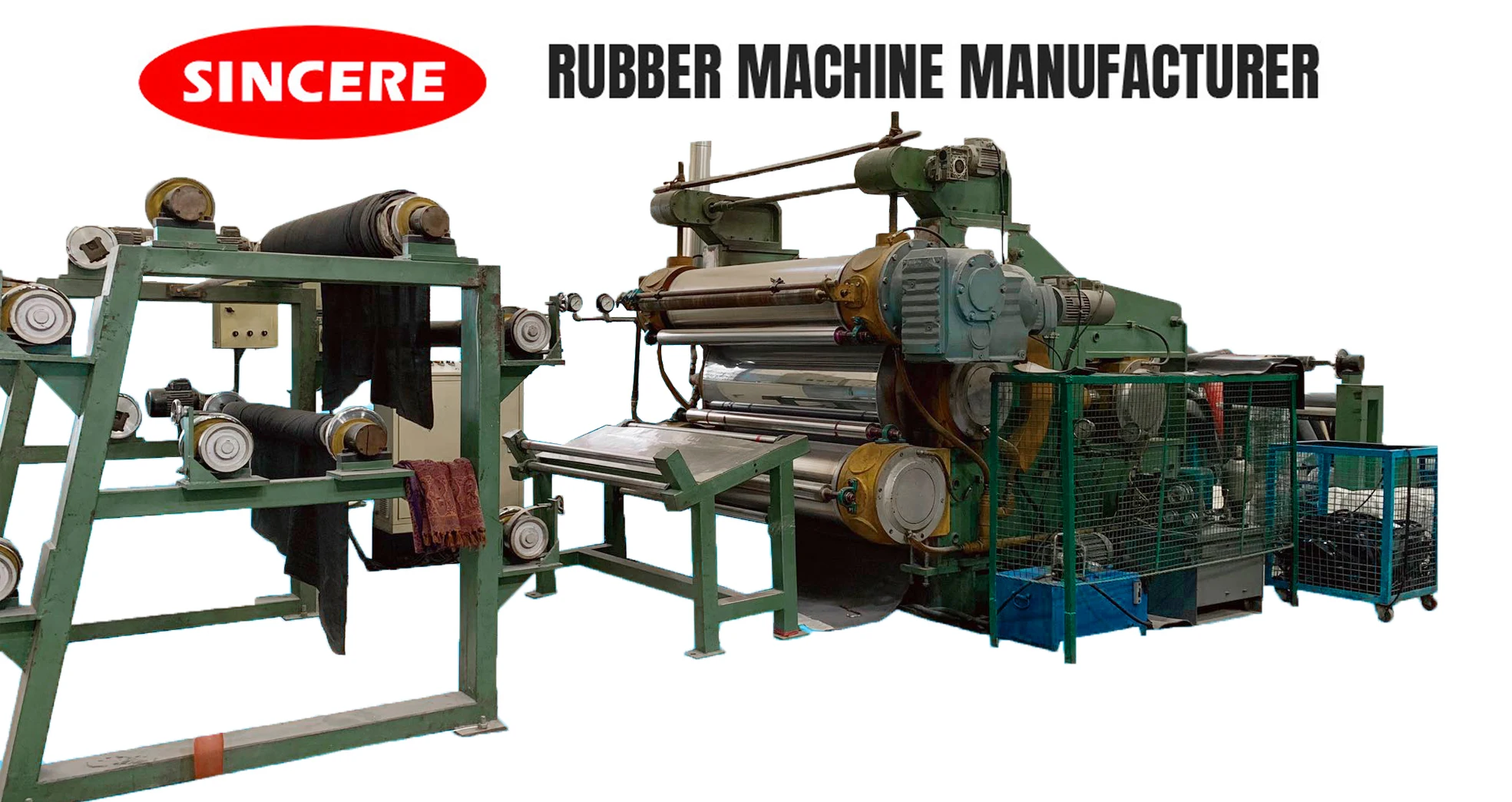

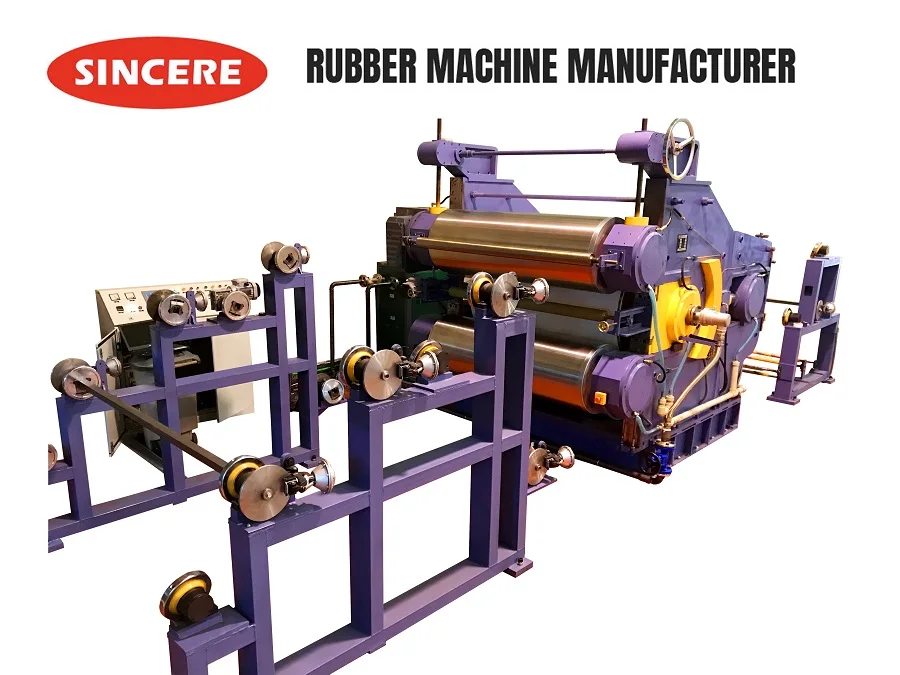

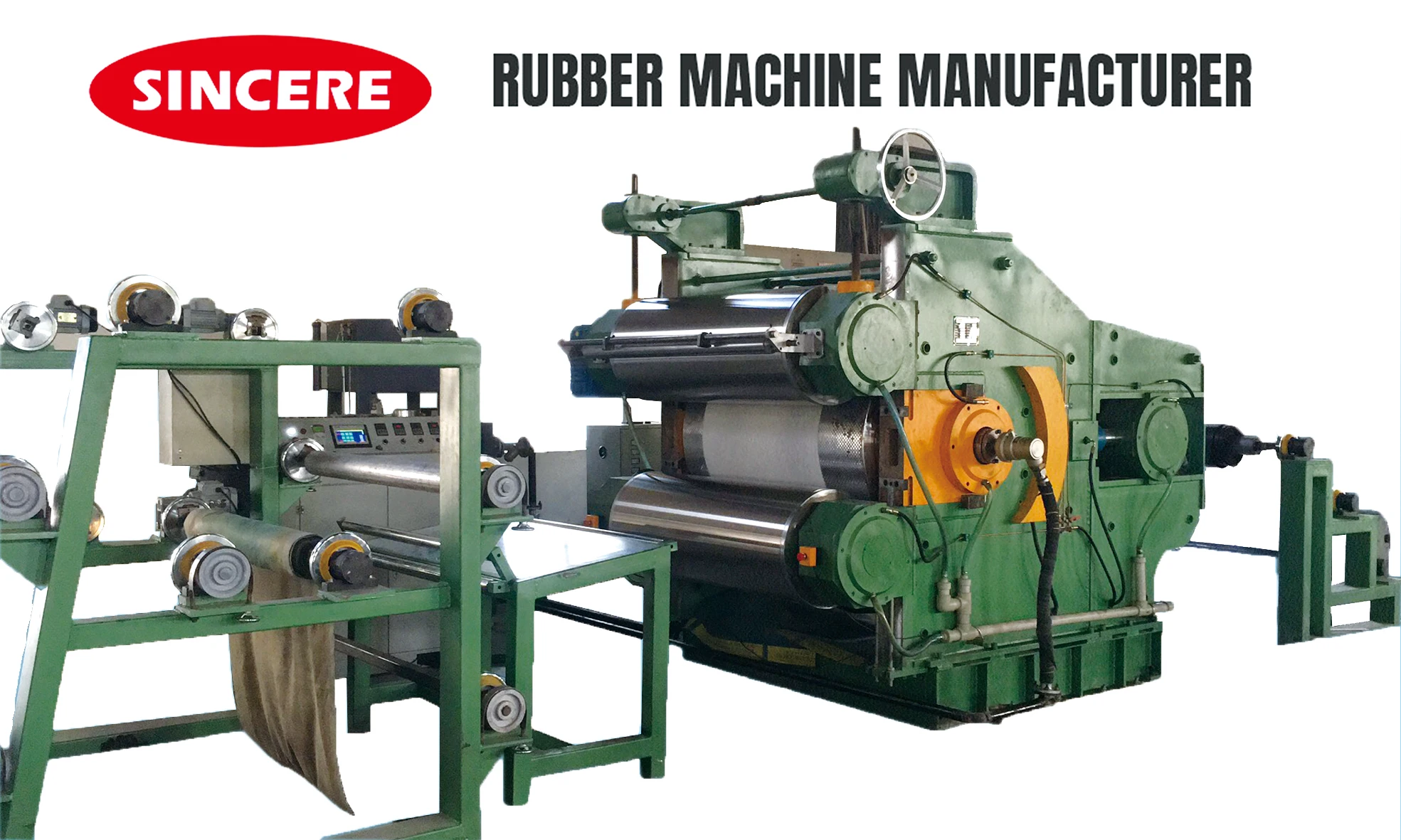

Hot Sale Rubber Tile Making Equipment

Product Overview

Description

Hot Sale Rubber Tile Making Equipment is mainly used for vulcanizing rubber sheet, silicone sheet, water proof material, rubber&plastic rubber sheet, light conveyor belt, printing mackintosh and other board-shaping products . The pressure is stable.  It can produce hundreds of meters and even thousands of meters circle belt.

Feature:

1.Curing drum is cavity roll.

2.Provide automatic deviation rectifier.

3.It has the function of automatic pressure retrieve and when oil pump stops overtime, oil way configure is more reasonable and reliable.
Vulcanization pressure is stable and adjustable.

4.Infered heating on the rear roller

5.Automatic cleaning device for steel belt and curing drum.



6. heating temperature, vulcanize time, vulcanize pressure, pressure compensate can be set, and operating is convenient.



7.Independent oil jar structure, exchange is convenient. Pillar adopts chilled cast iron, has high wearable and long life.





specification	DLG800X1440	DLG1000X1640	DLG1500X1440	DLG1500X2000
Max products width                   (mm)	1200	1500	1200	1900
Max products thickness            (mm)	10	10	12	15
Curing roll dia.                          (mm)	800	1000	1500	1500
Curing roll length                      (mm)	1440	1440	1440	2000
Auxiliary roll dia.                       (mm)	550	550	1000	1000
Steel belt width                         (mm)	1580	1580	1650	1950
Steel belt length                        (mm)	7700	7700	9800	15450
Steel belt thickness                   (mm)	1.2	1.2	1.9	1.9
Steel belt pressure                  (MPa)	10	18	25	25
Vulcanization pressure            (MPa)	≤1	≤1	≤1	≤1
Vulcanization time                     (min)	1-80	1-80	1-80	1-80
Curing roll line velocity          (m/min)	0.06-1.5	0.06-1.8	0.06-2.6	0.06-3.5
Vulcanization interval length       (m)	1.89	2.36	3.53	3.53
Main motor power                       (kw)	1.5	2.2	5	7.5



 AnHui SINCERE Machinery Co., Ltd.

                                                    ---rubber machinery, plastic machinery, speed reducer & rubber products

Who we are:

    SINCERE is a comprehensive enterprise dedicated to the rubber and plastic machinery industry, which integrates R&D, manufacturing and after-sales service.The company has ten years of rubber machinery production experience. With advanced technology, strong processing strength, first-class after-sales service , we win the trust of domestic and foreign customers. The products not only have a large share in the domestic market, but are exported to Spain, the United States, India, Vietnam, Sri Lanka, Germany and other countries

We serve the vast number of customers at home and abroad with the principle of "quality first, customer first". We advance hand in hand to create a brilliant future.

1.Are you a factory?
   Yes, we are. We do building and we do sale.

2.Do you support machine performance visit?
   Yest, we do.

3.About Price:
   The price is negotiable. It can be changed according to your quantity or components brand selection.

4.About OEM:
   Welcome, you can send your own design of the machine, then we check with our expert's experience for designing and manufacturing the perfect one for you.

5.About warranty:
   We are very confident in our machines, and we can give you one year of the the warranty at least. For any quality issue, we will deal with it immediately.

6.About payment:
   Pls be kindly informed we support various way of payment. It's negotiable as well.
