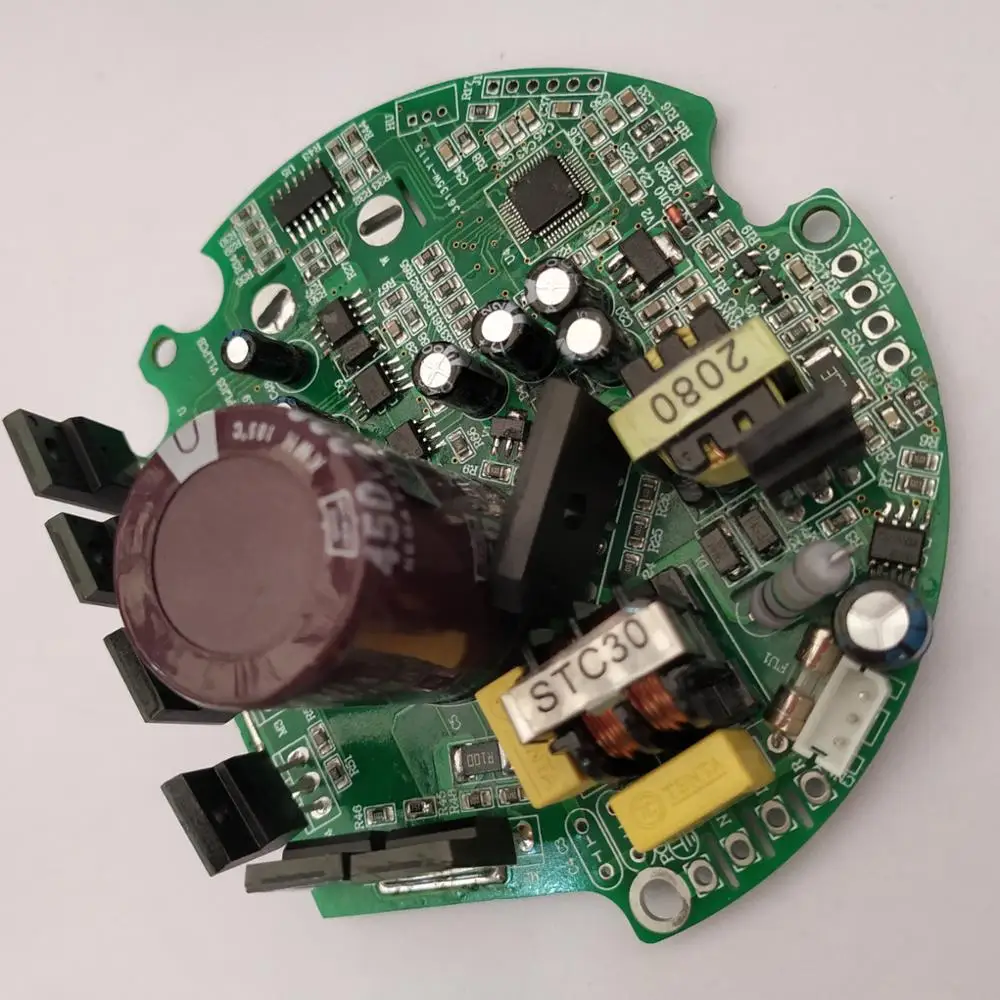

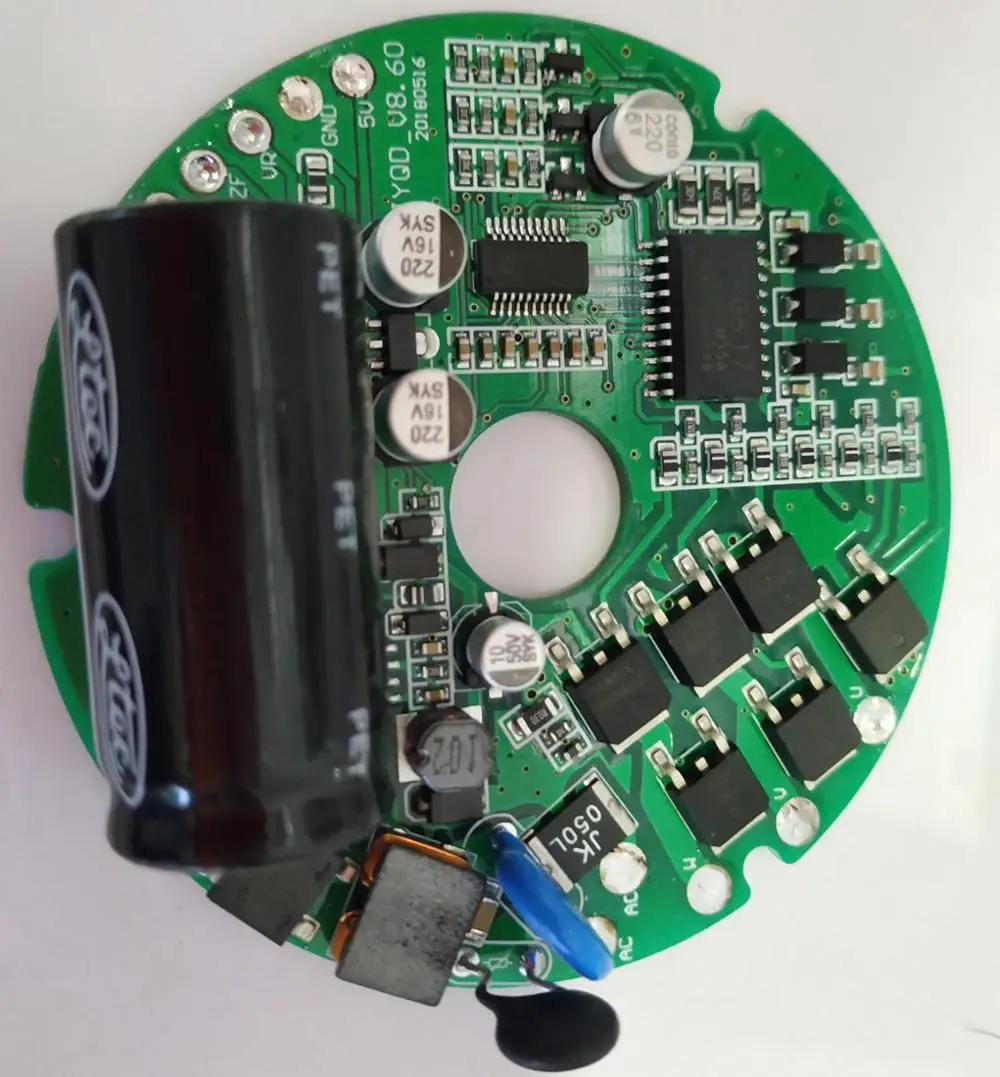

BLDC Motor Controller
- Category: >>>
- Supplier: Ningbo Jigu Motor Technology Co. Ltd.
Share on (60780764786):
Product Overview
Description

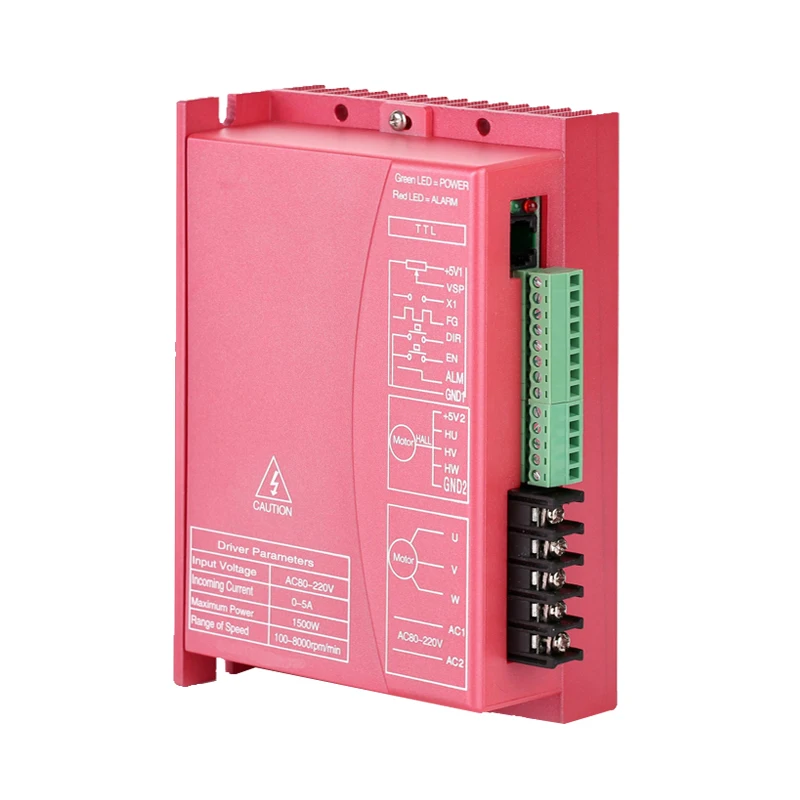

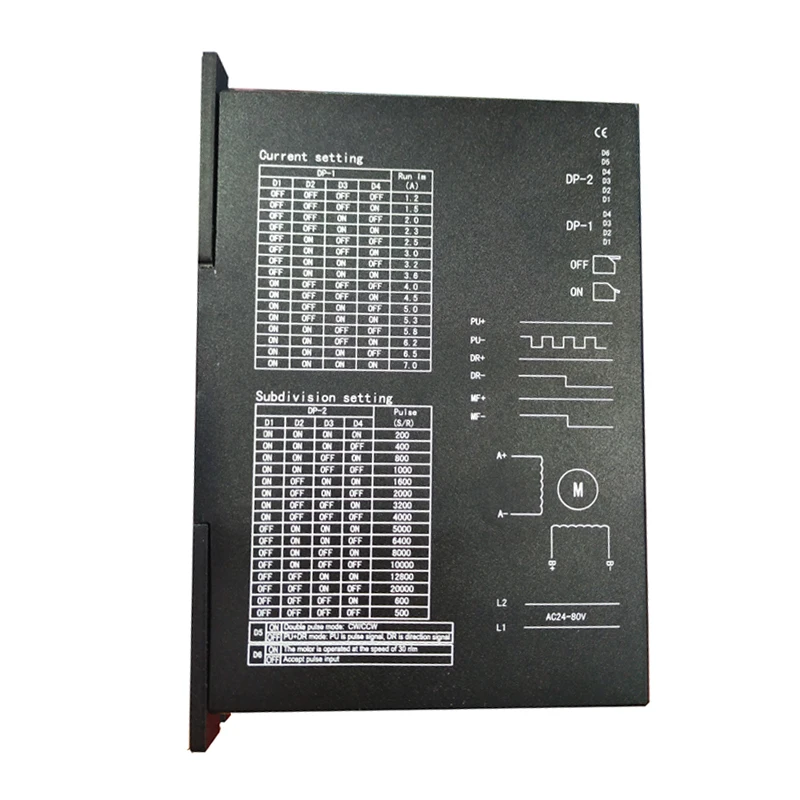

BLDC Motor Controller
Product Overview
| Rated Voltage | DC 10V-50V; AC 80V-250V |
| Max. Input Current | ≤ 15A |
| Speed Range | up to 20000 rpm (customized) |
| Dielectric Strength | 0.5 kv/ min |
| Operating Temp | 0℃ to + 50℃ |
Product Description
| MODEL | BL2210F | |
| Rated voltage | VDC | 18-50 |
| Max.Input Current | A | ≤5 |
| Rated Power | W | Max 240 |
| Output Power Range | W | ≤150 |
| Net Weight | KG | 0.15 |
| Adaptation Motor | Low pressure three-phase brushless dc motor with or without hall sensor | |
| Functions overview |
| Square wave open-loop/closed loop speed without hall sensor |
| Square wave open-loop/closed loop speed with hall sensor |
| Constant torque open-loop/closed loop mode |
| Factory default Setting: Square wave open loop speed with hall sensor |
| Functions can be redefine through host computer software or handheld debugger |
| Direction funchtion lost when operating without hall sensor |
| Product features |
| Double closed loop design of current and speed, low speed hightorque, smooth operation |
| High torque high speed output, max. speed 10000rpm |
| Speed control mode: 0-5v analog input range; 90hz-110hz PWM frenquency |
| Controller functions of start-stop (EN), direction (DIR), etc. |
| Functions of overcurrent, overvoltage, lowvoltage, overheat protection, motor stalling protection and etc. |

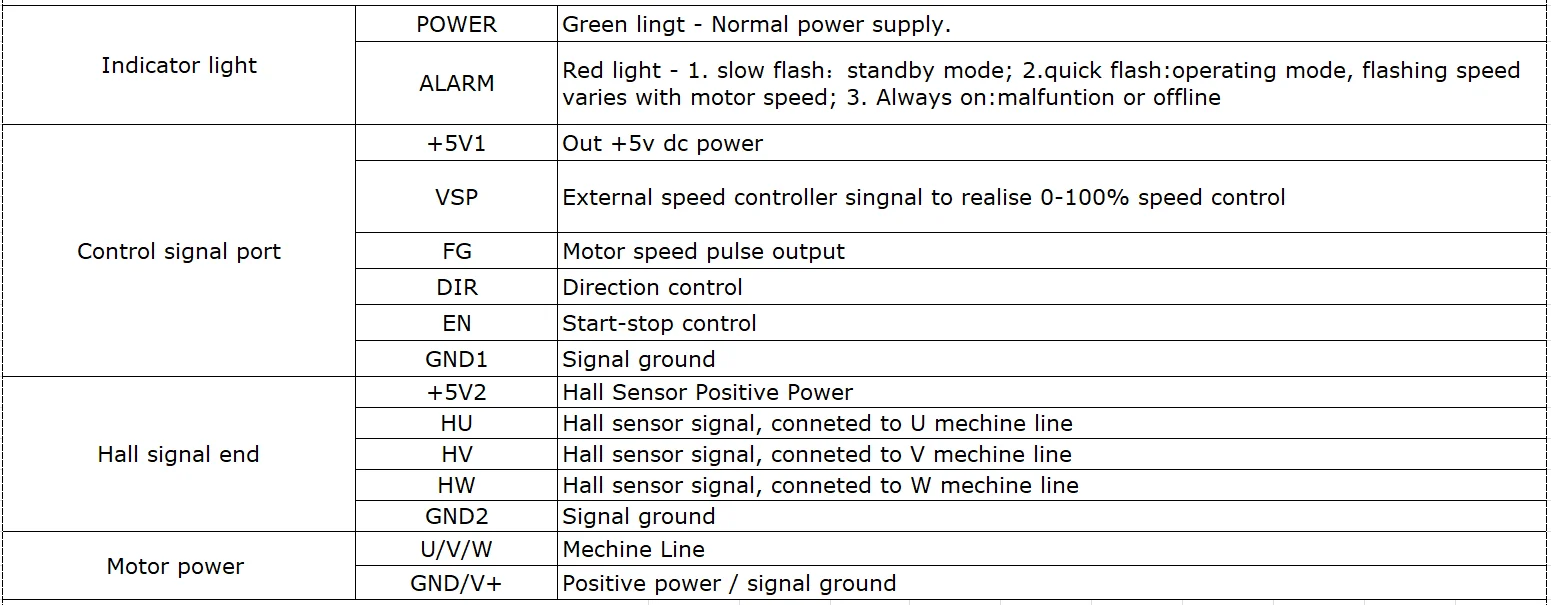

| Port Defination |
 |

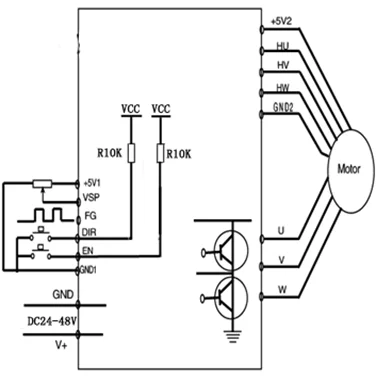

| Wiring |
 |
Customized Solutions
Customized Motor Solutions GP Motor specialize in design, custom and manufacture electric motors,including ECM Motor, PMDC Motor, Brushless Motor, Gear Motor, Servo Motor, AC Motor as well as Motor Driver and Parts .All of them can be fully and easily customized (see some of the many customization options listed below). We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now! |

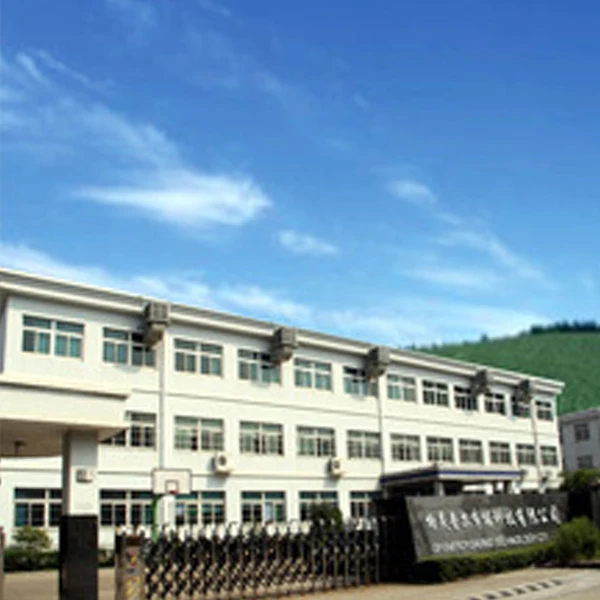

Company Information
