Растягивающая кровать для пациентов скорой помощи, используемая для больничного транспорта

Product Overview

Description

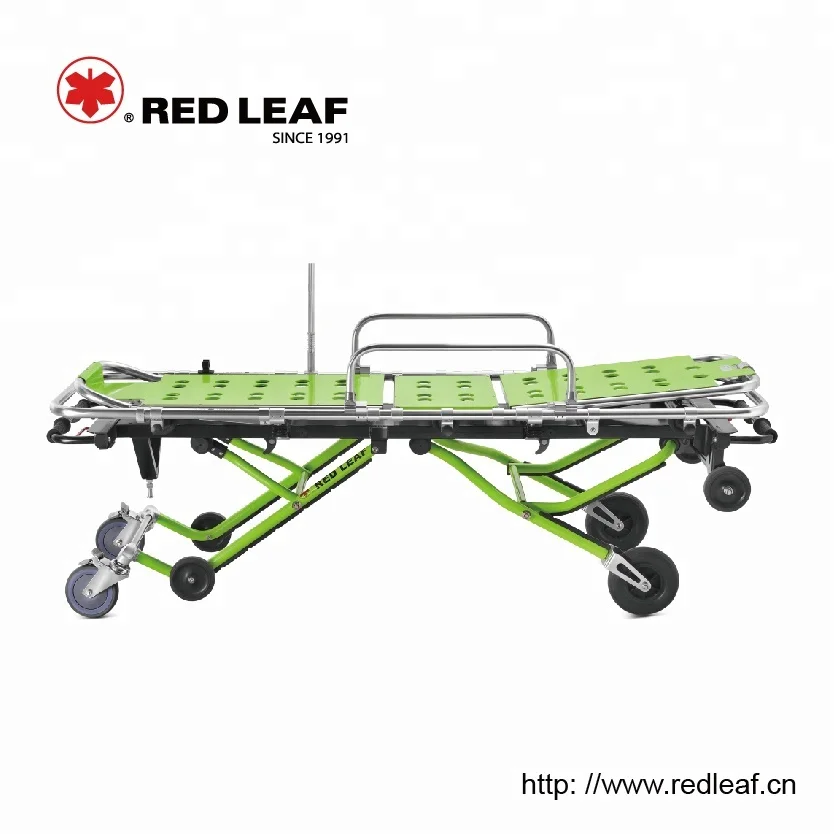

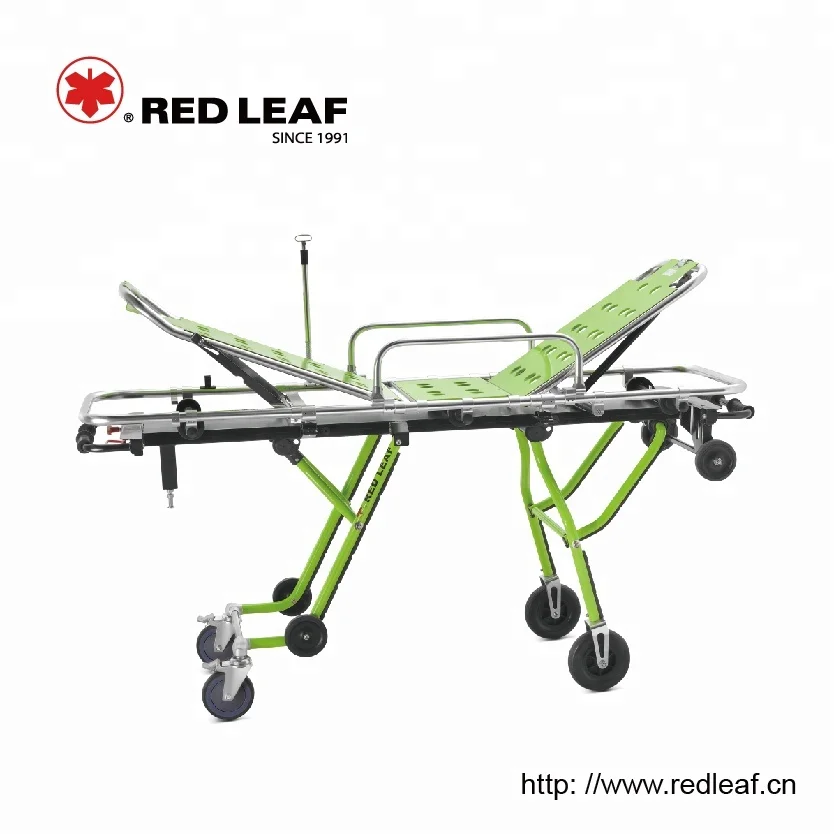

YDC-3H Ambulance patient stretcher bed used for hospital transport









Product parameters:



Model	High position	Low position	Maximum Angle of the Back	Maximum Angle of the Knee	Self-Weight	Loaing Weight	Packing
							Quantity	Size(LXWXH)	G.W
YDC-3H	193X56X90cm	193x56x31cm	65°	15°	45kg	181kg	1	204x60x48cm	50kg





Technical features:

The main material is high-strength aluminum alloy which is hardened and surface treated.

The whole height can be adjusted in more than 4 positions for the convenience of CPR, tilt angle can be adjusted in more than 12 positions.

Equipped with aluminum alloy adjustable guardrails and two safety belts for the convenience and safety of patient transport.

Equipped with adjustable two-stage I.V. Stand, The maximum adjustable length is 75cm;

Position adjustment adopts new type pressure spring pipe mechanism.

It has a separable structure, the upper part can be separated and be used as a simple stretcher, and two parts of the stretcher are locked by a secure and safe locking mechanism.

Stretcher mats are made of PVC material in a concave shape, thickness 10cm.

Only one medical staff is needed to push the stretcher into the ambulance car.

The folding mechanism of the leg part can be controlled by the handgrips on both ends. It must be fixed after loading into the ambulance car.

The loading height is 60cm. Wheel size: Ø150mm.
