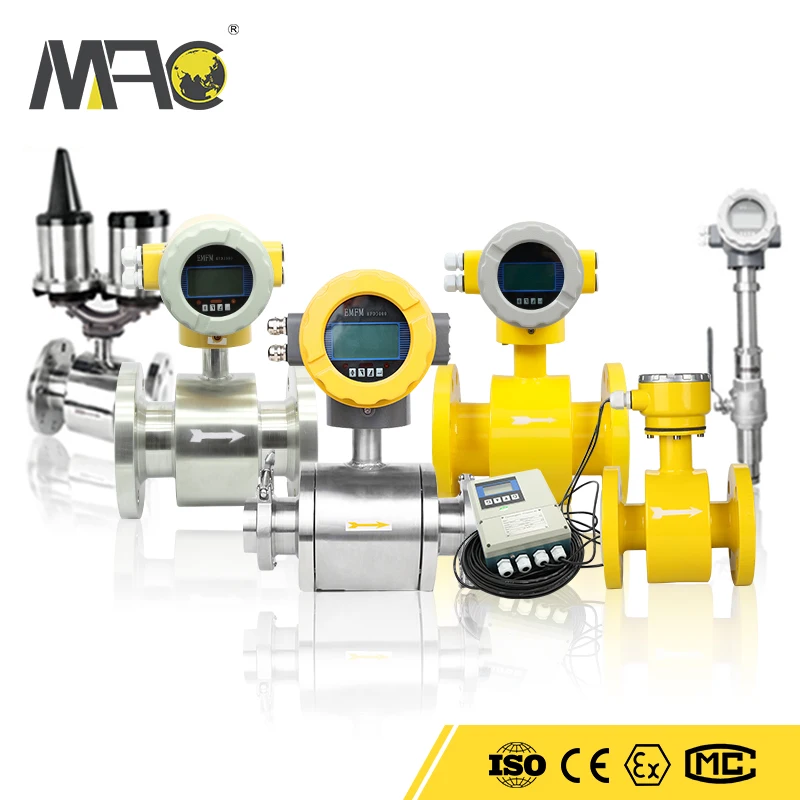

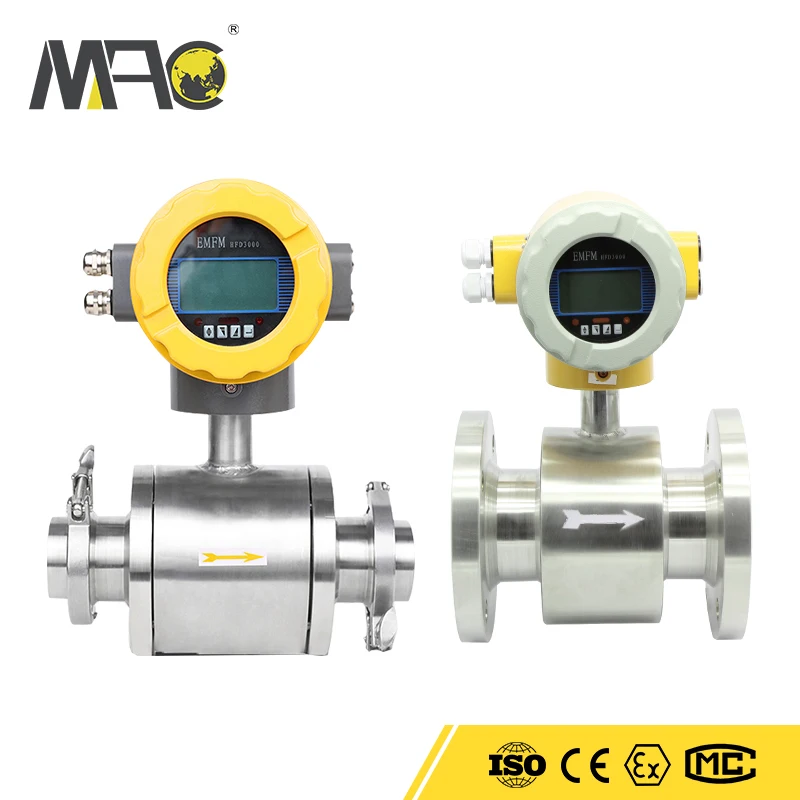

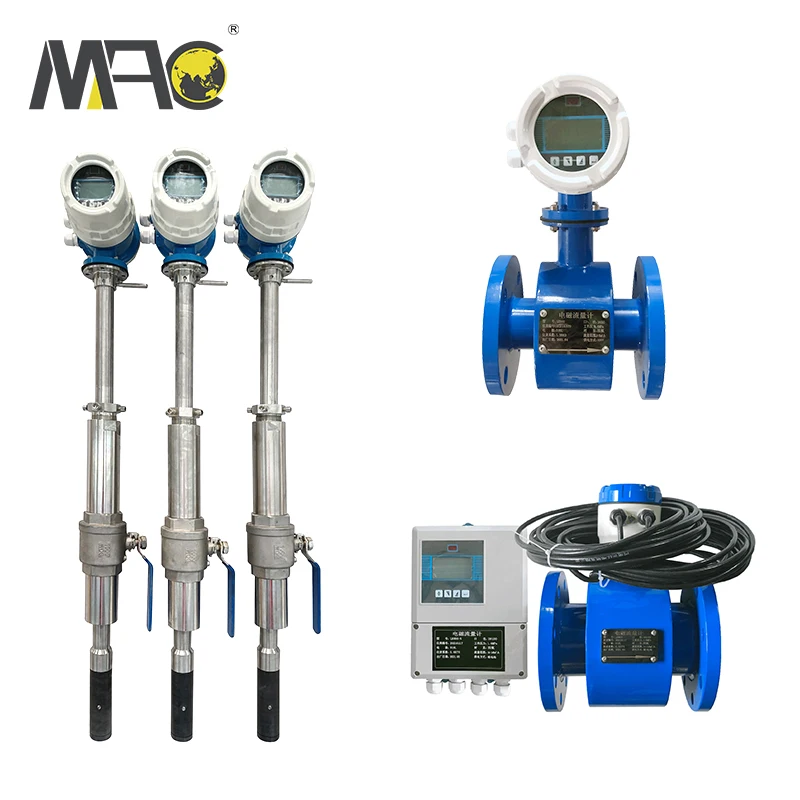

Macsensor 4 20ma Output With Rs485 Modbus 6 Inch Magnetic Water Flow Meter
- Category: >>>
- Supplier: Hunan Mac Sensor Co. Ltd.
Share on (60780837737):
Product Overview
Description
4-20ma output with RS485 Modbus 6 inch magnetic water flow meter
Macsensor intelligent electromagnetic flow meter is a high-performance, high-reliability flowmeter for measuring the volumetric flow of conductive liquids and slurries in closed conduits. Widely used in iron and steel, electric power, petroleum, chemical industry, coal, metallurgy, Papermaking, water supply and drainage, food, medicine and other industries
Basic technical specification for LD series of electromagnetic flow meter
Medium | Domestic water, industrial water, raw water, ground water, urban sewage, industrial wastewater, the processed neutral pulp, pulp slurry, etc |
Diameter | DN6~DN2200mm |
Accuracy | ±0.5% |
Medium temperature | <60℃ |
Nominal pressure | GB 0.6MPa (DN700~DN2000) GB 1.0MPa (DN200~DN600) GB 1.6MPa (DN6~DN150) |
DIN PN16,PN25,PN40,PN63 | |
JIS10K,20K,40K | |
ANSI Class150,Class300,Class600, others can be customized | |
Flow rate | 0.3~10m/s |
Straight pipe required | Upstream ≥5DN,downstream ≥3DN |
Electrode | 316L (Suitable for domestic water, industrial water, raw water, underground water, sewage, etc.; not applicable to acid and alkali salt) |
Lining material | Chloroprene rubber(CR), polyurethane rubber(PU) |
Installation way | Carbon steel flange (standard), Stainless steel flange(optional) |
Body material | Carbon steel (standard),Stainless steel(optional) |
Power supply | 220VAC/24VDC/lithium battery |
Signal output | Pulse and 4~20mA; (if use lithium battery, without signal output) |
Communication | RS485,GPRS,Hart |
Explosion-proof | EXdeibmIICT3-T6 |
Protection proof | IP65 (compact type); IP67,IP68(suitable for remote type) |
Work environment | Ambient temperature:-20~+60℃,Ambient humidity:5%~90% |
Power | <20W |

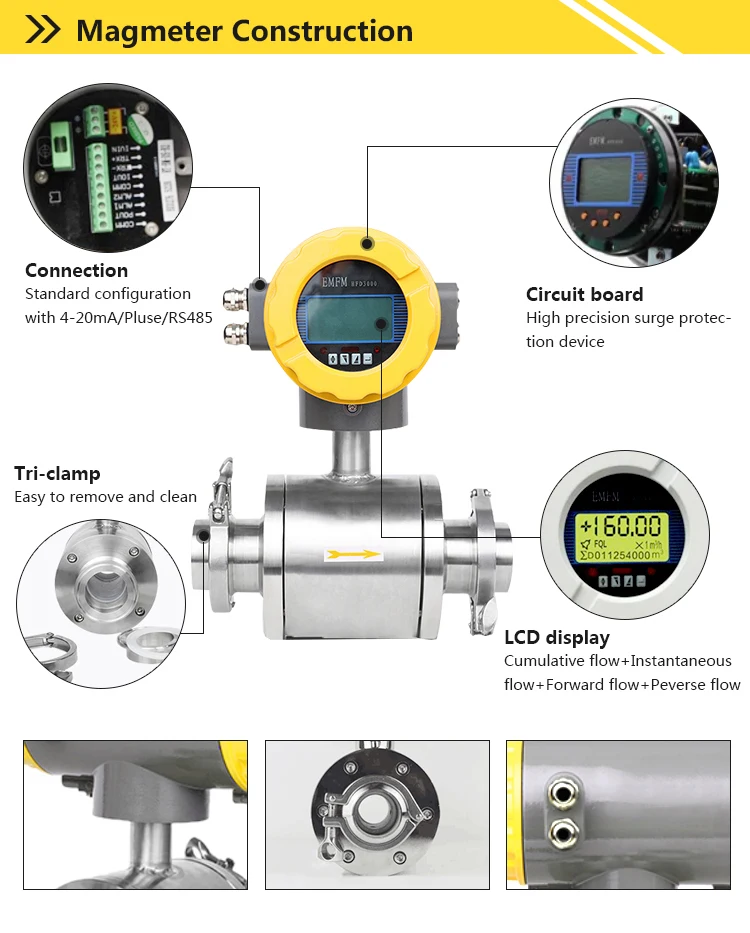

Detail shows the electromagnetic water flow meter
