8 feeders YAMAHA compatible high speed SMT pick and place machine for led lamp manufacturing machinery

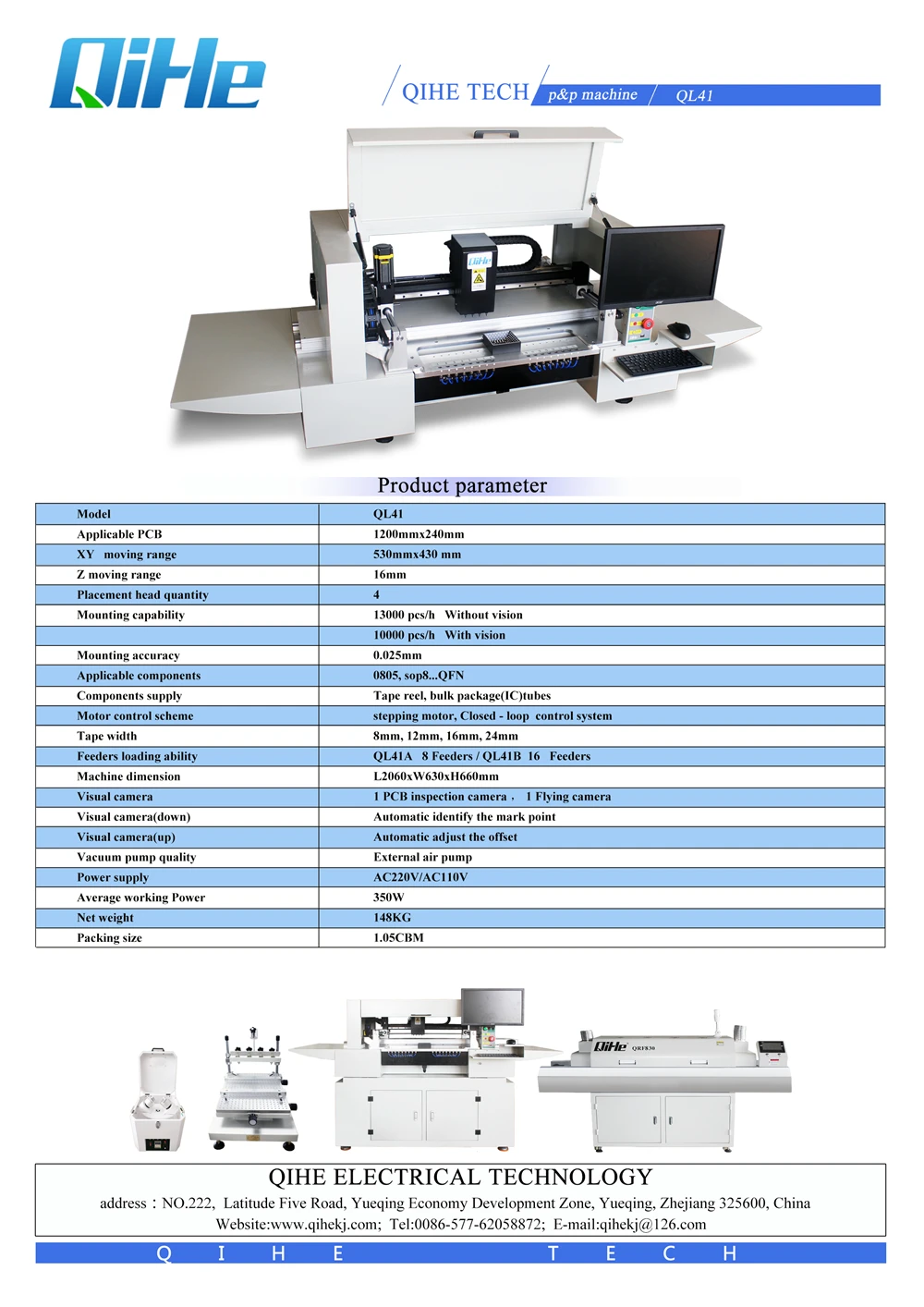

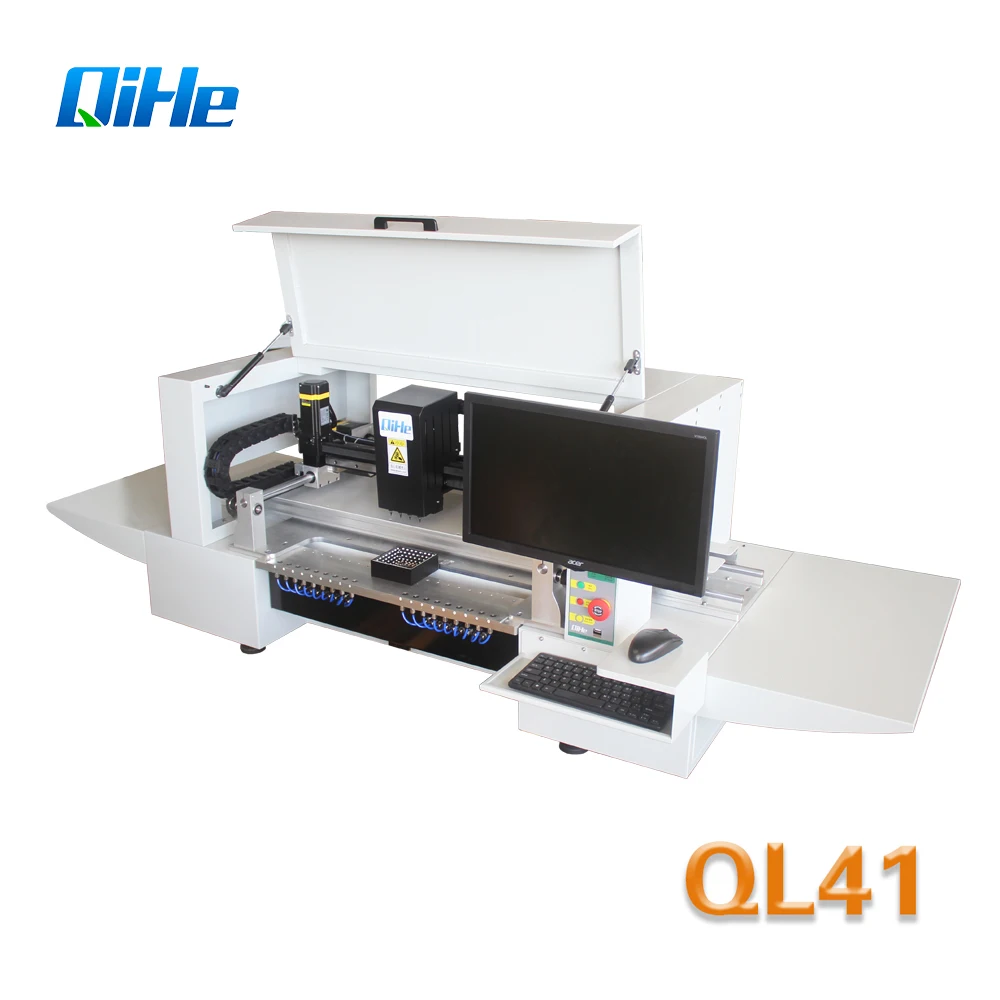

P&P machine QL41
| Model | QL41 |
| Max applicable PCB | 1200*240mm |
| Max XY Moving rang | 530*430mm |
| Max Z Moving range | 16mm |
| Placement head quantity | 4 |
| Mounting speed | Vision off: 13000CPH |
| Vision on: 10000CPH | |
| Applicable component | 0805-5050. SOP8 etc. |
| Component supply | Tape reel, Bulk, Tubular etc. |
| Vision system | 1 PCB inspection camera, 1 Flying camera |
| Control scheme | Closed-loop motors |
| Feeder count | QL41A 8 feeders/ QL41B 16 feeders |
| Power | 125W(average power) |
| Power supply | AC220V or AC110V |
| Machine size | L2060*W630*H660mm |
| Volume | 0.95CBM |
| Net weight | 156kg |
| Gross weight | 210kg |
| Support PCB design software | Protl99/Altium Designer/Eagle/Pads/Allegre etc. |
Main Feature:

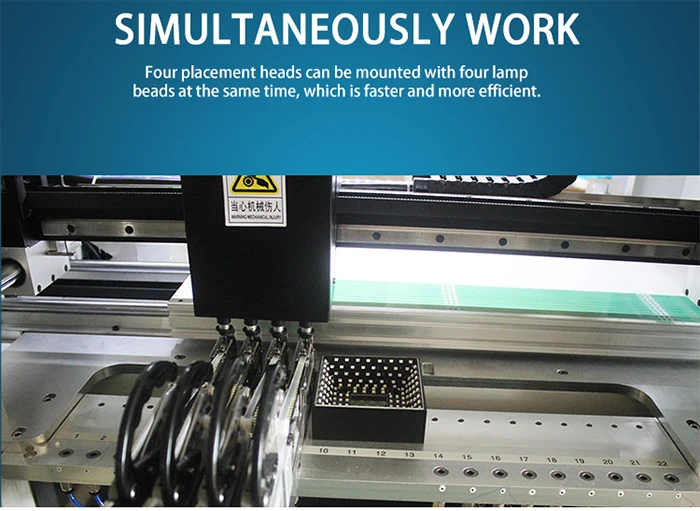

1. Four mounting heads can pick 4 materials and through vision at the same time.

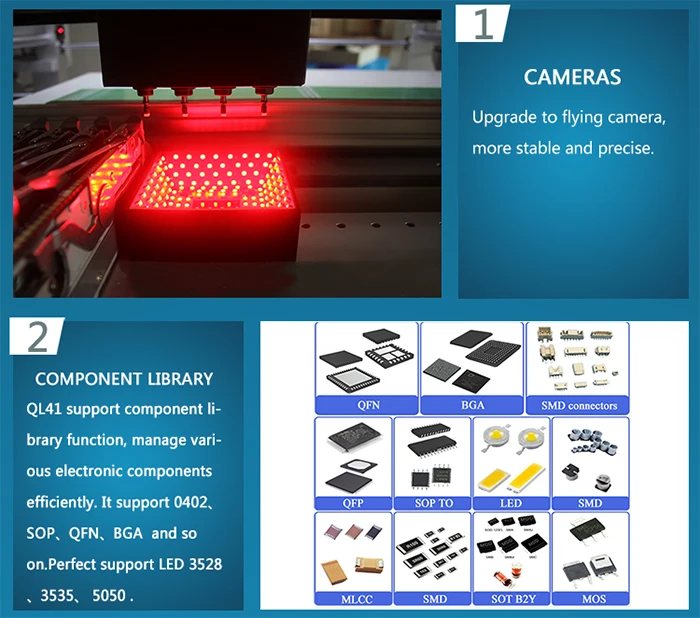

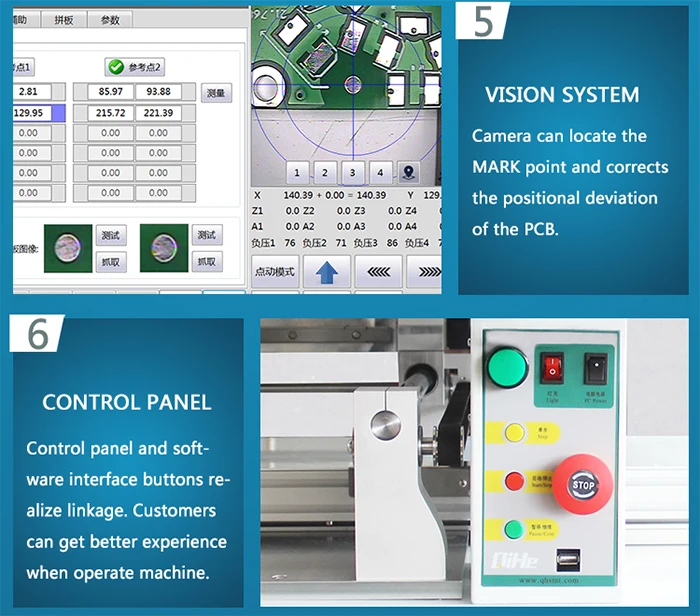

2. Flying vision camera is more stable, making mounting speed fast. One down-looking camera used to detect circuit board placement.

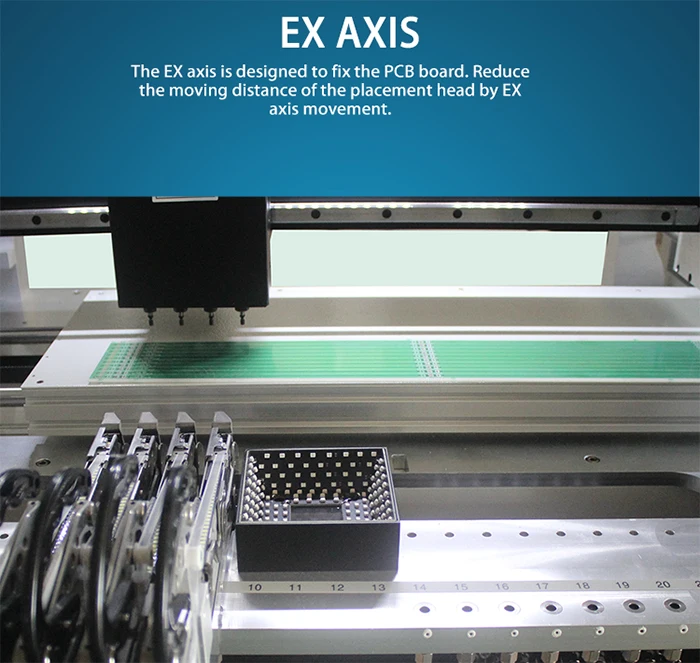

3. The EX-axis is designed to lay up the circuit board. In the process of mounting, the ex axis moves, driving the circuit board to move, so that the shortest mount distance.

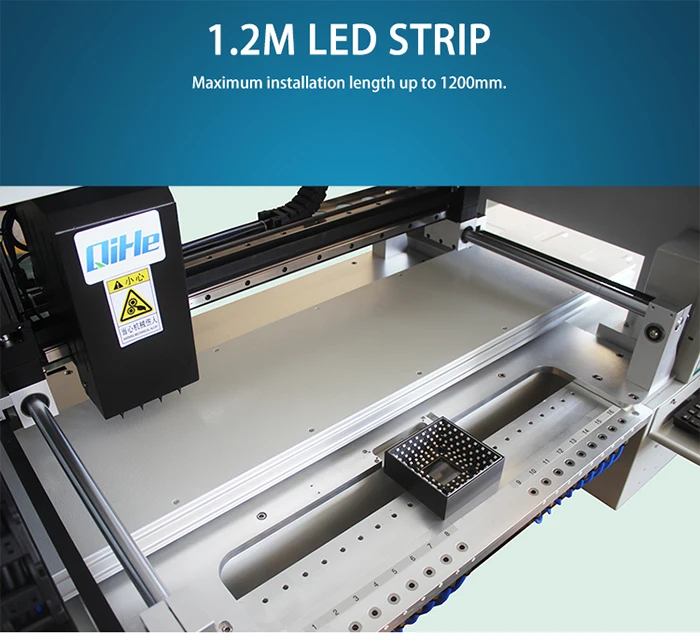

4. Mounting length up to 1200mm. Suitable for various types of LED strips and boards.
5. Closed-loop motors design, automatic detection and correction of lost step.
