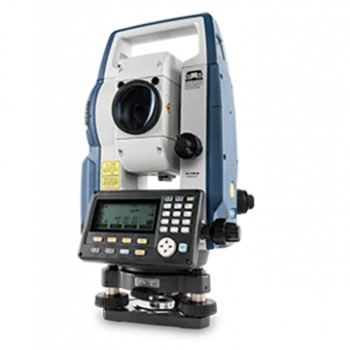

CX 50 Economic Engineering Total Station

Product Overview

Description

The CX-50 Series is an engineering total station with IP66 high degree of protection and prismless ranging. It also features dual axis tilt compensation, 15-hour battery life, powerful onboard software and 5000 points of data memory. The index, combined with its affordable price, makes it an ideal, cost-effective entry-level solution for engineering construction stakeouts, as-built measurements.



Features:

1,RED-tech technology reflectorless EDM

2,Rflectorless up to 350 m

3,up to 15 hours battery life

4,On-board software

5,Red laser pointer

6,waterproof IP66

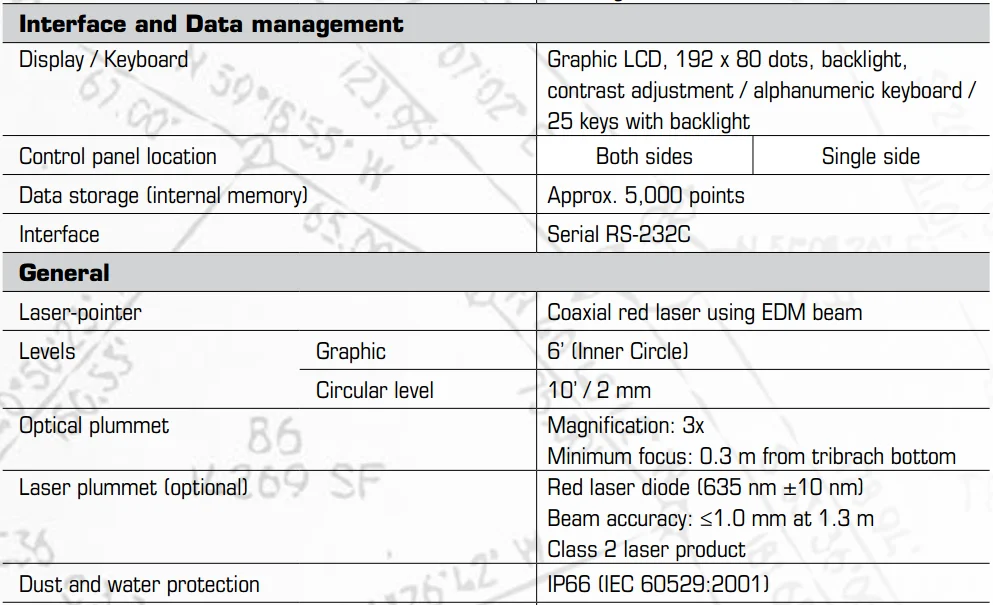

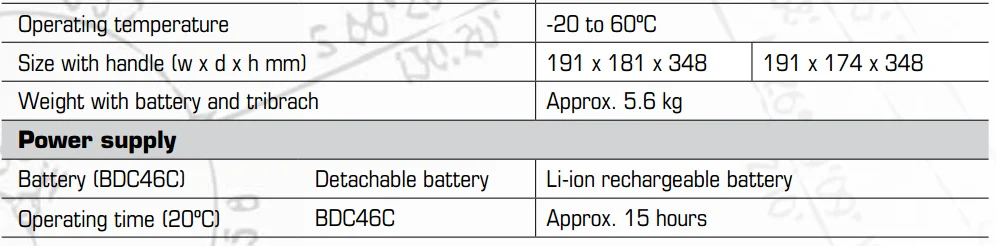

Specification:

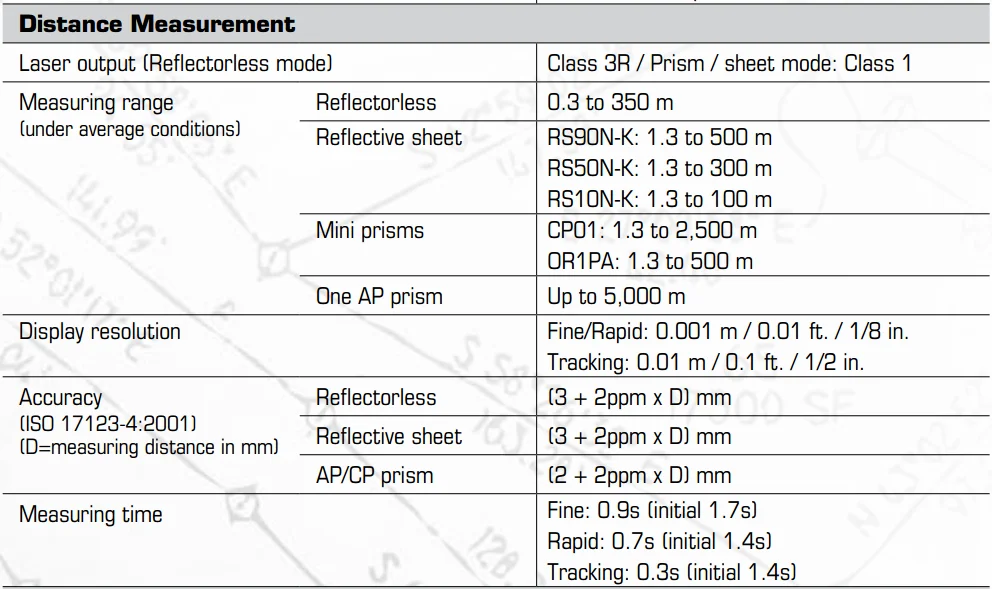

RED-tech Technology Reflectorless EDM

      fast distance measurement of 0.9s.

      Sokkia's traditional pinpiont precision in reflectorless distance mearsurement.

      Reflectorless operation from 30 cm to 350 m.

      Coaxial EDM beam and laser-pointer provide fast and accurate aiming.

      Ensures accurancy even with reflective sheets.



Waterproof,Rugged,and Operator Friendly

     IP66 dustproof/waterproof rating.

     Rugged mental chassis and heavy duty handle.

     Standard usage temperature range -20° to 60℃

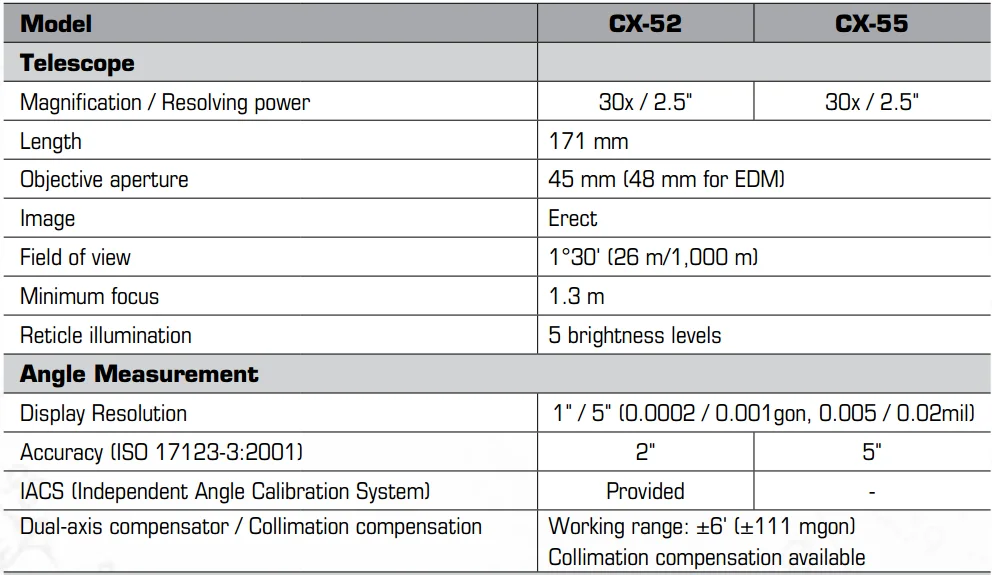

Advanced Angle Measurement System

     The CX-50 series features Sokkia's original absolute encoders which provide long-term reliability in any job site condition.

     The dual-axis compensator ensures stable measurements even when setup on uneven terrain.

      Sokkia's traditional motion clamp and tangent screw are employed to ensure stable angle measurement.

      CX-52 features IACS(Independent Angle Calibration System)technology for extremely reliable angle measurement.
