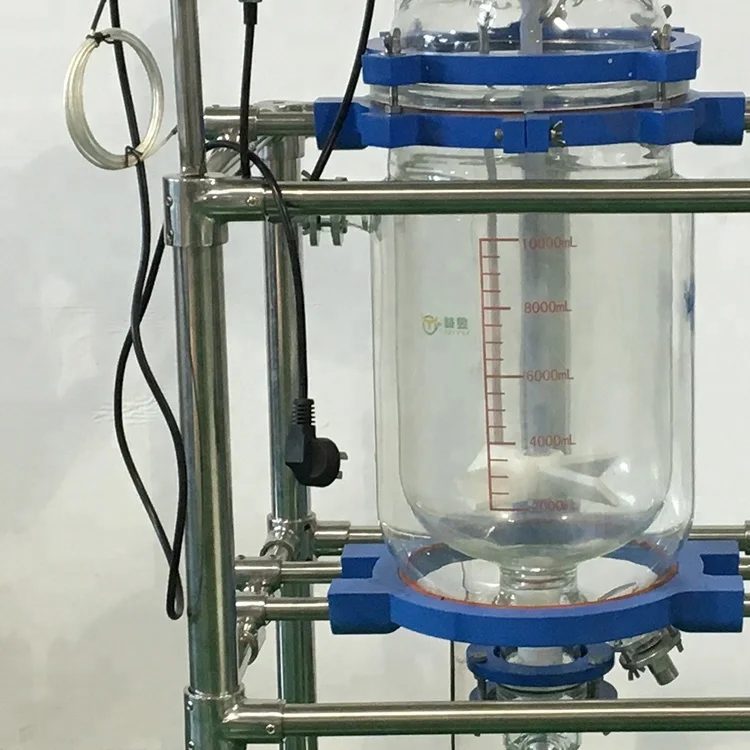

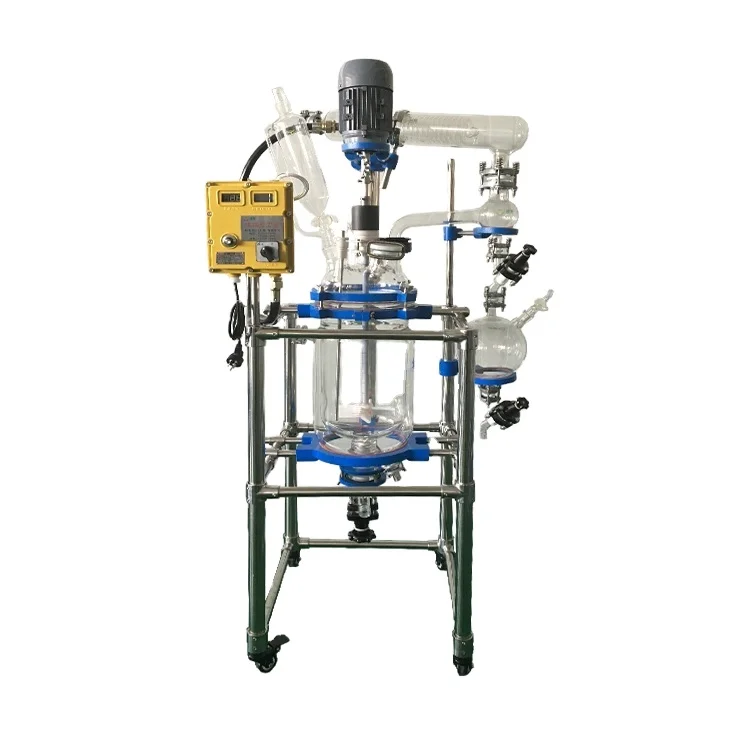

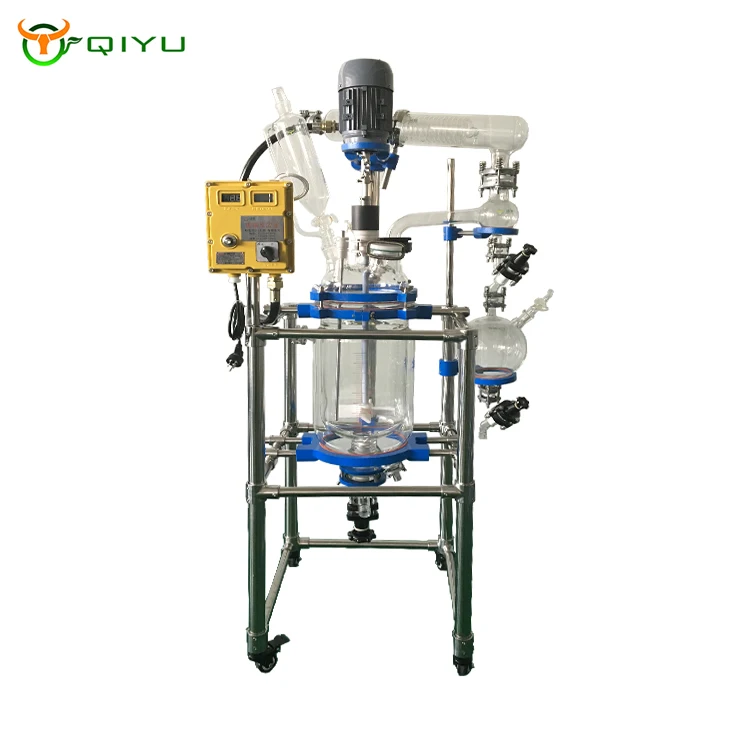

pilot plant reactor Fully Customizable Fast Delivery 10L 50L 100L 200L Explosion proof Double jacketed glass reactor
- Category: Chemical & Pharmaceutical Machinery >>>
- Supplier: Qi Yu Industry(Shanghai) Co. Ltd.
Share on (60780889253):
Product Overview
Description
Product Description
Introduction

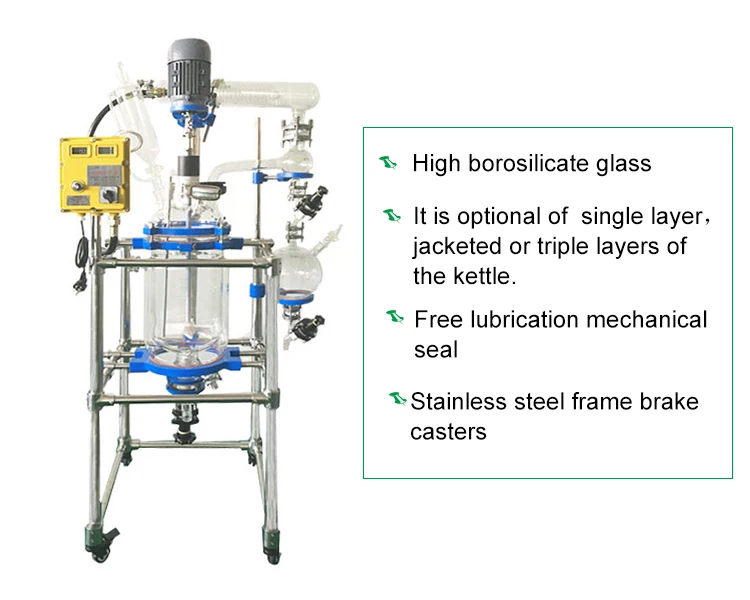

Different cold and hot circulating fluid (hot water / hot oil / freezing liquid) can be put into the layer of double glass reactor. In the sealed glass container, the reactants are stirred and distilled at normal pressure or negative pressure and can be used for various biochemical synthesis reactions under constant temperature conditions, and can also be reflux or distilled at different temperatures.

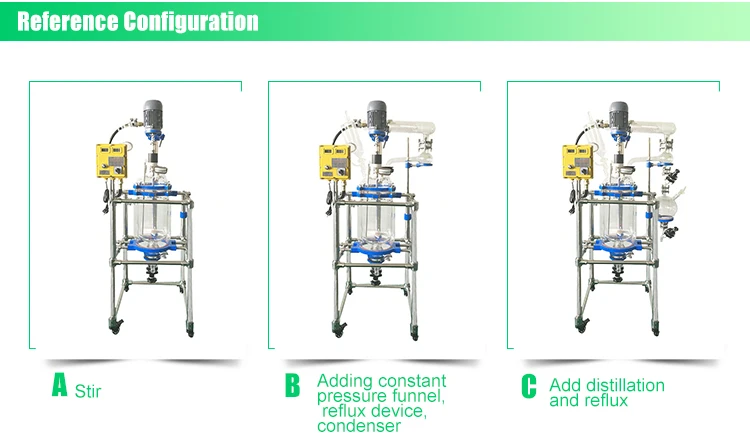

The reaction kettle covers different openings to realize the different effects of feeding, measuring temperature, recovering distillates and so on.

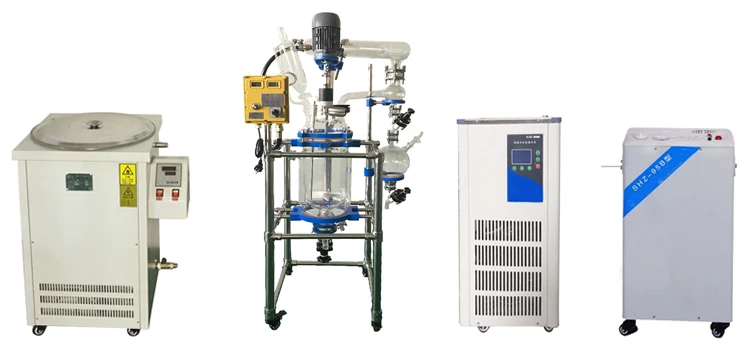

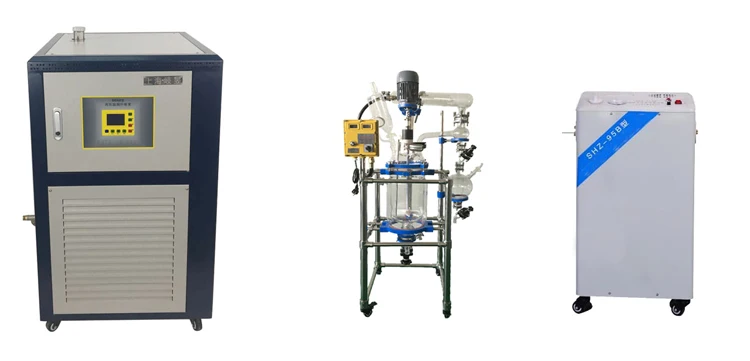

The full transparent reaction process is an ideal test equipment for modern fine chemicals, new biochemicals research and development, pharmaceutical intermediates, precious metals purification, new graphene energy materials and aerospace materials. Qi Yu company keeps pace with the times, can provide the reaction kettle system from simple kettle to complex process. The product can be used with circulating water multipurpose vacuum pump, high and low temperature circulation device, one-stop matching, for your free expansion of the ideal choice of reaction synthesis.
Here we provide various specifications of the reactor, the volume from 250 mL to 200L single and double decker.You can also customize different specifications of the reaction kettle according to your needs.
Application
Fine Chemicals, Biochemical New Drug Development, Pharmaceutical Intermediates, Purification of Noble Metals, Graphene New Energy Materials and Aerospace Materials.
| Model | QYSF -10C | QYSF -20C | QYSF -30C | QYSF -50C | QYSF -100C | QYSF -150C | QYSF -200C |
| Capacity(L) | 10 | 20 | 30 | 50 | 100 | 150 | 200 |
| Jacketed volume(L) | ≈4 | ≈5 | ≈8 | ≈15 | ≈20 | ≈40 | ≈45 |
| Support frame | 304 stainless steel | ||||||

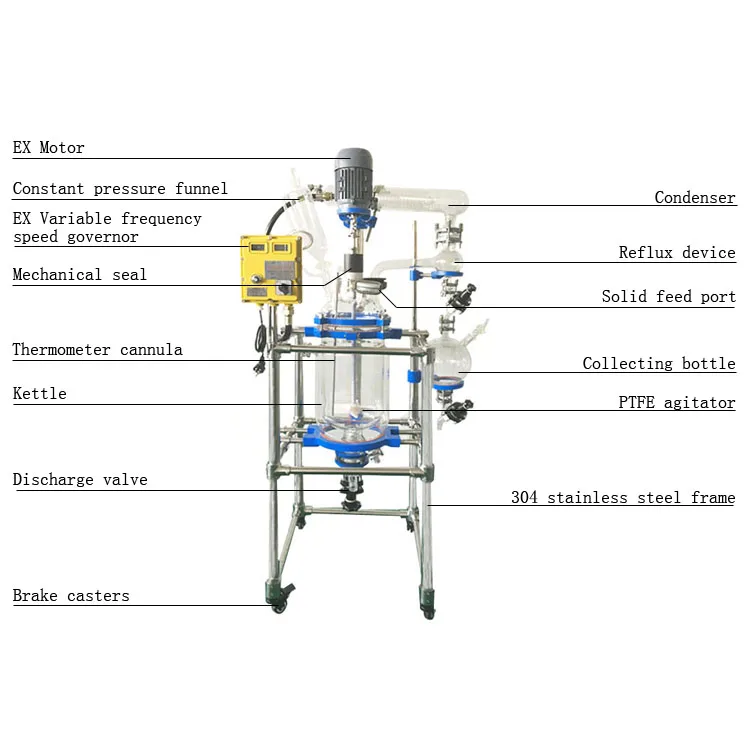

Number of openings in kettle lid | 6(stirring,temperature measurement,liquid feeding, solid feeding,Constant pressure drop,Reflux device) | ||||||
| RPM/minute | 0-400 | 0-260 | |||||
Motor/Specific speed(W) | `120/1:3 | `200/1;3 | `400/1:5 | ||||
Temperature measurement(℃) | Single layer propulsion | Double decker propulsion | Three layer propulsion | ||||

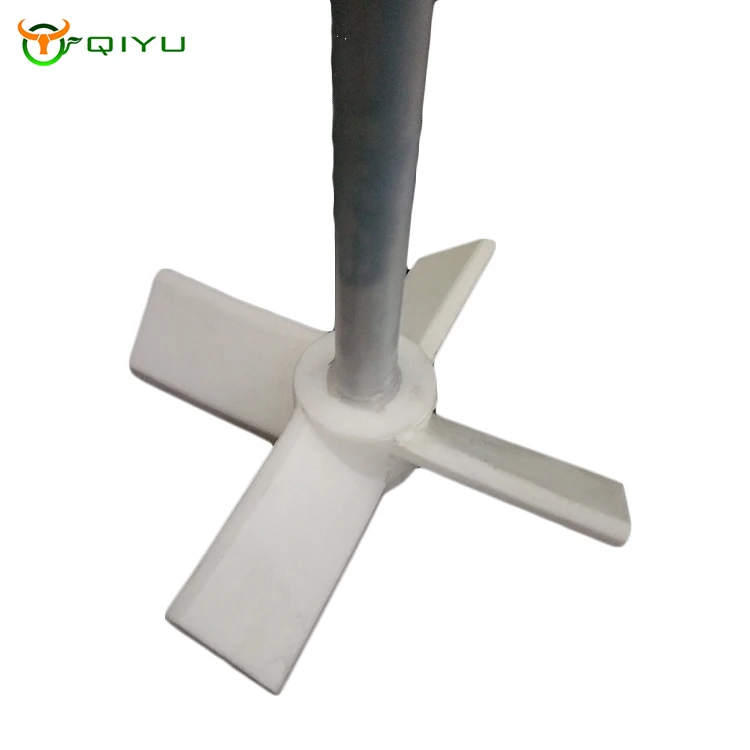

| PTFE Stirring blade | Teflon PT100 without fracture Accuracy ±0.1℃ | ||||||
| Temperature display | Digital display | ||||||
| Discharge valve | Top type without dead angle | ||||||
Constant pressure funnel | 1L | 2L | Optional | ||||
| Condenser | Standard configuration | ||||||
Collecting bottles (L) | 2L | 3L | Optional | ||||
| Liquid feed valve | 34# | ||||||
| Sealing method | Self lubricating mechanical seal | ||||||
Vacuum degree (Mpa) | Water pump 0.098 | ||||||
| Explosion proof motor | Selecting configuration | ||||||
Explosion-proof frequency converter | Selecting configuration | ||||||
Use of ambient temperature(℃) | 5~40 | ||||||
Dimension(L*W*H) (mm) | 650*500 *1800 | 700*520 *1950 | 750*550 *2130 | 800*600 *2350 | 920*700 *2500 | Customized | Customized |
| Voltage(V) | 220V/50Hz | ||||||
Related Products
Company Information
Qiyu Industrial (Shanghai) Co., Ltd. is located in the Jiading District Industrial Park of Shanghai city. We have considerable experience in R&D, and have obtained the national patent. We mainly produce glass reactor, rotary evaporator, short-path molecular distillation, temperature control system, vacuum equipment and other types of equipment.
The company has strong technical force, complete production equipment, continuous absorption of advanced technology at home and abroad, and active development of new products.
We will continue to pursue the dedication of "honesty and innovation", and provide customers with perfect pre-sale, sale and after-sales service. Internationalization and standardization will transform innovation into productivity and let customers to use synchronized international products.
Packaging & Shipping
Our Services
FAQ
1,Are you a manufactury or a trading company?
--We are a manufactury of a rotary, glass reactor and heating and cooling equipment and now we begin to import and export by ourselves.
2,How long is your date of delivery?
--If the goods are in stock,it is within 7 days. However, it will be 15 days. Also it is depending on the quantity.
3,Do you accept OED/ODM?
--Yes, of course.
4,How to solve the equipment trouble during the using?
--Please send us email of the problem, pictures or a small video, we will find the problem and help you to solve it.
5,What is your MOQ?
--One set.
6,What size of the products do you have?
--Our regular products are 1L,2L,5L,10L, 20L,30L,50L,100L,200L and custom product models are based on different specifications.
7,Do you provide samples? Is it free?
--Yes, but considering the high value of our products, so the sample is not free.
